Adapter plate for mini whoop aio boards in 1mm

Note: This is the single adapter plate only; you can use this as a top plate on any of the mini Scooter kits

Zappy topmount camera plate

Zappy topmount camera side

Zappy Camera Mount clip

1.5mm, goes with camera mount kit

Zappy FPV camera side

1.5mm side for Camera mount kit

Zappy Soldering Jig

Suits Zappy Z100, Z120, Z135 frames wity 11xx (9mmx9mm) mounts

An aid to soldering the motor wires to the escs

Very handy for neat work

Does not fly very well

Zappy Z120 trimount 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z120 trimount 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z120 trimount 2mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z120 trimount 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z120 trimount 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z100 trimount 2mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z100 trimount 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z100 trimount 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z120 Whoop 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

This special zappy adaptation is for the whoop type controller and conventional 11xx (9mmx9mm) motors

Zappy Z120 Whoop 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

This special zappy adaptation is for the whoop type controller and conventional 11xx (9mmx9mm) motors

Zappy Z100 Whoop 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

This special zappy adaptation is for the whoop type controller and small tri-mount motors

Zappy Z100 Whoop 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

This special zappy adaptation is for the whoop type controller and small tri-mount motors

Zappy Z100 2mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z100 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

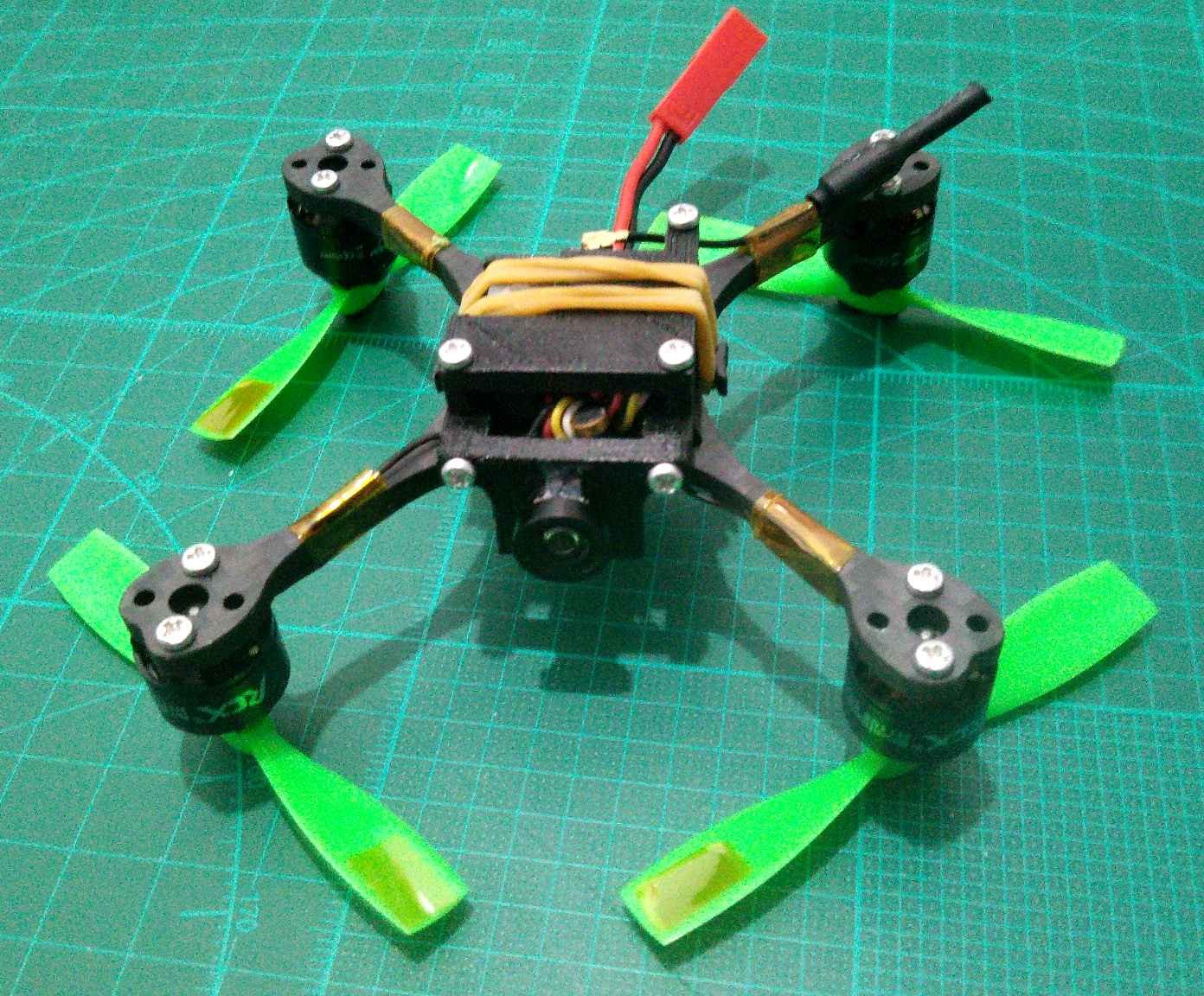

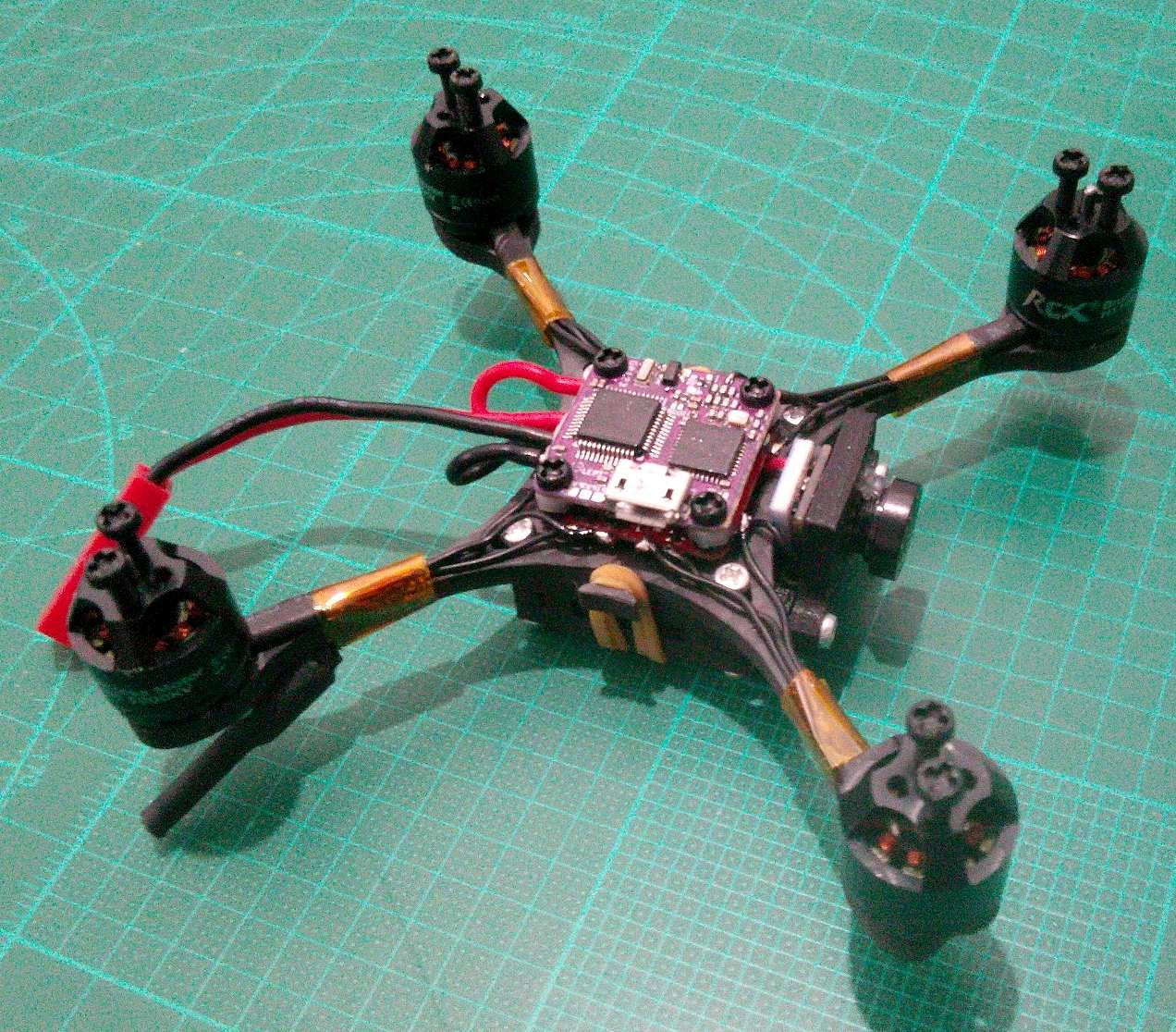

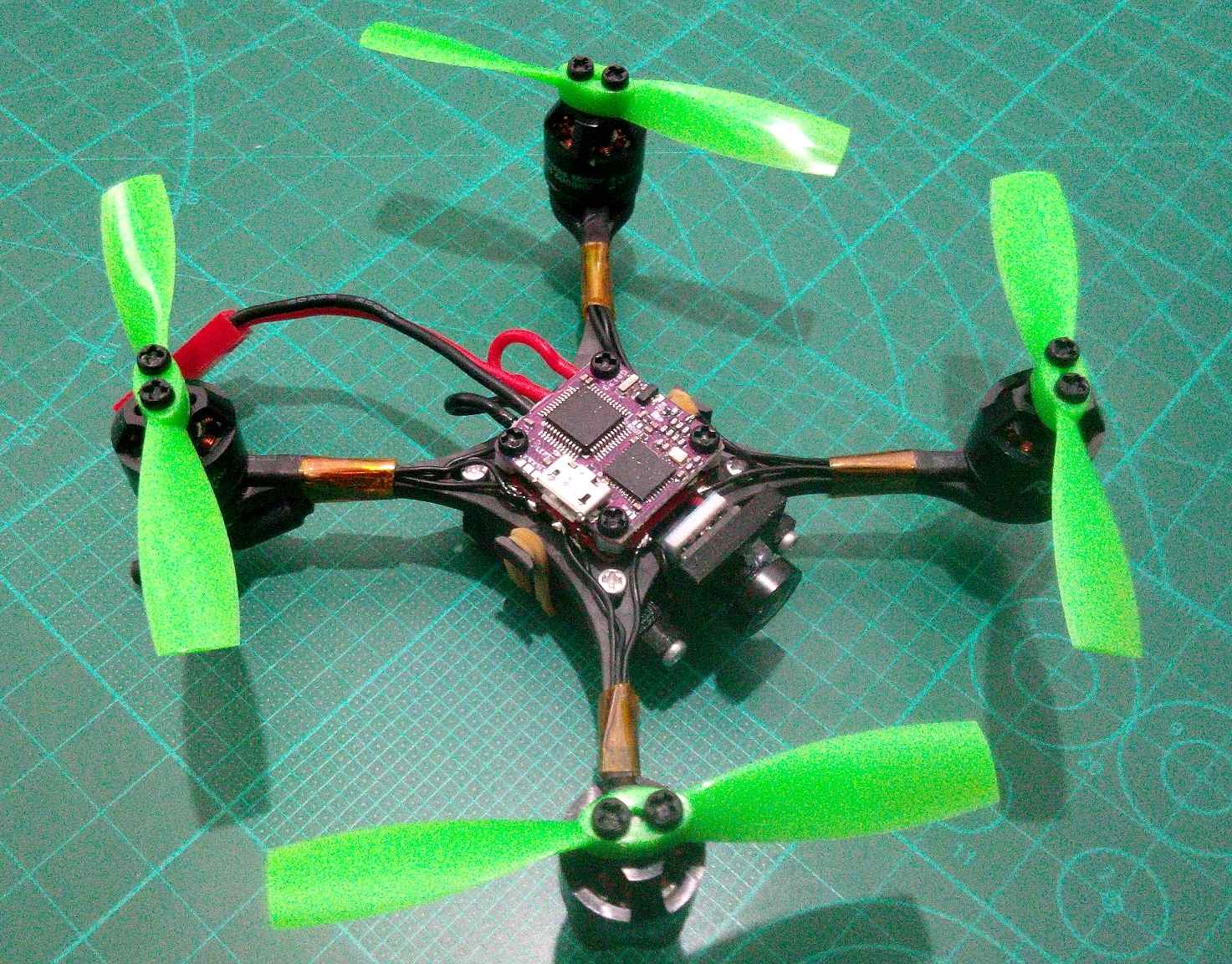

Zappy Z100 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

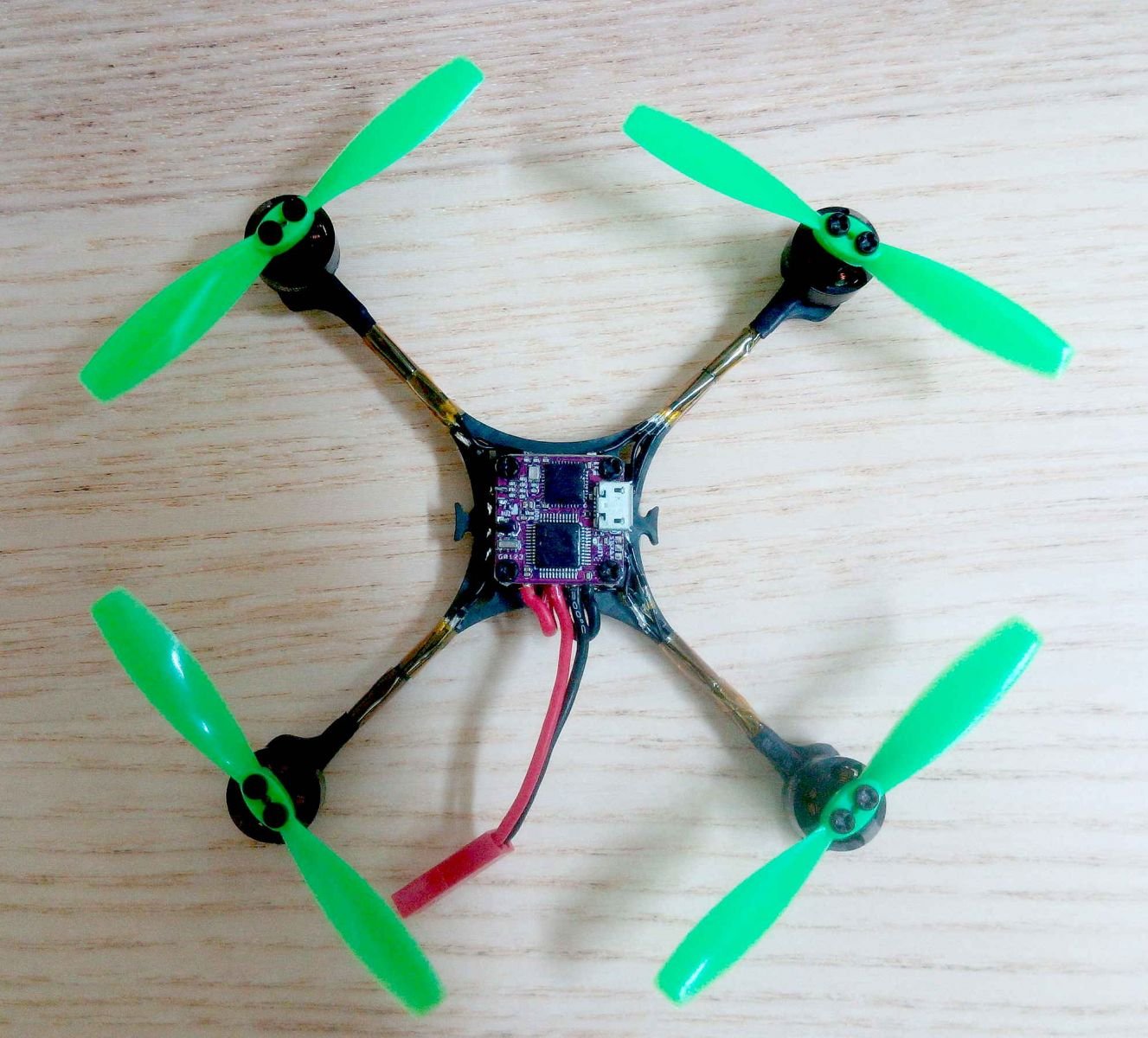

Zappy Z120 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

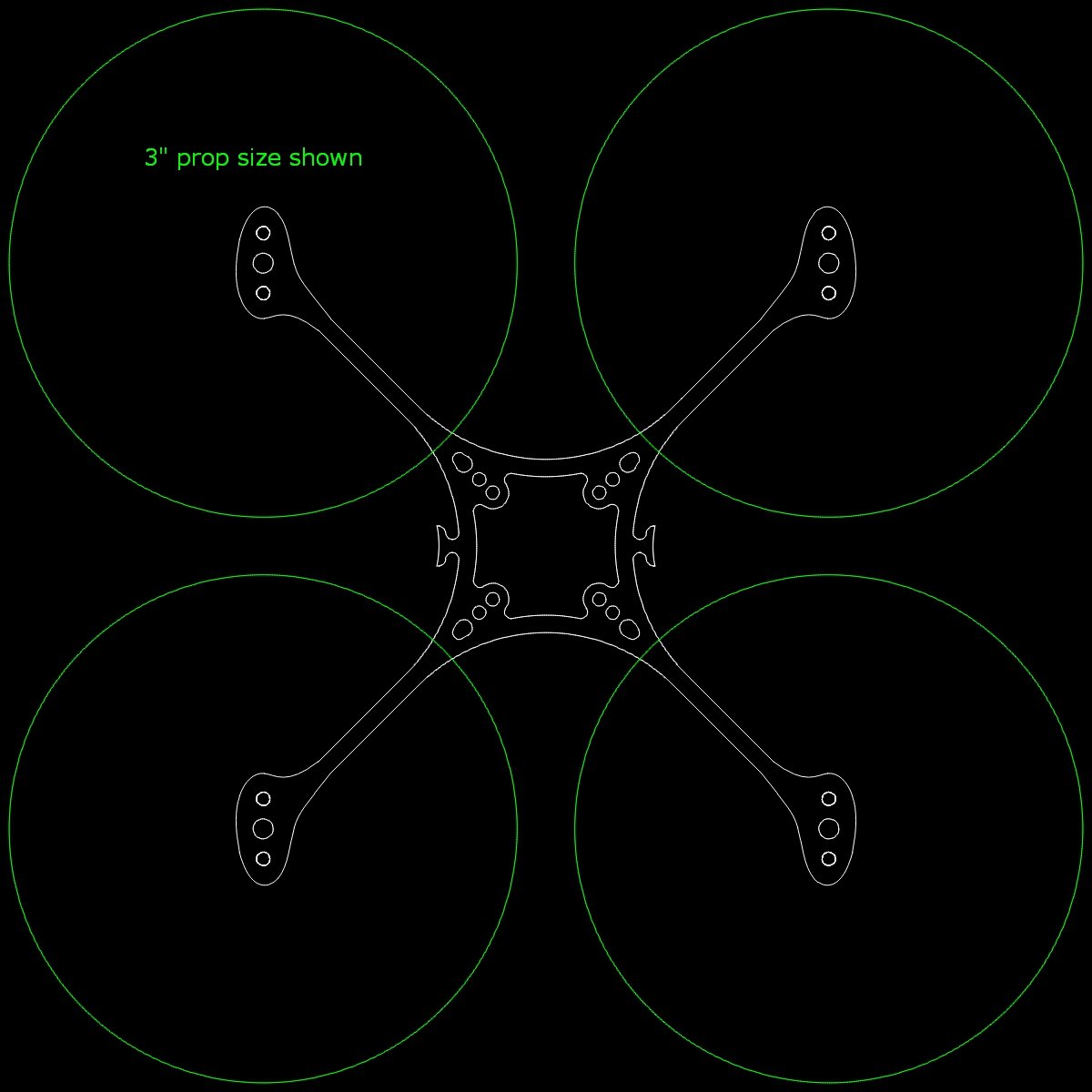

Zappy Z120 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z135 2.5mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Zappy Z135 3mm

The fabulous Zappy frames have been revised with a stronger and stiffer design.

We have managed to do this with no overall weight penalty.

The result is the ultimate performance micro chassis: Strong, rigid, light, slippery.

These Zappy frames have holes for 20x20 and 16x16 electronics along with the platform to accomodate the fpv top-mount and conventional "cages"

Scooter mini CP Plain 1mm

Scooter CP Lugs 1mm

S135 arm R 2.5mm

S135 arm L 2.5mm

S135 arm R 3mm

S135 arm L 3mm

S120 arm R 2.5mm

S120 arm L 2.5mm

Angel88 Chassis Plate 1.5mm

Rocket88 Chassis Plate in 2mm

Fits R885 and R886

Standard in R886

Rocket88 Chassis Plate in 1.5mm

Fits R885 and R886

Standard in R885

R886 arm

6mm thick

10mm wide

220mm wheelbase

R885 arm

5mm thick

10mm wide

190mm wheelbase

Scooter S

FC cover 20x20

1mm

FC cover S for Scooter

30.5x30.5

1mm

Flight controller cover

Rocket88

1mm 30.5x30.5

Scooter Chassis Plate in 1.5mm

Suits S200 and S160

Two required

Z100 UNIVERSAL 3-HOLE 3MM FRAME

This is an excellent and fast, lightweight 100mm frame with narrow arms for minimal wind resistance and thrust blockage. It is versatile and is capable of realizing the best performance from many different drive train combinations. The 3-HOLE in the title stands for "3 hole motor mounts", this is to give better motor base protection over the 2-hole mount frame version.

This frame will accept the TOP MOUNT SLED ARM 1.5MM or SLED FOR ZAPPY FPV 1.5MM for FPV use.

SPECIFICATIONS:
Weight: 5.45gm
Frame size: 100mm
Config: True X
ESC/FC hole spacing: 16x16mm and 20x20mm
Motors: 1103/1104/1105/1106/1402
Motor mount hole spacing: 9mm with 3 x 2mm holes
Motor mount center hole: 4.2mm
Max prop size: approx 69mm (2.71")
Arm width: 2.6mm
Frame thickness: 3mm, cut with the carbon fibre grain running parallel with the arm for max strength.

RECOMMENDED COMPONENTS:
Motors: 1102/1103/1104/1105/1106/BH1402
Recommended motor weight: <6.5gm

ESC: As light as possible, as a rough guide use 5A or higher rating for 1102 up to 1105 5000kv 2S, and a 10A or higher rating for 1105 6500kv+ and 1106. If in any doubt go even higher, up to 20A can be bought with little weight penalty over a 10A esc, and is a good option for any motor.

Battery: For light LOS builds we have found the Nano-tech 2S 300mAh 45-90C battery to be the best option for this frame. A battery capable of supplying more current e.g. GNB 450mAh or larger will be required for the higher-current motors.

Props: GF2540, KK2535, RX2535, cut down 3020's are popular choices. Experimentation is the way to find the best prop for your quad.

This frame is probably the lightest in it's class, this makes it very versatile for various applications - FPV, LOS acro, endurance, or any application where you want minimum weight for maximum performance.

Z100 UNIVERSAL 3-HOLE 2MM FRAME

This is an excellent and fast, lightweight 100mm frame with narrow arms for minimal wind resistance and thrust blockage. It is versatile and is capable of realizing the best performance from many different drive train combinations. The 3-HOLE in the title stands for "3 hole motor mounts", this is to give better motor base protection over the 2-hole mount version.

SPECIFICATIONS:
Weight: 3.6gm
Frame size: 100mm
Config: True X
ESC/FC hole spacing: 16x16mm and 20x20mm
Motors: 1102/1103
Motor mount hole spacing: 9mm with 3 x 2mm holes
Motor mount center hole: 4.2mm
Max prop size: approx 69mm (2.71")
Arm width: 2.6mm
Frame thickness: 2mm, cut with the carbon fibre grain running parallel with the arm for max strength.

RECOMMENDED COMPONENTS:
Motors: 1102/1103
Recommended motor weight: <4gm

ESC: As light as possible, as a rough guide 5A is fine for 1102 and 1103 motors.

Battery: For light LOS builds we have found the Nano-tech 2S 300mAh 45-90C battery to be the best option for this frame, giving good performance and long flight times.

Props: 3020's cut down to 58mm work well with 8000Kv motors for LOS. The small multi-blade options are worth trying too. Experimentation is the way to find the best prop for your quad.

This frame is probably the lightest in it's class, this makes it very versatile for various applications - FPV, LOS acro, endurance, or any application where you want minimum weight for maximum performance.

Mount it to a block of wood for manual prop cutting.

LONG VERSION:

For those that don't want to use a power tool to cut small props, or simply prefer doing it by hand, there is this jig for cutting small props. Usually it would be used for cutting 3" T-mount props to any size from 52mm to 73mm, in 1mm increments.

The idea is you screw the prop-cutting guide plate onto a piece of wood or suitable surface. Put a 1.5mm drill or spare 110X motor prop shaft in the hole that will give you the finished prop size you want, clip the prop tips with sidecutters or tool of choice, then run a flat file along the edge of the propcutter plate to give the final trim. Finish off with some 400 grade sandpaper.

You will need to drill out the 4 corner holes, all holes are the same 1.5mm size to keep the cost down, and it's impossible to know what size screws the buyer has in his possession. Even better if you can countersink the corner screws so the props can rotate freely.

Scooter CP with lugs to hold the battery with rubber bands.

Thickness 1.5mm, weight 2gm. Main holes 3mm, spaced 30.5mm apart.

Scooter center plate with battery strap slots. Note you cannot run a conventional battery strap in the usual position over this plate because the arms will block it. The strap must run over both center plates, and clearance for the strap provided under the esc.

Thickness 1.5mm, weight 1.9gm. Main holes 3mm, spaced 30.5mm apart.

Scooter CP with 45 degree offset 2mm holes for a 20x20mm ESC/FC.

Thickness 1.5mm, weight 1.9gm. Main holes 3mm, spaced 30.5mmm apart.

Z100 UNIVERSAL 3MM FRAME

This is an excellent and fast, lightweight 100mm frame with narrow arms for minimal wind resistance and thrust blockage. It is versatile and is capable of realizing the best performance from many different drive train combinations.

This frame will accept the TOP MOUNT SLED ARM 1.5MM or SLED FOR ZAPPY FPV 1.5MM for FPV use.

SPECIFICATIONS:
Weight: 5.4gm
Frame size: 100mm
Config: True X
ESC/FC hole spacing: 16x16mm and 20x20mm
Motors: 1103/1104/1105/1106/1402
Motor mount hole spacing: 9mm with 2 x 2mm holes
Motor mount center hole: 4.2mm
Max prop size: approx 69mm (2.71")
Arm width: 2.6mm
Frame thickness: 3mm, cut with the carbon fibre grain running parallel with the arm for max strength.

RECOMMENDED COMPONENTS:
Motors: 1102/1103/1104/1105/1106/BH1402
Recommended motor weight: <6.5gm

ESC: As light as possible, as a rough guide use 5A or higher rating for 1102 up to 1105 5000kv 2S, and a 10A or higher rating for 1105 6500kv+ and 1106. If in any doubt go even higher, up to 20A can be bought with little weight penalty and is a good option for any motor.

Battery: For light LOS builds we have found the Nano-tech 2S 300mAh 45-90C battery to be the best option for this frame. A battery capable of supplying more current e.g. GNB 450mAh or larger will be required for the higher-current motors.

Props: GF2540, KK2535, RX2535, cut down 3020's are popular choices. Experimentation is the way to find the best prop for your quad.

This frame is probably the lightest in it's class, this makes it very versatile for various applications - FPV, LOS acro, endurance, or any application where you want minimum weight for maximum performance.

Scooter arm in 4mm CF, to make a 160mm 4" quad.

Use with Scooter center plates to make a 17gm (plus hardware) superlight frame.

Arms are 4mm wide in the narrow section for minimal thrust blockage.

One arm weighs approx 3.45gm.

Scooter centre plate in 1.5mm CF.

30.5x30.5mm ESC mounting holes are 3mm.

20x20mm ESC mounting holes are 2mm.

Weighs approx 1.7gm.

1.5mm thick Spreader clip for Sled arms on standard Rocket Quads Universal FPV mount frames.

This is a single clip, two are required for most kits, check the sled arm for holes where they fit.

See also:

Top Mount Sled Arms - https://armattanproductions.com/pages/product_details/15503

Top Mount Deck - https://armattanproductions.com/pages/product_details/14983

Frame - https://armattanproductions.com/pages/product_details/13144

Sled arm for the Zappy 120 Top Mount FPV set. Fits standard Rocket Quads Universal FPV mount 3mm frames.

Note: Vertical stack opening is 14mm carbon to carbon when fitted to frame.

This is a single sled, two are required to complete the kit.

See also:

Clips - https://armattanproductions.com/pages/product_details/15504

Deck - https://armattanproductions.com/pages/product_details/14983

Frame - https://armattanproductions.com/pages/product_details/13144

The deck for the top mount battery sled kit.

1.5mm thick, with a nice big Z for Zappy in the middle to reduce weight.

See also:

Sled Arm - https://armattanproductions.com/pages/product_details/15503

Clip - https://armattanproductions.com/pages/product_details/15504

Frame - https://armattanproductions.com/pages/product_details/13144

137mm squished FPV frame, strong and lightweight, for 3" props and 20x20mm FC/ESC.

Quick specs:
Weight: 12.6gm
Size: 137mm diagonal
Motor mount spacing: 9mm
ESC/FC hole spacing: 20x20mm
Motors: 1103/1104/1105/1106/1107/BH1402/RX1404
Max prop size: 79mm (3.1")
Arm width: 4.0mm
Frame thickness: 4mm
Motor center hole diameter: 4.25mm
Camera mount holes: 2mm diameter, 10mm apart.

Fast, lightweight FPV frame with super narrow arms for minimal wind resistance and thrust blockage. Choose the build components carefully for minimum weight to gain max performance.

30x30 hardware (kiss)

22xx motors

5mm

30x30 hardware (kiss)

22xx motors

4mm

30.5 x 30.5 hardware

22xx motors

5mm

for 30.5 x 30.5 electronics

22xx layout

2mm clip for zappy fpv

Zappy 120mm Universal FPV LOS 3mm frame

ESC/FC hole spacing: 16x16mm and 20x20mm
Standoff holes for M2 hardware
Motors: 1103/1104/1105/1106
Suggested prop size: 2.5", 3"
Motor mount hole spacing: 9mm
Motor center hole diameter: 3.8mm

The standard Zappy 120mm frame with universal mounting holes and lugs for sleds.

FC cover for 16x16 FC/ESC stacks in 1mm carbon fibre.

Suitable for any of our frames with 16x16 electronics.

Cover holes are 2.6mm diameter.

Width and height is 20.8mm.

Weight is 0.5gm.

Personalised covers available on request.

FC cover for 20x20 FC/ESC stacks in 1mm carbon fibre.

Suitable for any of our frames with 20x20 electronics.

Cover holes are 3.2mm diameter.

Width and height is 26mm.

Weight is 0.79gm.

Personalised covers available on request.

This is a 120mm version of the Zappy 100, with 2-hole motor mounts and lugs for rubber bands. It is "universal" in that it will accept 16x16mm or 20x20mm esc/FC.

Quick specs:
Weight: 4.0gm
Frame size: 120mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16x16mm and 20x20mm
Motors: 1102/1103 recommended
Max prop size: 84mm (3.3")
Arm width: 2.6mm
Frame thickness: 2mm
Motor screws/FC/ESC holes: 2mm
Motor center holes: 3mm - refer "Additional Description" below.

Ultra-lightweight 120mm frame with super narrow arms. Very quick and extremely agile when built light using 1102/1103 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight esc.

The performance from high-Kv 1103 motors is astonishing and their light weight (3.6gm) ensures this performance. It needs to be stressed that the lighter you can build this frame, the better it will perform.

If you want to use 1104/1105 motors (or bigger), the 3mm version of this frame is the one to choose. It weighs just 2gm more but has more strength for the heavier motors.

Frame (rendered):

Pic of a Zappy 120 2mm frame with BR1103B 10000Kv motors and 3020 props. The quad weighs 28.0gm, and 45.4gm with a 2S 300mAh 45-90C Nano-tech battery. Esc is a BS06D 6A weighing 2.4gm. It is incredibly agile and has very good flight time.

This is a 120mm version of the Zappy 100, with 2-hole motor mounts and lugs for rubber bands. It is "universal" in that it will accept either a 16x16mm or 20x20mm esc/FC.

Quick specs:
Weight: 6.0gm
Size: 120mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16x16mm and 20x20mm
Motors: 1103/1104/1105/1106
Max prop size: 84mm (3.3")
Arm width: 2.6mm
Frame thickness: 3mm
Motor center hole diameter: 3mm - refer "additional notes" below.

Fast, very lightweight 120mm frame with super narrow arms for minimal wind resistance and thrust blockage. Very quick and agile when built light using 1104/1105/1106 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight esc.

Frame (rendered):

Line drawing:

Build pic of very similar frame Zappy 120 16x16 3mm:

Pic of very similar frame Zappy 120 20x20 3mm:

This is a 120mm version of the Zappy 100, with 2-hole motor mounts and lugs for rubber bands, designed for a 16x16mm esc/FC.

Quick specs:
Weight: 5.9gm
Size: 120mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16x16mm
Motors: 1103/1104/1105/1106
Max prop size: 84mm (3.3")
Arm width: 2.6mm
Frame thickness: 3mm
Motor center hole diameter: 3mm - refer "additional notes" below.

Fast, very lightweight 120mm frame with super narrow arms for minimal wind resistance and thrust blockage. Very quick and agile when built light using 1104/1105/1106 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight esc.

Build pic:

This is a 120mm version of the Zappy 100, with 2-hole motor mounts and lugs for rubber bands, designed for a 20x20mm esc/FC.

Quick specs:
Weight: 5.9gm
Size: 120mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 20x20mm
Motors: 1103/1104/1105/1106
Max prop size: 84mm (3.3")
Arm width: 2.6mm
Frame thickness: 3mm
Motor center hole diameter: 3mm - refer "additional notes" below.

Fast, very lightweight 120mm frame with super narrow arms for minimal wind resistance and thrust blockage. Very quick and agile when built light using 1104/1105/1106 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight esc.

Build pic:

tweaky 120 3mm Brainstorm edition

Oh Brother! Brainstorm is back! and this time his 3mm Tweaky has gone troppo

Re-designed motor mounts; strong as an ox

An insane 3" monster

Quick specs:
Weight: 8.2gm
Size: 120mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 20mm
Motors: 11xx, RCX1304, BH1402.
Max prop size: approx 83mm (3.27")
Arm width: 4.0mm
Frame thickness: 3mm
Motor center hole size: 3mm

2S or 3S depending on kV

ZAPPY 100 V5 TERACIS 2MM 3.6GM

This is the later Zappy 100 version, with 2-hole motor mounts (Dave), lugs for a rubber band to support the battery (Denovich), and 16x16mm esc/FC mounts (Teracis).

Quick specs:
Weight: 3.6gm
Size: 100mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16mm
Motors: 1102/1103 reccommended
Max prop size: approx 69mm (2.71")
Arm width: 2.6mm
Frame thickness: 2mm
Motor center holes - refer "additional notes" below.

Dave's comment: "Ultralight 2mm frame for experts only"

Ultra-lightweight 100mm frame with super narrow arms for minimal wind resistance and thrust blockage. Quick and agile when built light using 1102/1103 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight 6A 20x20mm esc. Recommended props in no particular order are RX2535, Racerstar Pro 2435, DYS 2435, 3020's cut down. 2 blade versions of the 4-blade props work well too.

Due to the ultra-light nature of this frame, motors less than around 4gm each are recommended to avoid crash damage.

This frame measures 85mm diagonal and has 4-hole motor mounts and very narrow 2mm arms, the frame is 2mm thick, and it weighs 3.3gm. With 1103 8000Kv motors it is exceptionally fast for its size.

Quick specs:
Weight: 3.3gm
Frame size: 85mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16mm
Motors: 1102/1103 recommended
Max prop size: approx 58mm (2.3")
Arm width: 2.0mm
Frame thickness: 2mm
Dave's comment: super light, best for los only.

Fast, lightweight 85mm frame with super narrow arms for minimal wind resistance. Very quick and agile when built light using 1102/1103 motors, a 300mAh 2S 45-90C Nano-tech battery, and a lightweight 16x16mm esc. It has been tested with cut down RX2535, Racerstar Pro 2435, DYS 2435, and 3020's. 2 blade versions of the 4-blade props work really well. Because it has performance to spare, prop choice is not critical.

This frame measures 85mm diagonal and has 4-hole motor mounts and very narrow 2mm arms, the frame is 3mm thick, and it weighs 5.0gm. With 1103 8000Kv motors it is fast for its size.

Quick specs:
Weight: 5.0gm
Frame size: 85mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16mm
Motors: 1102/1103 recommended
Max prop size: approx 58mm (2.3")
Arm width: 2.0mm
Frame thickness: 3mm
Motor screws/FC/ESC holes: 2mm
Motor center hole: 4mm - refer "Additional Description" below

Super narrow arms for minimal wind resistance, should be quick and agile when built light using 1102/1103 motors, a 300mAh 2S 45-90C Nano-tech battery, and a lightweight 16x16mm esc. Only the 2mm version has been built and flown at this stage, it is very fast with cut-down props. This 3mm frame is a more robust version, and could be used with popular 2" props, and still have good performance.

Zappy 100 the original

Tweaked by Denovich, adding tangs for canopy/battery mount.

This is the original Zappy 100 version, with 4-hole motor mounts. The later V5 version is the same but with 2-hole motor mounts.

Quick specs:
Weight: 5.4gm
Size: 100mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 20mm
Motors: 1103/1104/1105/1106
Max prop size: approx 69mm (2.71")
Arm width: 2.6mm
Frame thickness: 3mm

Excellent and fast, lightweight 100mm frame with narrow arms for minimal wind resistance. Very quick and agile when built light using 1104/1105 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight 6A 20x20mm esc. Recommended props in no particular order are RX2535, Racerstar Pro 2435, DYS 2435, 3020's cut down. 2 blade versions of the 4-blade props work well too.

Because the frame is so light at 5.4gm, it can accommodate a lot of different drive trains and still fly really well.

Build pic with Racerstar BR1103B 8000Kv motors, 6A esc, 2S 300mAh 45-90C battery and RX2535 props:

Zappy 100 Teracis 16x16

Zappy 100 tweaked by Teracis for 16x16 electronics, tangs by Denovich.

Quick specs:
Weight: 5.3gm
Size: 100mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16mm
Motors: 1103/1104/1105/1106
Max prop size: approx 69mm (2.71")
Arm width: 2.6mm

Excellent and fast, lightweight 100mm frame with narrow arms for minimal wind resistance and thrust blockage. Very quick and agile when built light using 1104/1105 motors, 300mAh 2S 45-90C Nano-tech battery, and a lightweight 6A 20x20mm esc. Recommended props in no particular order are RX2535, Racerstar Pro 2435, DYS 2435, 3020's cut down. 2 blade versions of the 4-blade props work well too.

Because the frame is so light at 5.4gm, it can accommodate a lot of different drive trains and still fly really well.

Tweaky 144 "Ian444" Edition, designed for 3.5" props and 1306/1407 motors.

Quick specs:
Weight: 13.9gm
Frame size: 144mm
Frame thickness: 4mm
Motors: 1306/1407
Motor mount spacing: 12mm
Motor mount hole size: 2mm
Motor center hole size: 6mm
ESC/FC hole spacing: 20x20mm
ESC/FC hole size: 3mm
Arm width: 4.0mm
Max prop size: approx 98mm (3.85")

Build pic with BrotherHobby 1407 motors, weighs 99.1gm without battery:

Tweaky BlackR0ck

tweaked by BlackR0ck

14xx motors

3 inch props

20x20 electronics

4mm thick frame

Detail specs:
Weight: 12.7gm
Size: 120mm
Arm width: 4.0mm
Frame thickness: 4mm
ESC/FC hole spacing: 20mm
ESC/FC hole size: 3mm
Motors: 1306/1407
Motor mount spacing: 12mm
Motor mount hole size: 2mm
Motor mount center hole size: 6mm
Max prop size: approx 83mm (3.27")

tweaky 154 5mm

Strong 5mm thick frame

20x20 electronics

4 inch props

1407 motors

Detailed specs:
Weight: 17.9gm
Size: 154mm
Frame thickness: 5mm
ESC/FC hole spacing: 20x20mm
ESC/FC hole size: 3mm
Motors: 1306/1407
Motor mount spacing: 12mm
Motor mount hole size: 2mm
Motor center hole - 6mm
Max prop size: 4"
Arm width: 4mm
Arm thickness: 5mm

tweaky 154 4mm

tweaky modified for 14xx motors and stretched to 154mm

4 inch props

20x20 hardware

1407 motors

4mm thick frame

Detailed specs:
Weight: 14.3gm
Size: 154mm
Frame thickness: 4mm
ESC/FC hole spacing: 20x20mm
ESC/FC hole size: 3mm
Motors: 1306/1407
Motor mount spacing: 12mm
Motor mount hole size: 2mm
Motor center hole - 6mm
Max prop size: 4"
Arm width: 4mm
Arm thickness: 4mm

tweaky 120 4mm

Specs:
Weight: 12.2gm
Size: 120mm
Frame thickness: 4mm
ESC/FC hole spacing: 20x20mm
ESC/FC hole size: 2mm
Motors: 1105/1106/1304/BH1402/RX1404
Motor mount spacing: 9mm
Motor mount hole size: 2mm
Motor center hole - 4mm, refer "additional info" below.
Max prop size: 83mm (3.27")
Arm width: 4mm
Arm thickness: 4mm

Dave's comment: The original tweaky, strong, indestructible.

Very robust, relatively lightweight 120mm frame with narrow arms for minimal wind resistance and maximum performance.

tweaky 120

The original tweaky design, "tweaked" by Brainstorm, and Denovich.

Specs:
Weight: 9.2gm
Size: 120mm
Frame thickness: 3mm
ESC/FC hole spacing: 20x20mm
ESC/FC hole size: 2mm
Motors: 1103/1104/1105/1106/1304/BH1402/RX1404
Motor mount spacing: 9mm
Motor mount hole size: 2mm
Motor center hole - 4mm, refer "additional info" below.
Max prop size: 83mm (3.27")
Arm width: 4mm
Arm thickness: 3mm

Build with Realacc D1106 6000Kv motors, DYS3045 props and 300mAh 2S Nano-tech battery.

Build with RotorX 1404 motors, DYS3045 or RX3044 props, and 450mAh 3S Nano-tech battery.

At the other end of the scale, the frame could be built with  BR1102, BR1103B, or low Kv 1104 motors as an indestructable trainer, or just a general purpose recreational quad with long flight time.

Centreplates for Rocket 88

Flight Controller cover

Suits Kiss 30x30 pitch

1mm thick

3mm holes
