MINKY 85 16X16 2MM 3.3GM
Description
This frame measures 85mm diagonal and has 4-hole motor mounts and very narrow 2mm arms, the frame is 2mm thick, and it weighs 3.3gm. With 1103 8000Kv motors it is exceptionally fast for its size.
Quick specs:
Weight: 3.3gm
Frame size: 85mm
Motor mount spacing: 9mm
ESC/FC hole spacing: 16mm
Motors: 1102/1103 recommended
Max prop size: approx 58mm (2.3")
Arm width: 2.0mm
Frame thickness: 2mm
Dave's comment: super light, best for los only.

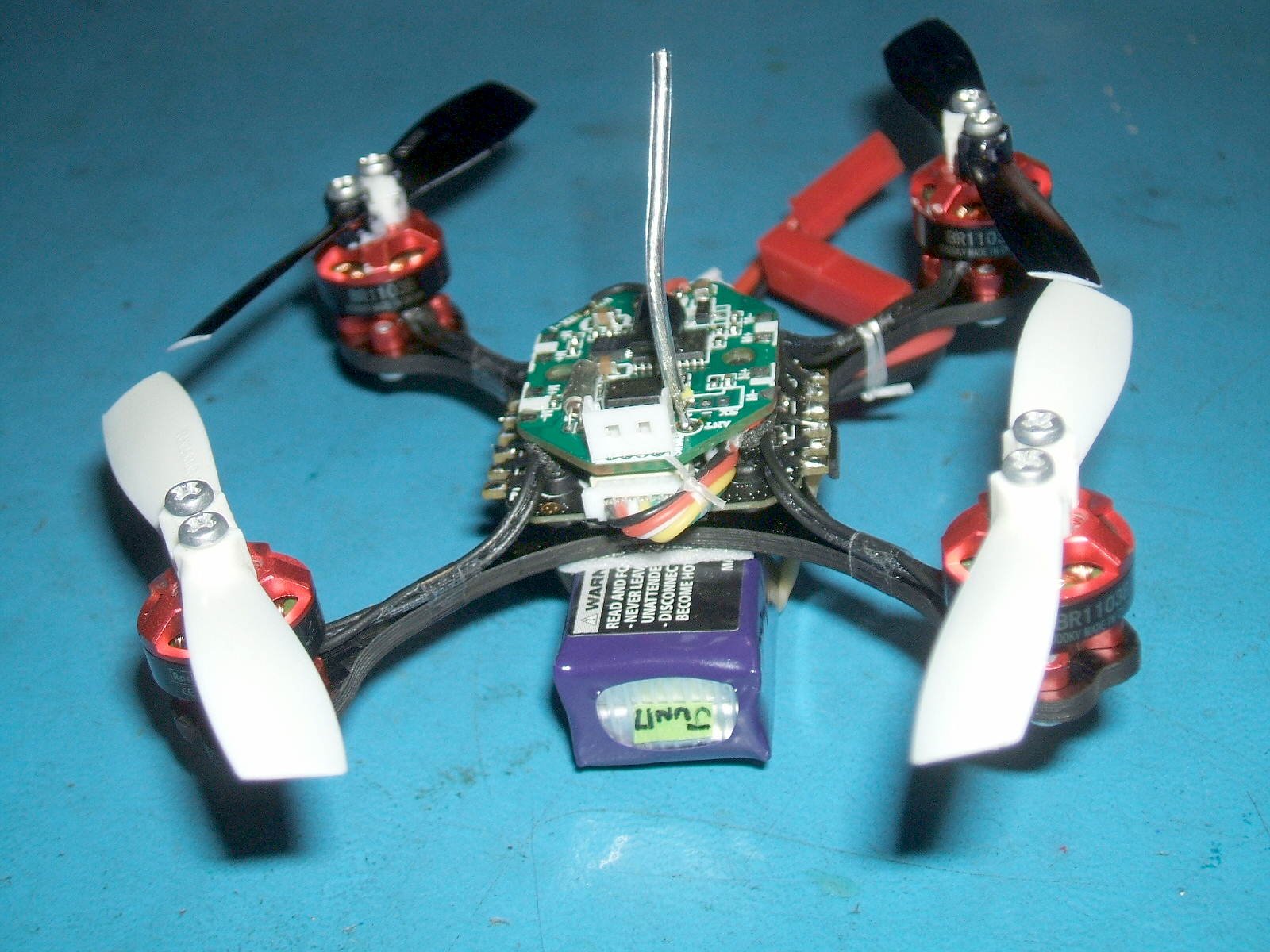

Fast, lightweight 85mm frame with super narrow arms for minimal wind resistance. Very quick and agile when built light using 1102/1103 motors, a 300mAh 2S 45-90C Nano-tech battery, and a lightweight 16x16mm esc. It has been tested with cut down RX2535, Racerstar Pro 2435, DYS 2435, and 3020's. 2 blade versions of the 4-blade props work really well. Because it has performance to spare, prop choice is not critical.
Additional Information
This "true x" frame is cut so that the grain of the carbon fibre sheeting runs down the length of the arms, rather than the conventional layout which has the grain running at a 45 degree angle. This dramatically increases the strength of these super-thin-arm frames, and requires a different, less efficient layout for AP to cut the frame, and thus is more costly. We consider our frames to be premium and cutting-edge, and that the extra cost of these unconventional frames is justified.
The motor center holes may be too small for some motors and might require countersinking, or drilling to a larger size, just enough to relieve any binding. Please check the circlip is not binding as the motor is rotated by hand. This is done to maximise the frame strength in this area.
For more information visit:
https://www.rcgroups.com/forums/showthread.php?2883082-Tweaky-the-people-s-frame-and-its-variants
