Rocket Quads

Home of Schrödinger's Cat and friends

Pushing the limits of slim-arm design and endevouring to create the highest performance micro brushless frames available

All one-piece frames are cut with the weave along the arms for greatest possible strength...

TWEAKY 154 4MM 14.3GM


Price : $ 25.98








Description

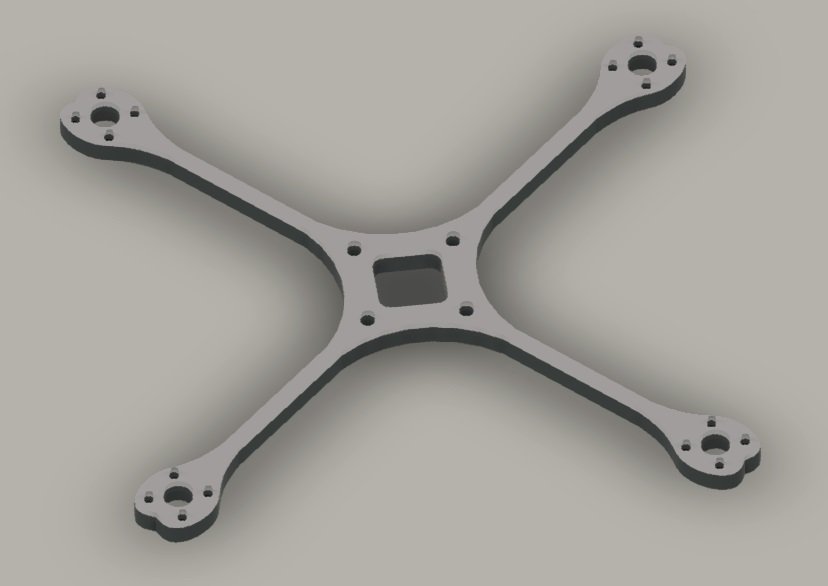

tweaky 154 4mm

tweaky modified for 14xx motors and stretched to 154mm

4 inch props

20x20 hardware

1407 motors

4mm thick frame

Detailed specs:
Weight: 14.3gm
Size: 154mm
Frame thickness: 4mm
ESC/FC hole spacing: 20x20mm
ESC/FC hole size: 3mm
Motors: 1306/1407
Motor mount spacing: 12mm
Motor mount hole size: 2mm
Motor center hole - 6mm
Max prop size: 4"
Arm width: 4mm
Arm thickness: 4mm



Additional Information



All of our "true x" frames are cut so that the grain of the carbon fibre sheeting runs down the length of the arms, rather than the conventional layout which has the grain running at a 45 degree angle. This dramatically increases the strength of these super-thin-arm frames, and requires a different, less efficient layout for AP to cut the frame, and thus is more costly. We consider our frames to be premium and cutting-edge, and that the extra cost of these unconventional frames is justified.



For more information visit:
https://www.rcgroups.com/forums/showthread.php?2883082-Tweaky-the-people-s-frame-and-its-variants
