Designed to unique, compact and light, balanced with durability.

Specifications

• 148mm MTM
• 2mm Thick Top Plate
• 4mm Thick Bottom Plate
• 1.5mm Thick FPV Cam Side Plates (30mm height)
• 12mm Diameter M2 Motor mounting holes (1407/1507 motors)
• 20x20 and 30x30mm FC mounting holes. (Recommend to use 20x20 FCs and ESCs Combo)
• Suited for Runcam Split camera width (22mm), but also usable with 19mm Cams using spacers or alu brackets that comes with the camera

Important Notes:

• Front 2 motors must be mounted upside down (on the underside of the bottom plate) to fit 4" props.
• Slots available underneath the FPV cam and 2 back arms to secure zip ties heatshrinked with standoffs as 'legs/stands' to keep the front two motors above ground. Alternatively, you can replace the front ziptie by securing a 30mm standoff underneath the FPV cam with a m3 screw.
• Battery can only be top mounted.

Improved version with arm braces and cam side plates.

• 2mm Bottom Plate
• 1.5mm Top Plate
• Fits 20x20 and 16x16 FCs.
• Separate stack for Runcam Split Mini (19mm width cams) and FC.
• Arm length allows for installation of plastic ducts/prop guards from Aliexpress or Banggood. 2" with prop guards, 2.2" max without prop guards.

Bottom Plate 3mm Thick. (Cut along weave for added strength)

Top Plate 2mm Thick.

Side Plates 1.5mm Thick.

Compatible with 140x and 150x motors and 3 inch props.

Use with runcam split or 22mm width fpv cams. Allows installation of 2 cams = One in front and one at the back.

Designed for no props appearing in the cam view.

Kit consists of:

• 1 x 2mm Bottom Plate (Cut Along Weave)
• 1 x 1.5mm Top Plate

Compatible with:

• 2" props without ducts.
• 1.8"/45mm props with ducts.
• 110x motors and 16x16/20x20mm FCs.
• Micro fpv cam or Turbowing Cyclops 3 Cam/DVR/VTX combo (No props in video feed's view)

Specifications

• 2mm Bottom Plate
• 1.5mm Top Plate
• Fits 20x20 and 16x16 FCs.
• Separate stack for Runcam Split Mini and FC.
• Arm length allows for installation of plastic ducts/prop guards from Aliexpress or Banggood.

Improved version of the VSA145 Cine 3" Series. Adjustments are:

• More protection for motors by extending the bottom plate motor arm bumpers
• More protection for FPV Cam/Runcam Split by extending the bottom plate middle/front portion further out
• More support for motor arms through addition of braces

Compact and lightweight 145mm MTM frame set for flying anywhere with HD recordings. Compatible with:

• 140x motors (12mm diameter motor hole mounts)
• 3" Props
• Runcam Split (19mm fpv cam width)
• 20x20mm and 30x30mm FCs/PDBs
• Top and bottom lipo mounting
• 25mm standoffs for double or tight triple FC/ESC/Runcam split stack

Front arms designed at the sides of the FPV cam so that props will not appear in the view of the video feed.

Frame Details:

• Bottom Plate 3mm thick (Cut along weave for added strength)
• Top Plate 2mm thick
• Side Plates 1.5mm thick
• Only 3 motor mount holes per arm for sleeker unique look and reduced weight of bottom plate

Improved version of the VSA145 Cine 3" Series. Adjustments are:

• More protection for motors by extending the bottom plate motor arm bumpers
• More protection for FPV Cam/Runcam Split by extending the bottom plate middle/front portion further out

Compact and lightweight 145mm MTM frame set for flying anywhere with HD recordings. Compatible with:

• 140x motors (12mm diameter motor hole mounts)
• 3" Props
• Runcam Split (19mm fpv cam width)
• 20x20mm and 30x30mm FCs/PDBs
• Top and bottom lipo mounting
• 25mm standoffs for double or tight triple FC/ESC/Runcam split stack

Front arms designed at the sides of the FPV cam so that props will not appear in the view of the video feed.

Frame Details:

• Bottom Plate 3mm thick (Cut along weave for added strength)
• Top Plate 2mm thick
• Side Plates 1.5mm thick
• Only 3 motor mount holes per arm for sleeker unique look and reduced weight of bottom plate
• SMA mounting hole on bottom plate(instead of top plate) to be used with a SMA extension, reduces the VTX antenna height protruding from the top of the build.

Compact and lightweight 145mm MTM frame set for flying anywhere with HD recordings. Compatible with:

• 140x motors (12mm diameter motor hole mounts)
• 3" Props
• Runcam Split (19mm fpv cam width)
• 20x20mm and 30x30mm FCs/PDBs
• Top lipo mounting
• 25mm standoffs for double or tight triple FC/ESC/Runcam split stack

Front arms designed at the sides of the FPV cam so that props will not appear in the view of the video feed.

Frame Details:

• Bottom Plate 3mm thick (Cut along weave for added strength)
• Top Plate 2mm thick
• Side Plates 1.5mm thick
• Only 3 motor mount holes per arm for sleeker unique look and reduced weight of bottom plate
• Side SMA mount at bottom plate with SMA extension.

Compact and lightweight 125mm MTM frame set for flying anywhere with HD recordings. Compatible with:

• 110x and 130x motors (9mm diameter motor hole mounts)
• Runcam Split (19mm fpv cam width)
• 20x20mm and 30x30mm FCs/PDBs
• Top or bottom lipo mounting
• 25mm standoffs for double or tight triple FC/ESC/Runcam split stack

Front arms designed at the sides of the FPV cam so that props will not appear in the view of the video feed.

Frame Details:

• Bottom Plate 3mm thick (Cut along weave for added strength)
• Top Plate 2mm thick
• Side Plates 1.5mm thick

Compatible with:

1. Runcam Split and Split Mini
2. 140x and 150x motors
3. 30x30mm and 20x20mm FCs

Specs:

• 3mm Thick Bottom Plate
• 2mm Thick Top Plate
• 1.5mm Thick FPV Cam side plates

201mm MTM

4mm Thick Unibody Bottom Plate (Diagonally Cut for greater durability)

- Contact me if more affordable($10 difference) straight cut version is preferred.

2mm Thick Top Plate

2 pairs of different 1.5mm Thick Side Plates for Runcam Mini/Split size cameras.

Compatible with 20x20mm or 30.5x30.5mm FC/PDBs.

Compatible with 220x motors.

For Runcam Mini size FPV cams, Runcam Micro can be used to using two 1mm spacers as a bridge.

Compatible with:

20x20 or 30x30 FCs/PDBs

1407,1507 motors mounting holes

Bottom Plate 4mm Thick

Top Plate 2mm Thick

Option for diagonally cut weave for bottom plate can be made available but charged at a higher price by Armattan.

Version Two for use with 1407 motors.

35mm and 40mm FPV Side Plates can be ordered separately for builds with taller stacks.

Description

• Hex Frame for 3 Inch props
• 3mm Thick Bottom Plate
• 1.5mm Thick Top Plate
• Spacious frame space that also takes normal size RX and VTX
• Allowance for different electronics configurations.

Compatible with:

• 1407 and 1507 motors (12mm diameter m2 mounting holes)
• 20x20 and 30x30 FCs
• Runcam Mini and Micro size cams(require longer camera mounting screws for Micro size)
• Also fits HS1177 FPV cams with minimum 30mm standoffs and use of cam stock bracket and zipties to top plate.

Best paired with SkyGear 1507 3600kv Motors.

Photo Album here.

Build Vid Slide Show by 909 FPV:

Compatible with:

4 Inch Props

12mm and 16mm diameter motor mounting holes

20x20 and 30x30 FC mounting holes

FPV side plates for Runcam Mini and Split size cams. 22mm width and below. (Micro swift cams can be used by using spacers)

Compatible with :

20x20 and 30x30 FCs

11xx and 1304 motors.

Runcam Split and Mini FPV cams, or smaller.

198mm MTM

4mm Thick Unibody Bottom Plate

2mm Thick Top Plate

1.5mm Thick Side Plates for Runcam Mini/Split size cameras.

Compatible with 20x20mm or 30.5x30.5mm FC/PDBs

Compatible with 18xx to 220x motors

Picture shown is the smaller 4" build of the same design.

165mm MTM

Motor Mounting holes for 14xx to 18xx motors

Mounting holes for 20x20 FC/PDBs/ESCs only

1.5mm Thick Top Plate

3mm Thick Bottom Plate

Compatible with Runcam Swift Mini and smaller FPV Cams

96mm MTM

Use with four 18mm M2 standoffs and four 5mm M2 screws.

Compatible with:

0703 or 1103 motors

46mm propellers

20x20 FC/PDBs

AIO Cam/VTX

Bottom plate 2mm Thick

Top Plate 1.5mm Thick

Prop Guard 2mm Thick

Optional Prop Guard version 2 can be ordered separately here: https://armattanproductions.com/pages/product_details/6887

120mm MTM

3mm Thick Bottom Plate

1.5mm Thick Top Plate

16x16mm and 20x20mm mounting holes

Compatible with 110x and 130x motors

Compatible with 3" Props

More Pictures here

139mm MTM

3mm Thick Bottom Plate

1.5mm Thick Top Plate

16x16mm and 20x20mm FC mounting holes

Compatible with 110x and 130x motors

Compatible with 2.5" Props such as Rotorx 2535 props

AIO Cam recommended.

Version Two has bottom plate middle two arms strengthen with more CF between lipo slots and arms.

1.5mm Bottom Plate.

Top and under plates 1mm thick.

Use with M2 standoffs and screws.

70mm MTM.

Compatible with 110x motors and 45mm props.

3D print AIO cam mount stl files will be made available online.

Recommended for under plate to be mounted to main plate using 20x20 m3 holes.

Note: Current design has no designated lipo slots for under plate.

1.5mm Bottom Plate.

Top and under plates 1mm thick.

Use with M2 standoffs and screws.

85mm MTM.

Compatible with 110x motors and 2" props.

3D print AIO cam mount stl files will be made available online.

Version 3 available here.

223mm MTM Front and Back Motors

190mm MTM Left and Right Motors

4mm Thick Bottom Plate

2mm Thick Top Plate

190mm MTM

4mm Thick Bottom Plate

2mm Thick Top Plate

201mm MTM

4mm Thick Bottom Plate

2mm Thick Top Plate

181mm MTM Frame for 5" Props

4mm Thick Bottom Plate

2mm Thick Top Plate

3mm Thick Bottom Plate.

2mm Thick Top Plate.

Compatible with 1306 and 1407 motors

20x20 and 30.5 x 30.5 Mounting holes for FC/PDB

Frame

VSAx183 frame: 183mm MTM

4mm thick bottom plate

2mm thick top plate

Bare bottom and top plate weight : 56.5g

Electronics and Parts

Flight Controller : FuriousFPV Kombini

Escs : Cicada Blheli-s 30a

Motors : ZMX Fusion 2206 2300kv

VTX : TBS Unify Pro HV

Antenna : DIY lightweight antenna

FPV Cam : Runcam Arrow HS1190

OSD: FuriousFPV Piggy OSD

Props : HQ DPS 5x4x3 PC

AUW with Dinogy 4S 1300mah 65C : 445g

AUW inclusive of GP Session 5 : 550g

Designed to be compact, tough and fast!

1. MTM: 145mm
2. 4mm thick bottom plate
3. Mounting holes for Furious FPV Piko BLX FC
4. Mounting holes for Naze32 size FCs but yaw in CF will have to be rotated 45degrees

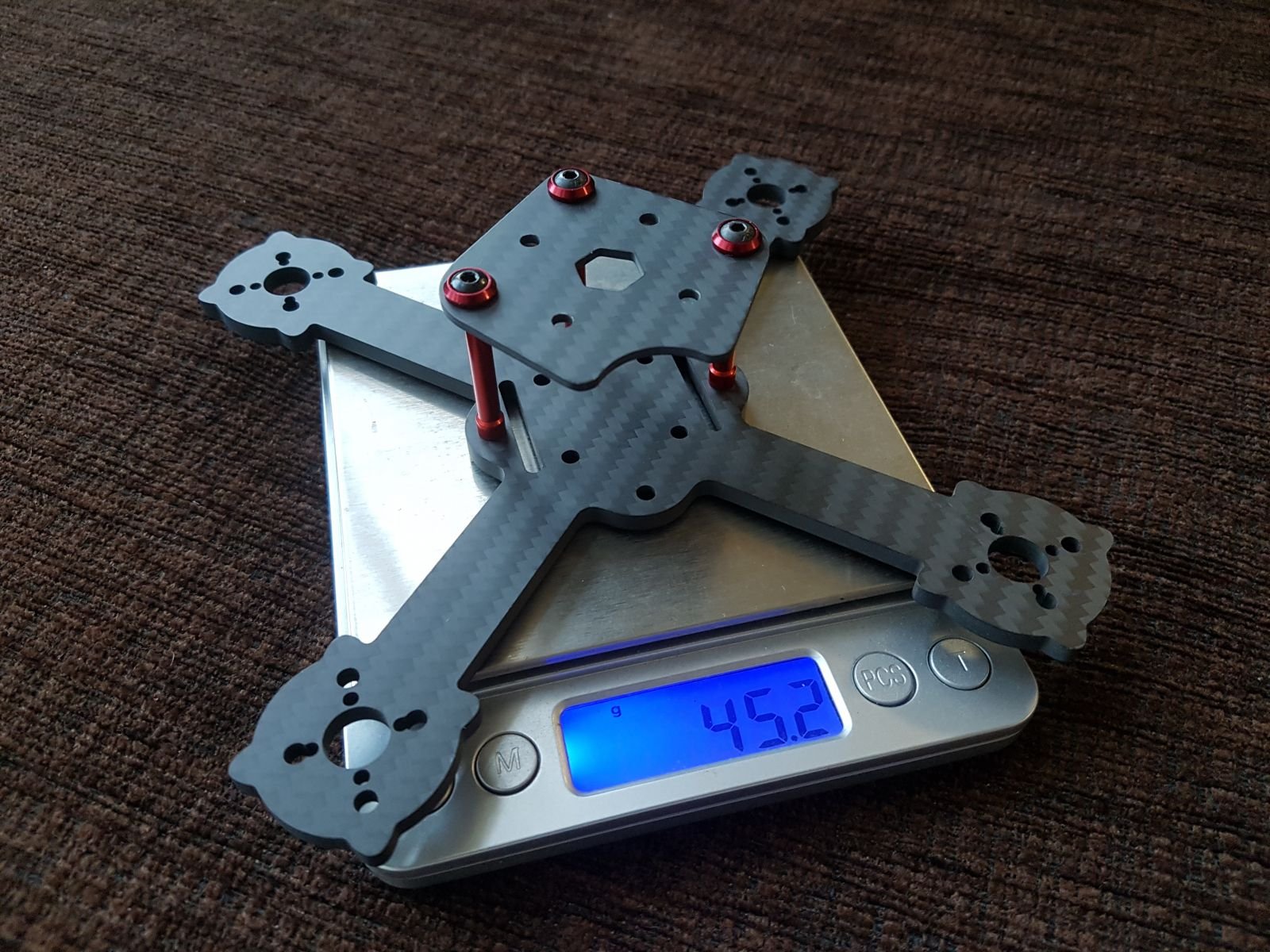

5. Frame weight with standoffs and main top plate is 45.2g.

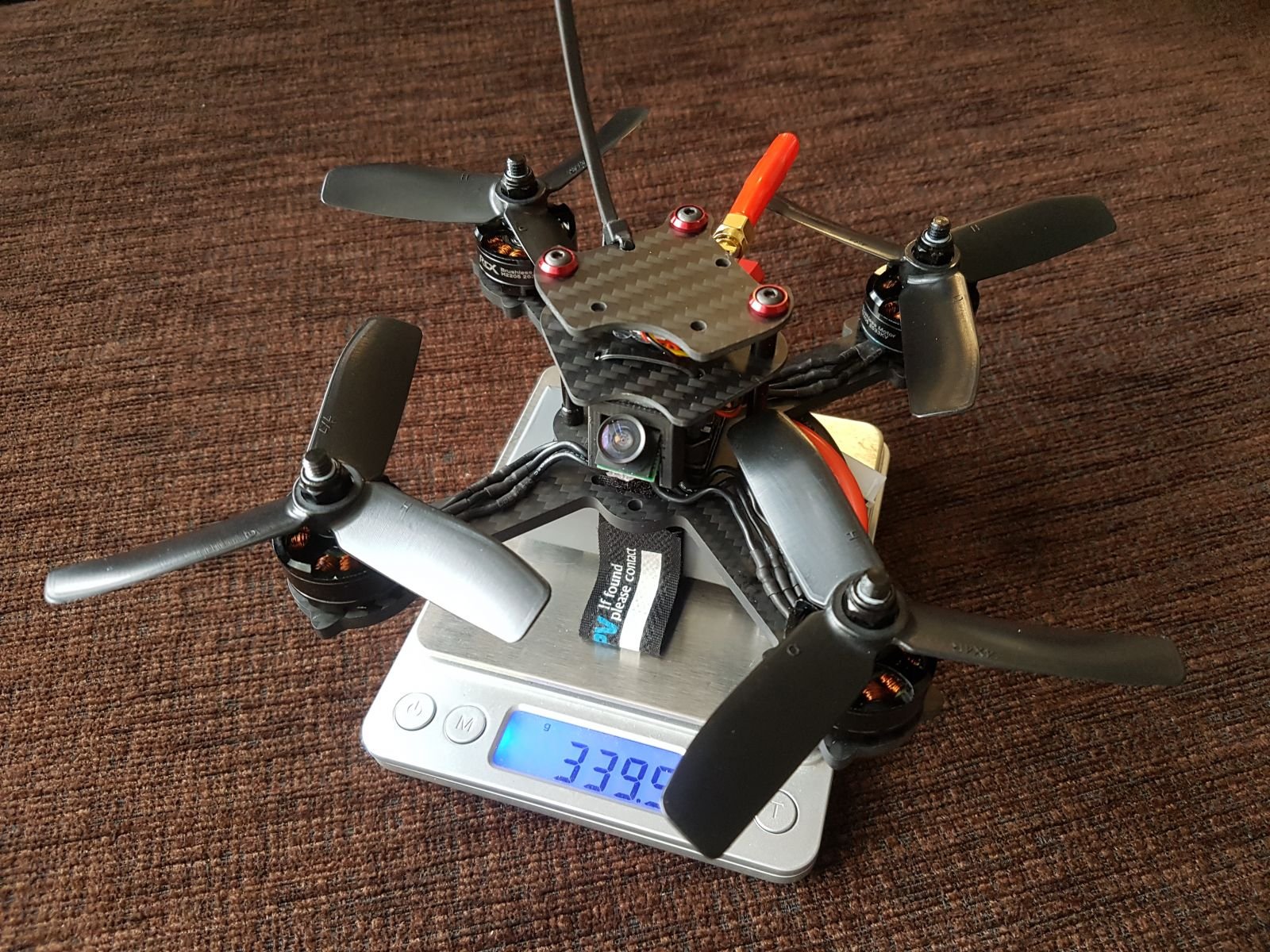

6. AUW with Dinogy 1000mah 4s graphene is 340g. (without HD cam)

Update: Version 3 available here.

Hex Frame for 3 Inch props

Mounting holes for Furious Piko BLX FC (http://furiousfpv.com/product_info.php?products_id=41) and normal Naze32 size FCs.

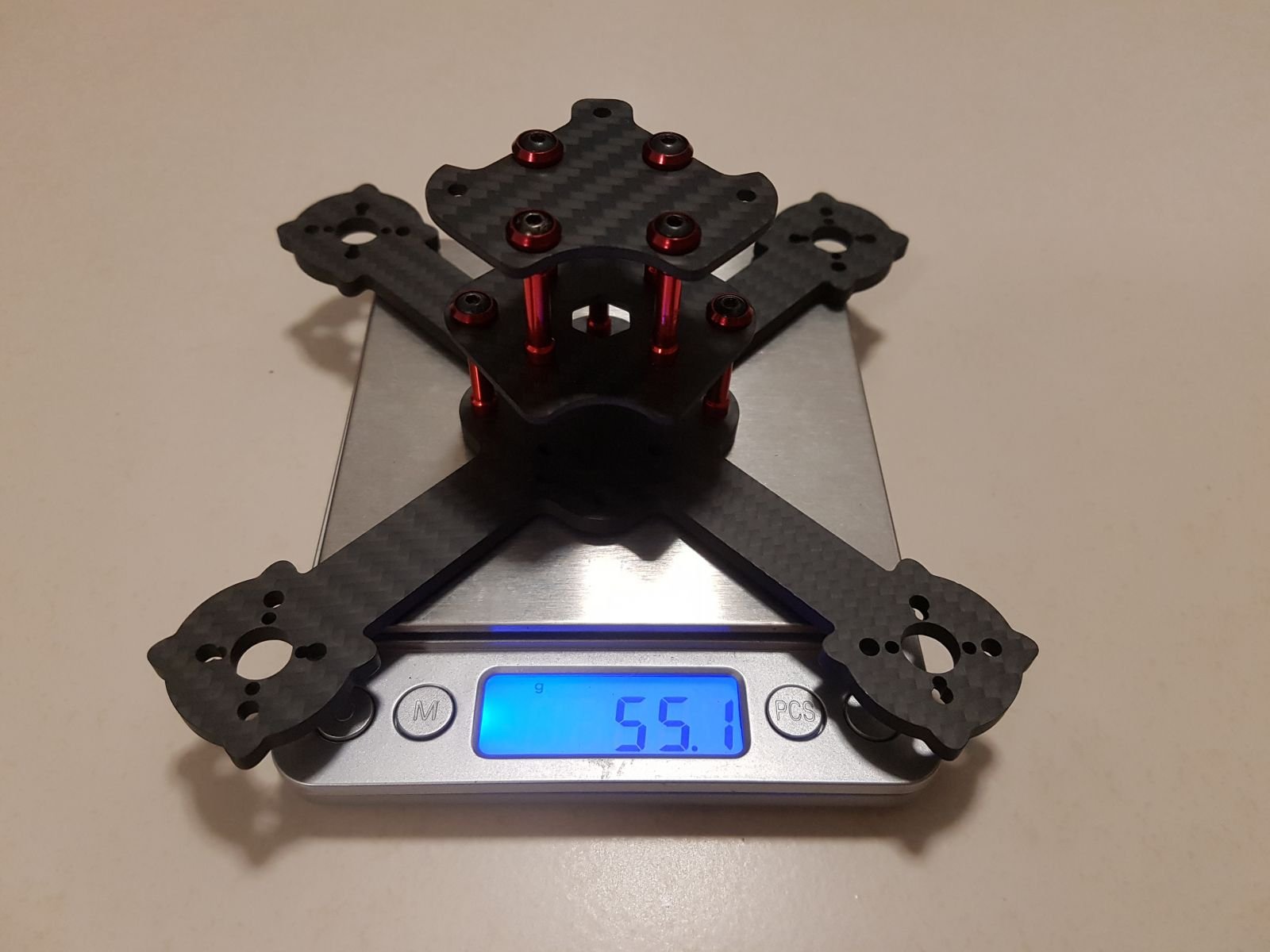

Frame weight with 4 aluminium stand offs and 8 aluminium screws is 55g.

Fits HS1177 FPV cams with minimum 30mm standoffs.

Compatible with 1407 and 1707 motors. 12mm diameter m2 mounting holes.

3mm Thick Bottom Plate and 1.5mm Thick Top Plate.

Rcgroups Thread for more pictures and videos

Hex Frame for 3 Inch props

Mounting holes for Furious Piko BLX FC (http://furiousfpv.com/product_info.php?products_id=41) and normal Naze32 size FCs.

Frame weight with 4 aluminium stand offs and 8 aluminium screws is 55g.

Fits HS1177 FPV cams with minimum 30mm standoffs.

Compatible with 1407 and 1707 motors.

3mm Thick Bottom Plate and 1.5mm Thick Top Plate.

RCgroups Thread for more pics and vids

Flight Video: https://youtu.be/gSOE2N95GWI

1) At the moment, the smallest quad frame with front Gopro cage
2) Allows versatile builds with 3 separate top plates, and both ends of bottom plate can be used as the front of the quad.
3) 3 separate top plates instead of a single long piece so that you can have more options in determining the height of your mid and back plate.
4) Repairs or replacements to electronics can be done for a specific segment (front/top/mid) without removing all the top plates unless necessary.
5) The front and tail of the Bottom plate has same layout of mounting and standoff holes so that the front and tail of the bottom plate can be used interchangeably
6) The top back plate can be used as a front plate if you choose to top mount your Gopro or Mobius.
7) Mobius can be mounted in the front at the bottom plate without reconfiguring the quad (for a top mounted Mobius) when you use a Mobius and Gopro interchangeably.
8) The top mid plate has several spare m3 mounting holes/ horizontal slot to easily secure your fpv cam bracket or 3d printed mount with screws or zip ties.
9) Choice of bottom, top or back mount your lipo depending on how you build.
10) Able to use up to  5inch props.

Frame Details:

1) Full 3k Matte Carbon Fiber
2) Bottom and Top front plate 3mm thick, middle and back top plate 2mm thick
3) Front Gopro Cage
4) Able to mount 2204 motors
5) Diagonal MTM distance of 238mm
6) Comes with 4mm thick arms (optional 4mm thick arms can be bought separately)


1. At the moment, the smallest quadcopter frame with front Gopro cage.
2. Allows versatile builds: Optional front and back 3mm arm skids (stronger arms vs lighter/faster build). Top Back Plate can be used as Top Front Plate if gopro cage is not needed and a top mounted HD cam is preferred.
3. The front and tail of the Bottom plate has same layout of mounting and standoff holes so that the front and tail of the bottom plate can be used interchangeably.
4. The top back plate has several spare m3 mounting holes/ horizontal slot to easily secure your fpv cam bracket or 3d printed mount with screws or zip ties.
5. Takes up to 4 inch props max.

1) At the moment, the smallest quad frame with front Gopro cage
2) Allows versatile builds with 3 separate top plates, and both ends of bottom plate can be used as the front of the quad.
3) 3 separate top plates instead of a single long piece so that you can have more options in determining the height of your mid and back plate.
4) Repairs or replacements to electronics can be done for a specific segment (front/top/mid) without removing all the top plates unless necessary.
5) The front and tail of the Bottom plate has same layout of mounting and standoff holes so that the front and tail of the bottom plate can be used interchangeably
6) The top back plate can be used as a front plate if you choose to top mount your Gopro or Mobius.
7) Mobius can be mounted in the front at the bottom plate without reconfiguring the quad (for a top mounted Mobius) when you use a Mobius and Gopro interchangeably.
8) The top mid plate has several spare m3 mounting holes/ horizontal slot to easily secure your fpv cam bracket or 3d printed mount with screws or zip ties.
9) Choice of bottom, top or back mount your lipo depending on how you build.
10) Able to use up to  5inch props.

Frame Details:

1) Full 3k Matte Carbon Fiber
2) Bottom and Top front plate 3mm thick, middle and back top plate 2mm thick
3) Front Gopro Cage
4) Able to mount 2204 motors and 1806 motors
5) Diagonal MTM distance of 238mm
6) Comes with 4mm thick arms (optional 5mm thick arms can be bought separately)
