After trying out more than 8 of the existing frames in the market, ranging from 135mm to 330mm size frames, all of them which were great frames but somehow I always felt that they were not able to meet all my preferences.
My personal preference was something smaller than 250mm while still being able to fly with a well protected gopro, flying with a gopro mounted on the top plate of a quad always had me worried as it felt pretty exposed to me. I also enjoyed building my quads and was always looking for a versatile frame that would allow me to build different configurations with it to suit different purposes instead of just one.
Thus I embarked on the project of designing my own frame, it may not be the fastest frame or best looking frame out there, but it should cater to fellow hobbyist who prefers more space and protection on their quads.
VSAx70 Cross (70mm MTM frame compatible with 110x brushless motors and 45mm props)
Item List
-

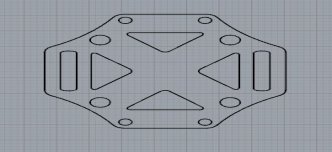

VSAx70 Top Plate
Quantity :1
-

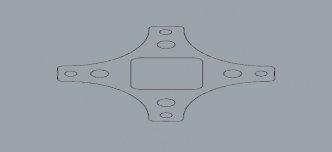

VSAx70 Cross (For 45mm Props)
Quantity :1
-
VSAx70 and 85 Under Plate for 4 in 1 ESCs
Quantity :1
Description
1.5mm Bottom Plate.
Top and under plates 1mm thick.
Use with M2 standoffs and screws.
70mm MTM.
Compatible with 110x motors and 45mm props.
3D print AIO cam mount stl files will be made available online.
Recommended for under plate to be mounted to main plate using 20x20 m3 holes.
Note: Current design has no designated lipo slots for under plate.
Additional Information
Recommended Equipment:
1102, 1103 or 1104 motors with at least 7500kv.
Cicada or similar 4 in 1 10A escs with 20x20 mounting holes
FuriousFPV Piko BLX or similar FCs with 16x16 or 20x20 mounting holes
AIO Cam/VTX similar size to Eachine TX02.
3D AIO cam mount design for download here: https://www.thingiverse.com/thing:3599243
