After trying out more than 8 of the existing frames in the market, ranging from 135mm to 330mm size frames, all of them which were great frames but somehow I always felt that they were not able to meet all my preferences.
My personal preference was something smaller than 250mm while still being able to fly with a well protected gopro, flying with a gopro mounted on the top plate of a quad always had me worried as it felt pretty exposed to me. I also enjoyed building my quads and was always looking for a versatile frame that would allow me to build different configurations with it to suit different purposes instead of just one.
Thus I embarked on the project of designing my own frame, it may not be the fastest frame or best looking frame out there, but it should cater to fellow hobbyist who prefers more space and protection on their quads.

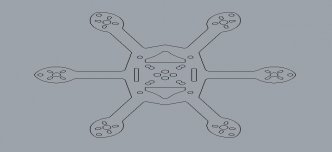

VSA140 Micro Hex v2(Compatible with 2.5 inch Props)
Item List
-
VSA140 Micro Hex Top Plate for 2535 Props
Quantity :1
-
VSA140 Micro Hex for 2535 Props
Quantity :1
-
VSA140 Micro Hex Bottom Plate Version 2
Quantity :1
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
Description
139mm MTM
3mm Thick Bottom Plate
1.5mm Thick Top Plate
16x16mm and 20x20mm FC mounting holes
Compatible with 110x and 130x motors
Compatible with 2.5" Props such as Rotorx 2535 props
AIO Cam recommended.
Version Two has bottom plate middle two arms strengthen with more CF between lipo slots and arms.
Additional Information
Optional middle arms brace available here: https://armattanproductions.com/pages/product_details/7302
