After trying out more than 8 of the existing frames in the market, ranging from 135mm to 330mm size frames, all of them which were great frames but somehow I always felt that they were not able to meet all my preferences.
My personal preference was something smaller than 250mm while still being able to fly with a well protected gopro, flying with a gopro mounted on the top plate of a quad always had me worried as it felt pretty exposed to me. I also enjoyed building my quads and was always looking for a versatile frame that would allow me to build different configurations with it to suit different purposes instead of just one.
Thus I embarked on the project of designing my own frame, it may not be the fastest frame or best looking frame out there, but it should cater to fellow hobbyist who prefers more space and protection on their quads.
VSA Proxi Version 2 (2 and 2.2 Inch Props with Runcam Split Mini and No Props in View)
Item List
-
VSA 2 Inch Proxi Top Plate v2
Quantity :1
-
VSA 2 Inch Proxi Bottom Plate v2 (Cut Along Weave)
Quantity :1
-
VSA FlowLite Base Side Plate
Quantity :1
Description
Improved version with arm braces and cam side plates.
- 2mm Bottom Plate
- 1.5mm Top Plate
- Fits 20x20 and 16x16 FCs.
- Separate stack for Runcam Split Mini (19mm width cams) and FC.
- Arm length allows for installation of plastic ducts/prop guards from Aliexpress or Banggood. 2" with prop guards, 2.2" max without prop guards.
Additional Information
Please note: Kit doesn't come with M2 standoffs and screws required, do remember to purchase separately.
Recommended to purchase 30mm M2 standoffs if you fly with high tilt. For indoor low speed flying, 25mm is sufficient.

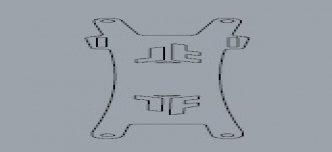

Note: Pic below is without arm braces, this kit's bottom plate comes with arm braces for added strength.
