After trying out more than 8 of the existing frames in the market, ranging from 135mm to 330mm size frames, all of them which were great frames but somehow I always felt that they were not able to meet all my preferences.
My personal preference was something smaller than 250mm while still being able to fly with a well protected gopro, flying with a gopro mounted on the top plate of a quad always had me worried as it felt pretty exposed to me. I also enjoyed building my quads and was always looking for a versatile frame that would allow me to build different configurations with it to suit different purposes instead of just one.
Thus I embarked on the project of designing my own frame, it may not be the fastest frame or best looking frame out there, but it should cater to fellow hobbyist who prefers more space and protection on their quads.
VSAx170 v4 4 Inch Frame Set (Cut Along Weave)
Item List
-

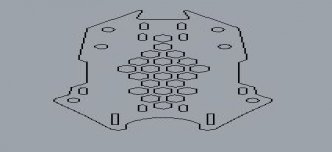

VSA 170 v4 4 Inch Ultralight Top Plate
Quantity :1
-
VSA 170 v4 4 Inch Ultralight FPV Cam Side Plates
Quantity :2
-

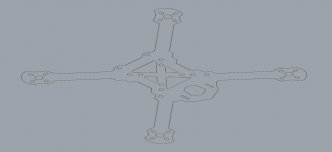

VSAx170 v4 Bottom Plate (Cut Along Weave)
Quantity :1
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
-
8mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
For Runcam Mini size FPV cams, Runcam Micro can be used to using two 1mm spacers as a bridge.
Compatible with:
20x20 or 30x30 FCs/PDBs
1407,1507 motors mounting holes
Bottom Plate 4mm Thick
Top Plate 2mm Thick
Option for diagonally cut weave for bottom plate can be made available but charged at a higher price by Armattan.
Review Section ( Total Review:1 )
Dick Nabben
Wauw. ..If you want quality carbon this is the place to be! I asked for my frame to be cut along the weave for extra stiffness because of my previous and first frame wich I bought from AliExpress (rookie mistake) being very flexible and giving me vibration issues wich result in hot motors and poor handeling I wanted a decent frame now and boy what a difference. I can not bend this frame if I wanted to. Extreme stiff and sturdy frame of excellent quality carbon. It costs a bit more but it's well worth the money because my quad has never flown this good and locked in because I can now tune it way more finely. If you want a good frame wich will last you longer than you need look no further. I'll be buying all my frames from Armattanproductions.com from now on!!
