After trying out more than 8 of the existing frames in the market, ranging from 135mm to 330mm size frames, all of them which were great frames but somehow I always felt that they were not able to meet all my preferences.
My personal preference was something smaller than 250mm while still being able to fly with a well protected gopro, flying with a gopro mounted on the top plate of a quad always had me worried as it felt pretty exposed to me. I also enjoyed building my quads and was always looking for a versatile frame that would allow me to build different configurations with it to suit different purposes instead of just one.
Thus I embarked on the project of designing my own frame, it may not be the fastest frame or best looking frame out there, but it should cater to fellow hobbyist who prefers more space and protection on their quads.
VSAx145
Item List
-

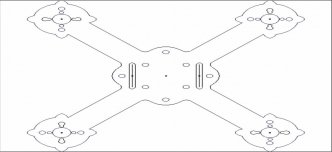

VSAx 145mm Bottom Plate
Quantity :1
-

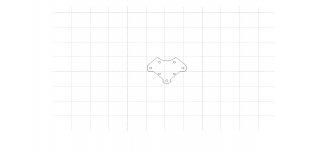

VSAx 145 Top Plate A
Quantity :1
-

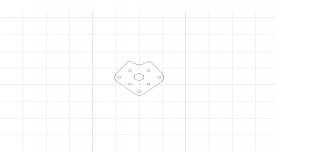

VSAx 145 Top Plate B
Quantity :1
-
Quantity :3
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
20mm M3 Steel Button Head Bolt Black Anodized
Quantity :7
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :3
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
Designed to be compact, tough and fast!
- MTM: 145mm
- 4mm thick bottom plate
- Mounting holes for Furious FPV Piko BLX FC
- Mounting holes for Naze32 size FCs but yaw in CF will have to be rotated 45degrees
- Frame weight with standoffs and main top plate is 45.2g.
- AUW with Dinogy 1000mah 4s graphene is 340g. (without HD cam)
Additional Information
VSAx145 Recommended Build Parts:
4 inch Props
2204 or 2205 high kv motors, also compatible with Rcx 1407 or 1707 motors
Vgood 2 in 1 Escs or individual external escs
FuriousFPV Piko BLX FC (Highly Preferred)
FuriousFPV Mini Sbus Rx
TS58xx size Vtx
600tvl Cmos Micro cam (Secured with Custom 3dp mount or hotglue) - Will release stl file in near future.
1000mah or 1300mah 4s high C lipos
