Welcome to T4bee Design

Full list of products (click)!

Hi, everything you see here I made because I wanted it and didn't find anywhere else. Everything is open source (non-commercial), so please feel free to download and print / cut things yourself.

Please do share your builds!








20x20mm Parakeet Frames etc.

This category contains various frames from the Parakeet made for 20x20mm sized hardware and able to fit various motors, prop sizes. It is centered around a very low profile build and the Runcam Swift Micro. All bottom plates are fully interchangable, meaning, you only need to unscrew the 4 standoff scews and your FC stack screws and plonk the entire top onto different sized or shaped mainplate.

RC goups thread for this Eco-System:
https://www.rcgroups.com/forums/showthread.php?2968166-Parakeet-Ecosystem-Quads-Hexas-2-4-100-190

Thingiverse page for this Eco-System:
https://www.thingiverse.com/thing:2472029



The way this works* is you need to buy one bottom frame of your choosing + the Topplate / Sides / Standoffs kit

(*Excep the NOX specials, which are self-contained kits with diffeent dimensions)

Some Example Pics:

Parakeet_142 3"
NOX Special Stretch
Parakeet_142 3"
NOX Special Stretch
Parakeet_158 4"
Stretched Deadcat
Parakeet_116 2"
Hexa
Parakeet_116 2"
Hexa
Parakeet_122 3"
Deadcat
Parakeet_168 4"
NOX Special Stretch

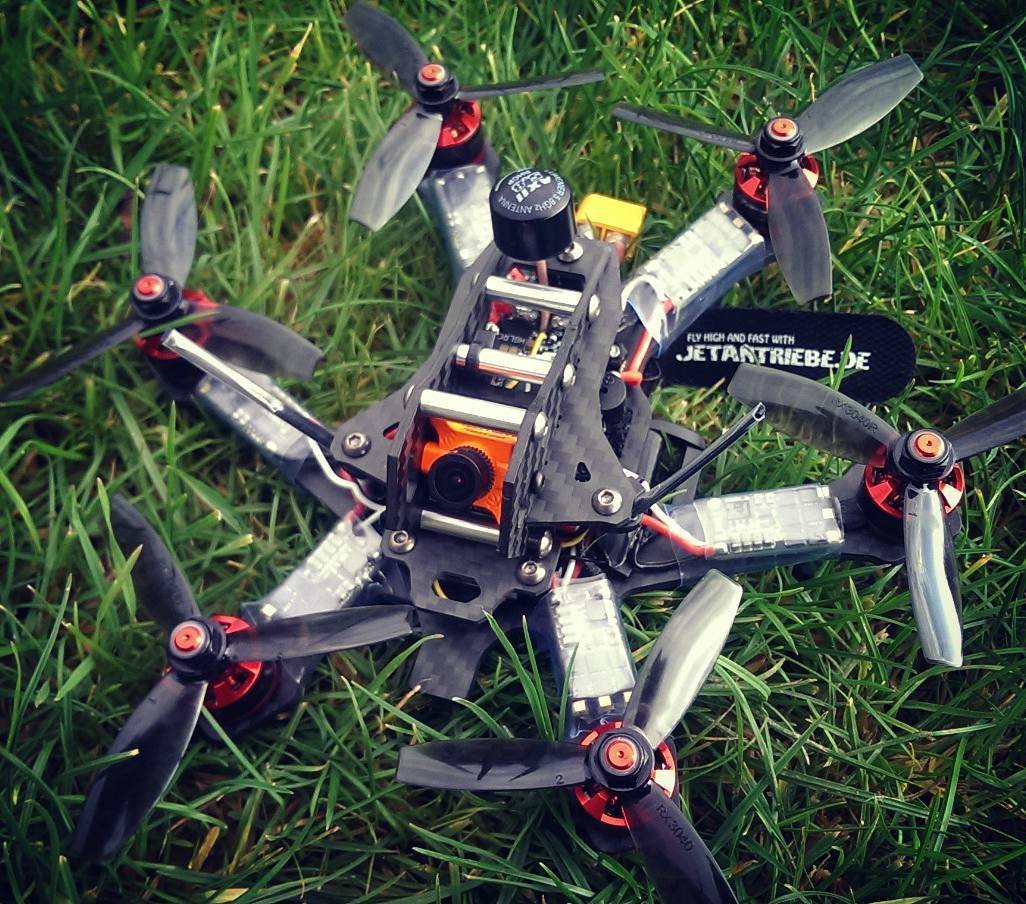

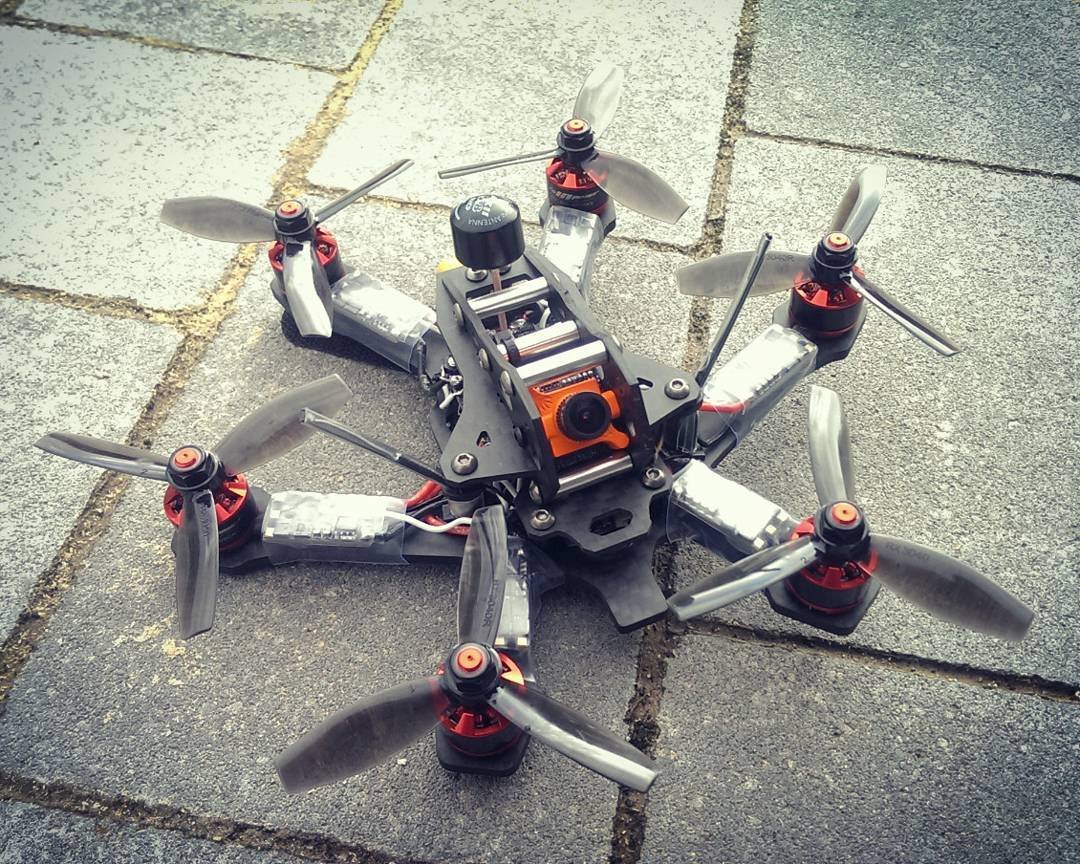

Parakeet_162 3"
Hexa
Parakeet Topplate +
Sides + Standoffs kit
Parakeet_158 4"
Stretched Deadcat
Shoes / Softmount Parakeet_142 3"
NOX Special Stretch





Top Plate etc.

Bottom Plates

NOX Specials

This special edition of the parakeet is specifically designed around the Airbot NOX32

NOTE: the NOXspecials are self-contained kits, i.e. they don't fit the other bottom plates or Top plate + sides kit !

  • Parakeet_142 3" Stretched Deadcat for 1306/140X motors (4mm thick): kit_detail/1224
  • Parakeet_168 4" Stretched Deadcat for 1306/140X motors (4mm thick): kit_detail/1225



For Shoes / Motor protectors + Softmounts (to be printed in TPU) go to: thingiverse.com/thing:2472029






20x20mm Pod Based Tanky & Toothrip Frames etc.



This category contans frames and pods for the Tanky & Toothrip ecosysytem of various sizes, made for 20x20mm sized hardware and able to fit various motors, prop sizes and cameras. All pods and frames are fully interchangable, i.e. you can plug any pod on any of these frames and vice versa.

RC groups link for this Eco System:
https://www.rcgroups.com/forums/showthread.php?2798066-T4bee-Tanky-Toothrip-Ecosystem-2-4

Thingiverse for this Eco-System:
https://www.thingiverse.com/thing:1783281

The way this works is you need to buy one bottom frame of your choosing + whatever Pod you like

Some Example Pics:

tanky 110 3" + micro swift pod medium toothrip 150 3" + Swift Mini Pod tanky 110 3" + Swift Mini Pod toothrip 87 2" + CMOS Canopy
toothrip 150 3" + Swift Mini Pod toothrip 110 3" tanky 110 3" + Swift Mini Pod tanky 110 3" + CMOS Canopy
toothrip 87 2" toothrip 110 3" 110X Motors tanky 110 3" + 35° CMOS Canopy tanky 147 4" + Simple CCD Pod
Tanky_147 4" + Micro Swift Pod
Medium
toothrip_130 3" +
Micro Swift Pod Medium
toothrip 150 3" + Swift Mini Pod + Crossbeams toothrip 110 3"  + 35° canopy
Shoes / Softmount tanky 110 3" + micro swift pod medium toothrip_110 + micro swift canopy toothrip_130 + micro swift canopy





Carbon Fibre Pods

  • CCD Protected pod (added protection) for e.g. Runcam Swift, Owlcam Plus etc. : kit_detail/916
  • CCD Simple pod (minimalist) for e.g. Runcam Swift, Owlcam Plus etc.: kit_detail/917
  • SwiftMini pod for Runcam SwiftMini (as well as runcam owl + adapter available on thinigverse): kit_detail/918
  • MicroSwift pod Light for Runcam MicroSwift with super lightweight CF plates: kit_detail/945
  • MicroSwift pod Medium for Runcam MicroSwift with medium CF plates: kit_detail/1022
  • MicroSwift pod Tanky for Runcam Microswift with thick CF plates (virtually indestructible): kit_detail/1023

3D Printable Canopies



4" Frames


Tanky Versions

Tanky frames are made with quite a lot of Carbon Fibre, making them virtually indestructible. I have never heard of anyone having broken one of these yet.

Toothrip versions

Toothrip Frames, i.e. they're thin as toothpicks and great for ripping, are made to absolutely minimize weight and surface under the propellers. As a result, these frames are less durable than the tanky versions, but absolutely incredible to fly.



3" Frames


Tanky Versions

Tanky frames are made with quite a lot of Carbon Fibre, making them virtually indestructible. I have never heard of anyone having broken one of these yet.

Toothrip versions

Toothrip Frames, i.e. they're thin as toothpicks and great for ripping, are made to absolutely minimize weight and surface under the propellers. As a result, these frames are less durable than the tanky versions, but absolutely incredible to fly.

For those who want to add some rigidity and introduce a planned breaking point, I have prepared CF-Crossbeams for the 3" toothrip frames. In fact, the crossbeams are highly recommended!

  • Crossbeam for Toothrip_110 True-X and 1306/140X motors only (2mm thick): product_details/7951
  • Crossbeam short side for Toothrip_130 Stretched-X and 1306/140X motors only (2mm thick): product_details/7950
  • Crossbeam long side for Toothrip_130 Stretched-X and 1306/140X motors only (2mm thick): product_details/12464
  • Crossbeam for Toothrip_150 Hexacopter and 1306/140X motors only (2mm thick): product_details/8087


In addition, Cesium FPV has remixed his own stretchbee frame version. These frames are not compatible with the cross-bars, but fully compatible with all the pods and canopies posted above.



2.5" Frames

Since 2.5" are significantly smaller than 3", and generally built with much lighter hardware, all frames are toothrip by default.



2" Frames

For the same reasons as with the 2.5" frames, 2" frames are toothrip by default.



For shos / motor protectors + soft mounts (to be printed in tpu) go to: thingiverse.com/thing:1783281






20x20mm Stack Frame + Pod

This is the simplest possible frame + pod for a 2" sized quad, 110X Motors and a CM275T-type AIO Cam. Tiny yet sturdy, you can't get much lighter than this.








16x16mm Hardware

This category contains products made for 16x16mm hardware and various motors and cameras etc.

These frames have been designed for 16x16mm fc hardware (uses M2 screws!) and 0703/0806 brushless motors (different mountings!) and come in various sizes to provide the smallest possible frame for the respective motor and prop size.

~ !Note that 0703 and 0806 Motors use completely different mounting holes! Which means these are not interchangable. Make sure you choose the correct frame! ~

As armattan productions hardware does not feature M2 hardware, you will have to get the nylon screws and standoffs yourself.

This frame is available in the following formats:

0703 Motors:

0803 Motors:



The frames have been designed with the latest generation of aio cam+vtx in mind (15mm width). You have two options to mount these cameras:



Creative Commons License
All works are licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.

RotorX Raiju RX155 Runcam Swift Micro Custom Top


Price : $ 16.43

Propeller size : 3"



Description

This custom top is made to fit the default main-plate for the RotorX Raiju RX155 (meaning you won;t have to drill any holes), and is intended for cameras of the Runcam Swift Micro Format (19x19mm).

Thanks to the structural setup, impact forces will be nicely distributed among all 6 standoffs. All plates are 2mm thick, making the custom top very crash resilient and tanky. -- And I think it looks cool.

It is intended for 4x 20mm and 2x 10mm standoffs (as included in this kit). It also required 3-4 (4rth is optional) horizontal standoffs at 19mm. Unfortunately armattan productions does not carry these at the moment, so you'll have to cut the included 24mm standoffs to length (or supply your own standoffs).

Also please note that this is designed to be very tight and snuck, so depending on whether armattan's mill has a good or a bad day, you may have to do some very slight filing of edges. In general, however, this should not be an issue.

You can also source each of the components by themselves if you already have fitting standoffs/screws. Just click on the listed items and purchase them individually. One full kit consists of 1x topplate, 1x bottomplate, 2x sideplates.

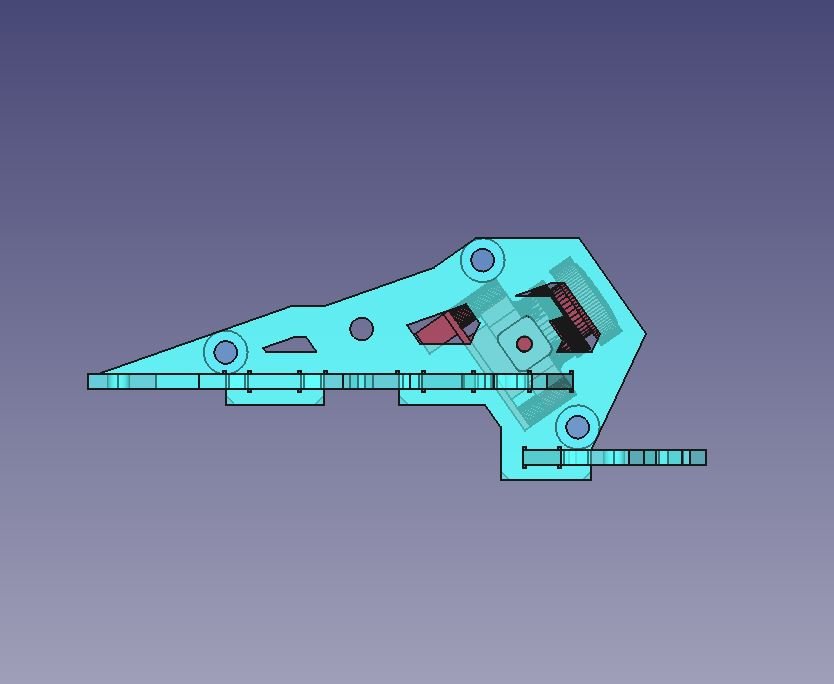

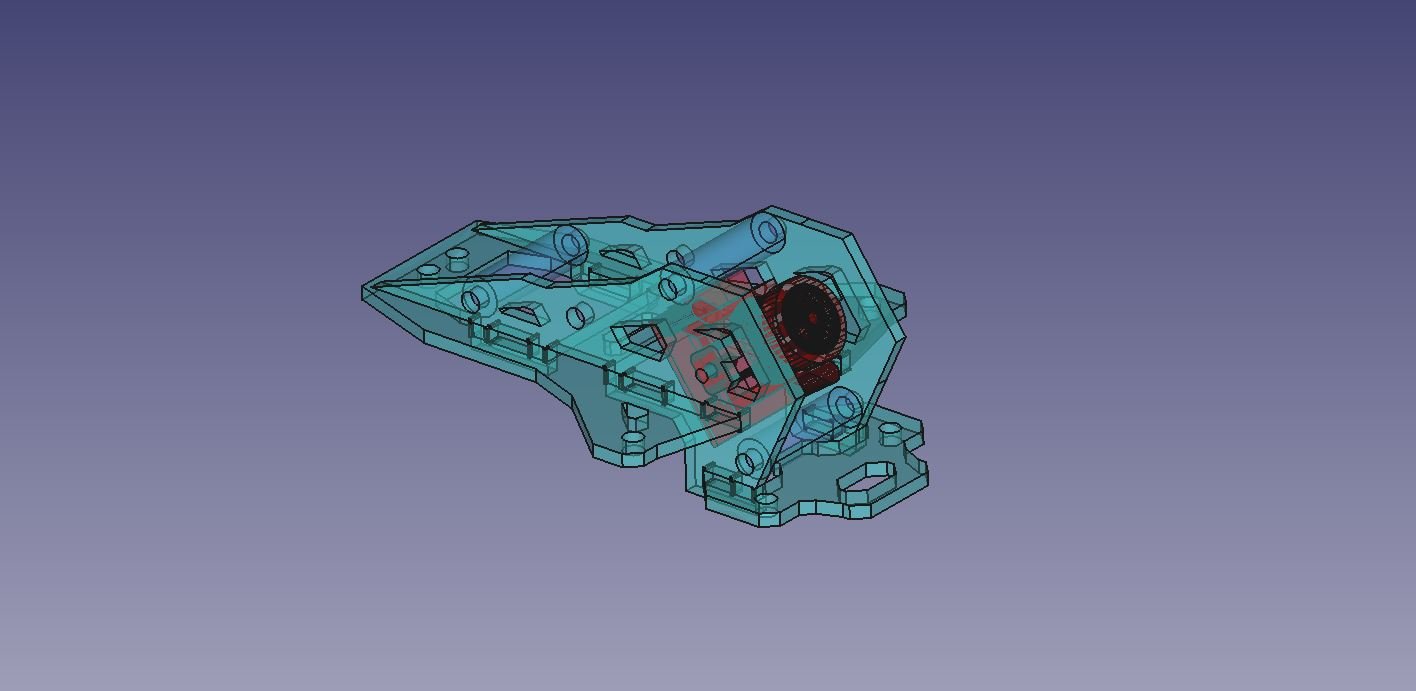

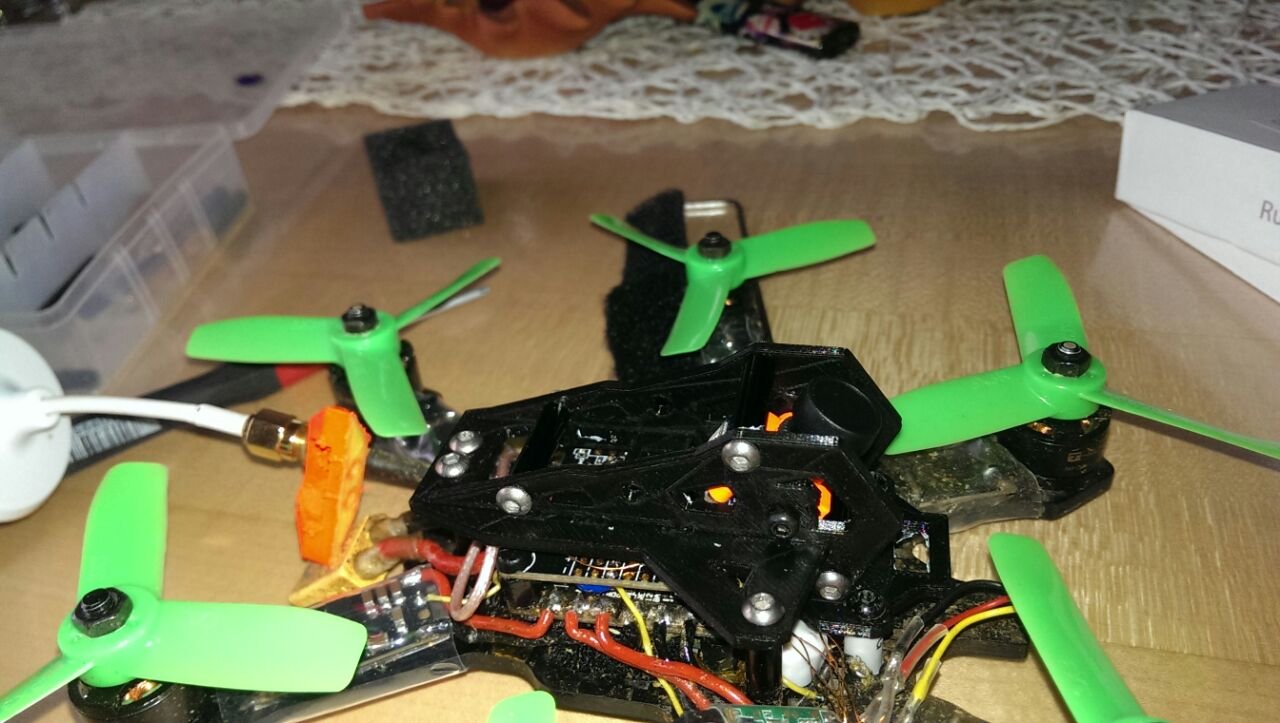

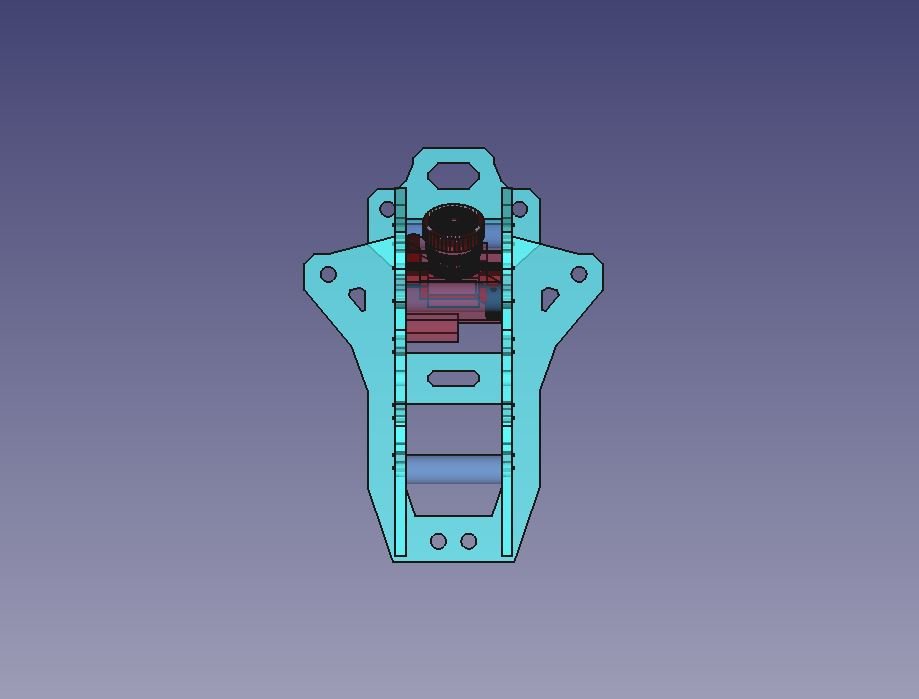

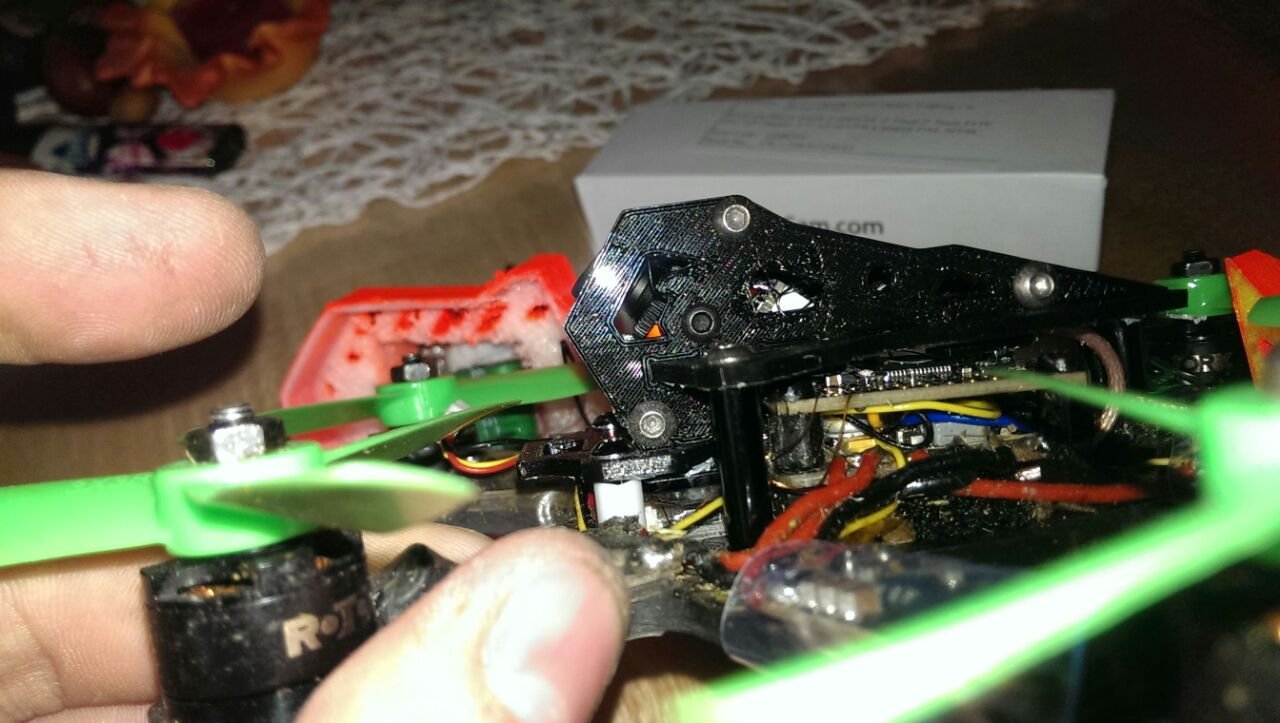

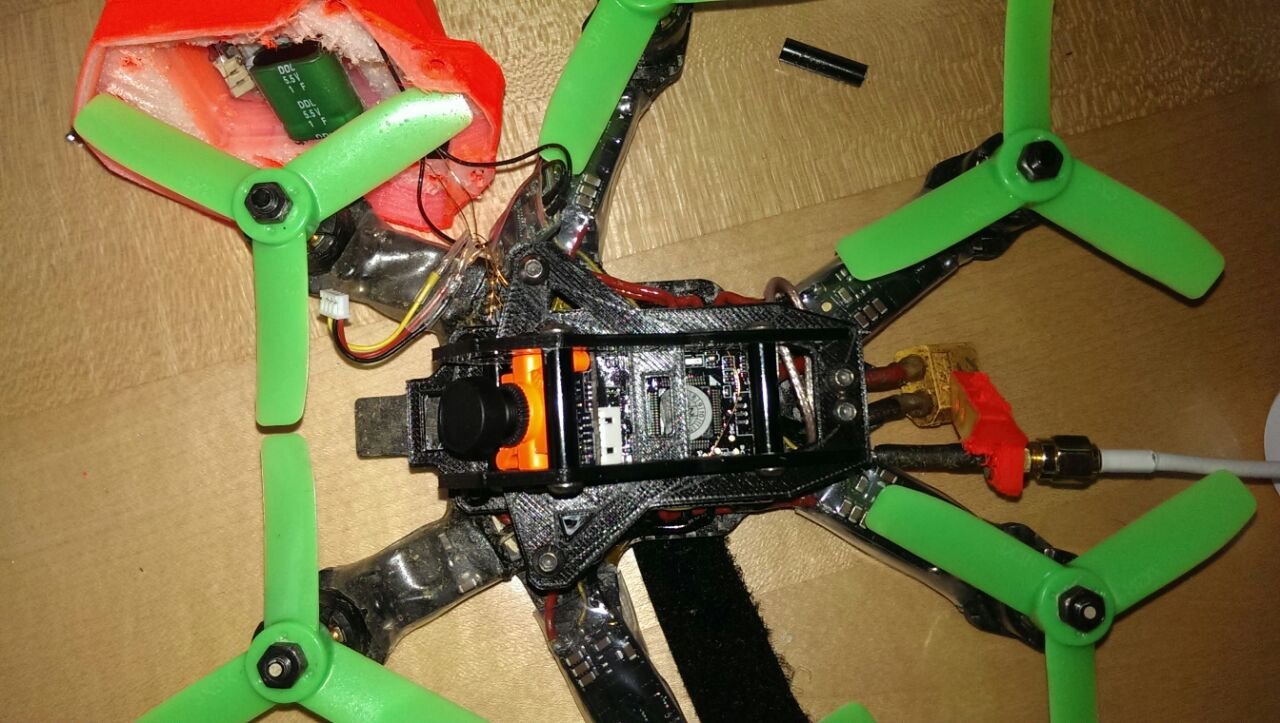

A couple of pictures for reference (including 3D printed prototypes - which were slightly improved since).





Can find the files for download (noncommercial) here on amattan or on thingiverse: https://www.thingiverse.com/thing:2576432





My Shop with full list of products (click here)!



Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.
