s light as possible with the material where its needed.

6mm kit 65g with all aluminium hardware

5mm kit 52g with all aluminium hardware.

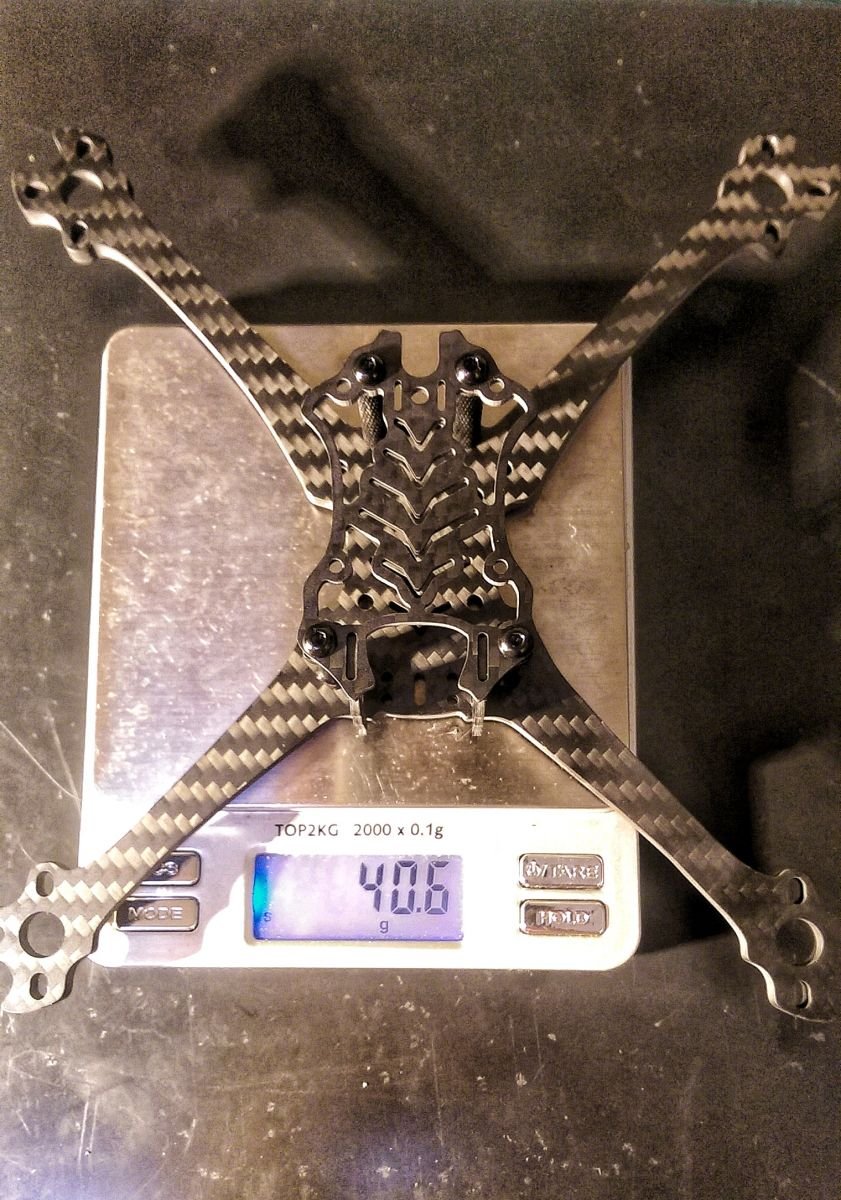

4mm kit 41g with all aluminium hardware.

3mm kit 30g with all aluminium hardware.

• 191mm motor to motor.
• slight stretch X configuration
• 30.5x30.5 and 20x20 flight controller mount m3 holes.- if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
• 19x16 motor mount m3 holes.
• 19mm wide camera mount for runcam/foxeer sized micro camera, aluminium bracket mount can be used also, carbon plates are 1.5mm thick 25mm tall (use 25mm standoffs if using carbon fiber camera mount)
• 0-90 degree uptilt.
• 3mm thick top plate.
• carbon fiber weave cut parallel to the arm for increased stiffness.
• 1 piece bottom plate.
• can be built below 250g with 2306/2207 sized motors.

Please note camera mount plates may require a small amount of filing to fit snug.

3mm thick version estimated weight 30g with aluminium hardware.

12x12 m2 mount for 1407 sized motors.

up to 5 inch propellers.

30.5x30.5 and 20x20 flight controller mounting holes. - if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html

for runcam/foxeer micro sized cameras (19mm between camera mounting plates)

camera mount plates are 25mm tall and require 25mm standoffs to use.

Please note camera mount plates may require a small amount of filing to fit snug.

As light as possible with the material where its needed.

5mm kit 50g with all aluminium hardware.

4mm kit 40g with all aluminium hardware.

3mm kit 30g with all aluminium hardware.

• 191mm motor to motor.
• slight stretch X configuration
• 30.5x30.5 and 20x20 flight controller mount m3 holes. - if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
• 19x16 motor mount m3 holes.
• 19mm wide camera mount for runcam/foxeer sized micro camera, aluminium bracket mount can be used also, carbon plates are 1.5mm thick 25mm tall (use 25mm standoffs if using carbon fiber camera mount)
• 0-90 degree uptilt.
• 2mm thick top plate.
• carbon fiber weave cut parallel to the arm for increased stiffness.
• 1 piece bottom plate.
• can be built below 250g with 2306/2207 sized motors.

Please note camera mount plates may require a small amount of filing to fit snug.

As light as possible with the material where its needed.

5mm kit 50g with all aluminium hardware.

4mm kit 40g with all aluminium hardware.

3mm kit 30g with all aluminium hardware.

• 191mm motor to motor.
• slight stretch X configuration
• 30.5x30.5 and 20x20 flight controller mount m3 holes.- if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
• 19x16 motor mount m3 holes.
• 19mm wide camera mount for runcam/foxeer sized micro camera, aluminium bracket mount can be used also, carbon plates are 1.5mm thick 25mm tall (use 25mm standoffs if using carbon fiber camera mount)
• 0-90 degree uptilt.
• 2mm thick top plate.
• carbon fiber weave cut parallel to the arm for increased stiffness.
• 1 piece bottom plate.
• can be built below 250g with 2306/2207 sized motors.

Please note camera mount plates may require a small amount of filing to fit snug.

As light as possible with the material where its needed.

5mm kit 50g with all aluminium hardware.

4mm kit 40g with all aluminium hardware.

3mm kit 30g with all aluminium hardware.

• 191mm motor to motor.
• slight stretch X configuration
• 30.5x30.5 and 20x20 flight controller mount m3 holes.-if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
• 19x16 motor mount m3 holes.
• 19mm wide camera mount for runcam/foxeer sized micro camera, aluminium bracket mount can be used also, carbon plates are 1.5mm thick 25mm tall (use 25mm standoffs if using carbon fiber camera mount)
• 0-90 degree uptilt.
• 2mm thick top plate.
• carbon fiber weave cut parallel to the arm for increased stiffness.
• 1 piece bottom plate.
• can be built below 250g with 2306/2207 sized motors.

Please note camera mount plates may require a small amount of filing to fit snug.

Tribus 117mm 3 inch frame kit without hardware.

 These frames are now cut at 45 degrees with the carbon weave running down the arms and are far stiffer.

This kit is for m2 stand offs which should be 25mm tall if using the carbon fiber camera plates, lower stand offs can be used if using the runcam micro swift aluminium camera mount.

117mm motor to motor, very slight stretch X

2mm bottom plate

1mm top plate

11xx-14xx size motor mount

20x20 flight controller mounting holes m3 size - if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html

up to 3 inch propeller

19mm camera mount bracket for micro swift, aluminium camera bracket can be used also.

frame carbon weight is only 11.5g! around 13.5g with aluminium m2 hardware.

Please note..

This is a very tight build, only the smallest components can be used and is not recommended for beginner builders.

Frame is made to be as small as possible to reduce drag, weight and increase arm strength.

Sometimes a tiny amount of filing to make the camera mount plates fit snug is needed.

Tribus 117mm 3 inch frame kit with hardware

 These frames are now cut at 45 degrees with the carbon weave running down the arms and are far stiffer.

This kit is for m3 stand offs which should be 25mm tall if using the carbon fiber camera plates, lower stand offs can be used if using the runcam micro swift aluminium camera mount.

117mm motor to motor, very slight stretch X

3mm bottom plate

1.5mm top plate

11xx-14xx size motor mount

20x20 flight controller mounting holes m3 size - if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html

up to 3 inch propeller

19mm camera mount bracket for micro swift, aluminium camera bracket can be used also.

frame carbon weight is only 15.5g! around 18.5g with aluminium m3 hardware.

Please note..

This is a very tight build, only the smallest components can be used and is not recommended for beginner builders.

Frame is made to be as small as possible to reduce drag, weight and increase arm strength.

Sometimes a tiny amount of filing to make the camera mount plates fit snug is needed.
