As light as possible with the material where its needed.
5mm kit 50g with all aluminium hardware.
4mm kit 40g with all aluminium hardware.
3mm kit 30g with all aluminium hardware.
- 191mm motor to motor.
- slight stretch X configuration
- 30.5x30.5 and 20x20 flight controller mount m3 holes.-if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
- 19x16 motor mount m3 holes.
- 19mm wide camera mount for runcam/foxeer sized micro camera, aluminium bracket mount can be used also, carbon plates are 1.5mm thick 25mm tall (use 25mm standoffs if using carbon fiber camera mount)
- 0-90 degree uptilt.
- 2mm thick top plate.

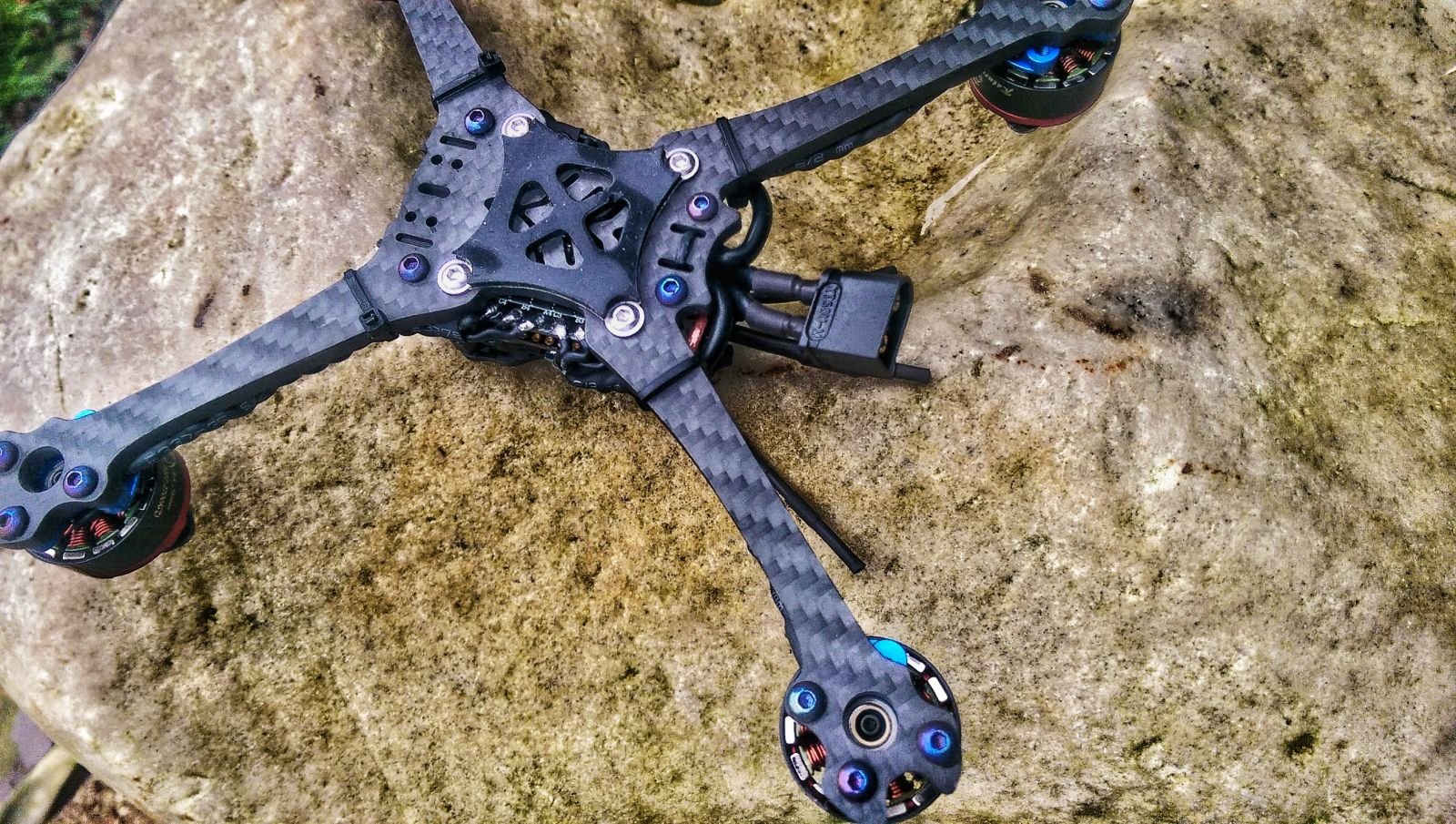

- carbon fiber weave cut parallel to the arm for increased stiffness.
- 1 piece bottom plate.

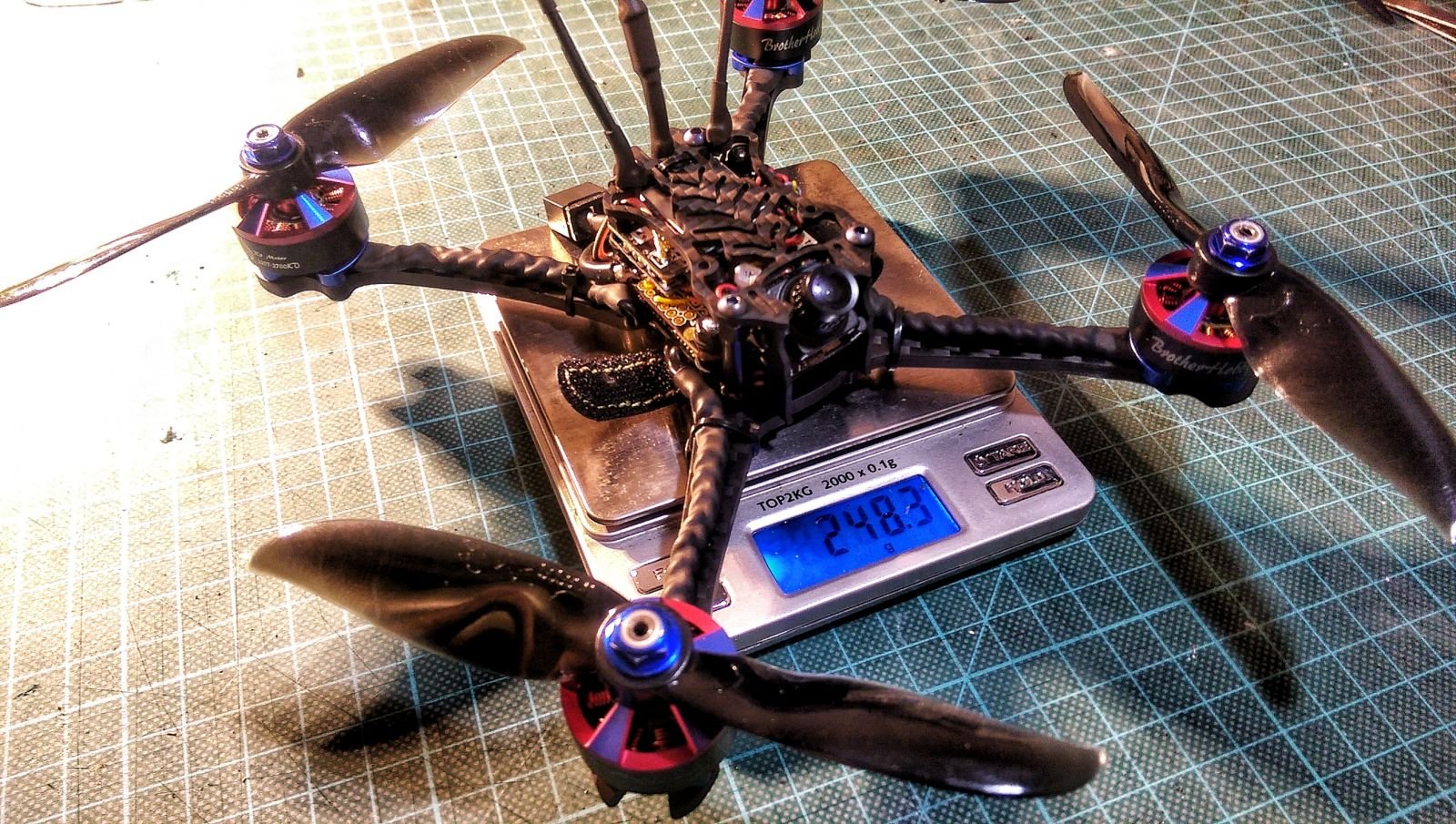

- can be built below 250g with 2306/2207 sized motors.
Please note camera mount plates may require a small amount of filing to fit snug.
