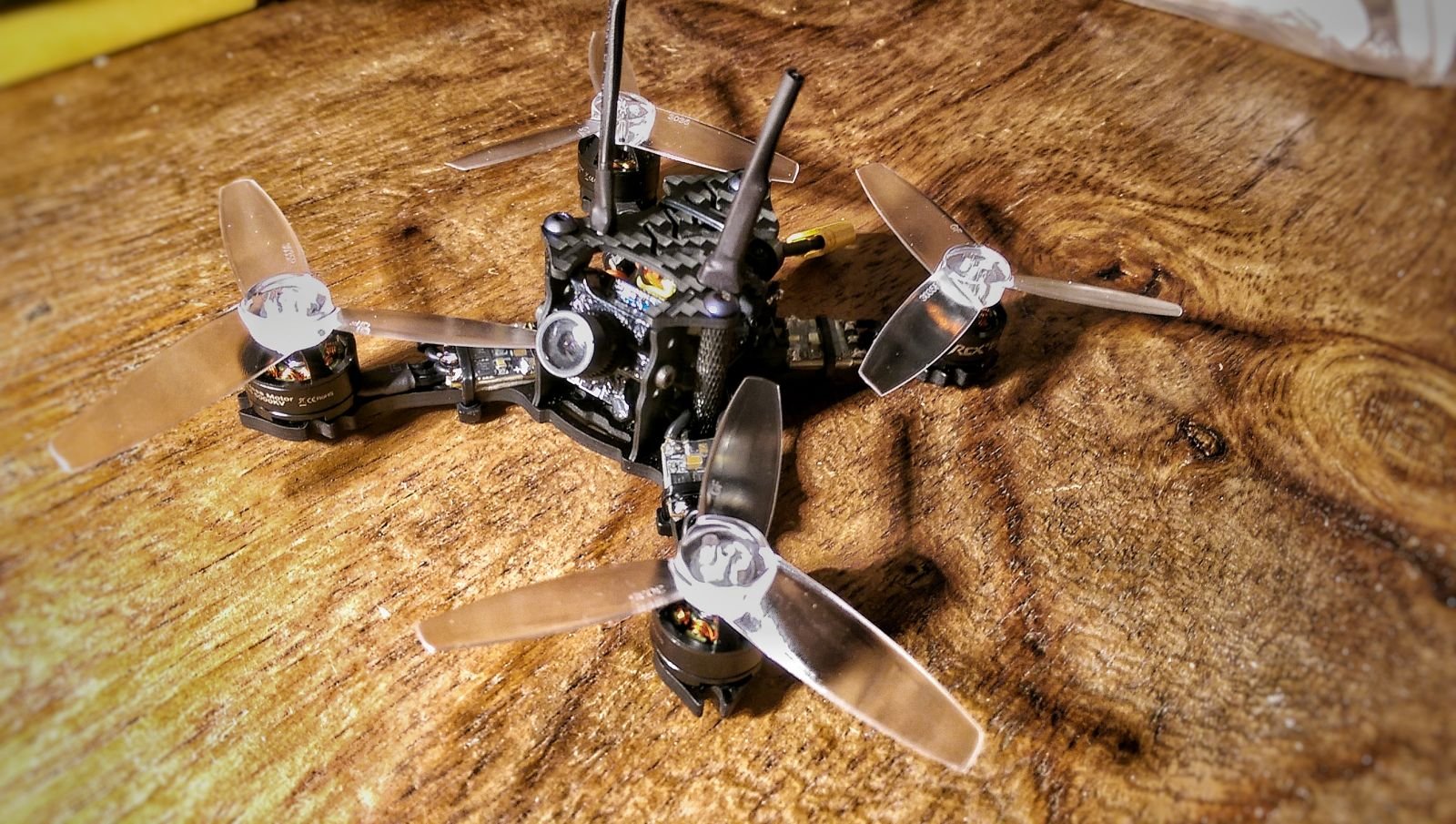

Tribus 117mm 3 inch frame kit without hardware.

 These frames are now cut at 45 degrees with the carbon weave running down the arms and are far stiffer.

This kit is for m2 stand offs which should be 25mm tall if using the carbon fiber camera plates, lower stand offs can be used if using the runcam micro swift aluminium camera mount.

117mm motor to motor, very slight stretch X

2mm bottom plate

1mm top plate

11xx-14xx size motor mount

20x20 flight controller mounting holes m3 size - if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html

up to 3 inch propeller

19mm camera mount bracket for micro swift, aluminium camera bracket can be used also.

frame carbon weight is only 11.5g! around 13.5g with aluminium m2 hardware.

Please note..

This is a very tight build, only the smallest components can be used and is not recommended for beginner builders.

Frame is made to be as small as possible to reduce drag, weight and increase arm strength.

Sometimes a tiny amount of filing to make the camera mount plates fit snug is needed.
