VOLITANT 191MM 5 INCH 4MM KIT WITH HARDWARE
Price :
$
46.56
Propeller size :
5"
Item List
-
camera mount 1.5mm 5 inch
Quantity :2
-
191mm 4mm 5inch bottom plate
Quantity :1
-
191mm 2mm top plate 5 inch
Quantity :1
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
Description
As light as possible with the material where its needed.
5mm kit 50g with all aluminium hardware.

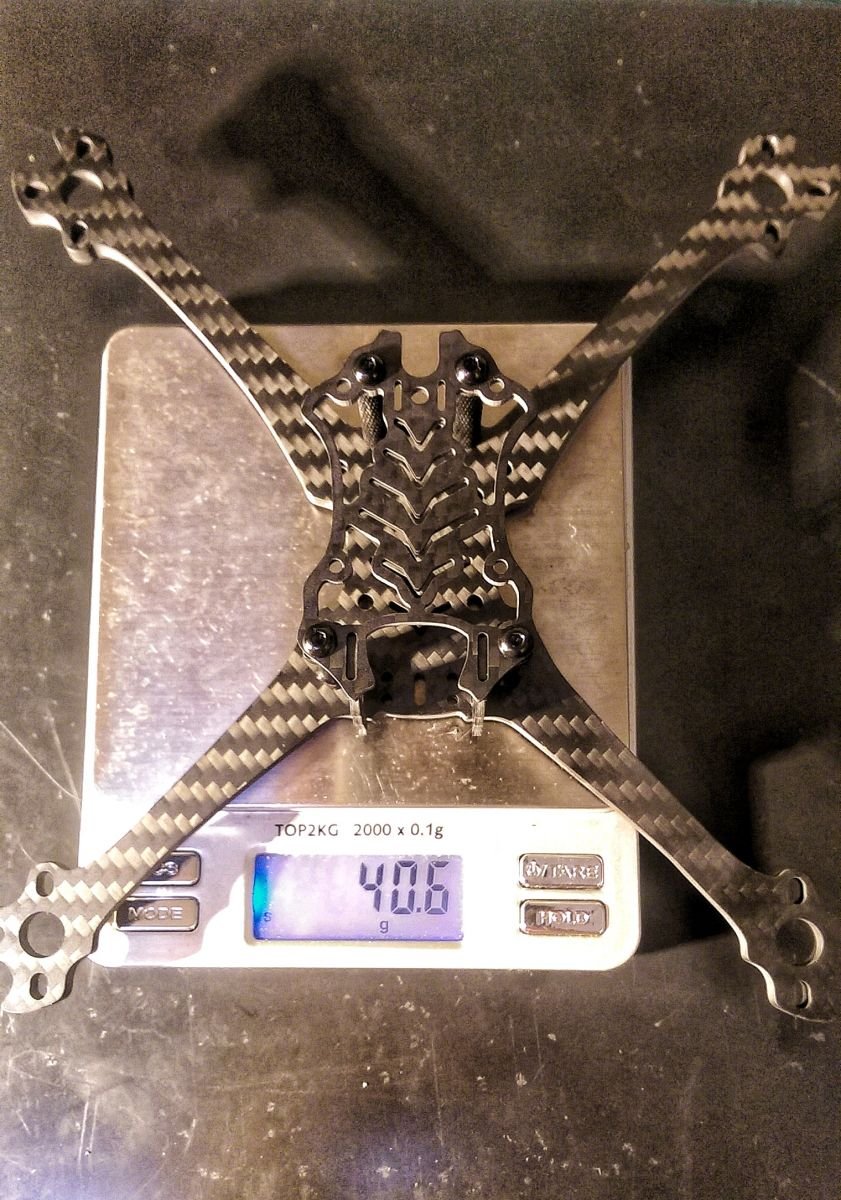

4mm kit 40g with all aluminium hardware.
3mm kit 30g with all aluminium hardware.
- 191mm motor to motor.
- slight stretch X configuration
- 30.5x30.5 and 20x20 flight controller mount m3 holes.- if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
- 19x16 motor mount m3 holes.
- 19mm wide camera mount for runcam/foxeer sized micro camera, aluminium bracket mount can be used also, carbon plates are 1.5mm thick 25mm tall (use 25mm standoffs if using carbon fiber camera mount)
- 0-90 degree uptilt.
- 2mm thick top plate.
- carbon fiber weave cut parallel to the arm for increased stiffness.
- 1 piece bottom plate.

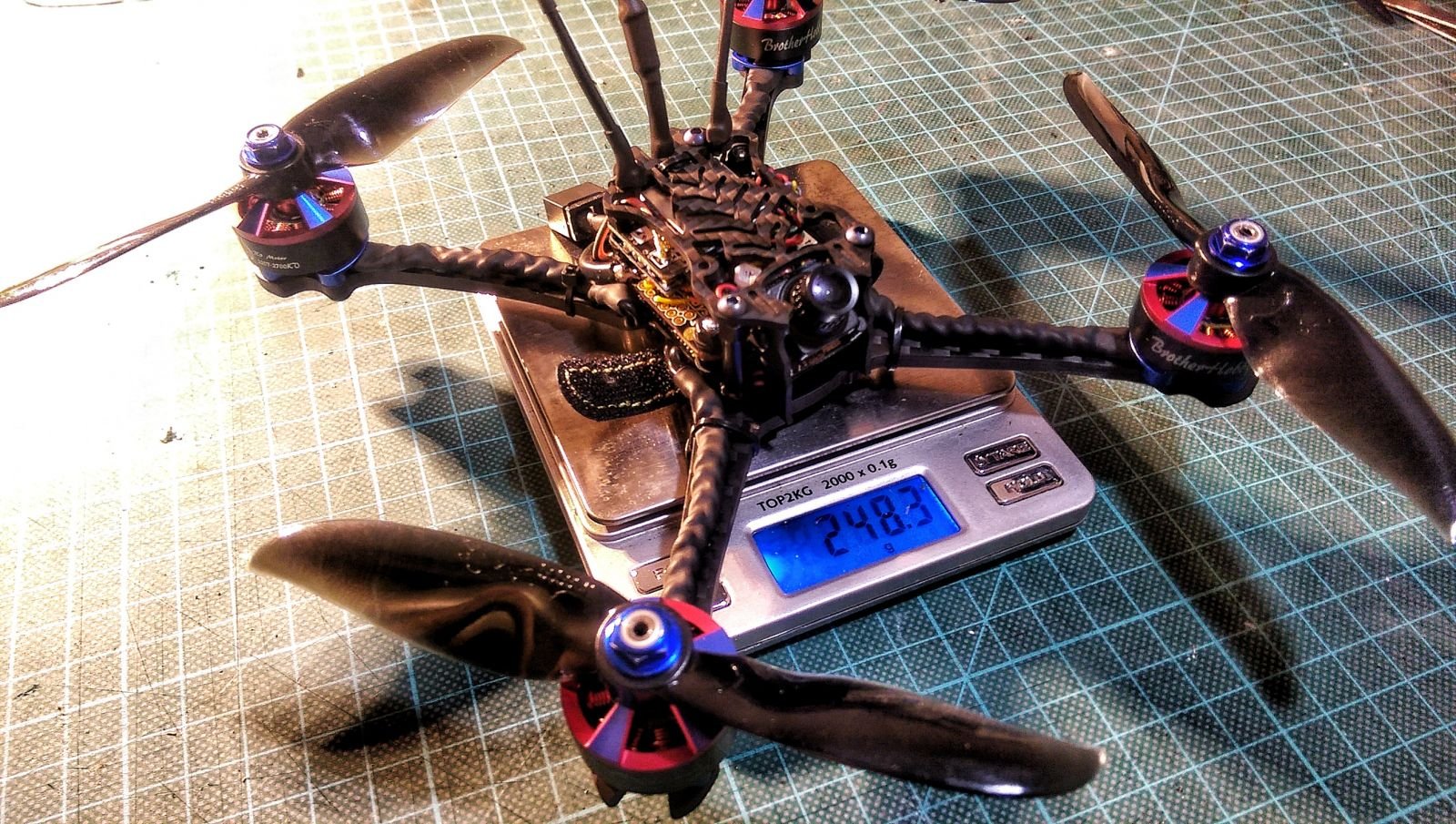

- can be built below 250g with 2306/2207 sized motors.
Please note camera mount plates may require a small amount of filing to fit snug.
