TRIBUS 117MM 3 INCH 3MM BOTTOM PLATE KIT WITH HARDWARE
Item List
-

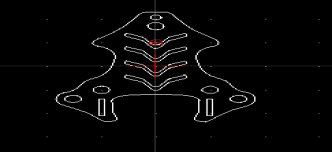

TRIBUS 117 3 inch 3mm standoff hole 3mm bottom plate
Quantity :1
-
TRIBUS 117 CAMERA PLATE
Quantity :2
-
tribus 117 top plate m3 standoff 1.5mm thick
Quantity :1
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :3
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
Description

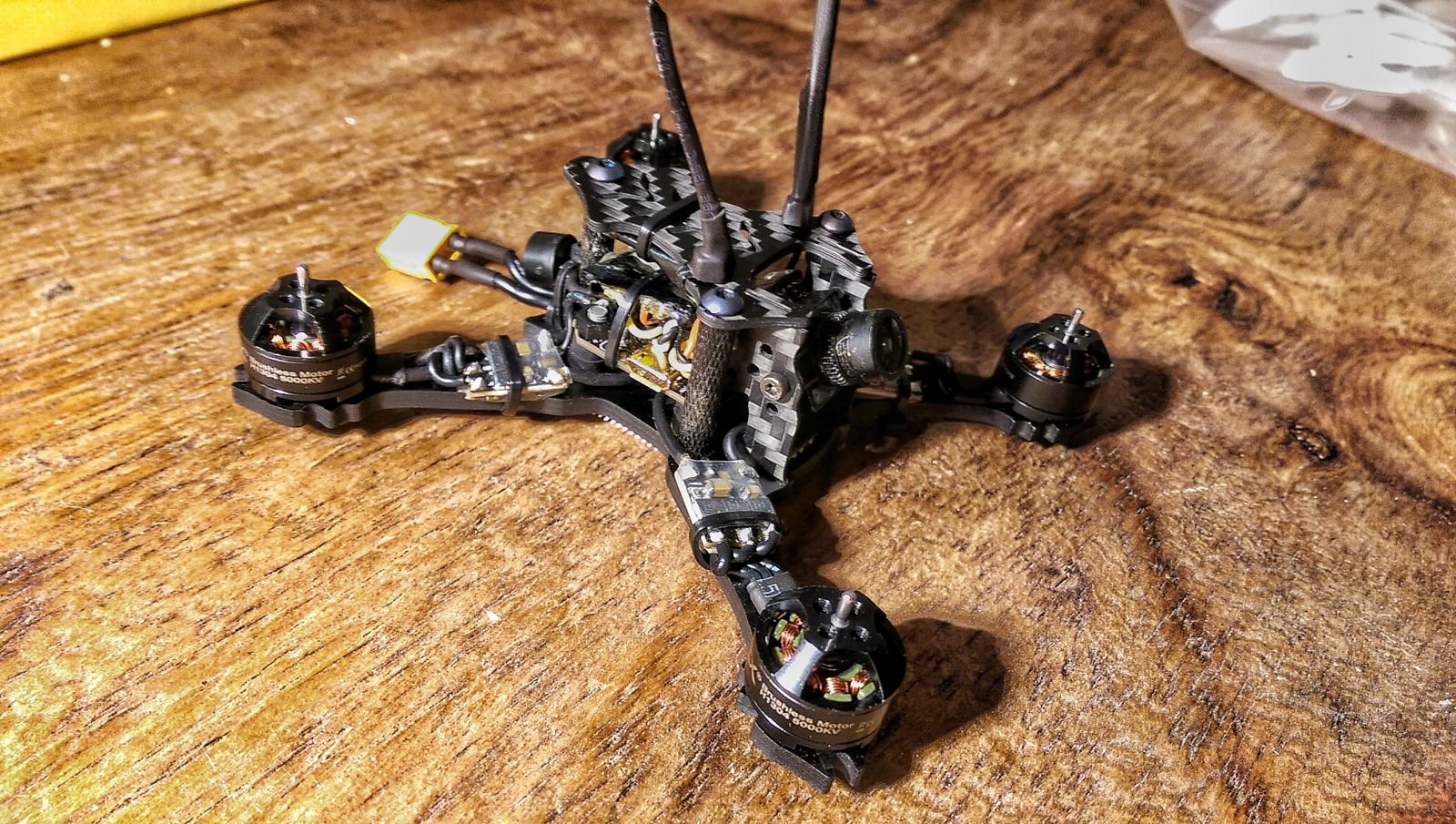

Tribus 117mm 3 inch frame kit with hardware
These frames are now cut at 45 degrees with the carbon weave running down the arms and are far stiffer.
This kit is for m3 stand offs which should be 25mm tall if using the carbon fiber camera plates, lower stand offs can be used if using the runcam micro swift aluminium camera mount.
117mm motor to motor, very slight stretch X
3mm bottom plate
1.5mm top plate
11xx-14xx size motor mount
20x20 flight controller mounting holes m3 size - if m2 size is needed these adapters can be used. https://www.rccrazed.com/accessories-build-hardware-m3-to-m2-stack-mount-adapter-5pcs-p-673.html
up to 3 inch propeller
19mm camera mount bracket for micro swift, aluminium camera bracket can be used also.
frame carbon weight is only 15.5g! around 18.5g with aluminium m3 hardware.
Please note..
This is a very tight build, only the smallest components can be used and is not recommended for beginner builders.
Frame is made to be as small as possible to reduce drag, weight and increase arm strength.
Sometimes a tiny amount of filing to make the camera mount plates fit snug is needed.
