Minimalist ULW 160 - KIT (5mm)

160mm motor to motor

4" prop max

30.5mm FC mount

Motor mount 12mm (2pcs screw for each motor)

Frame Thickness: 5mm

Weight

Main Plate: 22.8g

Top Cover: 1.8g

Note: As build component vary,  hardware are not included.

Minimalist ULW 160 - KIT (4mm)

160mm motor to motor

4" prop max

30.5mm FC mount

Motor mount 12mm (2pcs screw for each motor)

Frame Thickness: 4mm

Weight

Main Plate: 18.2g

Top Cover: 1.8g

Note: As build component vary,  hardware are not included.

Minimalist 128 for FC with 20x20mm mount hole.

The center area slightly change profile to better suite this small FC.

Note: The image is original version of Minimalist 128 (30.5x30.5mm mount)

Minimalist 112 (2mm Version)

112mm motor-to motor.

Designed for 20x20mm Piko BLX Micro FC

3" max propeller

Motor mount 9mm and 12mm - suitable 1104/1105/1306/1407 motor

Frame thickness 2mm

Note: The image above is 3mm Version of Minimalist 112

Minimalist 185 (3mm Version)

185mm motor to motor distance

For 5" max size propeller

30.5x30.5 and 20x20 FC mount hole

Frame thickness: 3mm

Motor mount for M2 screw: 12mm

Motor mount for M3 screw: 19mm

*Please note that for M3 screw, only two screws can be used. This concept is same with Flyduino MiniCP frame

Weight

Main Plate: 26g

Top Cover: 1.8g

Total weight with hardware: 32.5g

-Estimated weight-

Note:

Product image at header is older version (V1) of Main Plate (5mm version).

For V2 Main Plate, the area around 30.5mm FC hole is increase to strengthen the arm.

See below for comparison;

The photo will be update once get the new V2 frame.

Minimalist 112

112mm motor-to motor.

Designed for 20x20mm Piko BLX Micro FC

3" max propeller

Motor mount 9mm and 12mm - suitable 1104/1105/1306/1407 motor

Frame thickness 3mm

Verdin 95

Sub-100mm brushless motor frame.

95mm motor-to motor.

Designed for 20x20mm Piko BLX Micro FC (45deg mount) with 2.5" props.

Motor mount 9mm to 11mm - for 1102/1104/1105 motors

Kit Contains

1 x Verdin 95 Main Plate

1 x Verdin 20x20mm Covert

1 x Verdin Universal Cover

Mounting hardware

*If you want to use your own hardware (screw,spacer,etc.), please see this kit: Verdin 95 (Plate Only)

Suggested Parts

1. Flight Controller: PIKO BLX Micro Flight Controller

2. ESC: 4-in-1 Favourite FVT LittleBee PRO 20Ax4 ESC / Racerstar RS20Ax4 20A 4 in 1 Blheli_S

3. Motors: 1102 / 1104 / 1105 with >4000kv

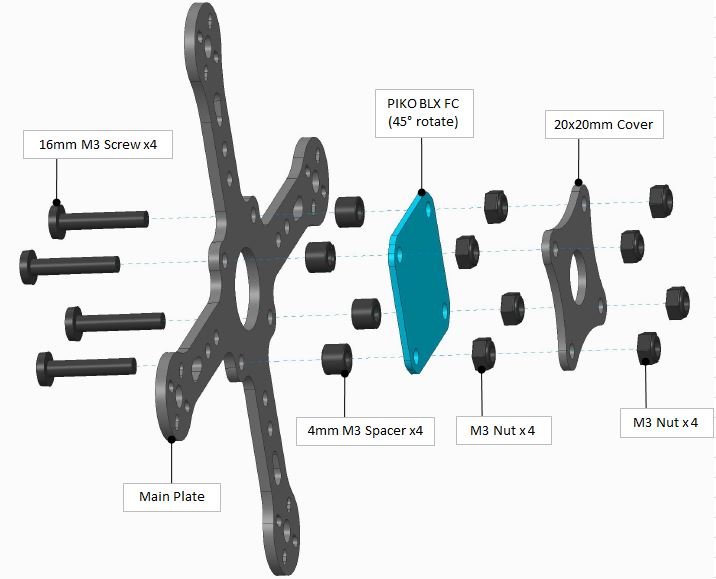

Assembly illustration for FC Side

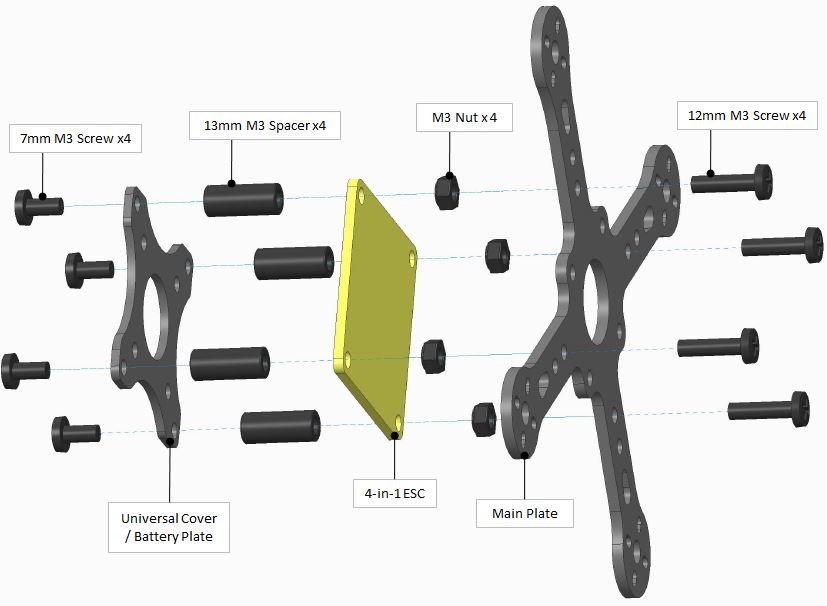

Assembly illustration for ESC Side

*Motor wire will go through arm to the bottom side.

Part thickness & estimated weight

Main plate: 2mm.....6.9g

20x20mm Cover: 1.5mm.....1.2g

Universal Cover: 1.5mm.....2.0g

Minimalist 185 (5mm Version)

185mm motor to motor distance

For 5" max size propeller

30.5x30.5 and 20x20 FC mount hole

Frame thickness: 5mm

Motor mount for M2 screw: 12mm

Motor mount for M3 screw: 19mm

*Please note that for M3 screw, only two screws can be used. This concept is same with Flyduino MiniCP frame.

Weight

Main Plate: 43.4g

Top Cover: 1.8g

Total weight with hardware: 49.6g

Note:

Product image at header is older version (V1) of Main Plate.

For V2 Main Plate, the area around 30.5mm FC hole is increase to strengthen the arm.

See below for comparison;

The photo will be update once get the new V2 frame.

Minimalist 185 (4mm Version)

185mm motor to motor distance

For 5" max size propeller

30.5x30.5 and 20x20 FC mount hole

Frame thickness: 4mm

Motor mount for M2 screw: 12mm

Motor mount for M3 screw: 19mm

*Please note that for M3 screw, only two screws can be used. This concept is same with Flyduino MiniCP frame

Weight

Main Plate: 34.8g

Top Cover: 1.8g

Total weight with hardware: 41g

Note:

Product image at header is older version (V1) of Main Plate (5mm version).

For V2 Main Plate, the area around 30.5mm FC hole is increase to strengthen the arm.

See below for comparison;

The photo will be update once get the new V2 frame.

Verdin 95

Sub-100mm brushless motor frame.

95mm motor-to motor.

Designed for 20x20mm Piko BLX Micro FC (45deg mount) with 2.5" props.

Motor mount 9mm until 11mm - for 1102/1104/1105 motors

Kit Contains:

1 x Verdin 95 Main Plate

1 x Verdin 20x20mm Cover

1 x Verdin Universal Cover

Note: This kit is Plate Only Kit and not include hardware. So you will need to source your own hardware (at Hardware Section or other place) based on your build plan.

Suggested Parts

1. Flight Controller: PIKO BLX Micro Flight Controller

2. ESC: 4-in-1 Favourite FVT LittleBee PRO 20Ax4 ESC / Racerstar RS20Ax4 20A 4 in 1 Blheli_S

3. Motors: 1102 / 1104 / 1105 with >4000kv

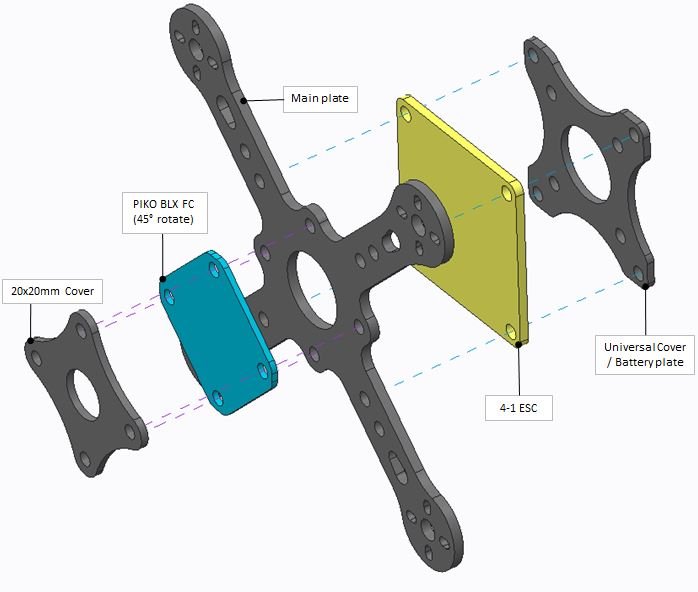

The idea for stacking the components;

*Motor wire will go through arm to the bottom side.

Part thickness & estimated weight

Main plate: 2mm.....6.9g

20x20mm Cover: 1.5mm.....1.2g

Universal Cover: 1.5mm.....2.0g

The evolution of original Minimalist 128.

17% less frame weight.

For those who wish to make sub-200g acro quad.

Minimalist unibody design with 128mm motor to motor distance

Also available for 3mm Main plate version https://armattanproductions.com/pages/kit_detail/311

The evolution of original Minimalist 128.

17% less main frame weight.

For those who wish to make sub-200g acro quad.

Minimalist unibody design with 128mm motor to motor distance.

Also available for 2mm Main plate version https://armattanproductions.com/pages/kit_detail/312

Minimalist Hex 155

Another series of Minimalist.

Make your ultra lightweight hexacopter with this true hexagonal frame.

For those who wish to make sub-200g acro quad.

Minimalist unibody design with 128mm motor to motor distance.

Note:

The Main Frame for this kit will be replace with V2 frame.

Area around FC mounting hole is increased to strengthen the arm.

See below for frame comparison of V1 and V2

The compact frame version for 4" prop with 147mm motor to motor distance.

Sturdy undestructible unibody frame with 4mm thickness.

FC mount at 45degree orientation. Need to make Yaw Adjusment in Cleanflight.

Motor mount is designed to accept any size of mini motor using M2 or M3 screw (1306, 1806, 2204, 2206, 2208) while keeping motor wire inline with esc and frame arm.

The compact frame version for 3" prop with 115mm motor to motor distance.

The FC need to mount 45degree in order to shrink the prop distance.

For those who wish to make sub-200g acro quad.

Minimalist unibody design with 128mm motor to motor distance.

Note:

The Main Frame for this kit will be replace with V2 frame.

Area around FC mounting hole is increased to strengthen the arm.

See below for frame comparison of V1 and V2
