Verdin 115 - Acro


Price : $ 18.80


Description

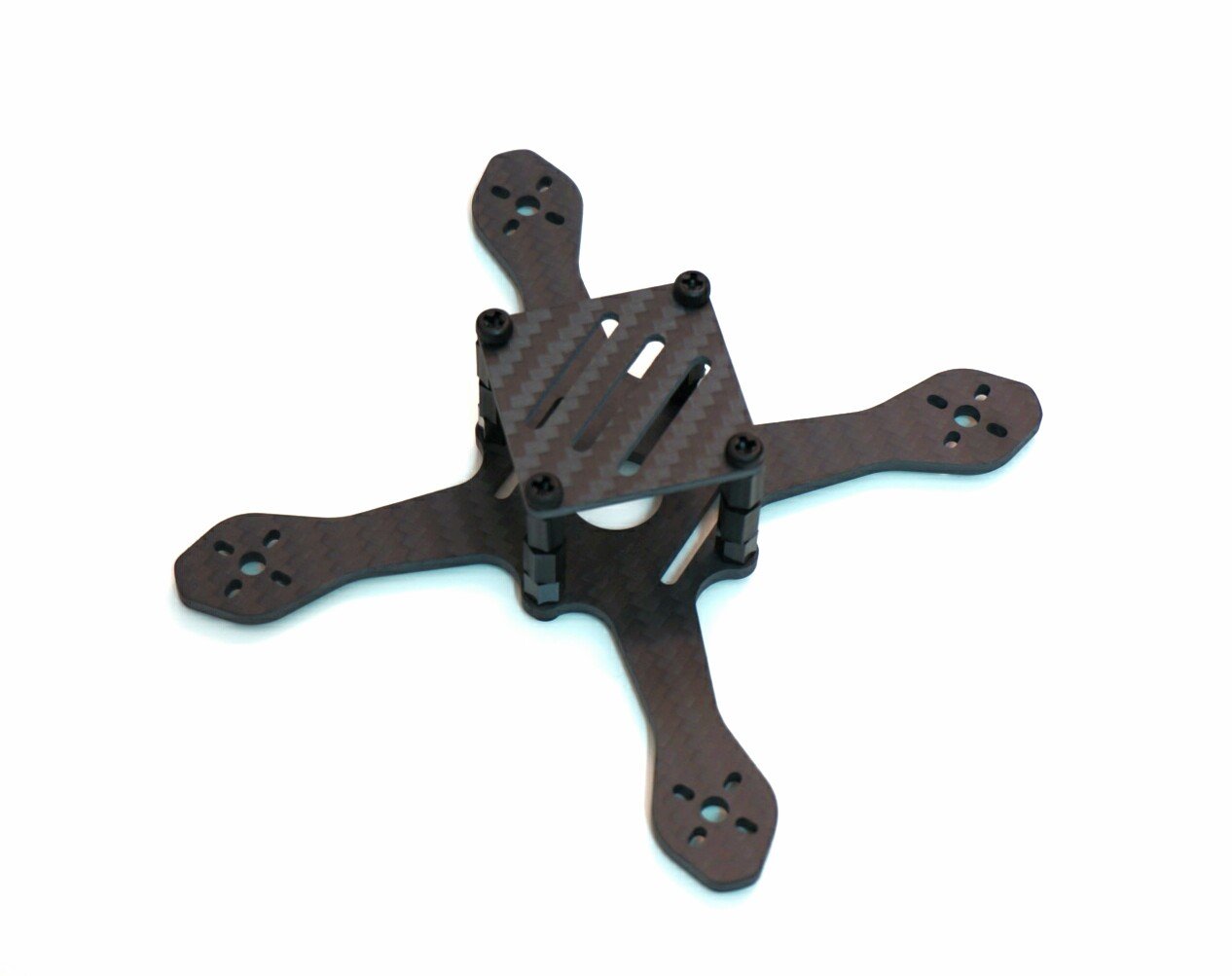

The compact frame version for 3" prop with 115mm motor to motor distance.

The FC need to mount 45degree in order to shrink the prop distance.



Additional Information

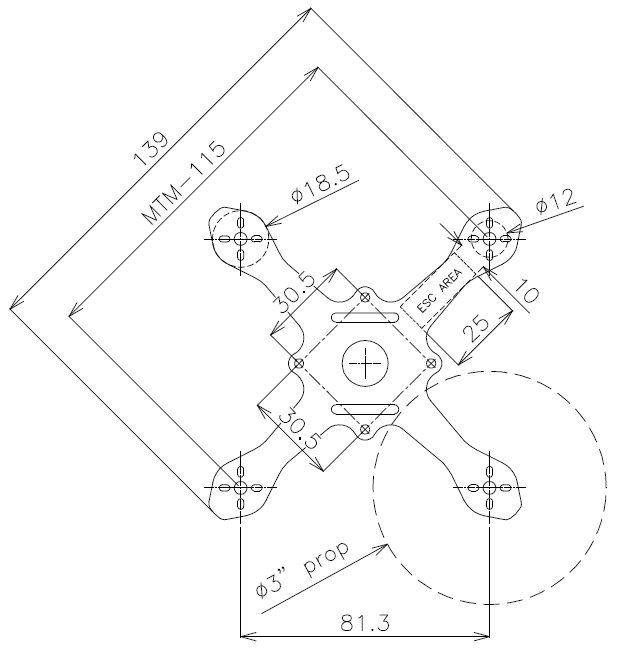

115mm motor to motor distance

For 3" propeller

30.5mm FC mount (45deg orientation)

Motor mount 9mm and 12mm

Frame thickness: 3mm

Top Plate thickness: 2mm



Weight

Main Plate: 16.2g

Top Cover: 3.4g

With hardware: 22.8g

With hardware, PDB, FC: 34.5g



The FPV pod prototype is still under study and testing.

Below image is the idea of FPV pod (on 147mm frame - but also compatible with this frame)



Suggested Part:

Flight Controller: Armattan F1 FC / Mullet Acro

Motor: Armattan 1306/3500kv OEM Motor

ESC: 20 Amps FVT Littlebee / KISS ESC 12A

PDB: Armattan Mini Power Distribution Board V2



NOTE!!

1. Please make sure Yaw Adjustment are made through Cleanflight - 45degree or 315degree based on FC orientation

2. Please double check which is Front side of your frame by looking at Cleanflight screen - by pitch/roll your frame manually.
