Kits

  • Kit
    More Details

    DH 6inch 5mm kit with bottom deck

    $ 39.99

    This is Dronehuenchures frame made in colaboration with Emil Haziev.

    Kit with 6" 5mm skiny arms and botom deck, for those who don't want to mess with different stendoffs, still same lower CG.

    Kit with 28mm sideplates and 21mm maximum stack height.



    -sunknuts and standoffs included

    -Compatible cameras: mini and micro(requires 1.5mm M2 washer on both side of the camera)

    -Weight ~100g with steel hardware

    -250mm diagomal motor to motor distance



    Note: 5" 4mm arms are wider and not fully compatible with this kit (you can still use them)

    Work in progress

  • Kit
    More Details

    DH 5inch 5mm kit with bottom deck

    $ 34.99

    This is Dronehuenchures frame made in colaboration with Emil Haziev.

    Kit with 5" 5mm skiny arms and botom deck, for those who don't want to mess with different stendoffs, still same lower CG.



    -For assambly you need  7x25mm standoffs

    -sunknuts included

    -Compatible cameras: mini and micro(requires 1.5mm M2 washer on both side of the camera)

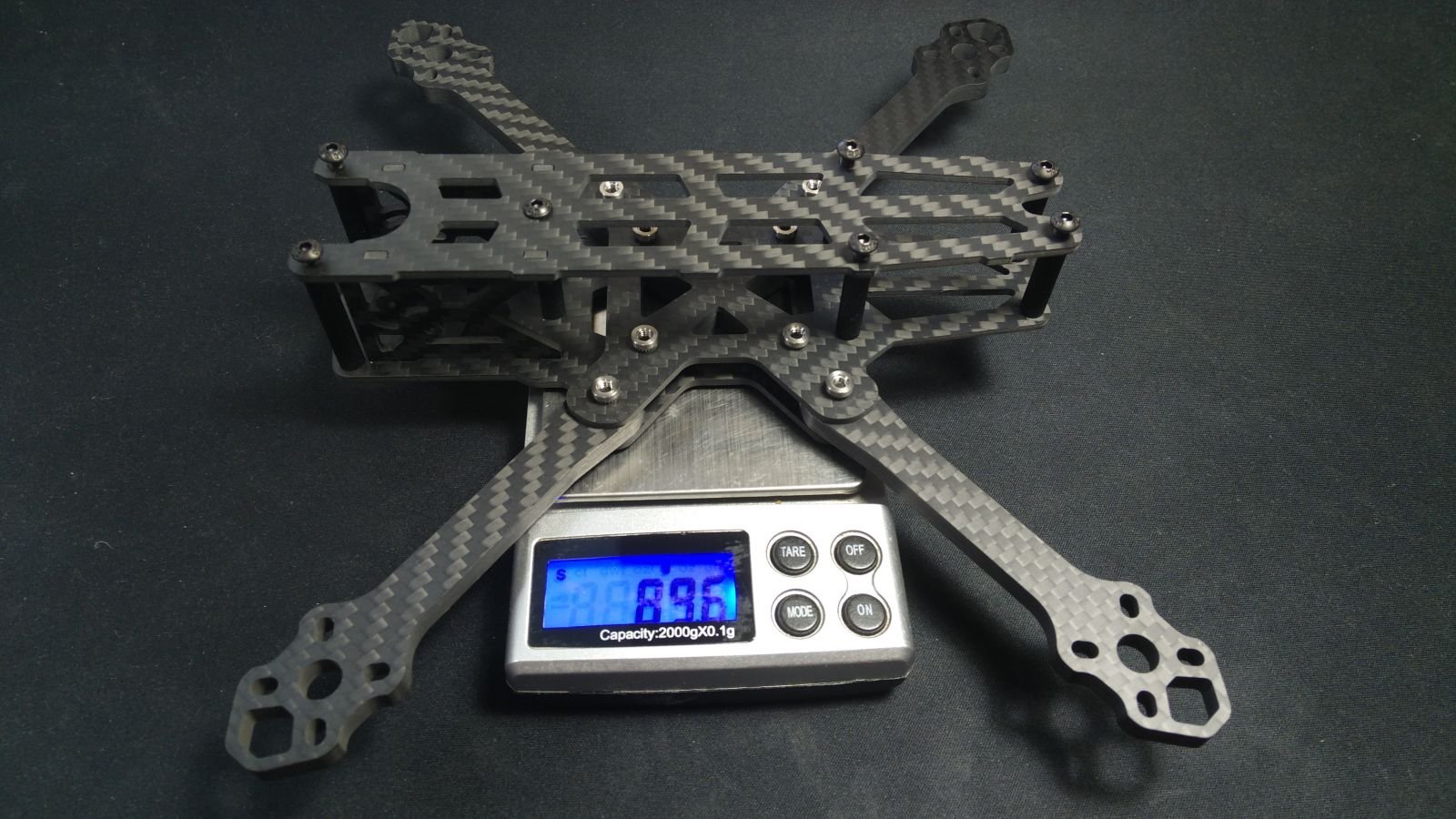

    -Weight ~90g with steel hardware

    -214mm diagomal motor to motor distance



    Note: 5" 4mm arms are wider and not fully compatible with this kit (you can still use them)

    Kit costs 34.99 and not includes standoffs for a reason: Armattan shipping price 5$ for orders below 35$, 10$ fo orders 35-50$...

    Work in progress

  • Kit
    More Details

    DH 5inch 5mm kit with split deck

    $ 34.99

    This is Dronehuenchures frame made in colaboration with Emil Haziev.

    Kit with 5" 5mm skiny arms and split deck (requires advanced hardware*)



    -For assambly you need  4x20mm and 3x27mm standoffs*

    -sunknuts included

    -Compatible cameras: mini and micro(requires 1.5mm M2 washer on both side of the camera)

    -Weight ~90g with steel hardware

    -214mm diagomal motor to motor distance



    Note: 5" 4mm arms are wider and not fully compatible with this kit (you can still use them)

    Work in progress



  • Kit
    More Details

    DH 5inch 4mm kit with split deck

    $ 33.99

    This is Dronehuenchures frame made in colaboration with Emil Haziev.

    Kit with 5" 4mm wide arms and split deck



    -For assambly you need 4x20mm and 3x25mm standoffs

    -sunknuts included

    -Compatible cameras: mini and micro(requires 1.5mm M2 washer on both side of the camera)

    -Weight ~90g with steel hardware

    -214mm diagomal motor to motor distance



    Note: 5" 5mm arms are skinny and not fully compatible with this kit (you can still use them)

    Work in progress

  • Kit
    More Details

    UniR 5

    $ 34.99

    5 inch frame with replacement 4mm arms.

    True X geometry with 200mm diagonal motor to motor dimensions.

    Supports 30.5x30.5 and 20x20 flight controllers.

    Supports standard CCD cams such as 1177, swift, arrow etc.

    25 mm standoffs.

    Frame weight 77g with standard steel hardware, you can save about 8g using aluminium/Titanium hardware.

  • Kit
    More Details

    Zerro 4 light

    $ 32.00

    Lighter version of Zerro 4 https://armattanproductions.com/pages/kit_detail/711

    3mm main plate with m2 mounting holes for motors on 12mm to 16mm diameter.

    About 8g lighter, total weight of assambled frame~35g

    Kit includes only CF parts without hardware.

  • Kit
    More Details

    Zerro 5

    $ 50.00

    In this frame 5inch props matching 5mm cf main plate, it designed for standard components like 30x30 flight controllers and 26x26 CCD cams(28mm distance between sideplates). This is true X frame with 200mm diagonal, the main idea of Zerro frames is to get the most compact frame, with usability of traditional H frames where you need only unscrew 4 bolts to get to every component inside the frame. They also provided "slammed" design with 25 mm standoffs, which gives more strength to the top of the frame and also saves weight.

    Kit includes only CF parts

    For assembly you need four 25mm standoffs

    CF weight ~ 62g

    Maximum cam angle ~ 50degrees

    Notice: This is a really compact frame, be ready for a tight build. Try to keep your flight controller stack low, coz it can effect on maximum cam angle. This frame may not be compatible with new foxeer arrow cam wit metal body(due to lower screw holes, lower part of the cam must not be wider than 26mm)

  • Kit
    More Details

    Zerro 4

    $ 35.00

    In this frame 4inch props matching 4mm cf plate, it designed among piko blx flight controller(also compatible with others fc with 20x20 mounting holes spacing) and standard CCD cams. This is true X frame with 160mm diagonal, the main idea of Zerro frames is to get the most compact frame, with usability of traditional H frames where you need only unscrew 4 bolts to get to every component inside the frame. They also provided "slammed" design with 25 mm standoffs, which gives more strength to the top of the frame and also saves weight.

    True X geometry, 160mm diagonal, slammed design with 25mm standoffs.

    Motors: 220X (16-19mm diameter, m3 screws)

    Main plate: 4mm

    Flight controller: 20X20(piko blx and others)

    Camera: standard 26x26 ccd(28mm distant between camera side plates)

    Carbon fiber weight: ~40g

    Kit includes only CF parts

    For assembly you need 4 25mm standoffs(not bigger then 6mm in diameter)

    Additional 3mm main plate for small motors(total cf weight ~32g) https://armattanproductions.com/pages/product_details/5746

  • Kit
    More Details

    Zerro 3 V2

    $ 30.00

    Improved version of the original frame (http://armattanproductions.com/pages/kit_detail/489) in terms of usability and durability.

    Kit includes only CF parts

    CF veight ~ 25g

    For assambly you need four 25mm standoffs



    Additional sideplates:

    2,1mm holes, good for hs1190 cam http://armattanproductions.com/pages/product_details/5114

    3.2mm holes, good for hs1170 cam http://armattanproductions.com/pages/product_details/5113

    No holes, for custom drilling http://armattanproductions.com/pages/product_details/5112

  • Kit
    More Details

    Zerro 3 light

    $ 20.00

    In this frame 3mm cf matching 3inch props. It is pure X frame with 120mm motor to motor distance. It is designed around PIKO BLX flight controller and micro cmos camera with diatone mount.

    -Compatible with diatone micro camera mount

    -Compatible only with PIKO BLX flight controller(20x20 holes spacing)

    -Kit includes only carbon fieber parts, their total weight ~ 19 grams.

    -For assembly you need four 25mm or 20mm standoffs.

  • Kit
    More Details

    Zerro 3

    $ 25.00

    improved version http://armattanproductions.com/pages/kit_detail/611

    In this frame 3mm cf matching 3inch props. It is *pure X frame with 130mm motor to motor distance. It is designed around PIKO BLX flight controller and hs1190/1177/Swift style cameras.

    -Compatible with hs1190/1177/Swift style cameras (can be fixed with 2screws through the side plates, angle from ~10 to 50+ degrees)

    -Compatible only with PIKO BLX flight controller(20x20 holes spacing)

    -Kit includes only carbon fieber parts, their total weight ~ 24.5 grams.

    -For assembly you need four 25mm standoffs.

    *Note, flight controller is moved from center to the back on 10mm.

  • Kit
    More Details

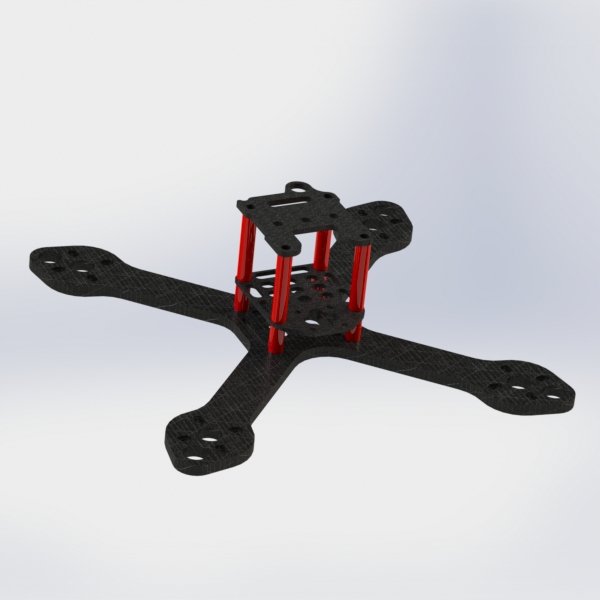

    BLX4

    $ 24.00

    BLX4 frame for piko blx flight controller, 4" props and 220x motors.

    Motor to motor distance - 155mm.

    Carbon fiber plates weight ~ 42g.

    Flight controller mount 20x20

    Standoffs mount 28x28.

    Mid plate has holes for diatone micro camera mount(11.5x11.5mm). Top plate has holes for hs1177 style camera mount(3 holes with 10mm spacing).
