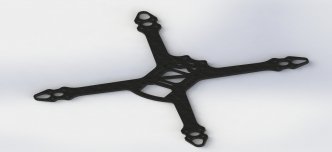

In this frame 5inch props matching 5mm cf main plate, it designed for standard components like 30x30 flight controllers and 26x26 CCD cams(28mm distance between sideplates). This is true X frame with 200mm diagonal, the main idea of Zerro frames is to get the most compact frame, with usability of traditional H frames where you need only unscrew 4 bolts to get to every component inside the frame. They also provided "slammed" design with 25 mm standoffs, which gives more strength to the top of the frame and also saves weight.

Kit includes only CF parts

For assembly you need four 25mm standoffs

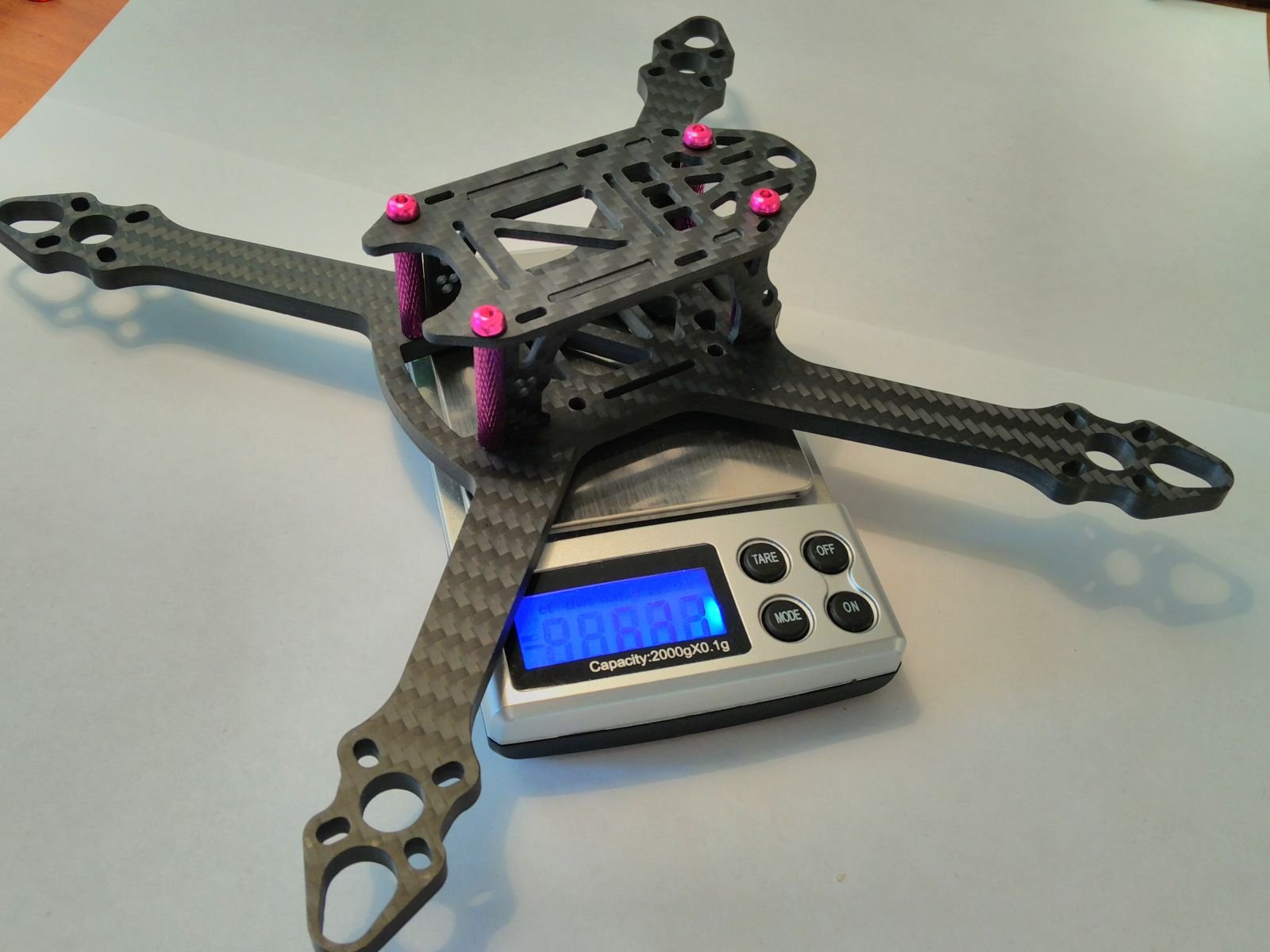

CF weight ~ 62g

Maximum cam angle ~ 50degrees

Notice: This is a really compact frame, be ready for a tight build. Try to keep your flight controller stack low, coz it can effect on maximum cam angle. This frame may not be compatible with new foxeer arrow cam wit metal body(due to lower screw holes, lower part of the cam must not be wider than 26mm)
