Alejandro Munoz


Arenoso Envidioso Frames, proudly designed in Mallorca, Spain

.....

Kits

  • Kit
    More Details

    BR Rogue 6mm

    $ 34.99

    The BR Rogue is a Race-first fpv quadcopter designed for easy repairs and minimum drag.

    The arms are made in 6mm carbon fiber and they have an easy release, so you can change them as fast as you race.

    The frame also has 4mm reinforcements to:

    • Lock the arms, so they are stiffer
    • Made them more durable
    • And make the pitch more stable

    This frame it has been designed to use canopies, in fact its compatible with:

    It is also very light even being so reinforced

    The frame and caonpy itself  it's around 90 grams.

    The package contains:

    • 4 x 6mm arm
    • 2 x 4mm arm lock
    • 2 x 2mm reinforcement
    • 1 x 3mm botom plate

    The package comes with no screws or standofs to reduce the cost (so you have $5 shipping)



  • Kit
    More Details

    BR198 B

    $ 43.00
  • Kit
    More Details

    BR tiny

    $ 15.00
  • Kit
    More Details

    BR198SS 5MM

    $ 34.99

    The 198 was born as per one of my best friends request, he was using one of my prevous designs the 195S, but he wanted something uniboy but still as hard as the 195. I did want to mantain a reduced arm layout so I rapidly gone for a 5MM and a 6MM design in order to ensure durability but triying to mantain the weight in something reasonable.

    This version is the 5MM the arms are slightly wider so you can actually fit one esc in each arm (it barely ftis, but it fits), the frame has a super stretched layout so as you would expect is really agile in the corners, we have been fliying int for a month now  and we are in love with it.

    The kit comes with hardware and only one top plate ( to avoid enter in the next level of shipping rate)

  • Kit
    More Details

    BR198SS 6MM

    $ 45.44

    The 198 was born as per one of my best friends request, he was using one of my prevous designs the 195S, but he wanted something uniboy but still as hard as the 195. I did want to mantain a reduced arm layout so I rapidly gone for a 5MM and a 6MM design in order to ensure durability but triying to mantain the weight in something reasonable.

    This one is the 6MM version wich is exactly 6 grams heavier than the 5MM, it has 8MM arms, just tu fit the cables of the motors (I love 4 in 1 escs).

    The weight of the frame is 75gr.

    The Kit comes with all the required hardware and 1 top plate, but you can add more if you want :)



  • Kit
    More Details

    NRV205 NO HARDWARE KIT

    $ 34.98

    The NRV205 Is a fully stretch 205mm racing frame, designed with racing in mind it has a low weight bur keeping a lot of space to place your stuff.

    This kit does not include hardware and only one top plate in order to be cheaper and only pay 5usd of shipping

    It only weights 62 grams, so it is really light to be an 205.

    It has been designed to clip an arrow V3 on it very easily, however i strongly recomend to use the micro ones, as they are about the same and way lighter.



    Main features:

    • 20x20 and 30.5x30.5 mounting holes
    • 13mm arms to ensure minimum drag
    • 16x19 motor holes
    • Designed to carry the battery on the bottom
  • Kit
    More Details

    BR195S Standard

    $ 26.00

    The BR195S is an 195mm stretch frame with fpv racing in mind, is an extreme concept designed to have minimum drag and weight while being easily reparable.

    Disclaimer: the arms are as short as posible, so the space between the 5 inch prop and the standoff is 2mm, the 5150 are NOT going to fit

    Disclaimer 2: Check the super saver kit! you get more stuff! https://www.armattanproductions.com/pages/kit_detail/1490

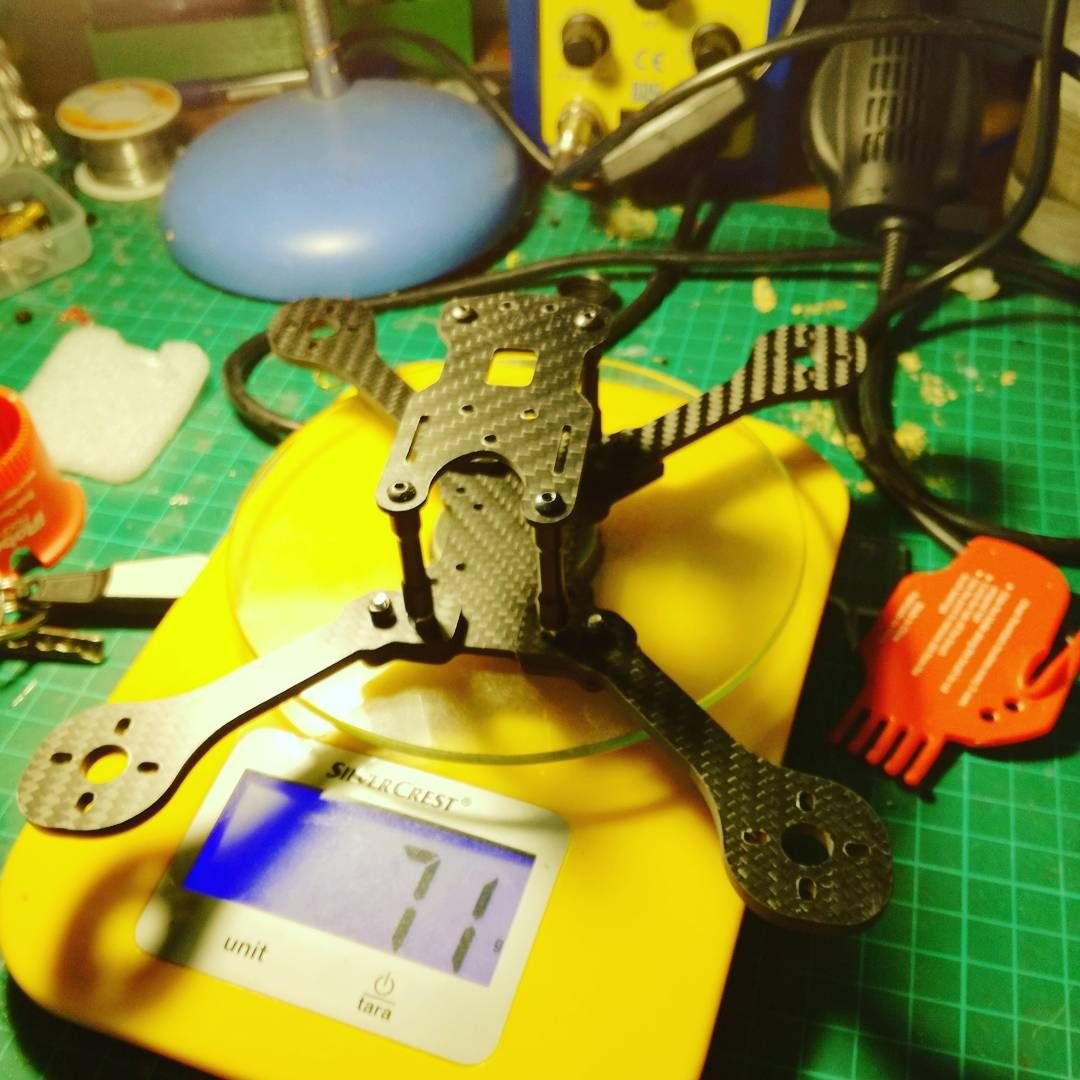

    It weights 71 grams with all the hardware, that means 8 locknuts and 12 screws, so it is really light.

    It was designed to be builded with 4 in 1 escs and light motors, like for instance the Hiperlite 2204



    Combine that with a micro camera and a micro receiver and you have a killer

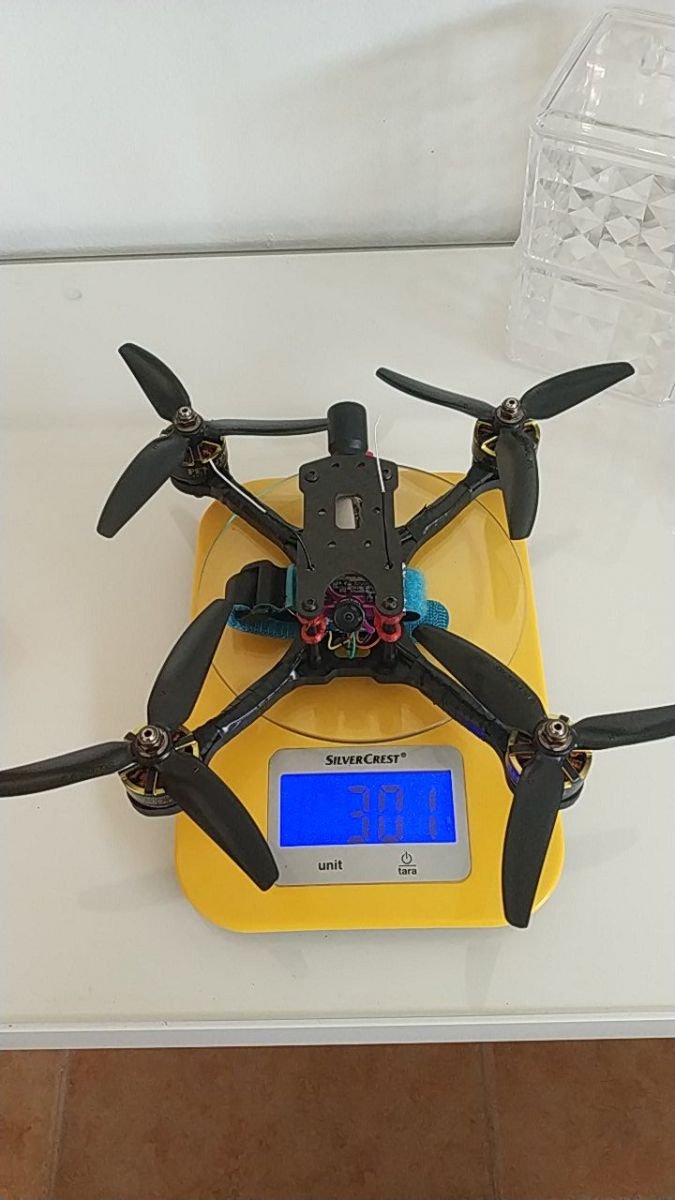

    With that setup and 1000mah lipo's you get 370 grams... so forget about inertia and drifting... this thing goes on rails



    Main features:

    • 20x20 and 30.5x30.5 mounting holes
    • 16x19 motor mounting holes
    • 195mm motor to motor
    • 3mm main plate (really strong)
    • 2mm top plate
    • 4mm super skinny arms (4 included)
    • All hardware included
    • Arrow v3 mounting holes on the top plate
    • Easy to replace an arm
    • lowcost AF



  • Kit
    More Details

    NRV205 v2

    $ 40.00

    The NRV205 Is a fully stretch 205mm racing frame, designed with racing in mind it has a low weight bur keeping a lot of space to place your stuff.

    It only weights 62 grams, so it is really light to be an 205.

    It has been designed to clip an arrow V3 on it very easily, however i strongly recomend to use the micro ones, as they are about the same and way lighter.



    Main features:

    • 20x20 and 30.5x30.5 mounting holes
    • 13mm arms to ensure minimum drag
    • 16x19 motor holes
    • Comes with screws and standoffs
    • Comes with 2 top plates
    • Designed to carry the battery on the bottom
  • Kit
    More Details

    BR195S Super Saver

    $ 34.98

    The BR195S is an 195mm stretch frame with fpv racing in mind, is an extreme concept designed to have minimum drag and weight while being easily reparable.

    Disclaimer: the arms are as short as posible, so the space between the 5 inch prop and the standoff is 2mm, the 5150 are NOT going to fit

    It weights 71 grams with all the hardware, that means 8 locknuts and 12 screws, so it is really light.

    It was designed to be builded with 4 in 1 escs and light motors, like for instance the Hiperlite 2204

    Combine that with a micro camera and a micro receiver and you have a killer

    With that setup and 1000mah lipo's you get 370 grams... so forget about inertia and drifting... this thing goes on rails



    Main features:

    • 20x20 and 30.5x30.5 mounting holes
    • 16x19 motor mounting holes
    • 195mm motor to motor
    • 3mm main plate (really strong)
    • 2mm top plate ( you will get 2 with this kit)
    • 4mm super skinny arms (6 included)
    • All hardware included
    • Arrow v3 mounting holes on the top plate
    • Easy to replace an arm
