AE Frames
BR195S Standard
Item List
-

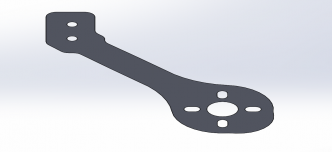

4mm standard ARM
Quantity :4
-

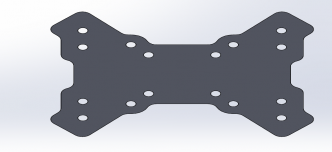

BR195S Bottom plate 3mm
Quantity :1
-

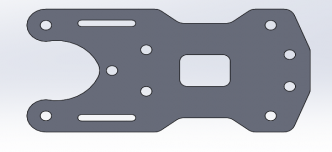

BR195S Top plate 2mm
Quantity :1
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :8
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
Description
The BR195S is an 195mm stretch frame with fpv racing in mind, is an extreme concept designed to have minimum drag and weight while being easily reparable.
Disclaimer: the arms are as short as posible, so the space between the 5 inch prop and the standoff is 2mm, the 5150 are NOT going to fit
Disclaimer 2: Check the super saver kit! you get more stuff! https://www.armattanproductions.com/pages/kit_detail/1490
.jpg)

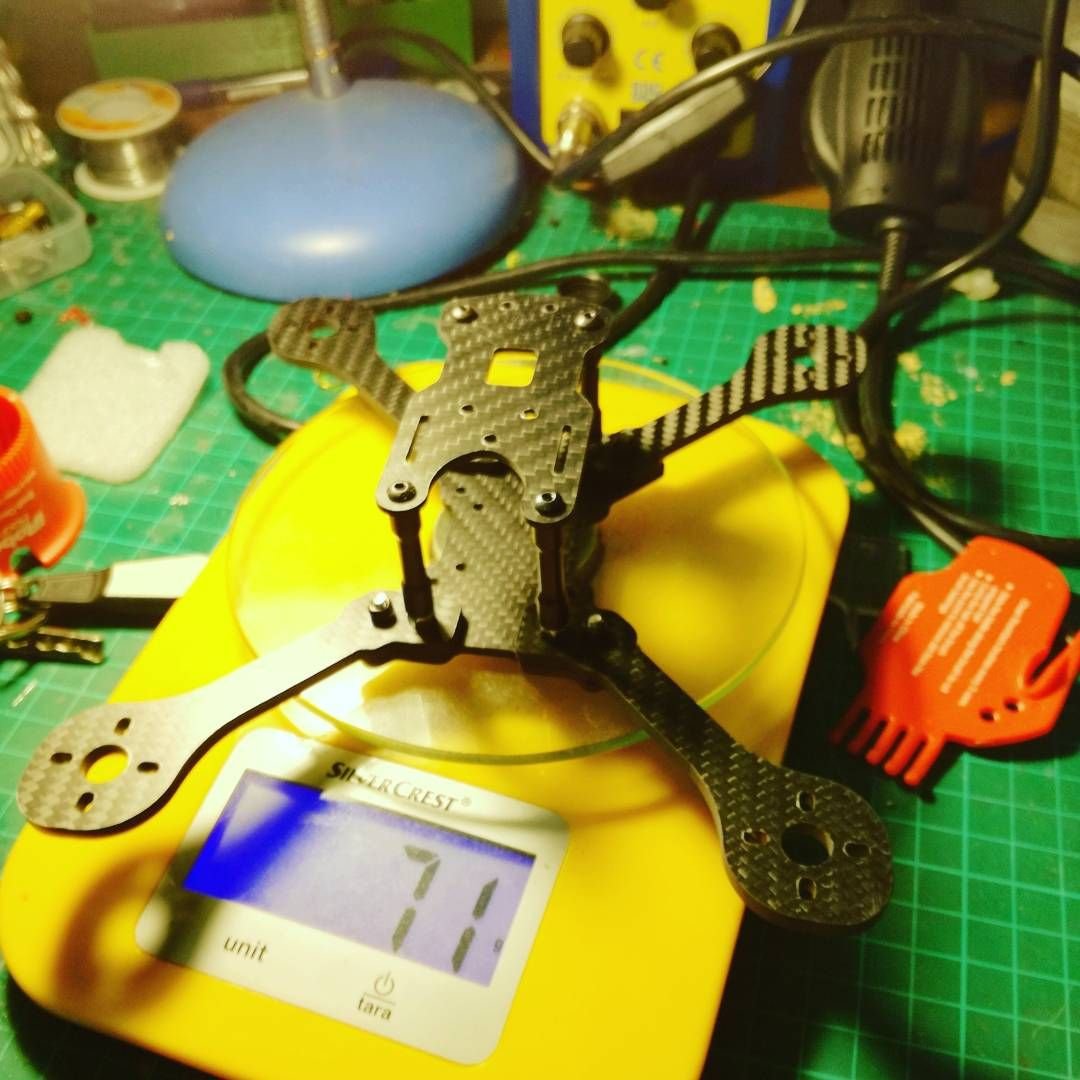

It weights 71 grams with all the hardware, that means 8 locknuts and 12 screws, so it is really light.

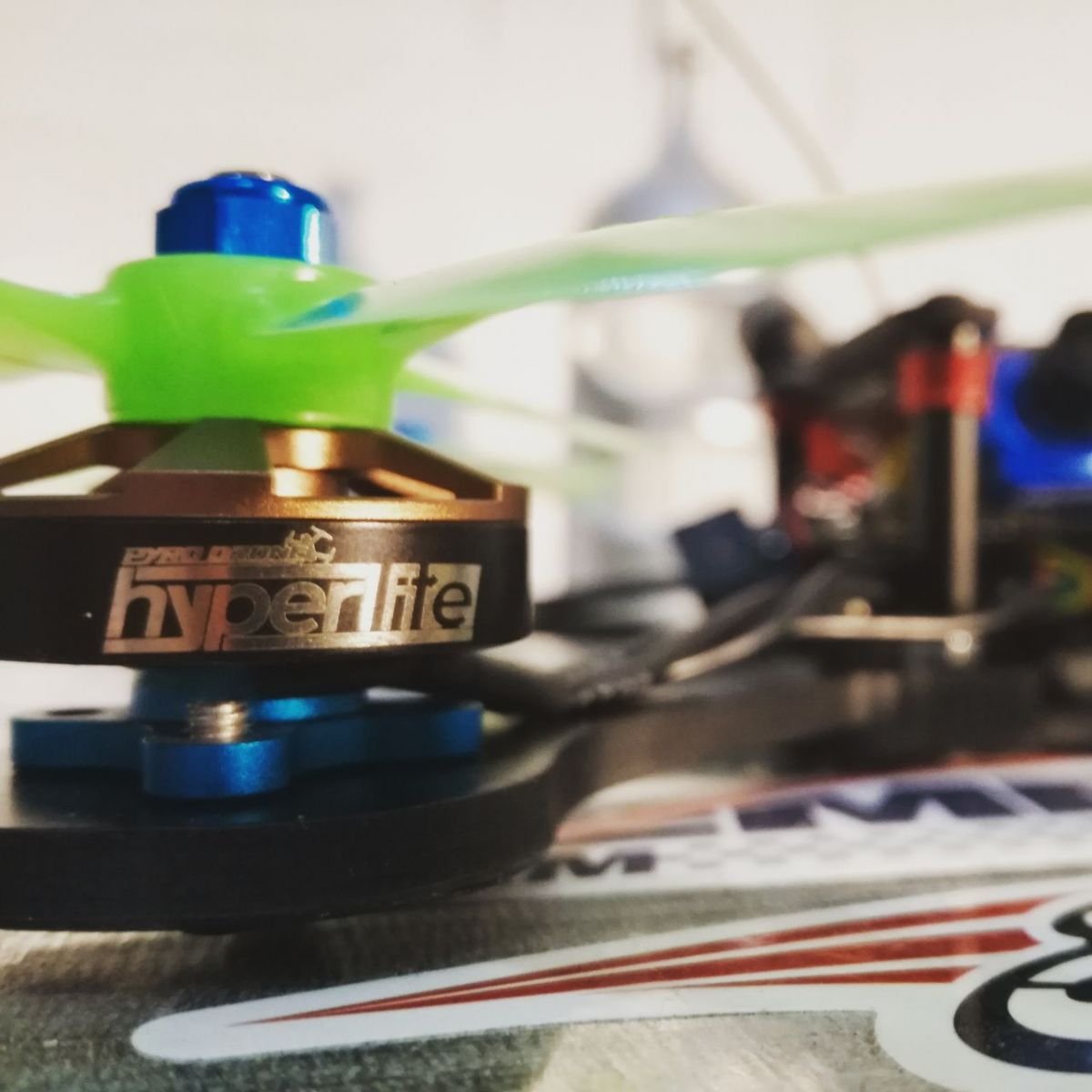

It was designed to be builded with 4 in 1 escs and light motors, like for instance the Hiperlite 2204
Combine that with a micro camera and a micro receiver and you have a killer

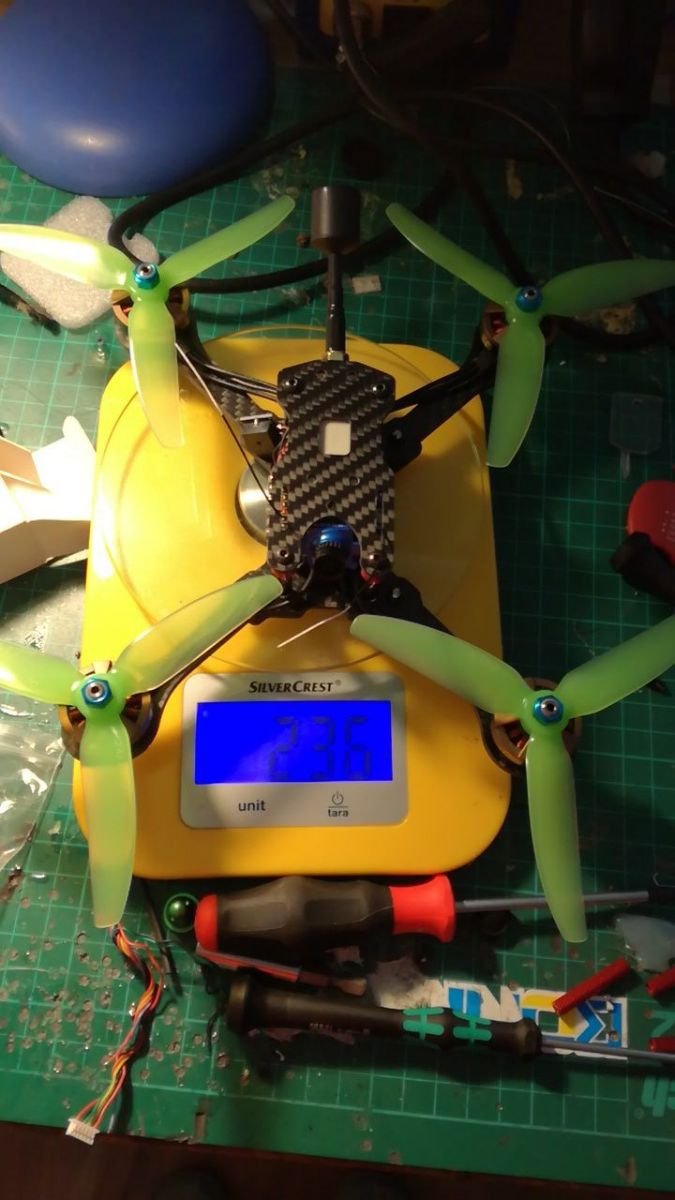

With that setup and 1000mah lipo's you get 370 grams... so forget about inertia and drifting... this thing goes on rails
Main features:
- 20x20 and 30.5x30.5 mounting holes
- 16x19 motor mounting holes
- 195mm motor to motor
- 3mm main plate (really strong)
- 2mm top plate
- 4mm super skinny arms (4 included)
- All hardware included
- Arrow v3 mounting holes on the top plate
- Easy to replace an arm
- lowcost AF
