Welcome to the Crash N Burn Racing store. Here you will find multirotor frames that have been extensively developed to provide the smoothest assembly process possible. When a frame is listed for sale it has been designed, built, redesigned and built again until it is as perfect as possible.
If you’re looking for a wel.....
Kits
-

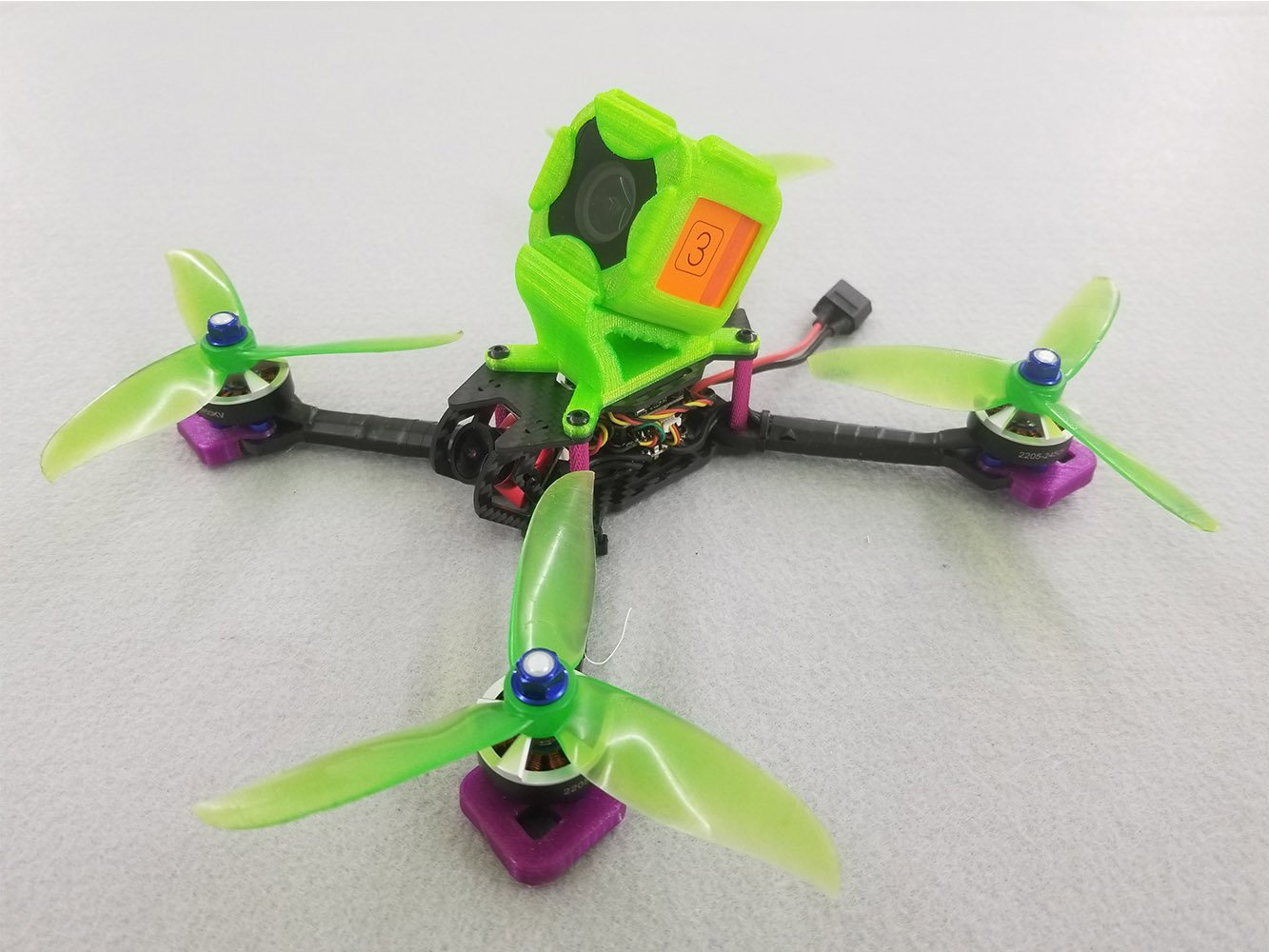

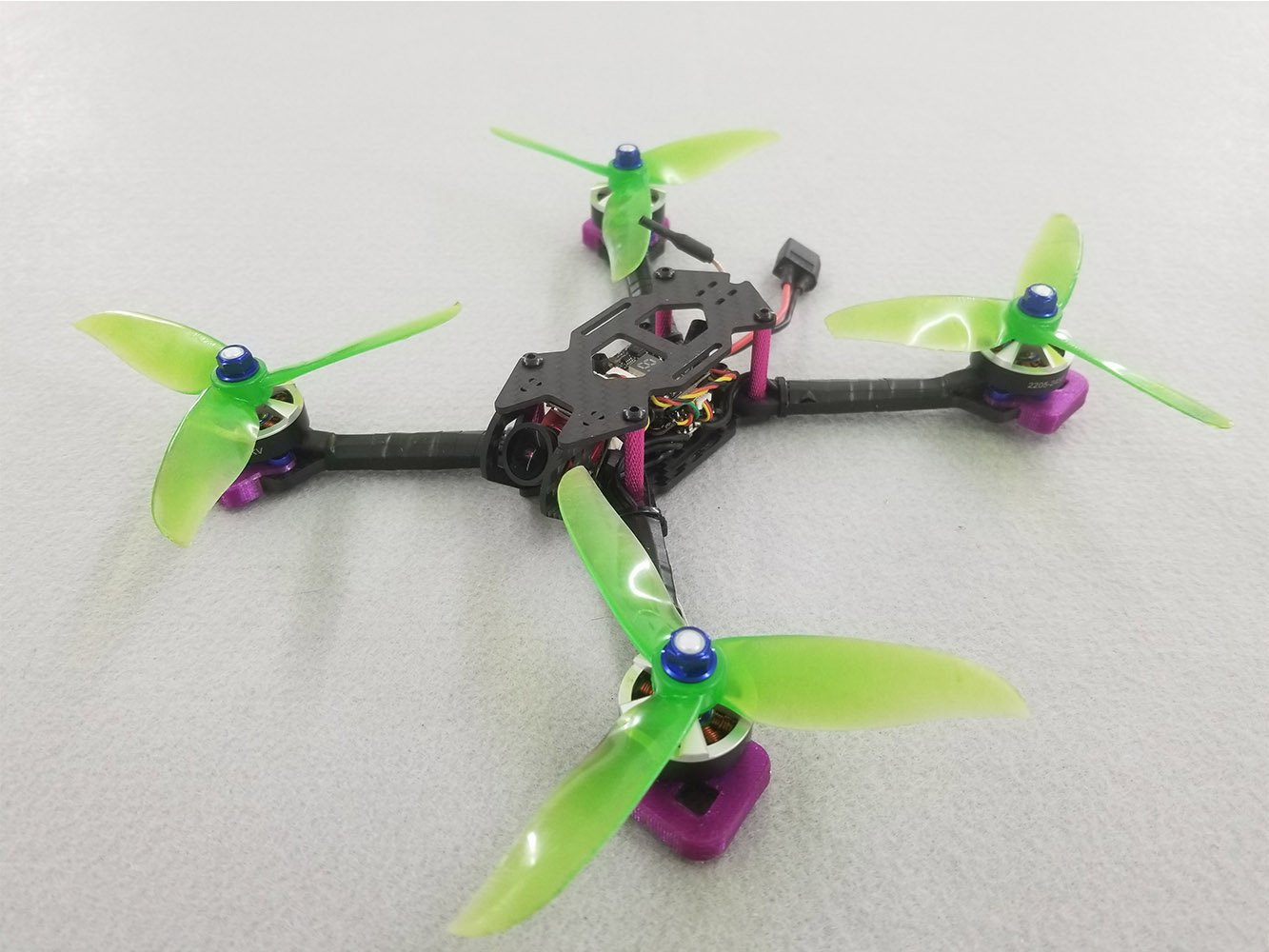

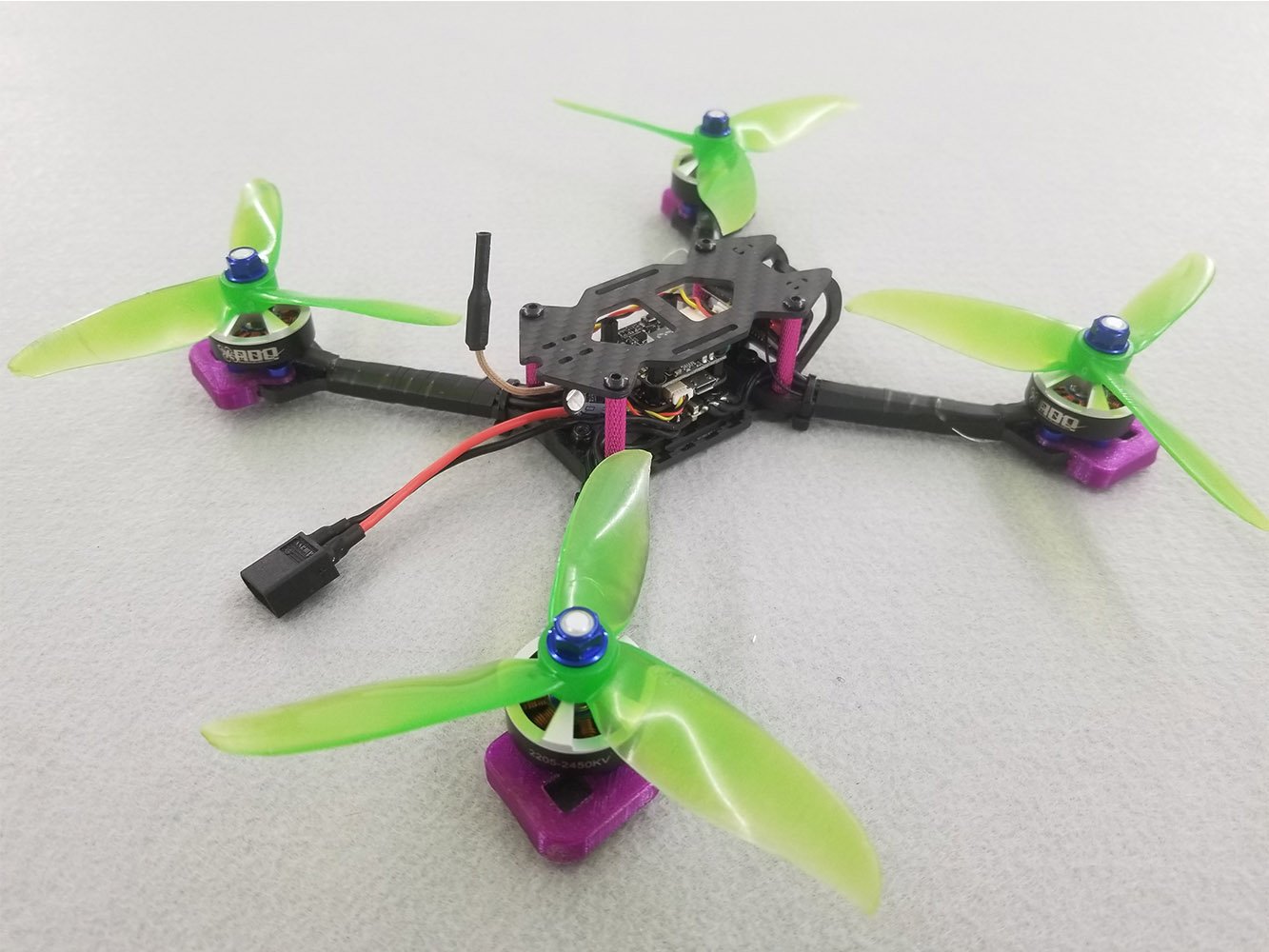

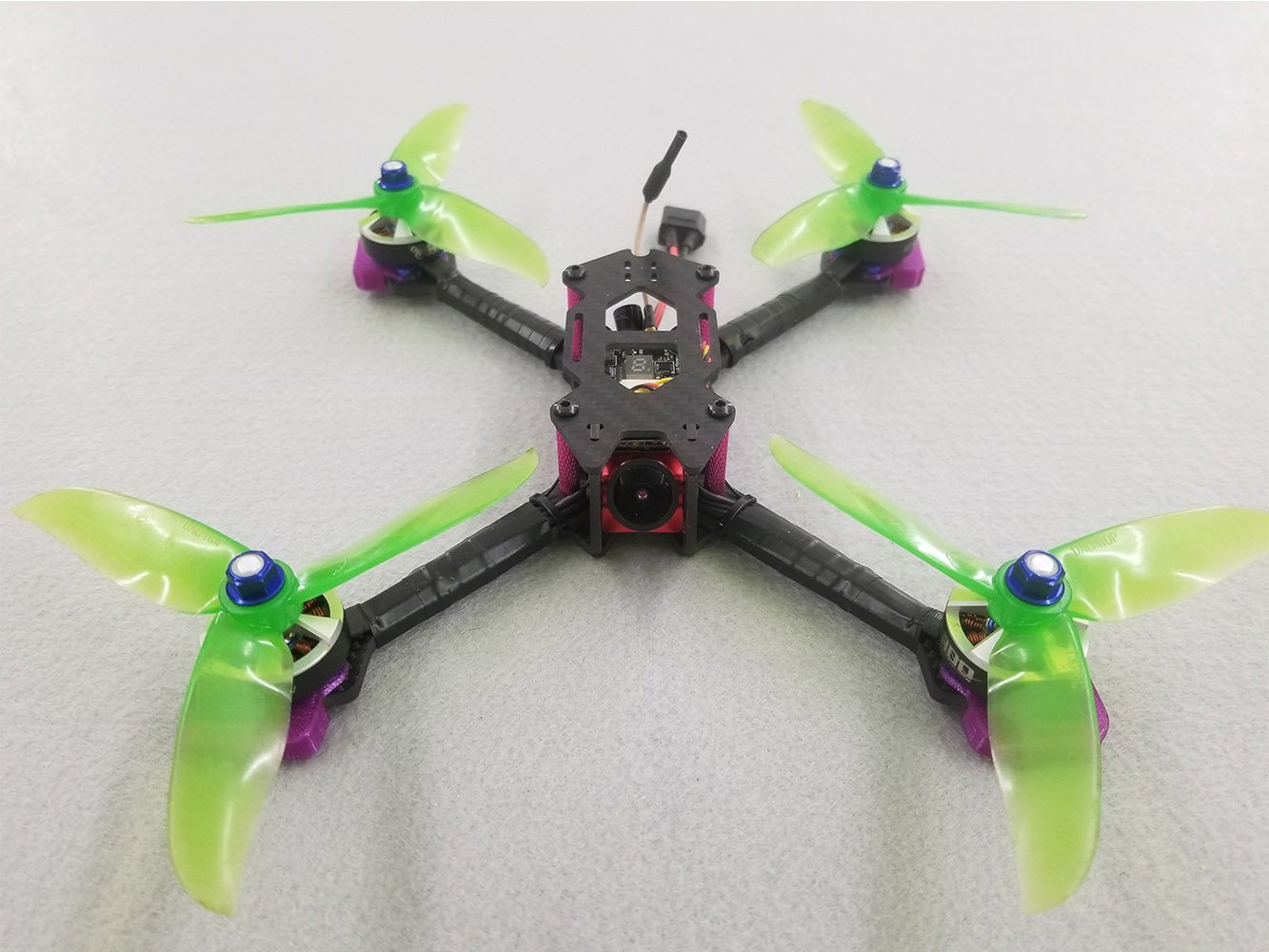

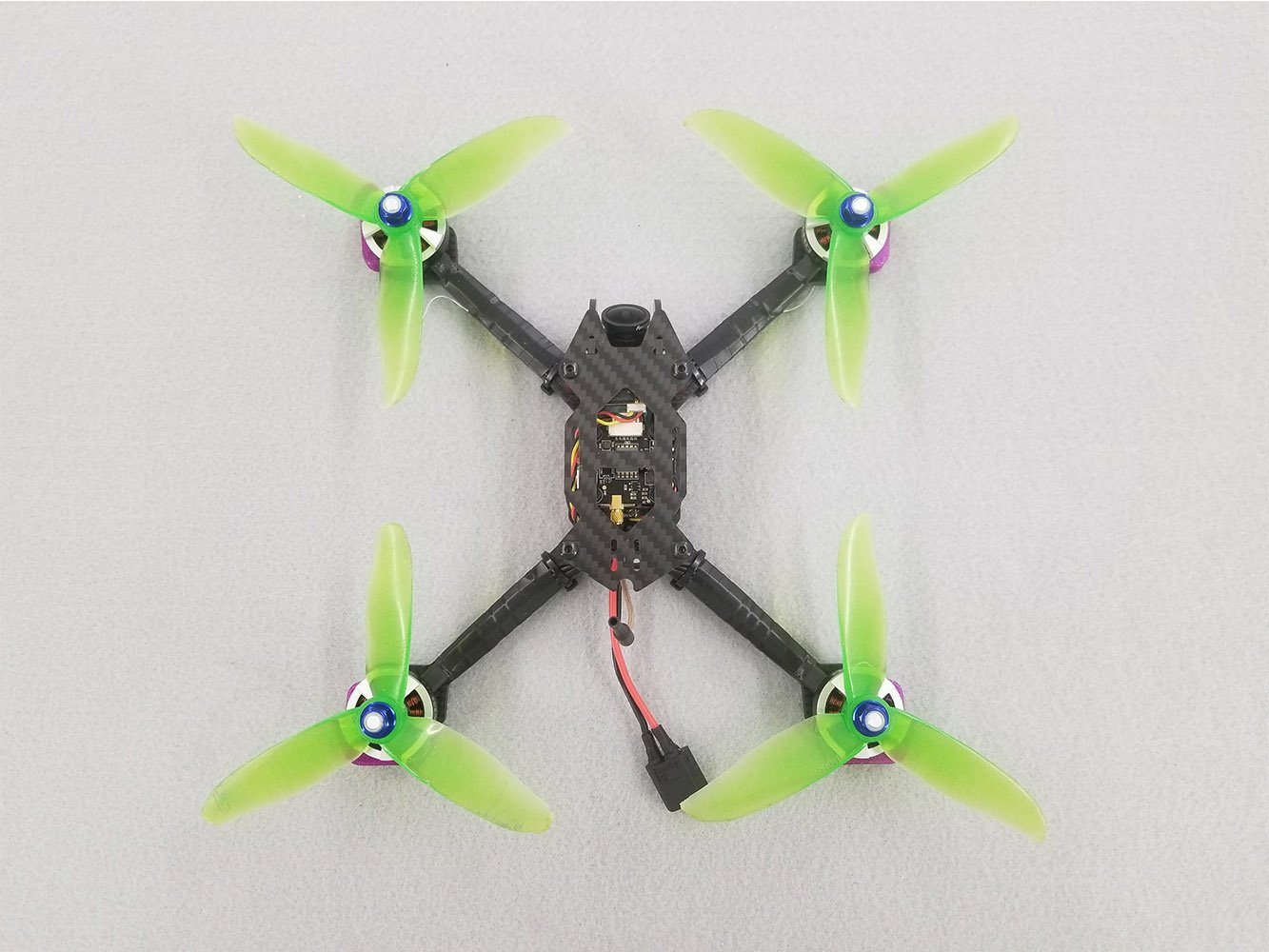

Vertex5
$ 34.99A 5" streched X frame with excellent camera protection and durability with replaceable arms. Capable of sub 250 gram builds. The arms may look fragile but have been very strong during testing by several pilots.
Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the gyro and increase the durability of the arm.
https://www.thingiverse.com/thing:2908524
https://www.thingiverse.com/thing:2909700
https://www.thingiverse.com/thing:2909721- 2mm carbon fiber top plate
- 3mm carbon fiber bottom plate
- 2mm carbon fiber camera mount/guards
- 4mm carbon fiber arms
- Weighs 66 grams
- Motor spacing is 145mm wide and 157mm in length with a diagonal spacing of 213mm
- Fits micro cameras including the RunCamn Micro Eagle.
- Replaceable arms
- Excellent camera protection
- Recommend 1300-1500 mah 4s LiPo
- 20x20 M2 and 30.5x30.5 M3 FC mount
- Components are stackable up to 29mm
- Motor mounts are for 16x16mm only
-

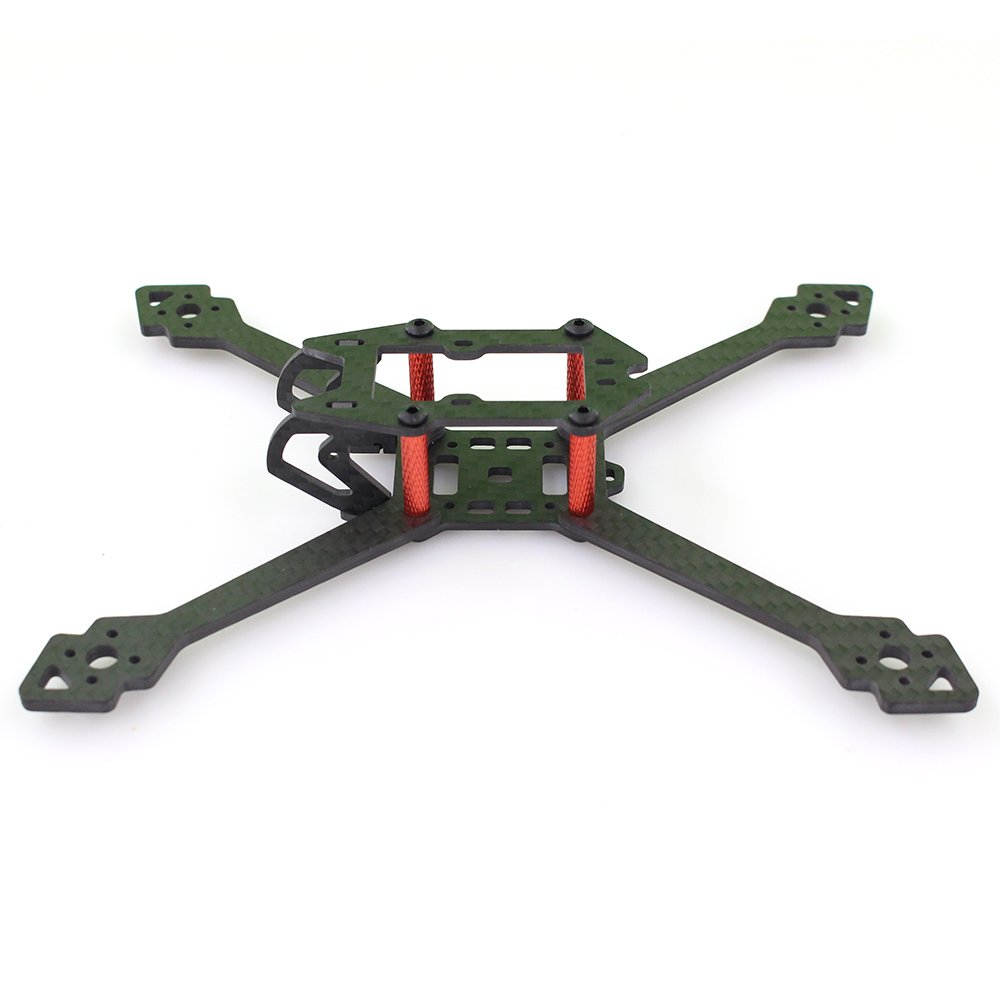

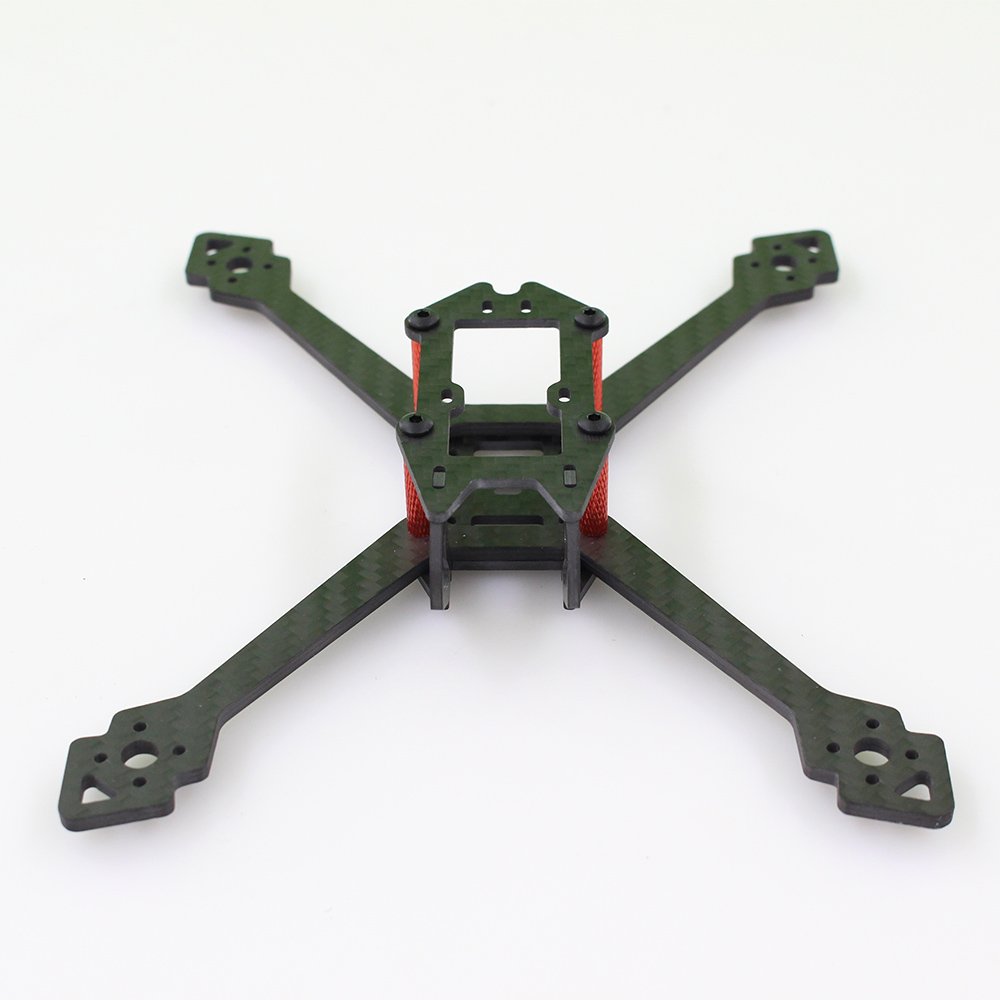

Vertex4
$ 28.99Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the CPU and increase the durability of the arm.
Arm guard/soft motor mount: https://www.thingiverse.com/thing:2729285
Led race fin: https://www.thingiverse.com/thing:2742046
Rear LED mount: https://www.thingiverse.com/thing:2764187- 2mm carbon fiber top and bottom plate
- 2mm carbon fiber camera mount/guards
- 3mm carbon fiber arms
- Fits Runcam Swift Micro or Foxeer Arrow Micro
- Replaceable arms
- Excellent camera protection
- Recommend 650-850 mah 3s or 4s LiPo
- Weighs 34 grams
- 20x20 M2 FC mount
- Components are stackable up to 22mm
- 14XX motors/ 12mm M2 mounting holes
-
Vertex2.5 CF Only
$ 22.99This is a true race performer with excellent camera protection and durability with replaceable arms while only weighing 26 grams. This frame performs great on 3s and 4s builds.
Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the gyro and increase the durability of the arm.
Arm guard/soft motor mount: https://www.thingiverse.com/thing:2729278
Led race fin: https://www.thingiverse.com/thing:2742046
Rear LED mount: https://www.thingiverse.com/thing:2764187- 2mm carbon fiber top and bottom plate
- 2mm carbon fiber camera mount/guards
- 3mm carbon fiber arms
- Fits Runcam Swift Micro or Foxeer Arrow Micro
- Replaceable arms
- Excellent camera protection
- Recommend 650mah 3s or 4s LiPo
- Weighs 26 grams
- 20x20 M2 FC mount
- Components are stackable up to 22mm
- 11XX motors
-

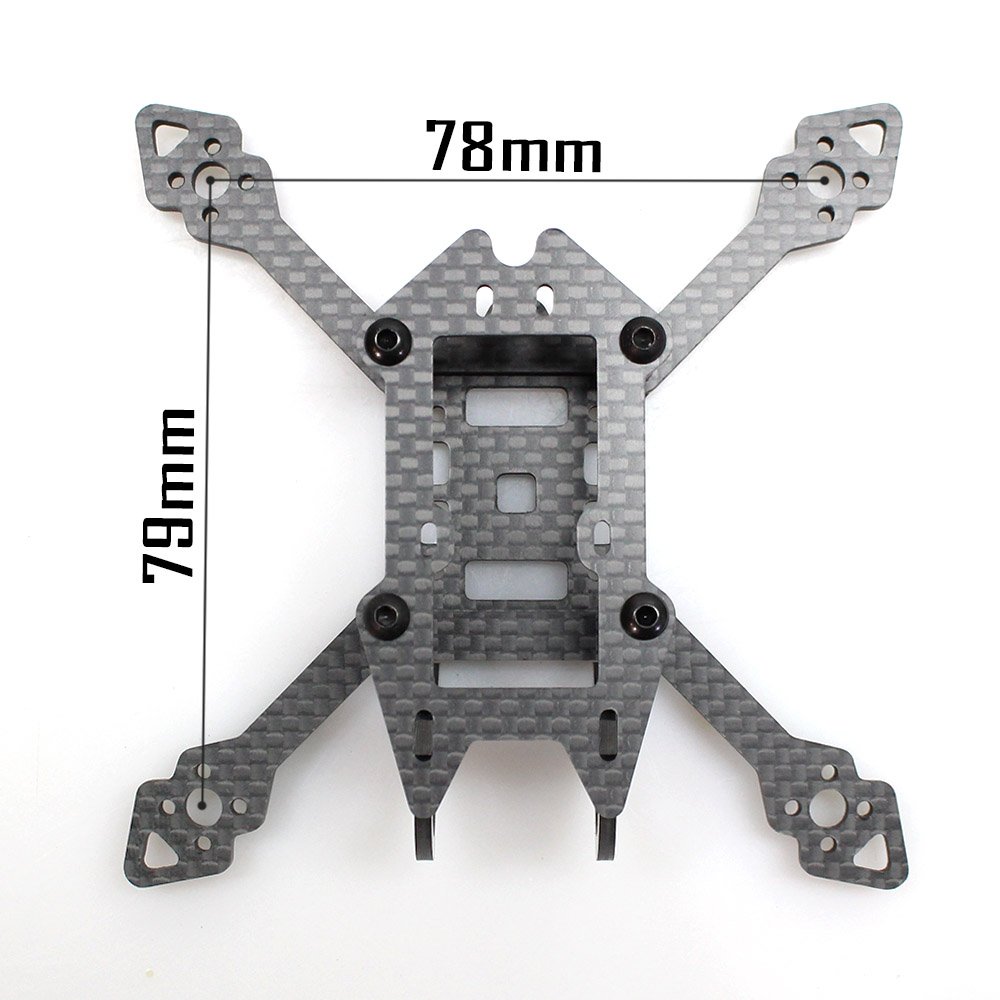

Vertex2 CF Only
$ 21.99This is a true race performer with excellent camera protection and durability with replaceable arms while only weighing 24 grams. This frame performs great on 3s and 4s builds.
Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the gyro and increase the durability of the arm.
Arm guard/soft motor mount: https://www.thingiverse.com/thing:2729278
Led race fin: https://www.thingiverse.com/thing:2742046
Rear LED mount: https://www.thingiverse.com/thing:2764187- 2mm carbon fiber top and bottom plate
- 2mm carbon fiber camera mount/guards
- 3mm carbon fiber arms
- Fits Runcam Swift Micro or Foxeer Arrow Micro
- Replaceable arms
- Excellent camera protection
- Recommend 550-650mah 3s or 4s LiPo
- Weighs 24 grams
- 20x20 M2 FC mount
- Components are stackable up to 22mm
- 11XX motors
-

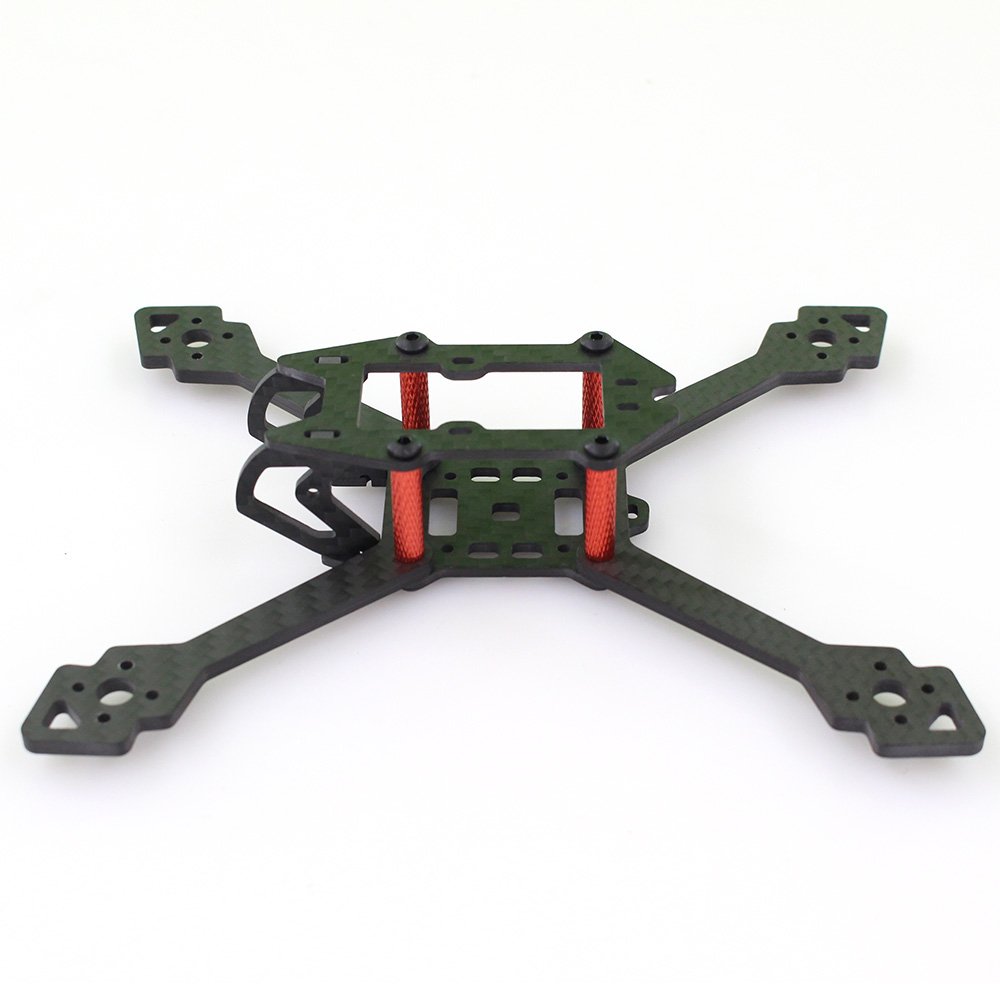

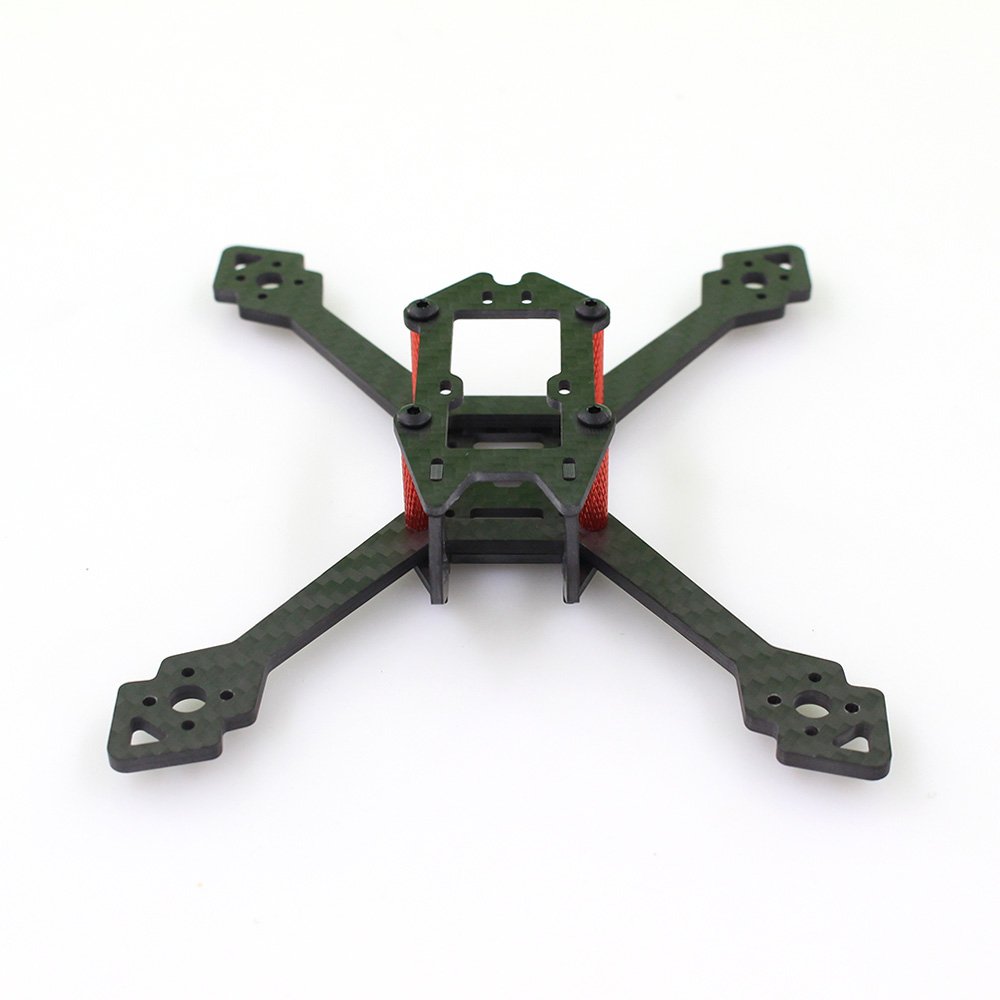

Vertex3RS
$ 26.03This is a true race performer with excellent camera protection and durability with replaceable arms. This frame performs great on 3s and 4s builds.
Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the gyro and increase the durability of the arm.
Arm guard/soft motor mount: https://www.thingiverse.com/thing:2729285
Led race fin: https://www.thingiverse.com/thing:2742046
Rear LED mount: https://www.thingiverse.com/thing:2764187- 2mm carbon fiber top and bottom plate
- 2mm carbon fiber camera mount/guards
- 3mm carbon fiber arms
- Fits Runcam Swift Micro or Foxeer Arrow Micro
- Replaceable arms
- Excellent camera protection
- Recommend 650-850 mah 3s or 4s LiPo
- Weighs 31.5 grams
- 20x20 M2 FC mount
- Components are stackable up to 22mm
- 14XX motors/ 12mm M2 mounting holes
-

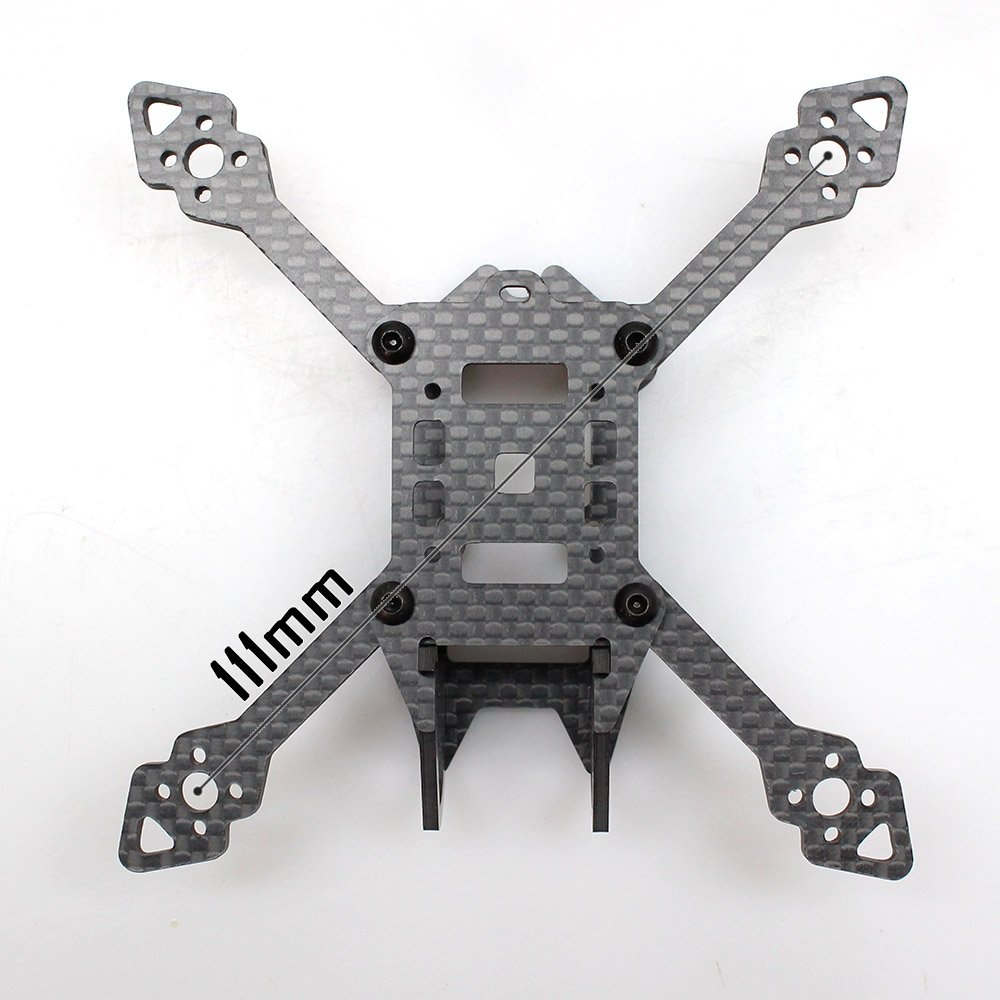

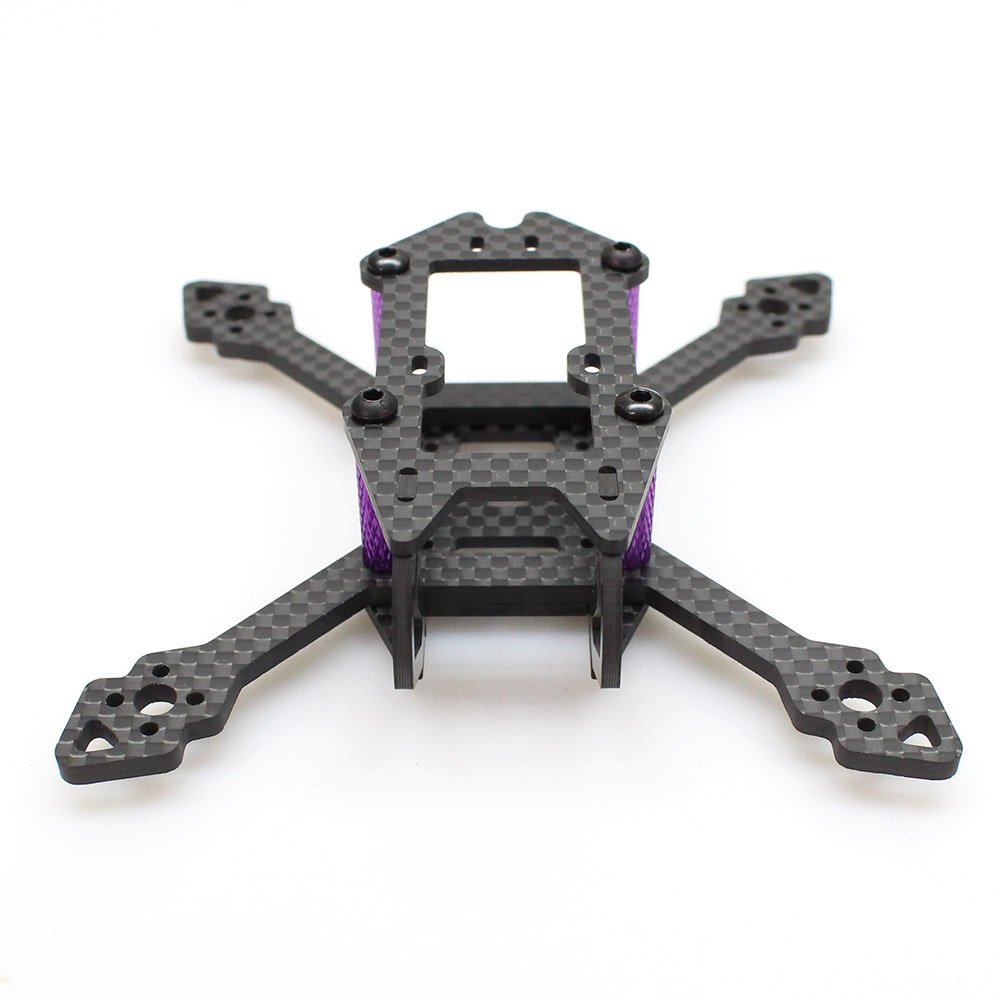

Vertex2
$ 23.99This is a true race performer with excellent camera protection and durability with replaceable arms while only weighing 24 grams. This frame performs great on 3s and 4s builds.
Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the gyro and increase the durability of the arm.
Arm guard/soft motor mount: https://www.thingiverse.com/thing:2729278
Led race fin: https://www.thingiverse.com/thing:2742046
Rear LED mount: https://www.thingiverse.com/thing:2764187- 2mm carbon fiber top and bottom plate
- 2mm carbon fiber camera mount/guards
- 3mm carbon fiber arms

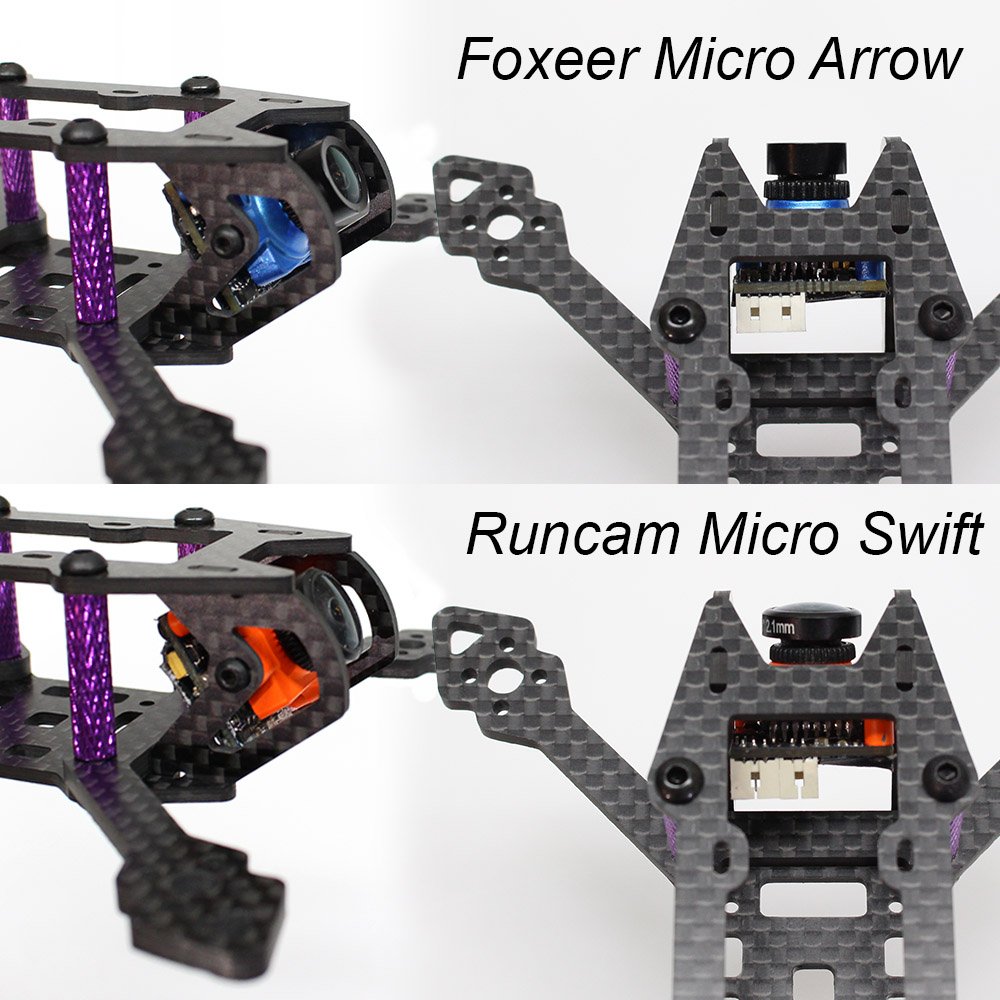

- Fits Runcam Swift Micro or Foxeer Arrow Micro
- Replaceable arms
- Excellent camera protection
- Recommend 550-650mah 3s or 4s LiPo
- Weighs 24 grams
- 20x20 M2 FC mount
- Components are stackable up to 22mm
- 11XX motors
-

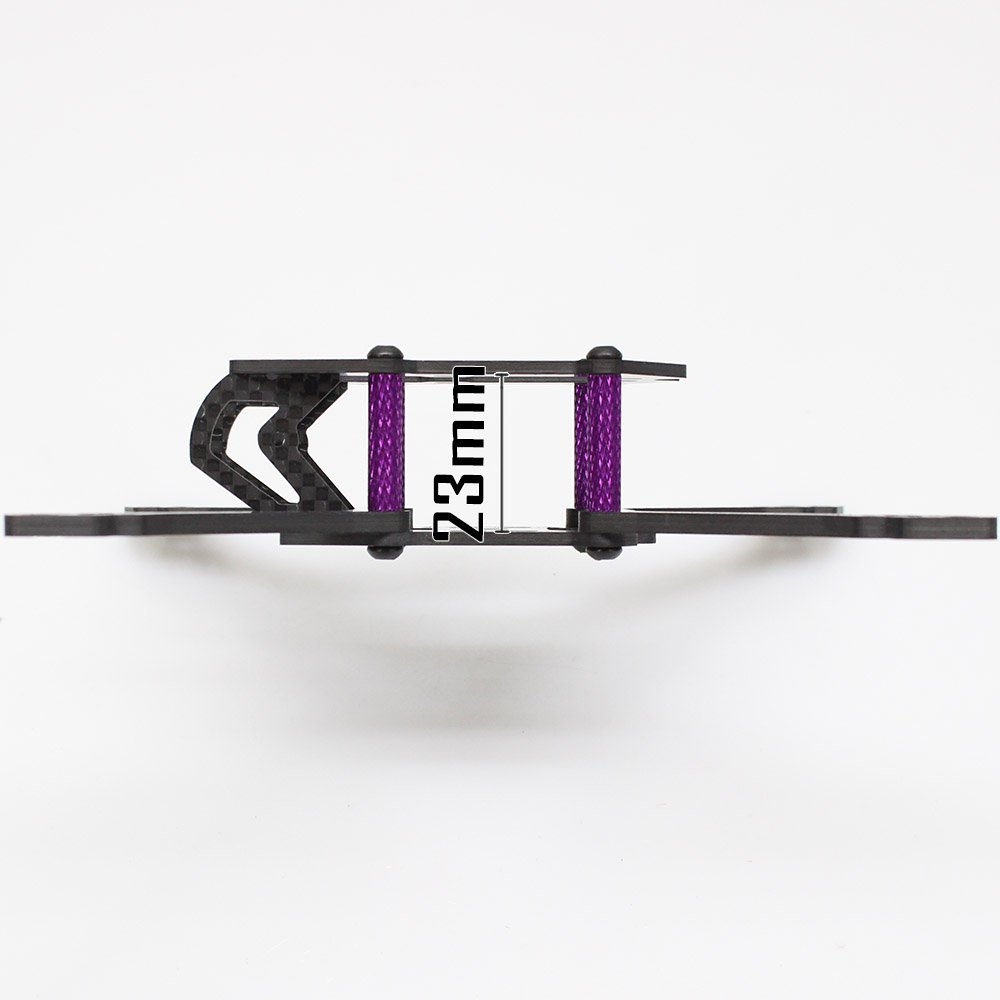

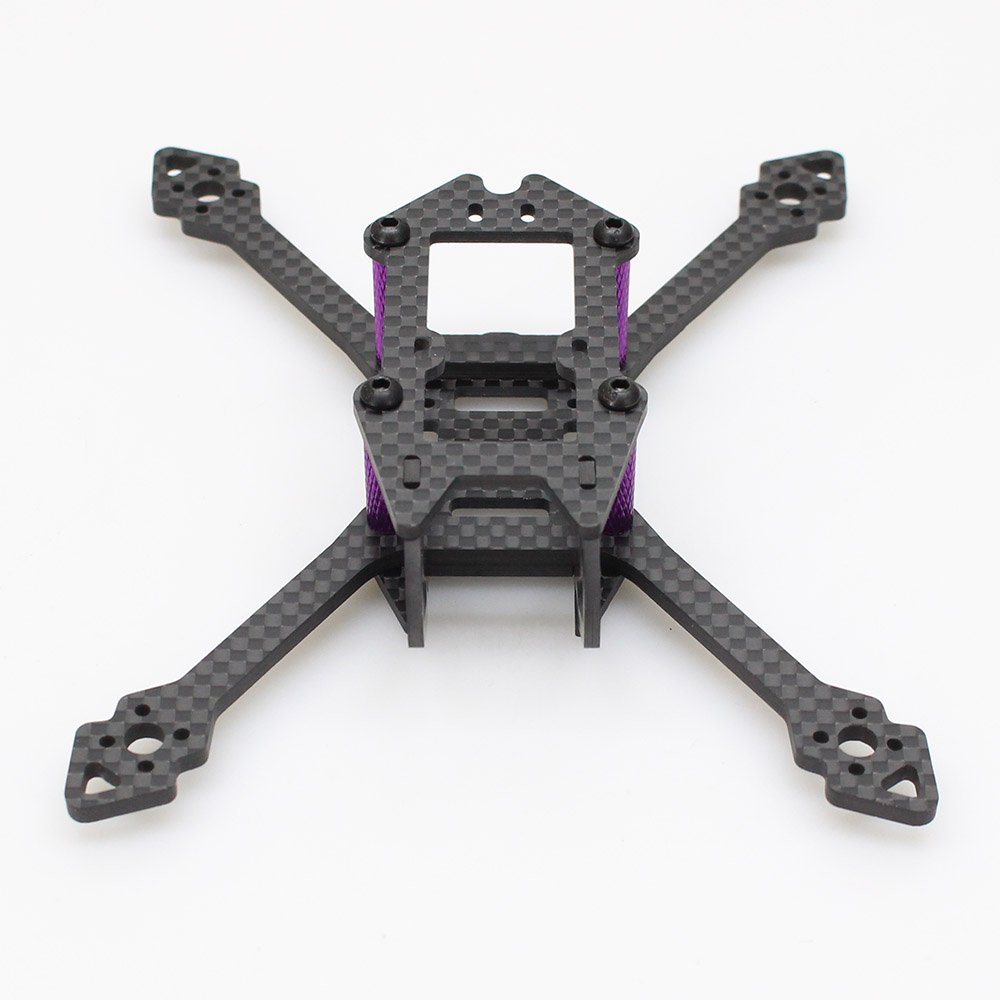

Vertex2.5
$ 24.99This is a true race performer with excellent camera protection and durability with replaceable arms while only weighing 26 grams. This frame performs great on 3s and 4s builds.
Be sure to check the links below for 3D printed parts. I would highly reccomend the arm guards as they reduced vibration to the gyro and increase the durability of the arm.
Arm guard/soft motor mount: https://www.thingiverse.com/thing:2729278
Led race fin: https://www.thingiverse.com/thing:2742046
Rear LED mount: https://www.thingiverse.com/thing:2764187- 2mm carbon fiber top and bottom plate
- 2mm carbon fiber camera mount/guards
- 3mm carbon fiber arms
- Fits Runcam Swift Micro or Foxeer Arrow Micro
- Replaceable arms
- Excellent camera protection
- Recommend 650mah 3s or 4s LiPo
- Weighs 26 grams
- 20x20 M2 FC mount
- Components are stackable up to 22mm
- 11XX motors
Products
-
-
Vertex2.5 arm v2
$ 5.99Replacement arm for the Vertex2.5. Arm replaces the front or rear and also fits the Vertex2 frame.
-
-
-
Vertex2 arm
$ 4.99Replacement arm for the Vertex2. Arm replaces the front or rear and also fits the Verte2.5 frame.
-
CBX 180 bottom plate
$ 23.80This is a replacement bottom plate for the CBX 180. It will aslo fit the body of the CBX 150 and the CBS 160 so you can change frame sizes with out buying the whole kit.
-
CBX 150 bottom plate
$ 16.10This is a replacement bottom plate for the CBX 150. It will aslo fit the body of the CBS 160 and the CBX 180 so you can change frame sizes with out buying the whole kit.
-
CBS 160 bottom plate
$ 17.64This is a replacement bottom plate for the CBS 160. It will aslo fit the body of the CBX 150 and the CBX 180 so you can change frame sizes with out buying the whole kit.
