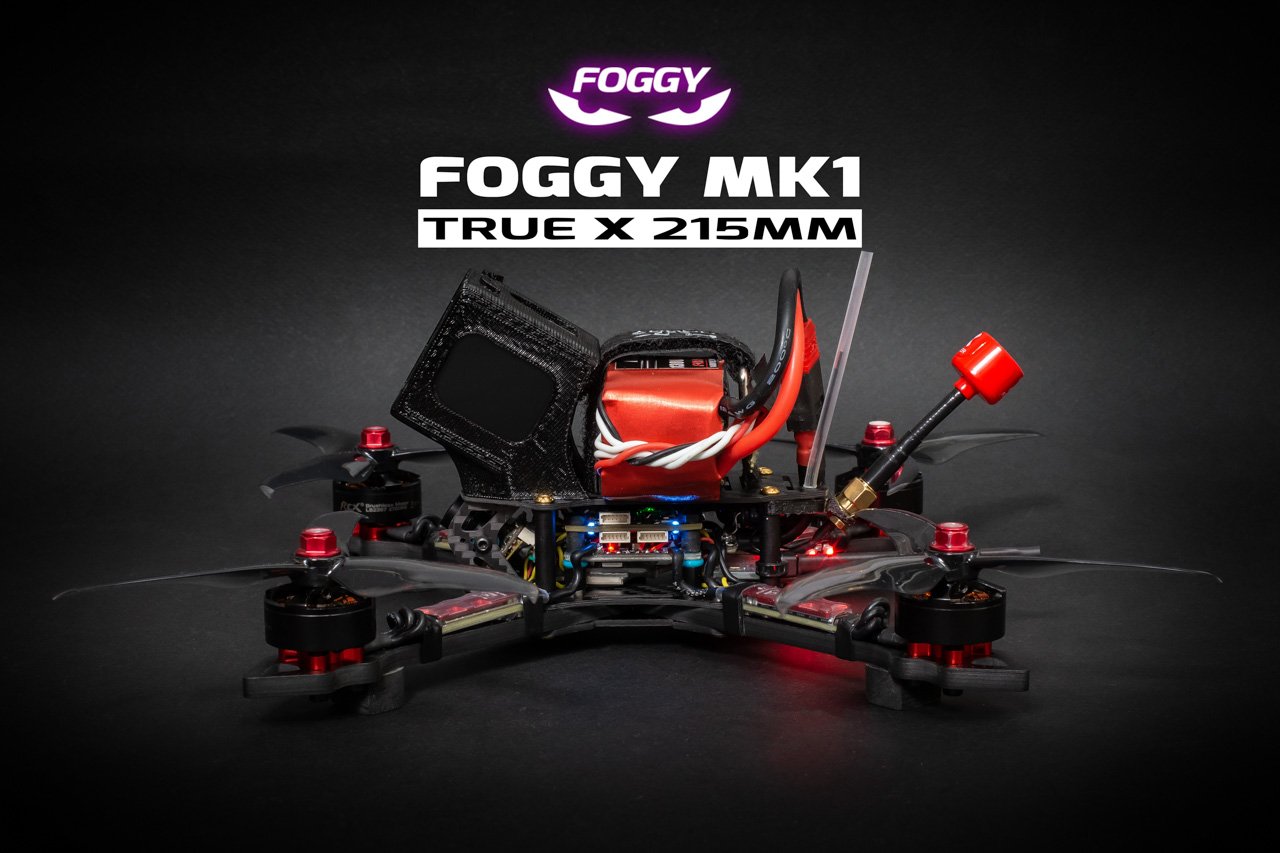

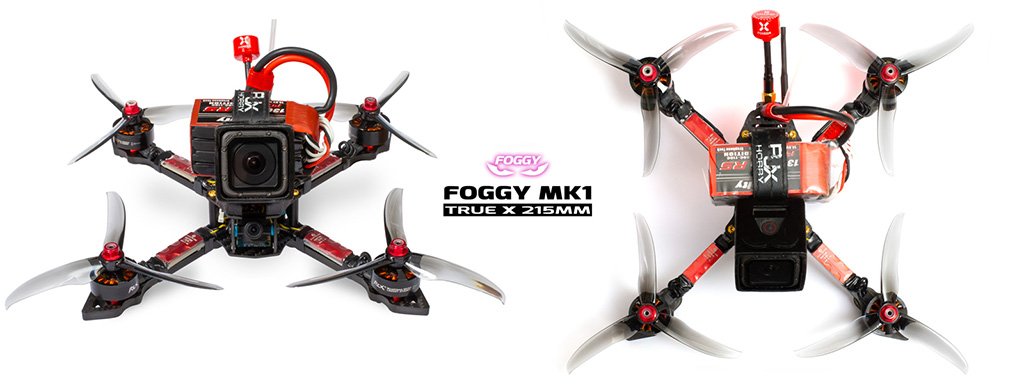

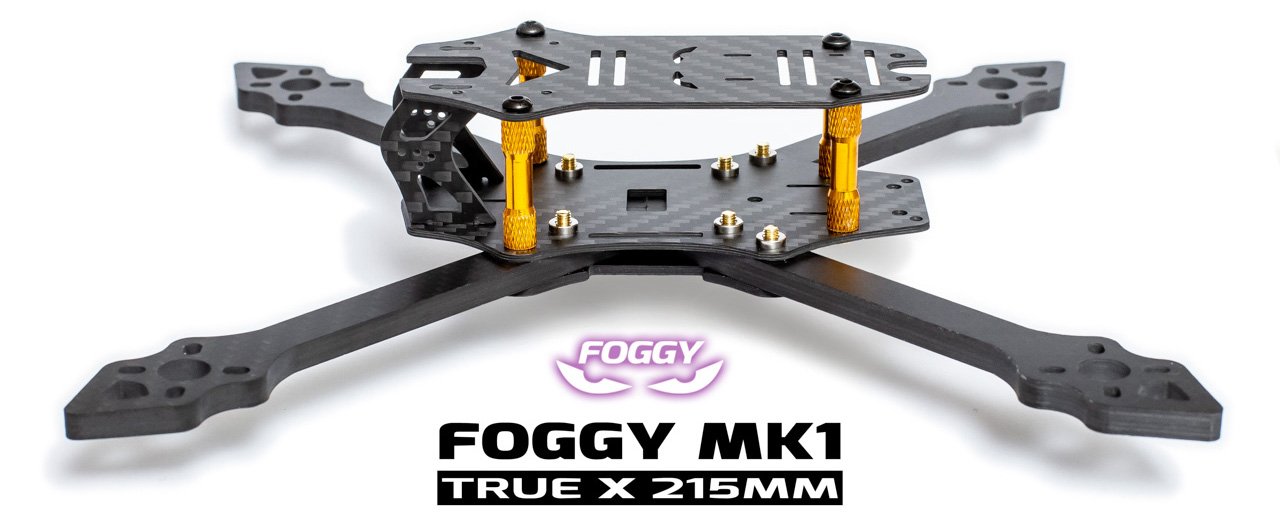

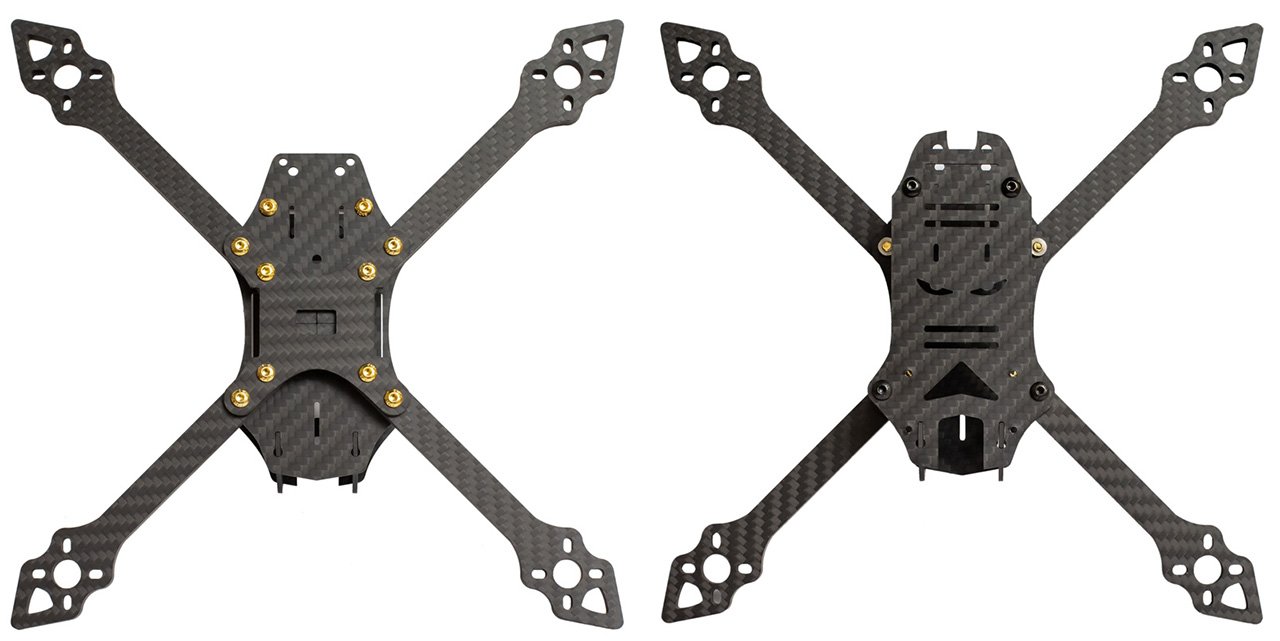

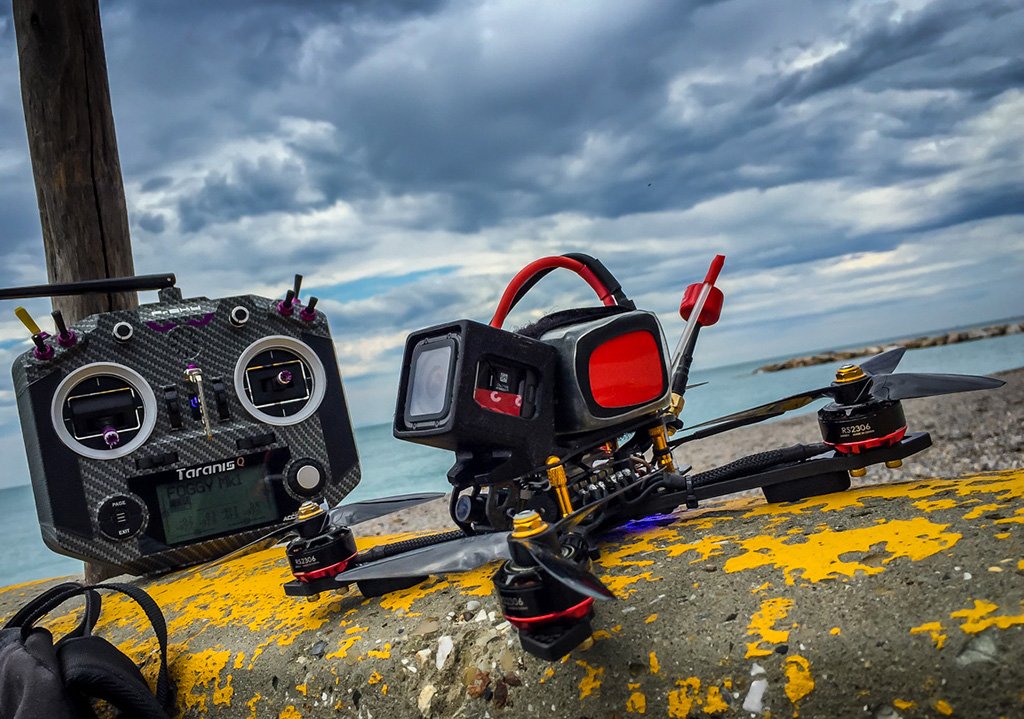

ABOUT THE FRAME

This is a 215mm true X frame, with separated arms. Lipo can be mounted on top (freestyle configuration) or on bottom (race configuration). The side plates (and included standoff) are 25mm high, but to use different heights you can use common standoffs: you can use the two holes in the front, overlapping the slots of the side plates. The total weight, included hardware, is about 80 grams. Maximun FPV Cam width is 22 mm (like Runcam Mini or Foxeer Predator) but you can also use the 19x19mm format ("micro").

CARBON
Top Plate: 1.5mm
Side (fpv cam) Plate: 1.5 mm

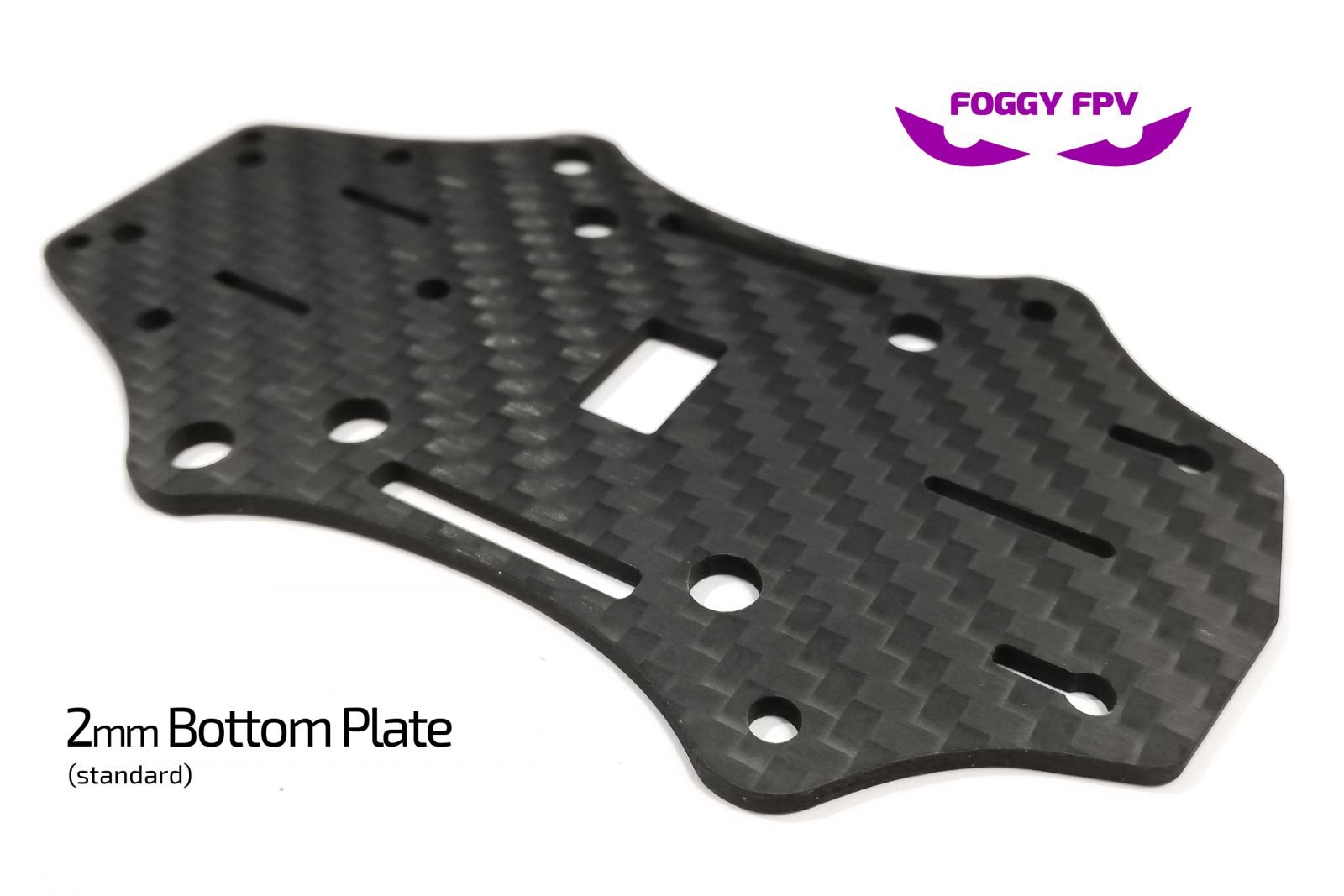

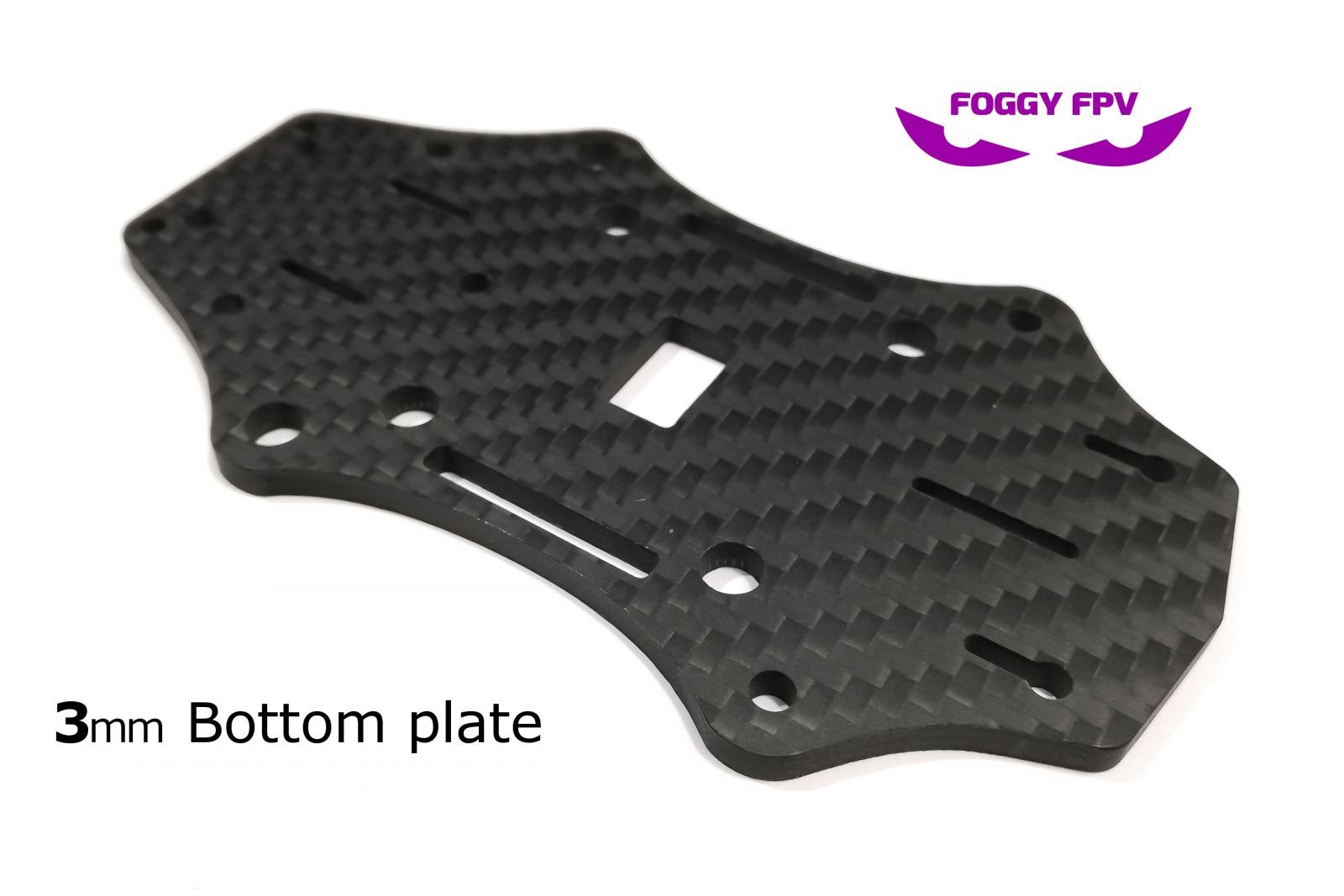

Bottom Plate 2.0 mm
Arms: 5.0 mm
X Plate: 2.0 mm

HARDWARE
6pcs M3x6mm steel button head screws
2pcs M3x10mm steel button head screws
6pcs M3x14mm steel button head screws
7pcs M3 sunk steel button head nuts
4pcs M3x25mm standoff

3D Printed mount for GoPro Hero Session 4 & 5:  https://www.thingiverse.com/thing:3083262

3D Printed mount for GoPro Hero 2018, 5 & 6 :  https://www.thingiverse.com/thing:3097591

Facebook page for more contents:  https://www.facebook.com/FoggyDesign/

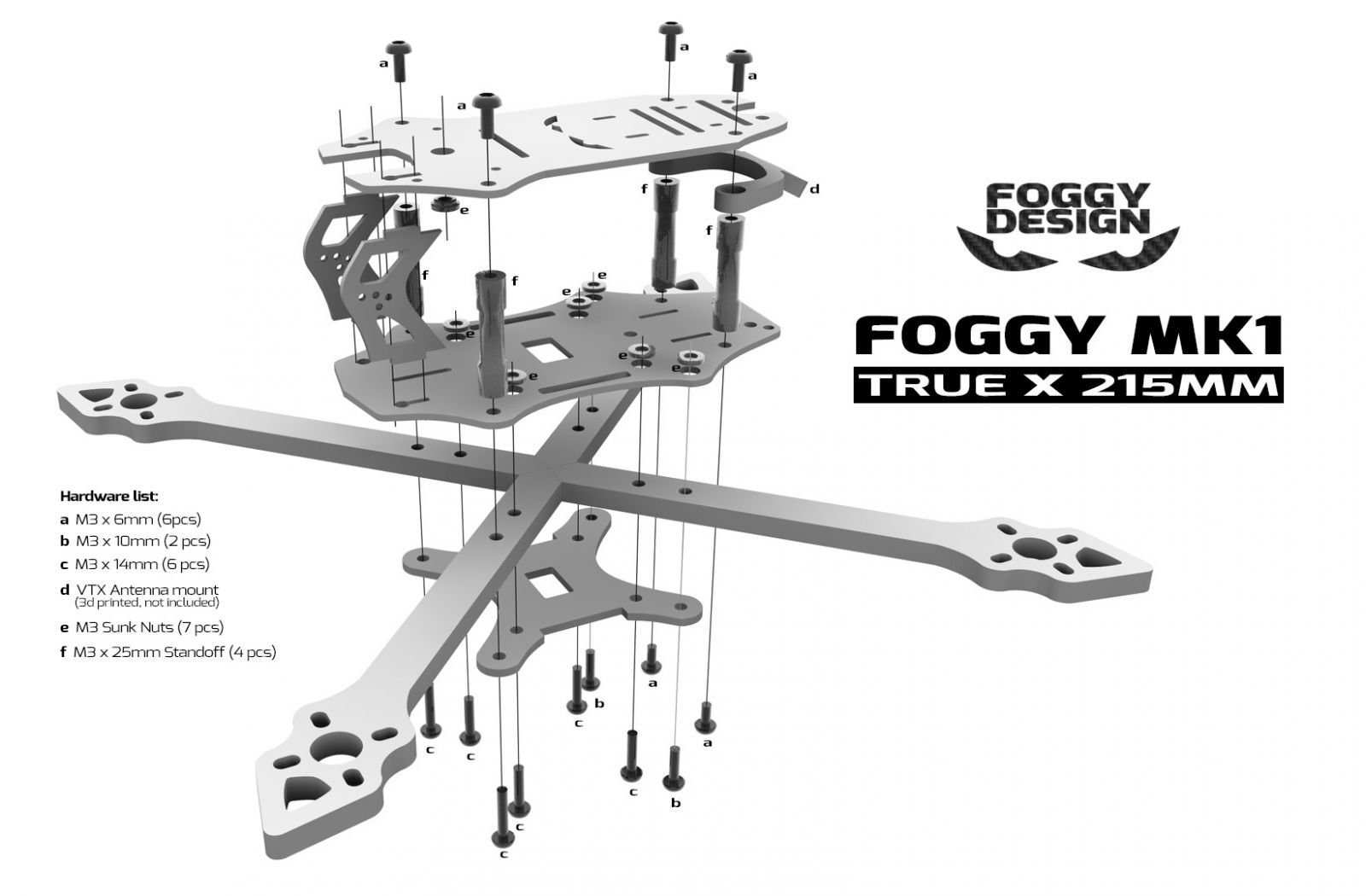

  ASSEMBLY INSTRUCTION

See also videos linked down below

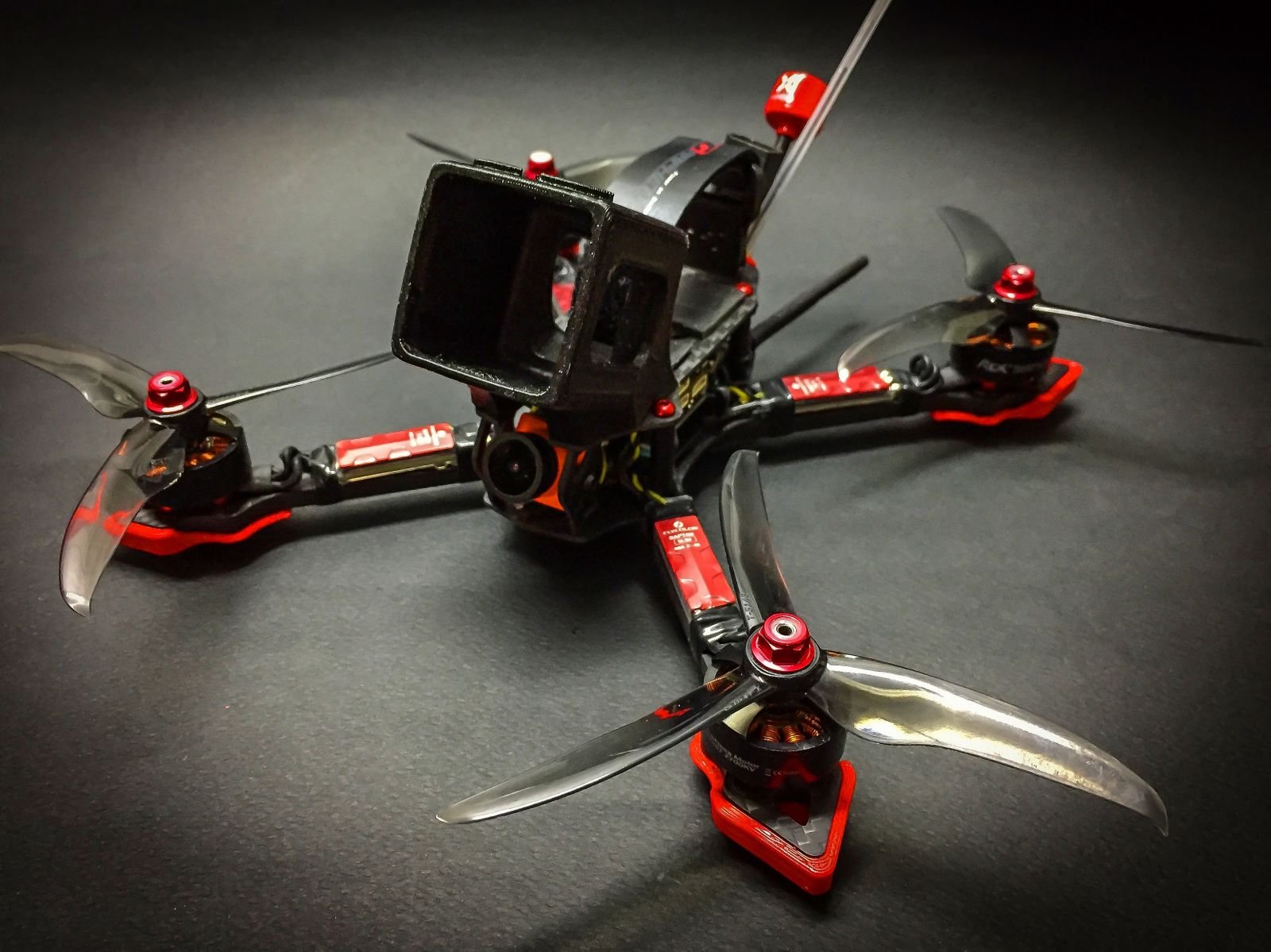

  SETUP EXAMPLE

#1:  ESC 4in1 & FC SETUP (Racerstar F4S)

#2:  KISS V2 + MATEC PDB + SEPARATE ESC ( Flycolor Raptor)

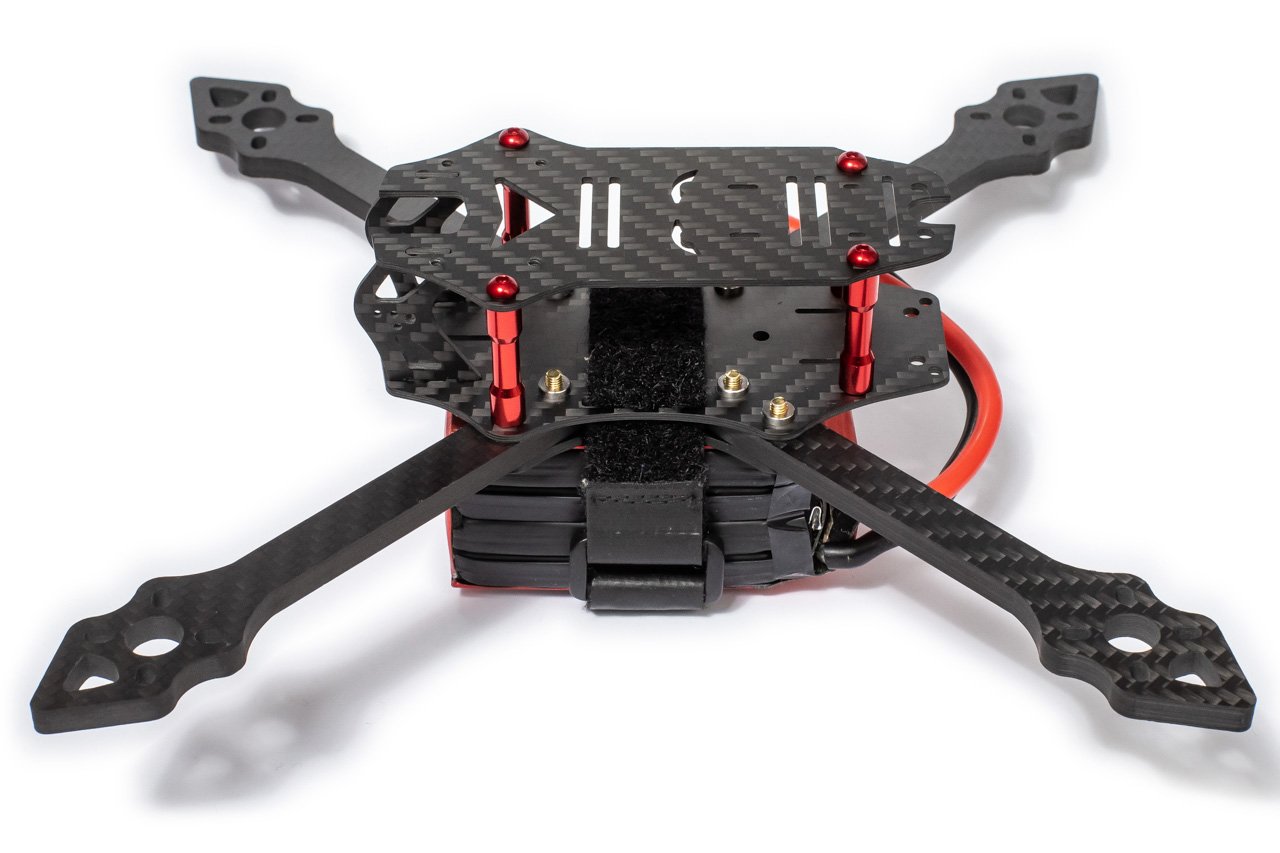

RACE CONFIGURATION  (LIPO ON BOTTOM):

"IRONMAN" SETUP :)  (maximize available space with 30mm standoff)

  HOW TO BUILD VIDEOS

First prototype build by Foggy ( https://youtu.be/Q_YjdF063is ) :

Frame Review by Vannoz ( https://youtu.be/HpGE8ypenX4 )

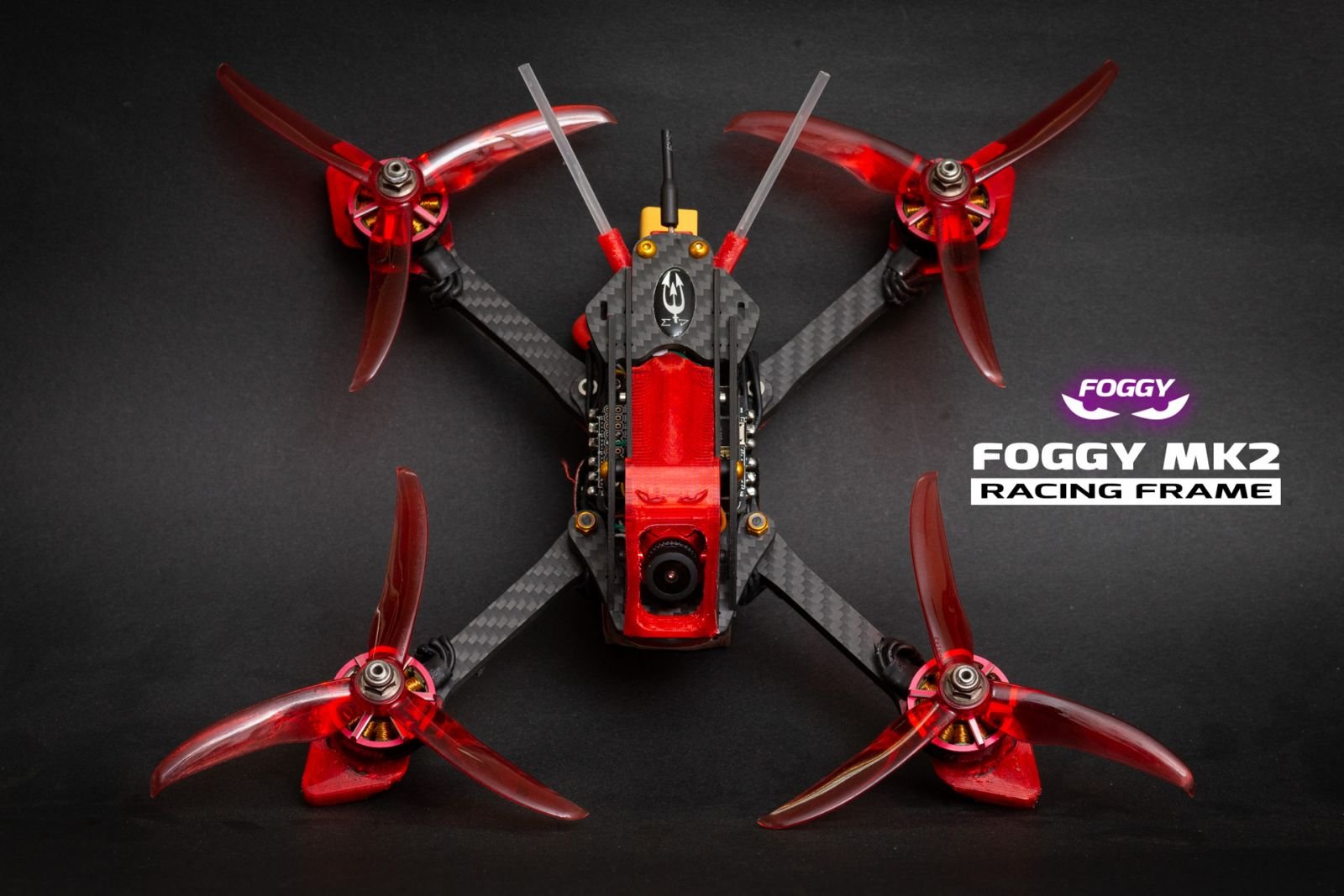

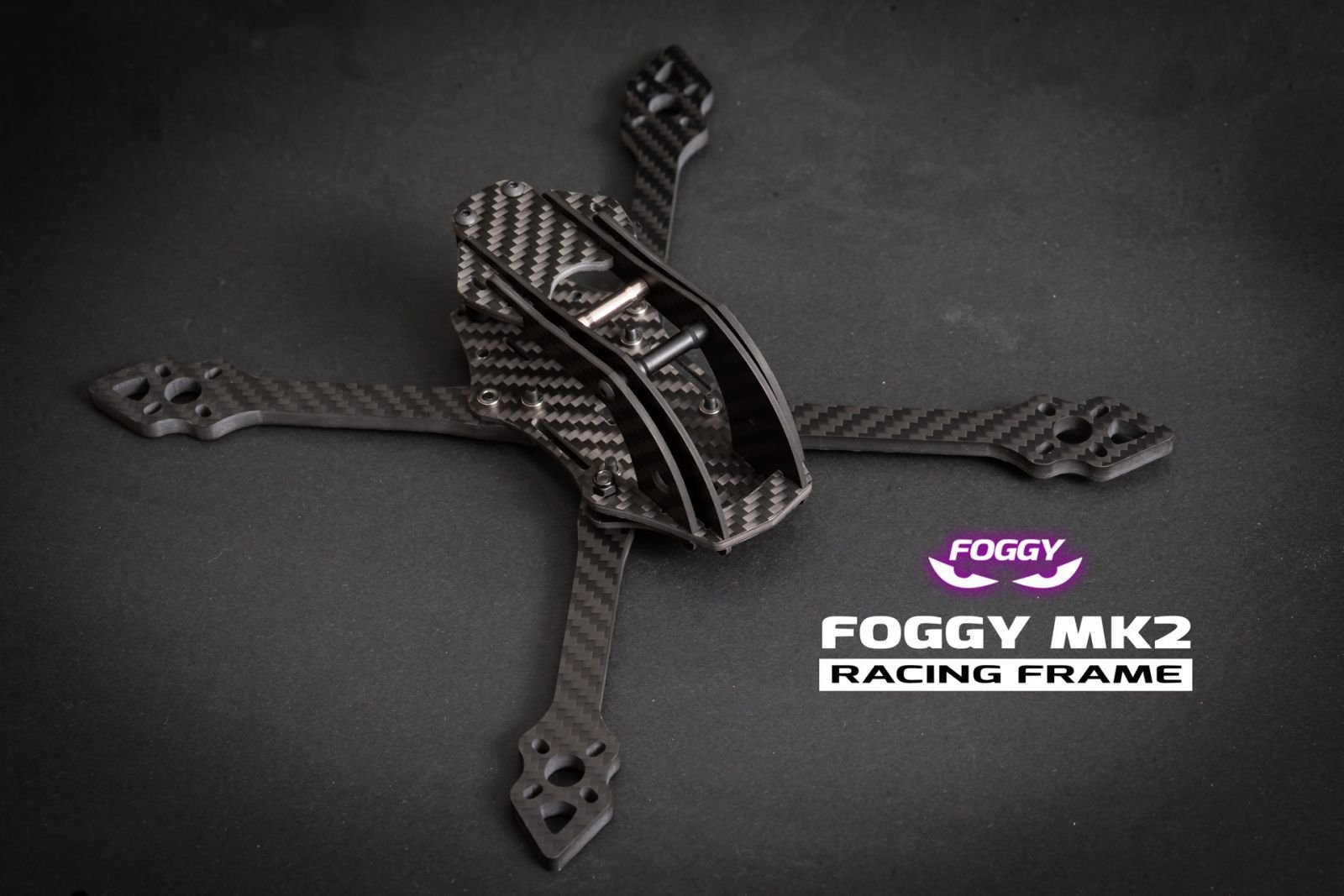

  ABOUT THE FRAME

CARBON
Inner vertical Plate: 1.5mm
Outer vertical Plate Plate: 2.0 mm
Front Plate 3.0 mm
Back Plate 3.0 mm
Bottom Plate 2.0 mm
Arms v1.3 (light): 5.0 mm
X Plate: 2.0 mm

HARDWARE
8pcs M3x6mm steel button head screws
2pcs M3x10mm steel button head screws
4pcs M3x14mm steel button head screws
2pcs M3x20mm steel button head screws
6pcs M3 sunk steel button head nuts
4pcs M3 nuts
1pcs M3x21.5mm standoff
3pcs M3x30mm standoff

Thigiverse collection for 3D printed parts:  https://www.thingiverse.com/gianniceccanti/collections/foggy-mk2-parts

Facebook page for more contents:  https://www.facebook.com/FoggyDesign

  HOW TO BUILD VIDEOS

Assembly by Foggy ( https://youtu.be/taBr6ADlddA ) :

  ABOUT THE FRAME

CARBON
Inner vertical Plate: 1.5mm
Outer vertical Plate Plate: 2.0 mm
Front Plate 3.0 mm
Back Plate 3.0 mm
Bottom Plate 2.0 mm
Stretch Arms : 5.0 mm
X Plate: 2.0 mm

HARDWARE
8pcs M3x6mm steel button head screws
2pcs M3x10mm steel button head screws
4pcs M3x14mm steel button head screws
2pcs M3x20mm steel button head screws
6pcs M3 sunk steel button head nuts
4pcs M3 nuts
1pcs M3x21.5mm standoff
3pcs M3x30mm standoff

Thigiverse collection for 3D printed parts:  https://www.thingiverse.com/gianniceccanti/collections/foggy-mk2-parts

Facebook page for more contents:  https://www.facebook.com/FoggyDesign

  HOW TO BUILD VIDEOS

Assembly by Foggy ( https://youtu.be/taBr6ADlddA ) :

Foggy MK2 Canopy Kit

It can also be used to convert a Foggy MK1 frame

CARBON
2 x Inner vertical Plate: 1.5mm
2 x Outer vertical Plate Plate: 2.0 mm
1 x Front Plate 3.0 mm
1 x Back Plate 3.0 mm


HARDWARE
6 x M3x6mm steel button head screws
2 x M3x20mm steel button head screws
4 x M3 nuts
1 x M3x22mm standoff
3 x M3x30mm standoff

  ABOUT THE FRAME

CARBON
Vertical Plate Plate: 2.0 mm
Bottom Front Plate: 2.0 mm
Bottom Back Plate: 2.0 mm

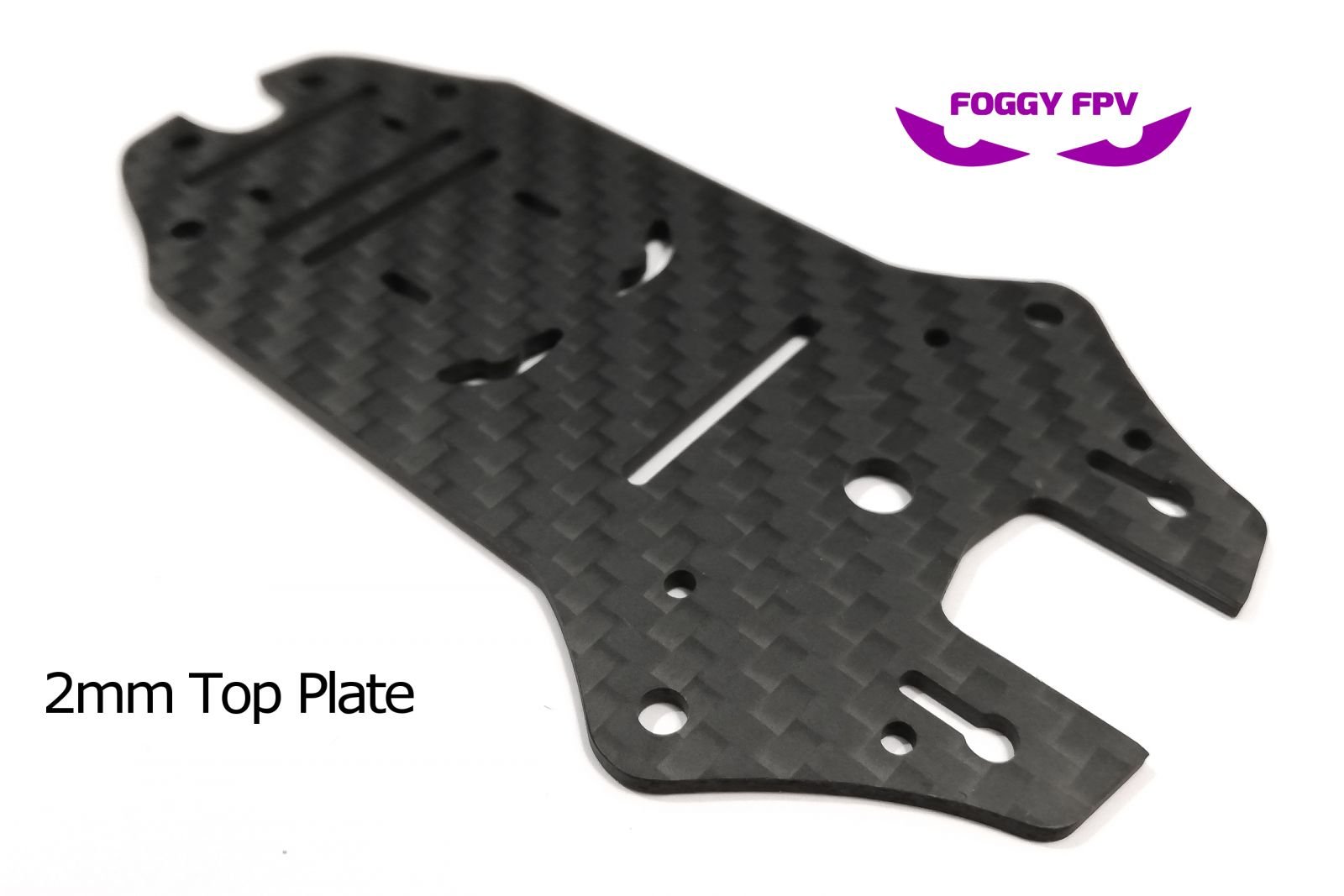

Top Plate: 2.0 mm
Spacer: 2.0 mm
Locking Plate: 2.0 mm
Arms: 5.0 mm

HARDWARE
9pcs M3x6mm steel button head screws (8pcs for the canopy, 1pc for the locking plate)
6pcs M3x10mm steel button head screws (for the bottom structure: 2pcs for the center holes, 4pcs for the external holes if you use 20*20mm stack )
4pcs M3x14mm steel button head screws (for the bottom structure: 4pcs for the external holes if you use 30*30mm stack )
4pcs M2x5mm steel button head screws (if you use 20*20mm stack)
7pcs M3 sunk steel button head nuts (6pcs for the bottom structure, 1pc for the locking plate)
2pcs M3x20mm standoff
2pcs M3x25mm standoff

Additional note:

Compatible with both 30.5*30.5mm and 20*20mm electronics.

The lower plate has chamfered holes to allow the usage of countersunk screws. In this way the lower surface becomes flat, excellent not to damage the lipo. You can buy a kit like this to use as:
 - 1pcs M3x6mm (locking plate)
 - 4pcs M3x16mm (arms)
 - 1pcs M3x10mm (center)

The v2 has a different arm locking mechanism and allows the lipo strap to pass through the two bottom plates.

Thigiverse collection for 3D printed parts: https://www.thingiverse.com/gianniceccanti/collections/foggy-mk3-parts

Facebook page for more contents:  https://www.facebook.com/FoggyDesign

  ASSEMBLY INSTRUCTION
