Kit Details

Item List

MK3 Spacer 1.3A 2mm Quantity :1
MK3 Lock Plate 2mm Quantity :1
MK3 Vertical Plate 2mm Quantity :2
MK3 Top Plate 2mm Quantity :1
MK3V2 ARM 5IN 5MM (CHAMFERED) Quantity :4
MK3v2 Front Bottom 2mm (CHAMFERED) Quantity :1
MK3v2 Back Bottom 2mm Quantity :1
M3 Stainless Steel Sunk Nuts (per piece) Quantity :7
6mm M3 Steel Button Head Bolt Black Anodized Quantity :9
14mm M3 Steel Button Head Bolt Black Anodized Quantity :4
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D. Quantity :2
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D. Quantity :2
10mm M3 12.9 Grade Steel Button Head Screw Black Anodized Quantity :6
5mm M2 Steel Cap Head Bolt Black Anodized (per piece) Quantity :4

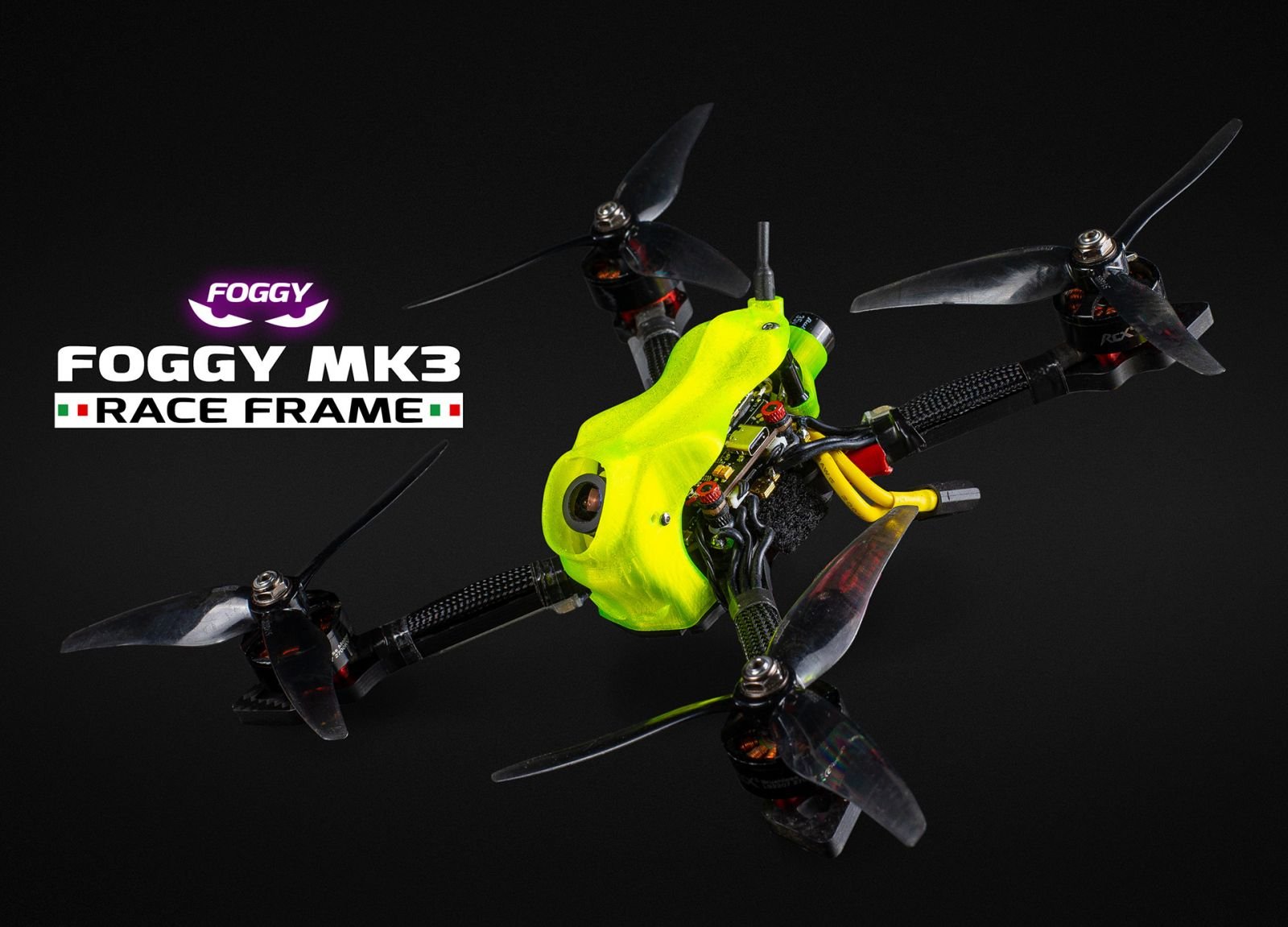

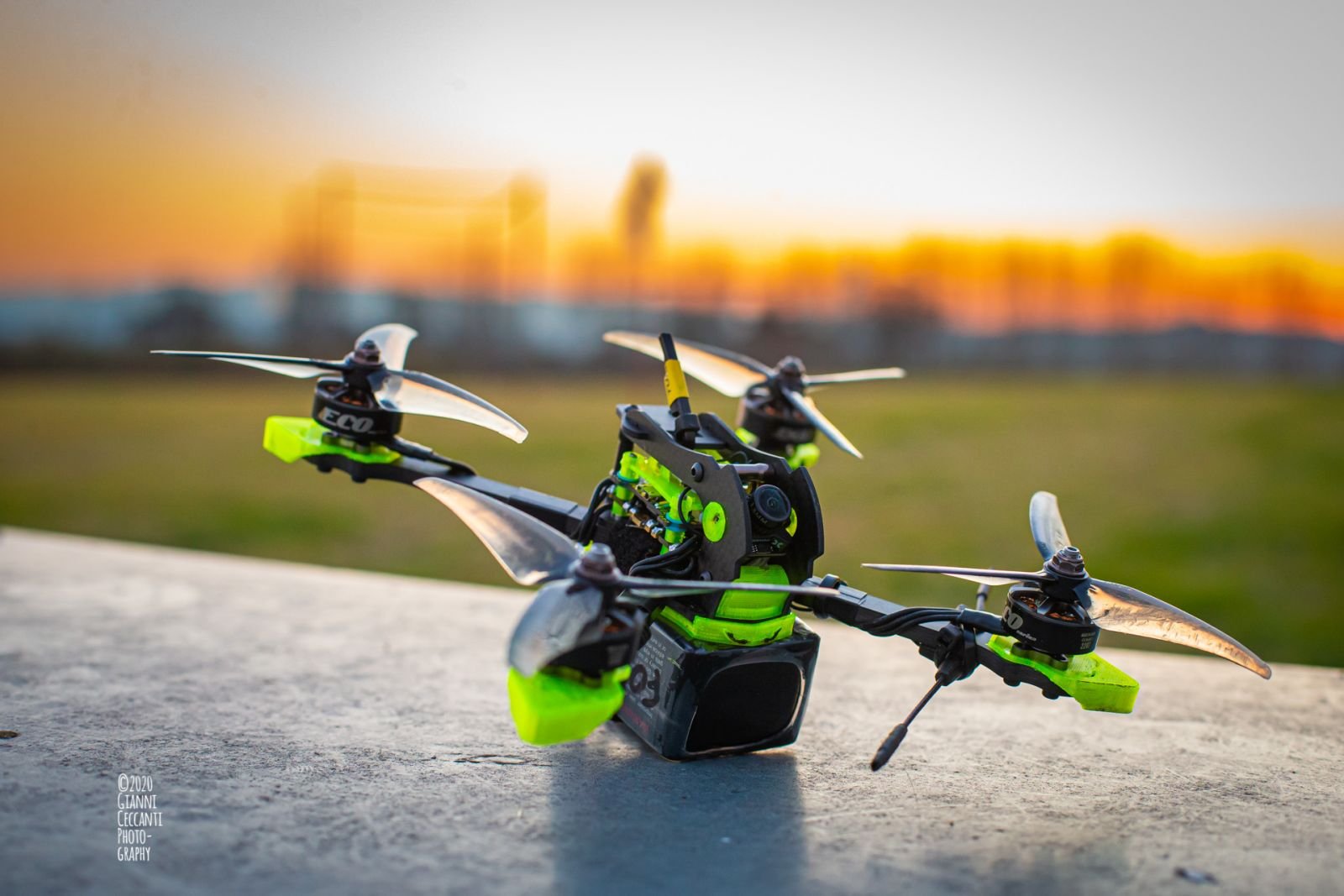

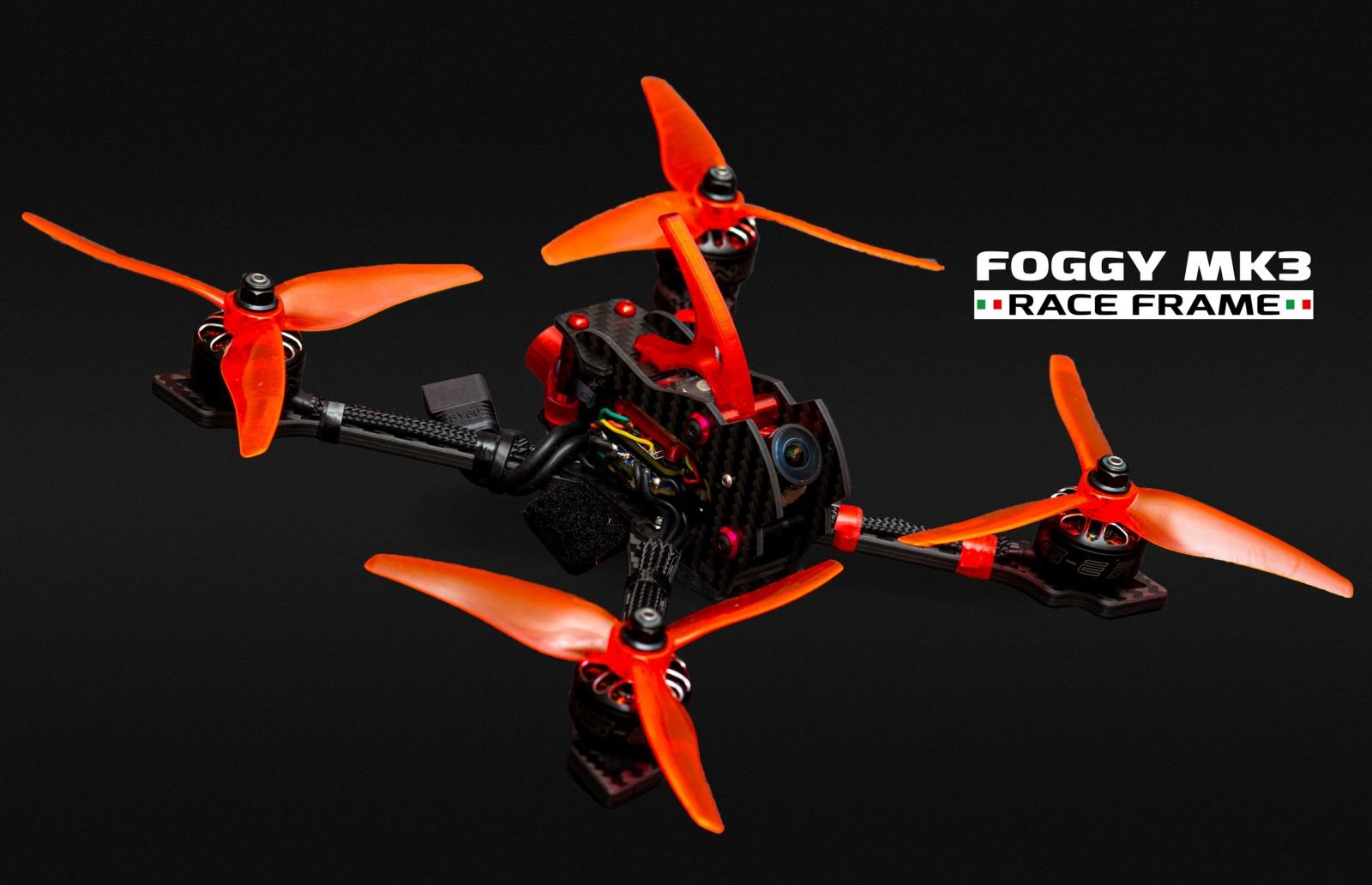

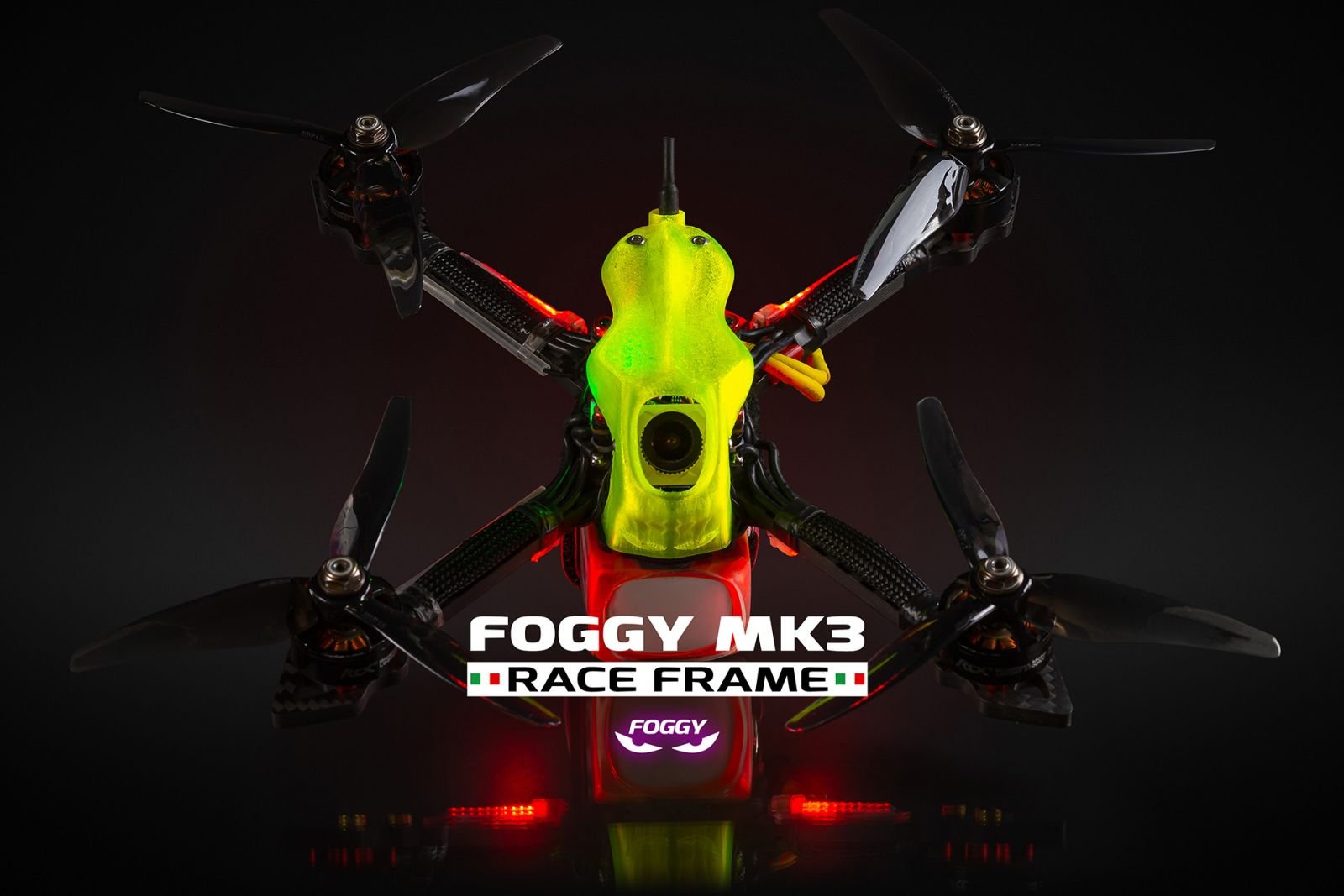

Description

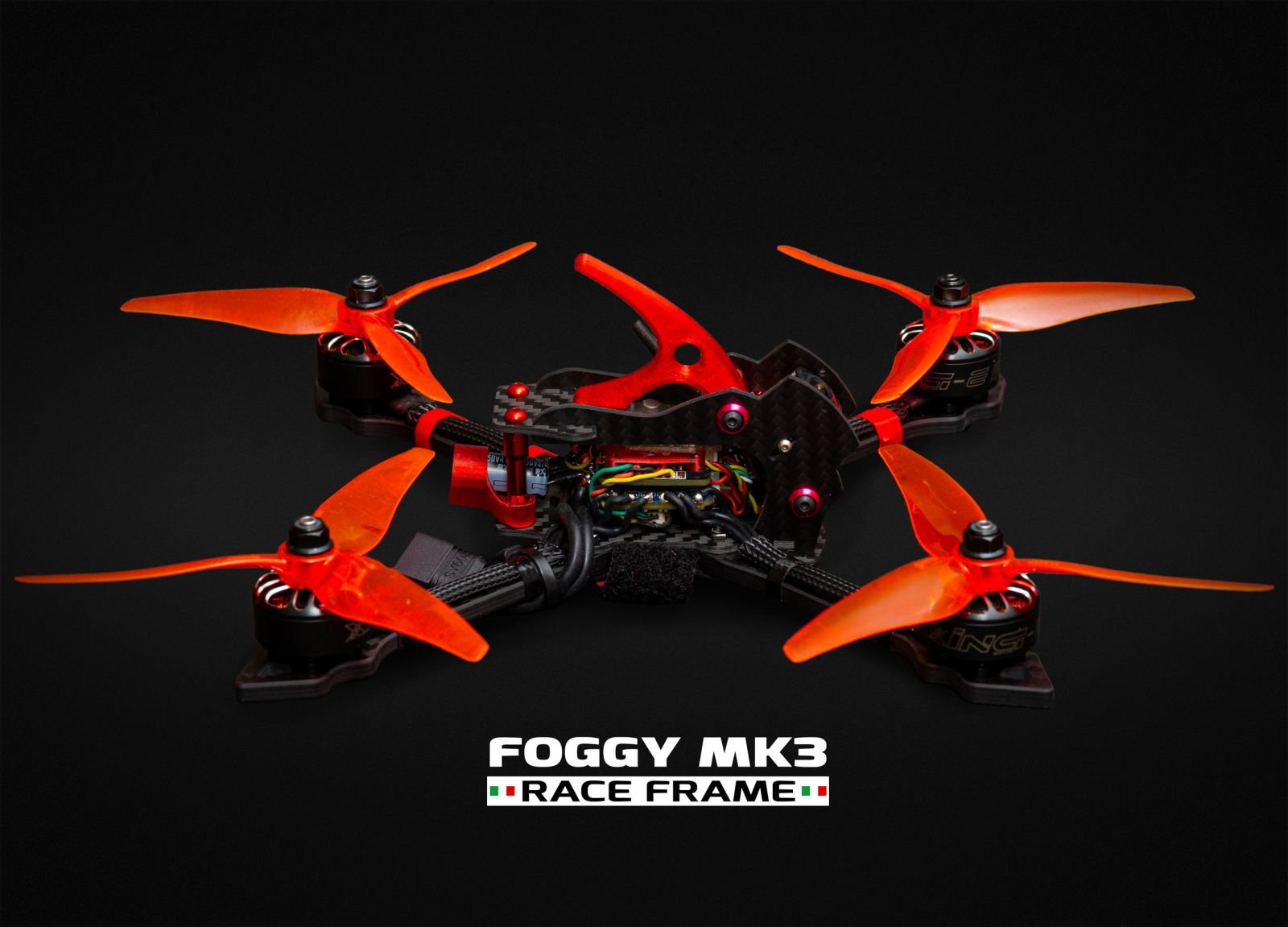

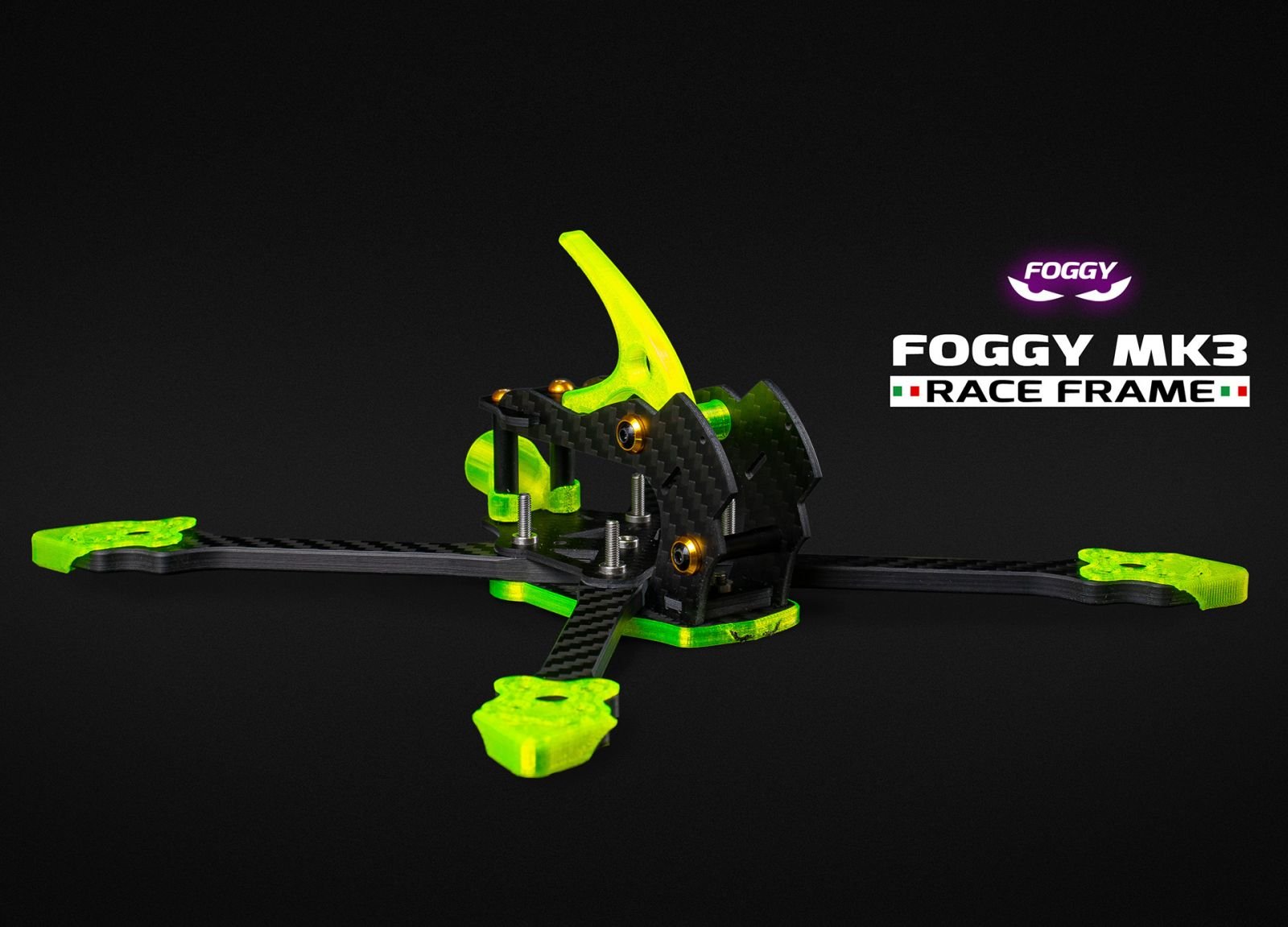

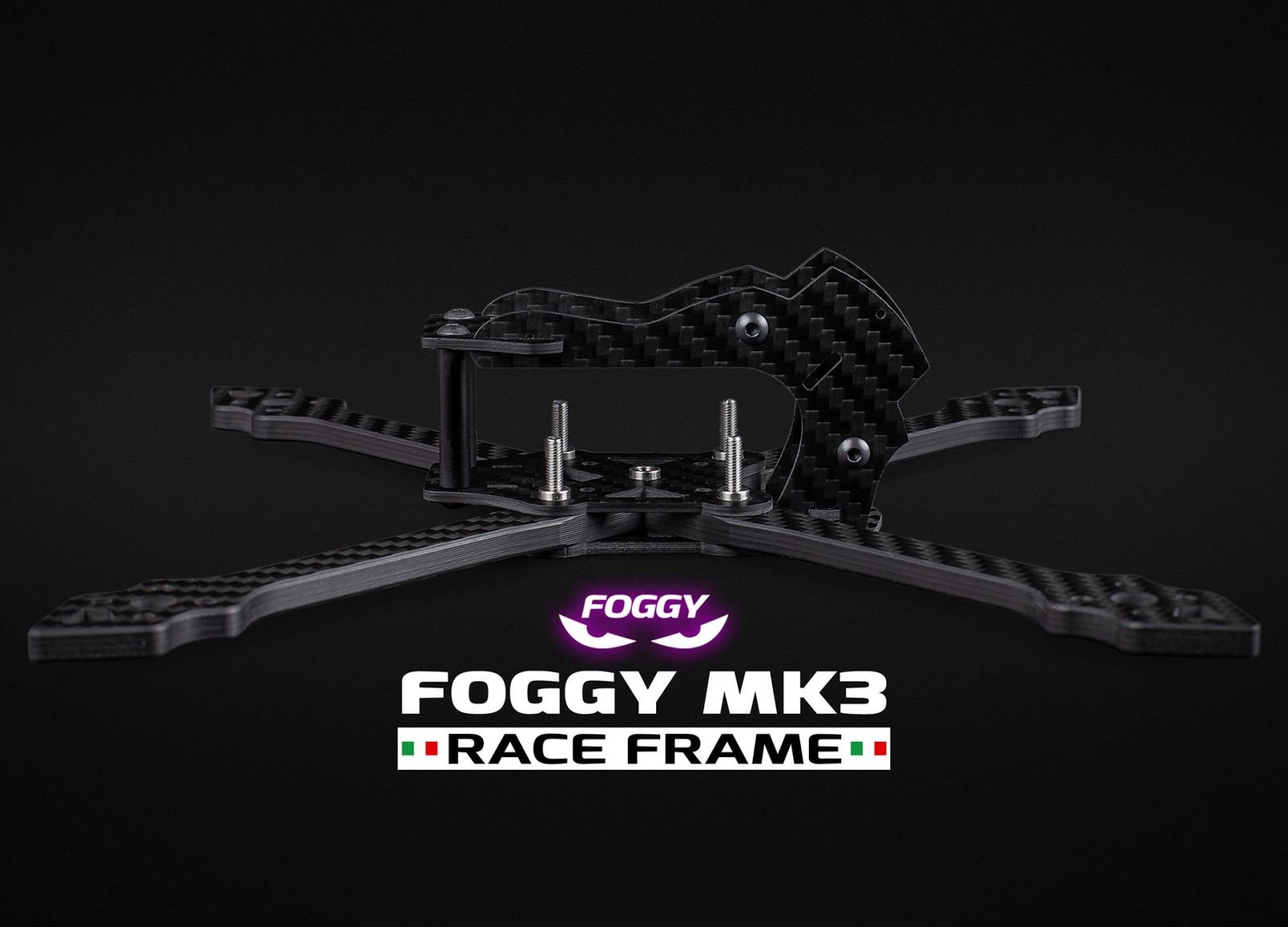

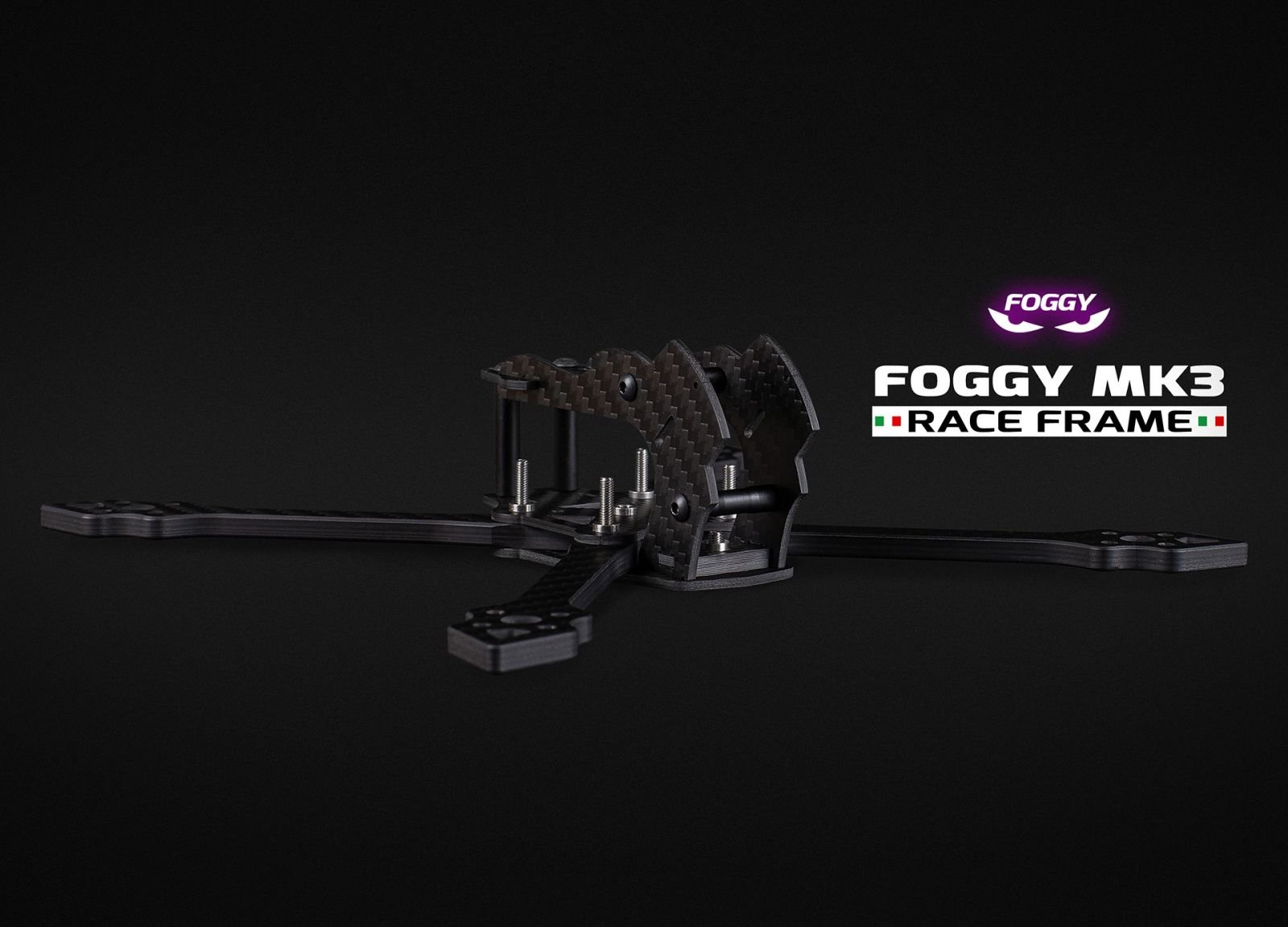

ABOUT THE FRAME

CARBON
Vertical Plate Plate: 2.0 mm
Bottom Front Plate: 2.0 mm
Bottom Back Plate: 2.0 mm
Top Plate: 2.0 mm
Spacer: 2.0 mm
Locking Plate: 2.0 mm
Arms: 5.0 mm

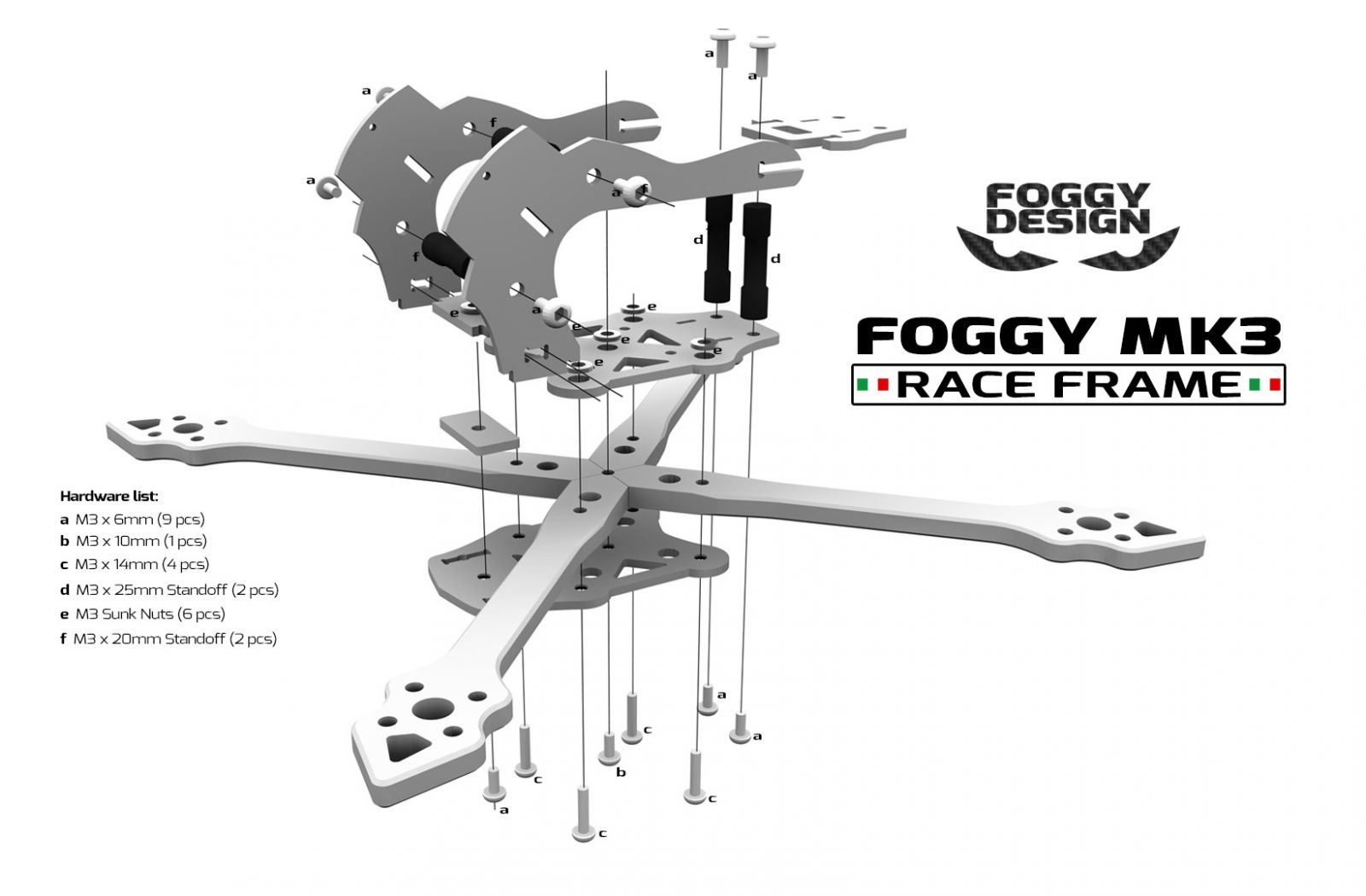

HARDWARE
9pcs M3x6mm steel button head screws (8pcs for the canopy, 1pc for the locking plate)
6pcs M3x10mm steel button head screws (for the bottom structure: 2pcs for the center holes, 4pcs for the external holes if you use 20*20mm stack )
4pcs M3x14mm steel button head screws (for the bottom structure: 4pcs for the external holes if you use 30*30mm stack )
4pcs M2x5mm steel button head screws (if you use 20*20mm stack)
7pcs M3 sunk steel button head nuts (6pcs for the bottom structure, 1pc for the locking plate)
2pcs M3x20mm standoff
2pcs M3x25mm standoff

Additional note:

Compatible with both 30.5*30.5mm and 20*20mm electronics.

The lower plate has chamfered holes to allow the usage of countersunk screws. In this way the lower surface becomes flat, excellent not to damage the lipo. You can buy a kit like this to use as:
- 1pcs M3x6mm (locking plate)
- 4pcs M3x16mm (arms)
- 1pcs M3x10mm (center)

The v2 has a different arm locking mechanism and allows the lipo strap to pass through the two bottom plates.

Thigiverse collection for 3D printed parts: https://www.thingiverse.com/gianniceccanti/collections/foggy-mk3-parts

Facebook page for more contents: https://www.facebook.com/FoggyDesign
