Horus X10/X10S/Express stand. This kit only includes the hardware, refer to THIS listing for the complete one with the rest of needed 3D printed and non-flat CF parts.

Flying Condom (Kit)

Specs

• Symmetric X shape with 135mm base (motor shaft to motor shaft).

• Optimized for both bottom- and top-mounted batteries.

• Fits 2.5" & 2" props.

• Designed around micro-sized cameras such as the RunCam Micro Sparrow.

• Mounting holes for 9/9mm motors. Should fit all 11xx motors.

• Bottom plate thickness: 3mm

• Top plate thickness: 2mm

• Weight: ~28g (+ ~2g of hardware)

Notes

3D Models

Here are some freely downloadable & 3D-printable models for your frame:

• Mixed TPU accessories: https://www.thingiverse.com/thing:3086720

• Camera mounting brackets
• Arm protectors
• Landing skids
• XT30 holders
• Prototype pod (replaces top plate)
• Check Thingiverse for more...

Images

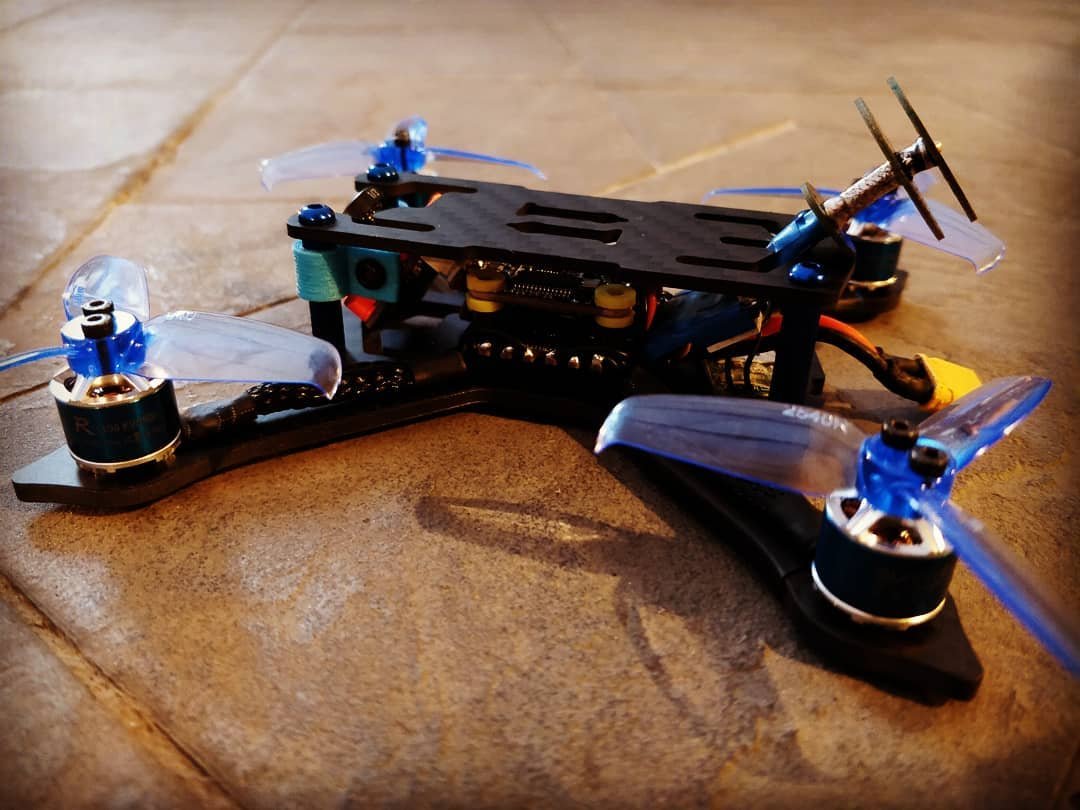

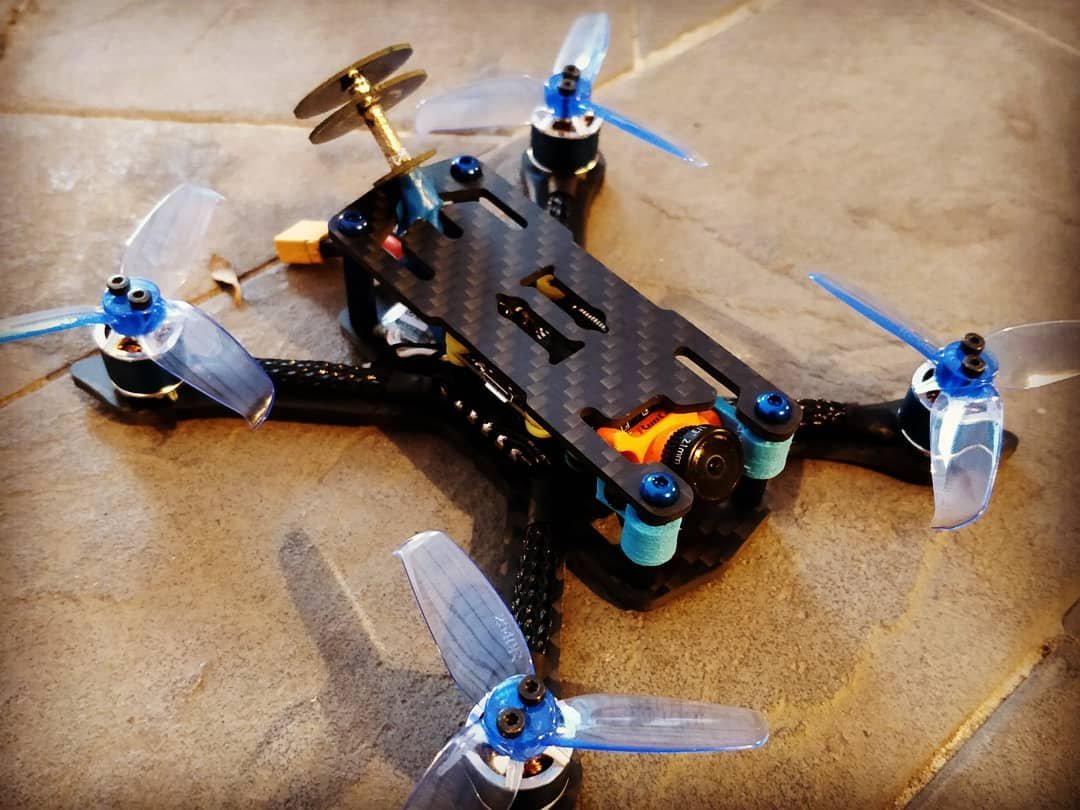

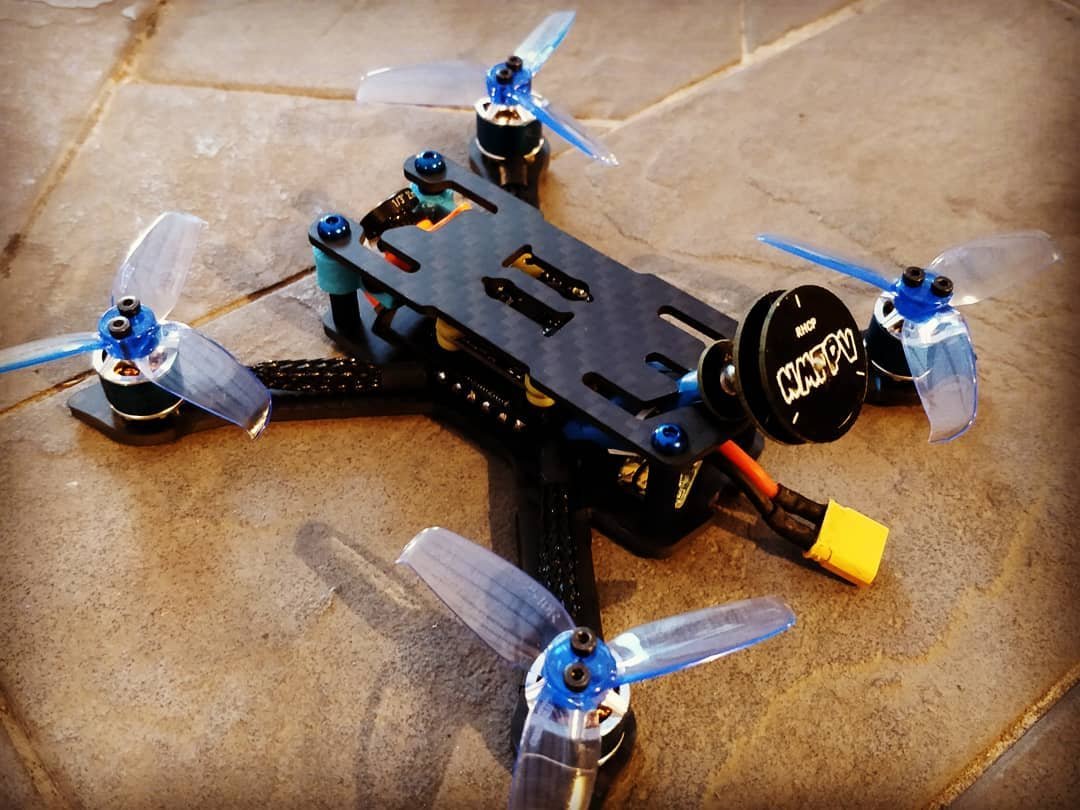

ZSplit Mini Kit

Specs

• Stretched X shape with 120mm base (motor shaft to motor shaft).

• Camera mounting holes specifically made for micro cameras dimensions such as the RunCam Split Mini or RunCam Micro Sparrow.

• Mounting holes for 9/9mm motors. Should fit all 11xx motors.

• Top and bottom plate thickness: 3mm

• Front plates thickness: 2mm

• Weight (h/w included): ~25g

Notes

3D Models

Here are some freely downloadable & 3D-printable models for your frame:

• Battery spacer: https://www.thingiverse.com/thing:2911756?

Images

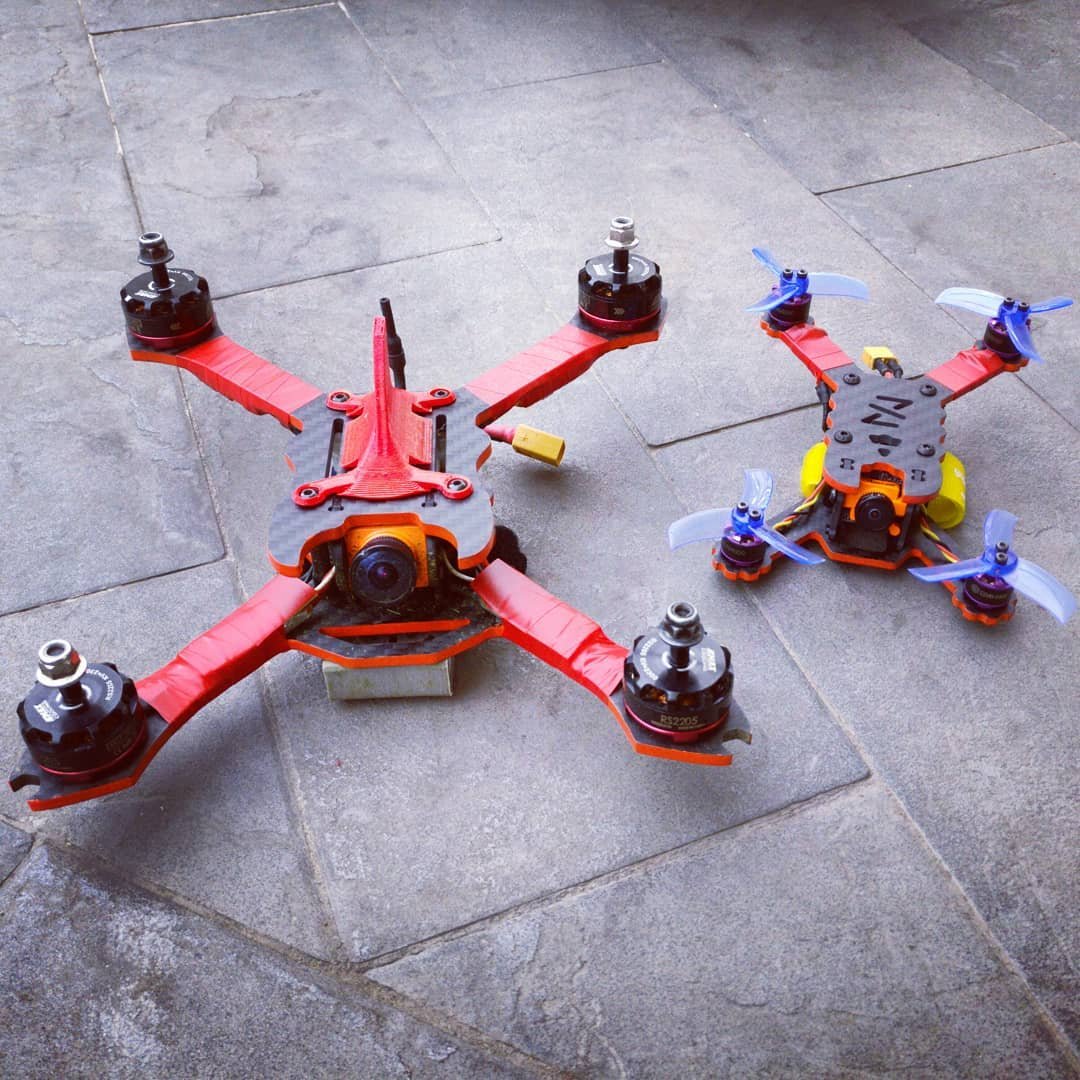

ZSplit Kit

Specs

• Symmetric X shape with 210mm base (motor shaft to motor shaft).

• Camera mounting holes specifically made for RunCam Split's dimensions.

• Mounting holes for 16/19, 16/16 and 19/19 motors. Should fit all 22xx and 23xx motors.

• Top and bottom plate thickness: 4mm

• Back and front plates thickness: 2mm

• Arms width: 14mm

• Weight (h/w included): 94g

Notes

Hexagonal cutouts

The hex-shaped cutouts at the end of the arms are actually the size of an M5 bolt! This means that you can use a ZSplit frame plate as a quick/emergency wrench to install or remove props on another model, or use a spare plate for handling them on the ZSplit itself!

Back plate slots

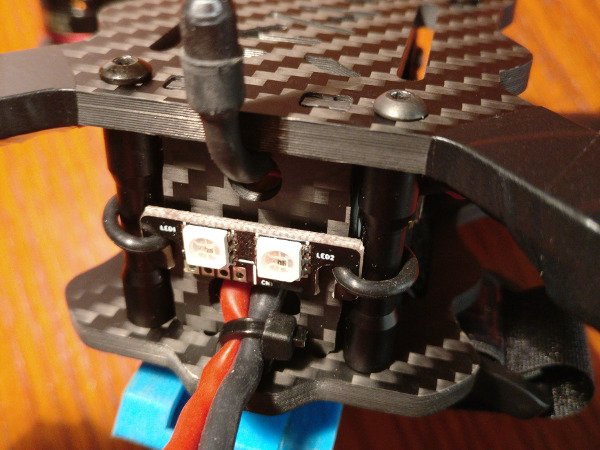

The two small circles at the middle of the back plate's sides are there to keep Armattan's Universal LEDs in place. It is a convenient solution for adding LEDs to your frame of you feel like it, but without sacrificing the structural integrity of any component.

Top plate slots

The two longitudinal slots on the top plate of the frame are meant for attaching everything that you might need to.

Want to carry a GoPro, a Mobius, a RunCam 2/3 or any other HD camera instead of a RunCam Split? No problem. Tired of having the battery on the bottom and want to take a chance at having it on the top? No worries - just strap it down tightly maybe, upper props are quite close in that case. Want to go crazy and attach a balloon on your quad before getting in a race with your friends? Who am I to judge? Thinking about this, I'd actually endorse the idea...

Screws

The kit includes twelve screws. Eight of them are needed for the standoffs, and the remaining four can be used for screwing down nylon standoffs of the FC's stack. In addition to those you'll need four (or six) short M2 screws to fix the camera to the front plates: they are usually included in the RunCam Split's packaging.

3D Models

Here are some freely downloadable & 3D-printable models for your frame:

• Battery spacer: https://www.thingiverse.com/thing:2770644

• Arm protector: https://www.thingiverse.com/thing:2770646

• Spare front plate: https://www.thingiverse.com/thing:2771784

Images

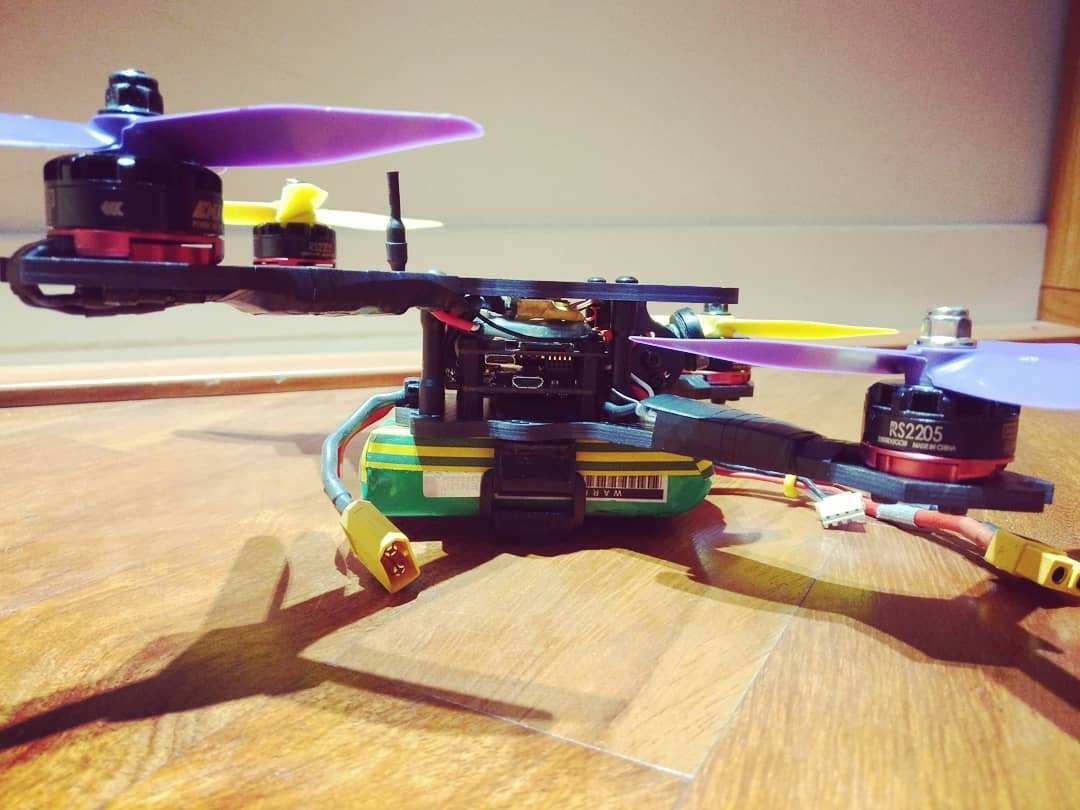

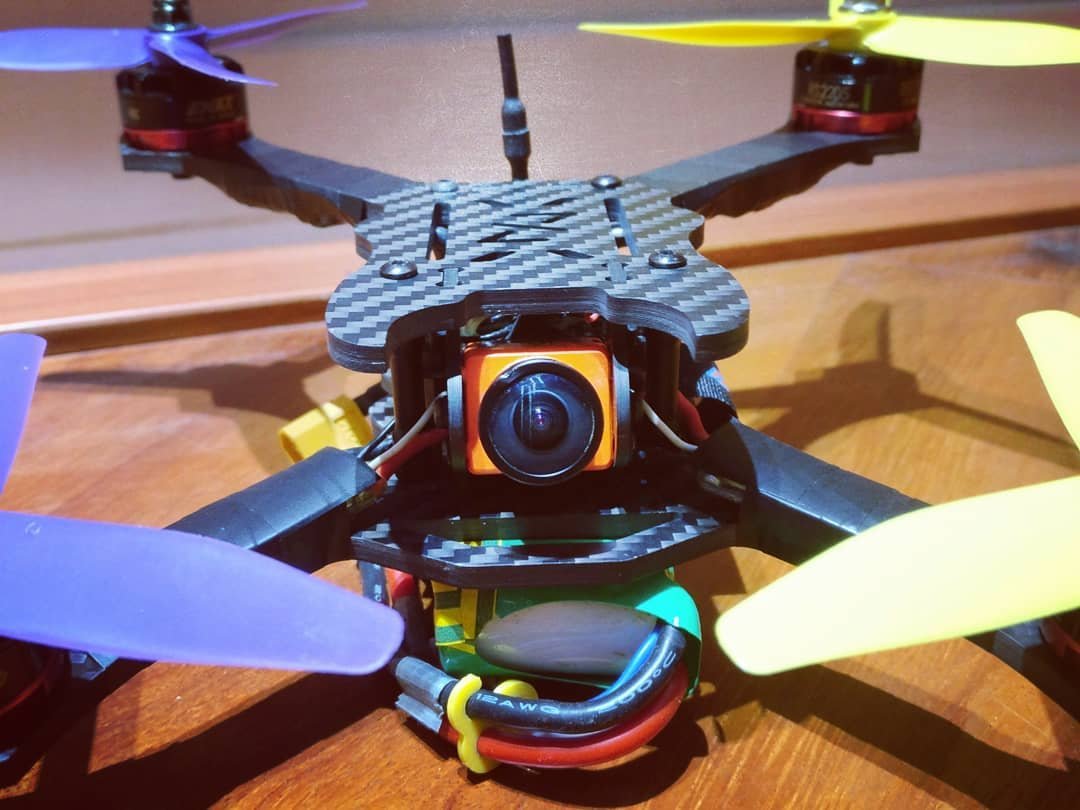

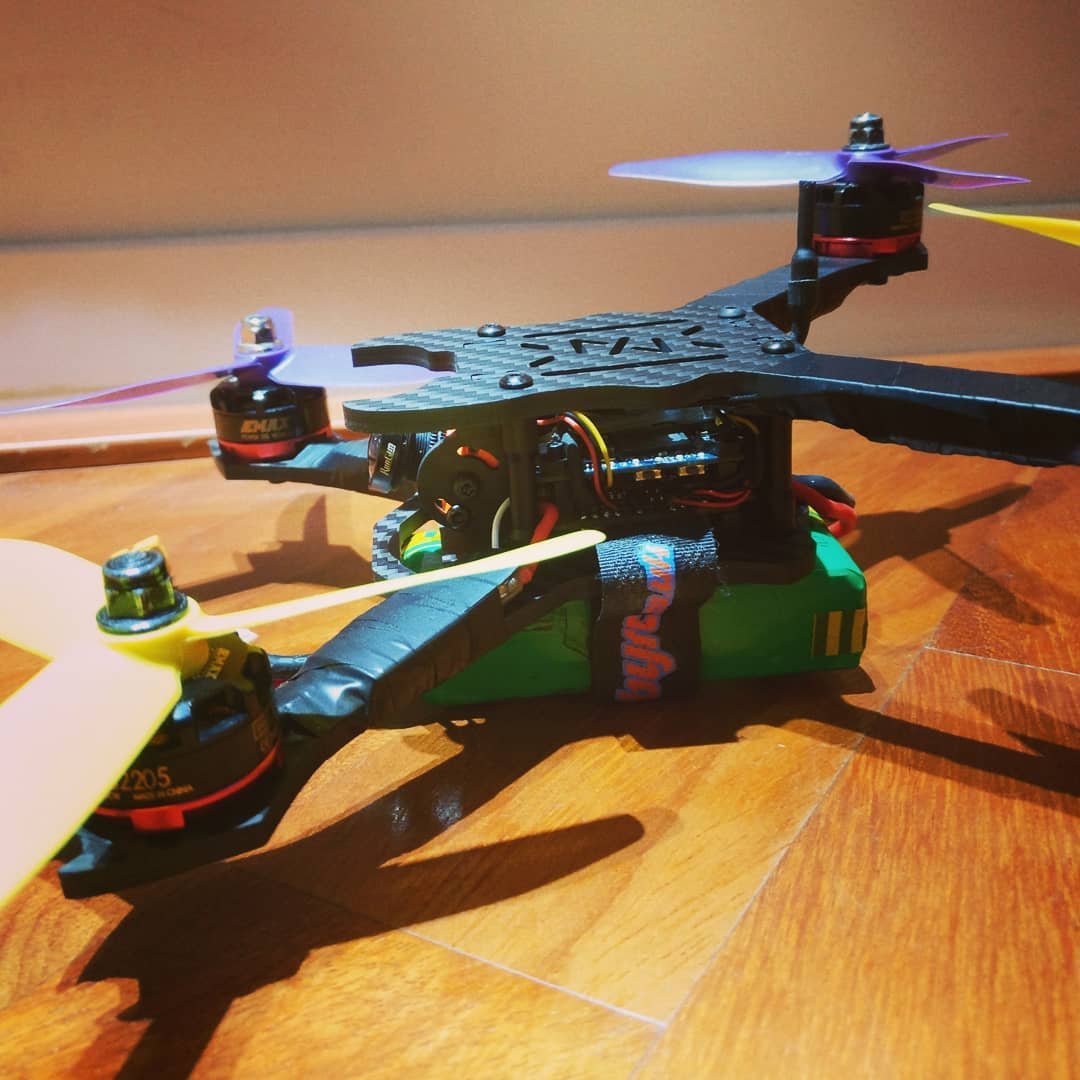

Note: the images above depict the old camera mount plates. The new ones place the camera higher against the top plate, allowing more uptilt and unobstructed view.
