This frame have is a kit. with al parts inkl

I have made a Runcam swift micro mount in tpu to mount the camera to the front standoffs   you can find the mount on my thingiverse site

Link to Runcam Swift micro mount https://goo.gl/YbLBXS

Thinks in the kit

• 4pc  28mm standoffs
• 8pc m3 nylon nut /   but i use this typ of nut  https://goo.gl/1AdVxt
• 8pc m3 screws  7mm
• 8pc m3 screws  12 mm

This frame have is a kit. with al parts inkl

I have made a Runcam Swift micro mount in tpu to mount the camera to the front standoffs   you can fint the mount on my thingiverse site

Link to Runcam swift micro mount https://goo.gl/YbLBXS

Part you will get in the kit

• 4pc  25mm standoffs
• 8pc m3 nuts   typ of nut i use  https://goo.gl/1AdVxt
• 4pc m3 screws  7mm
• 4pc m3 screws  12 mm
• 4pc m3 screws  16mm

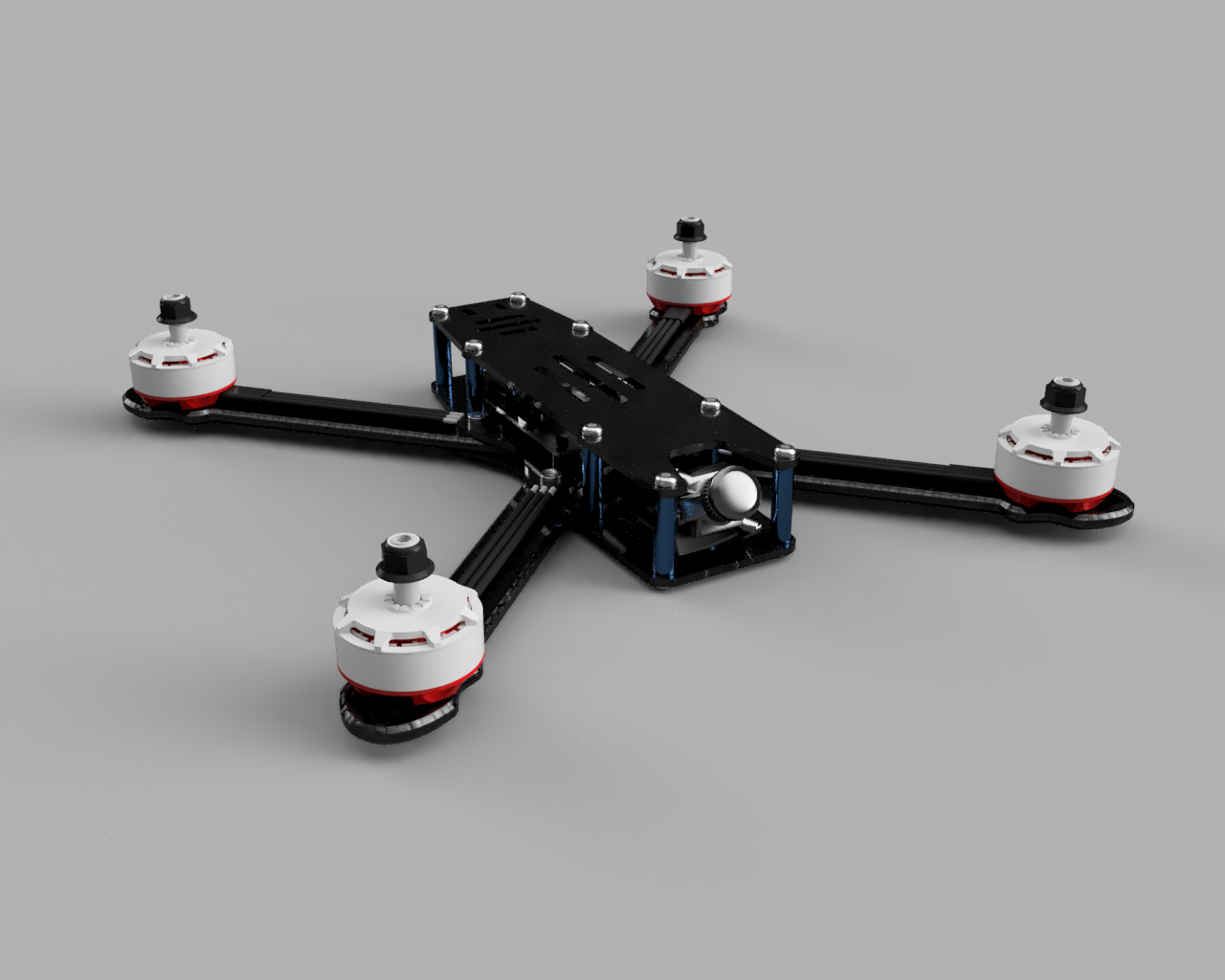

mockup over how it can look

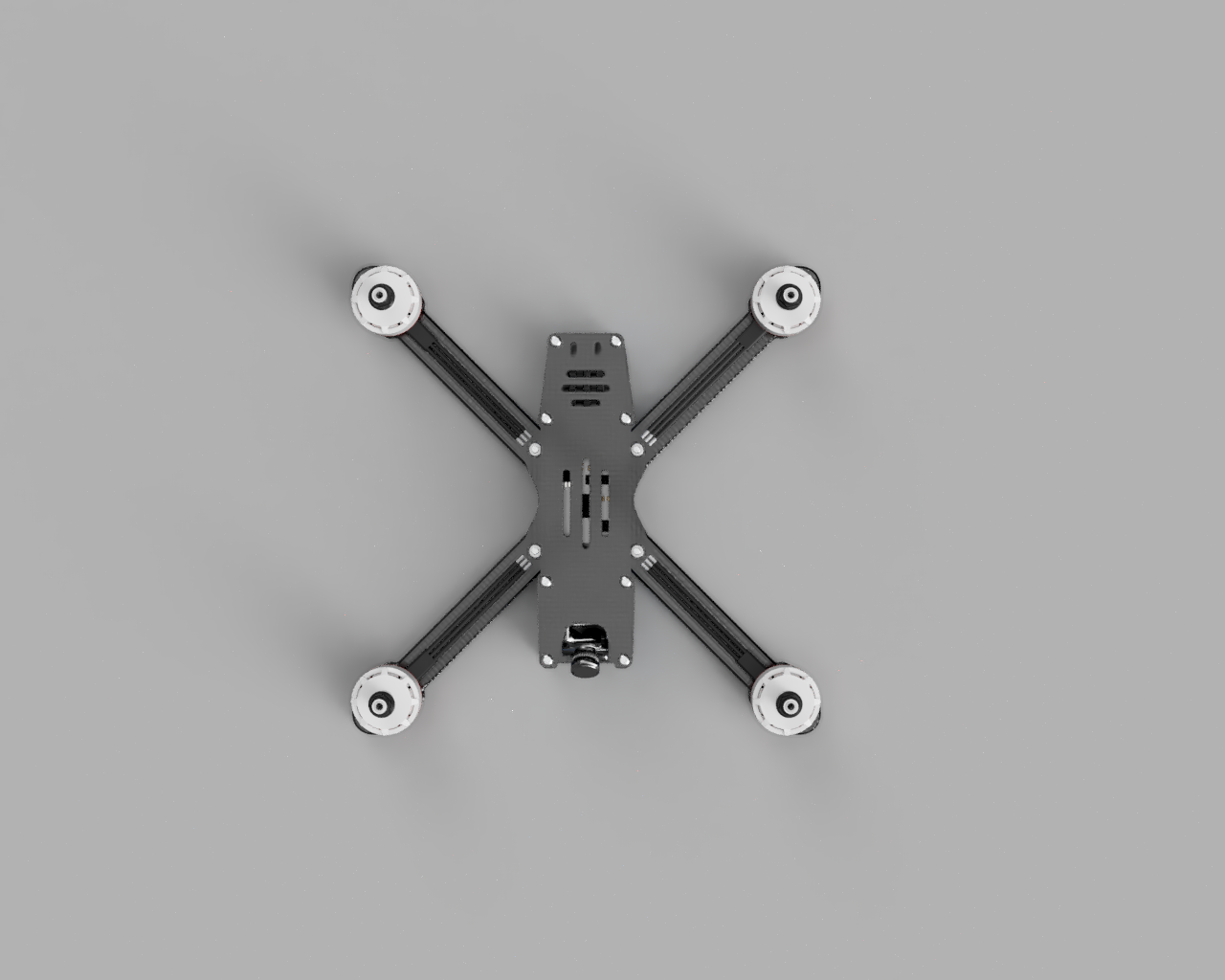

Top View

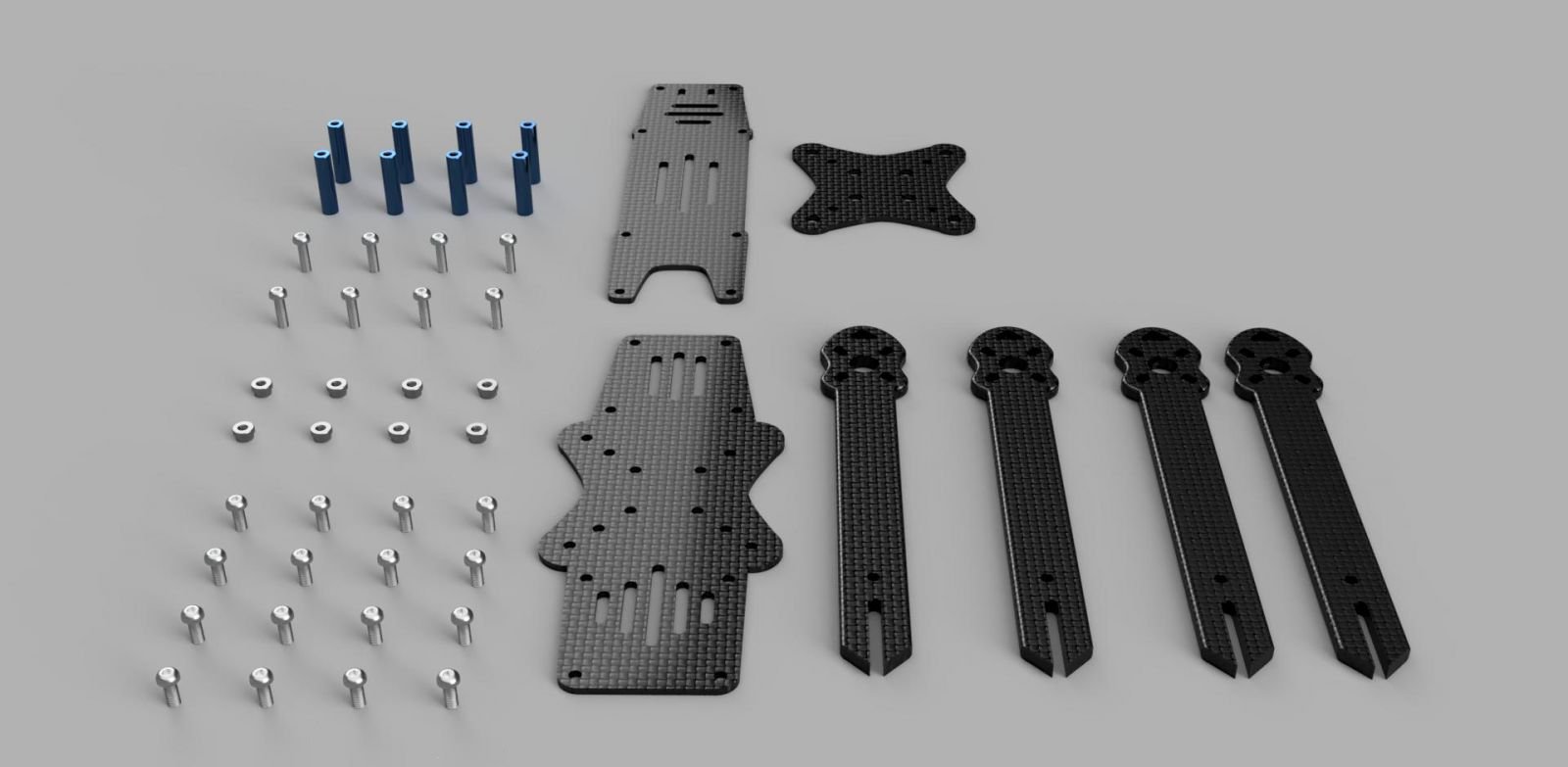

All parts (  P.s   all screws are black not silver as on photo )

The Glider is a Freestyle frame with low C.G it uses only 24mm standoffs and the arms are monted inside the body and to make the build cleaner it even uses the sunken nut in the middplate

This frame is designed to use as AIO FC with esc on the arms

In the kit you will get all hardware requerd

8 pc 24mm blackanodized standoffs

8 pc sunken nuts (press nuts)

8 pc 11mm m3 screws

16 pc 7mm m3 screws


!!!   The arms om the photos are chamberd , but in the kit thay will not be.   !!!

chamderd arms can be sold seperet

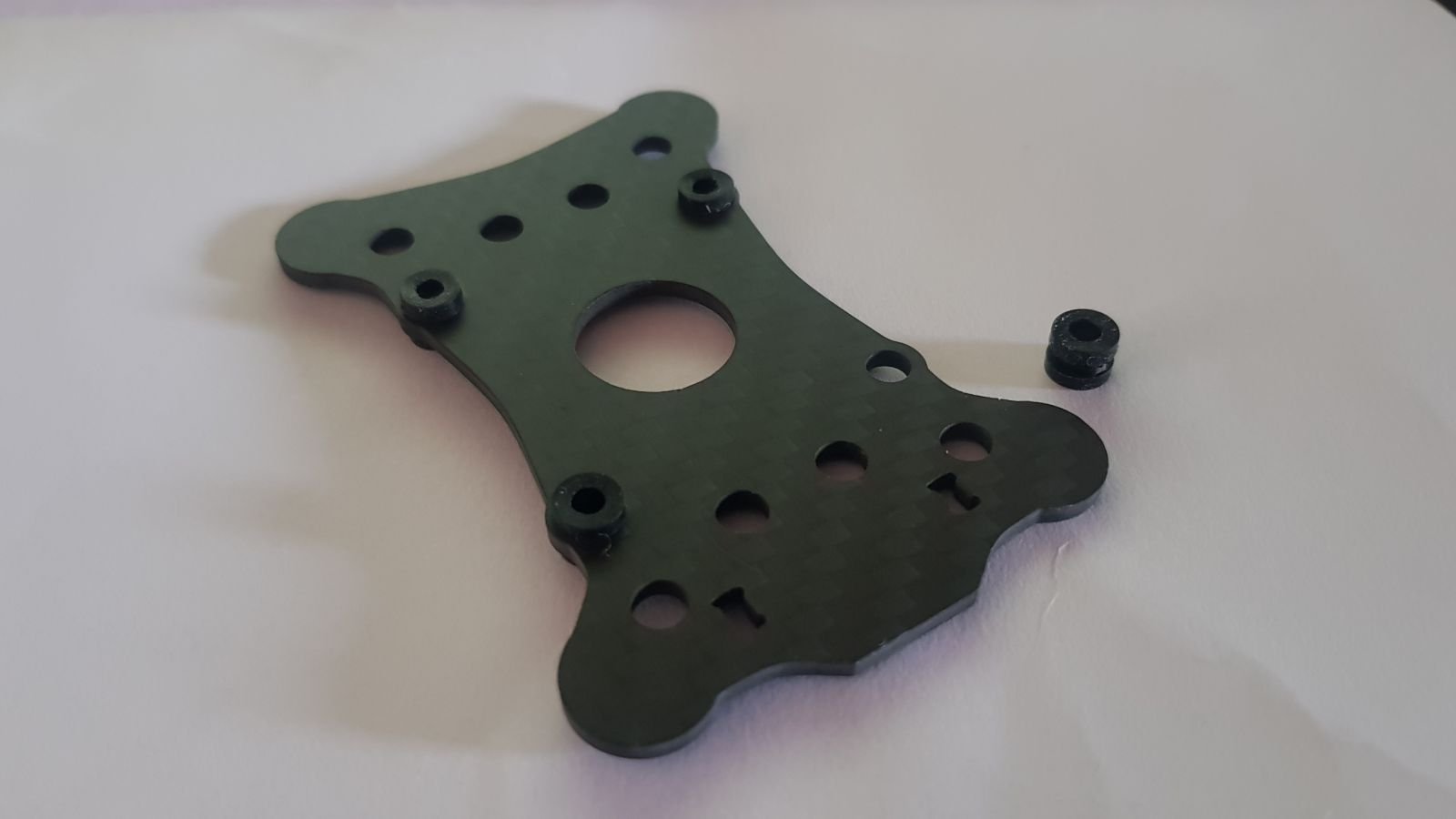

Flight controller mounting plate

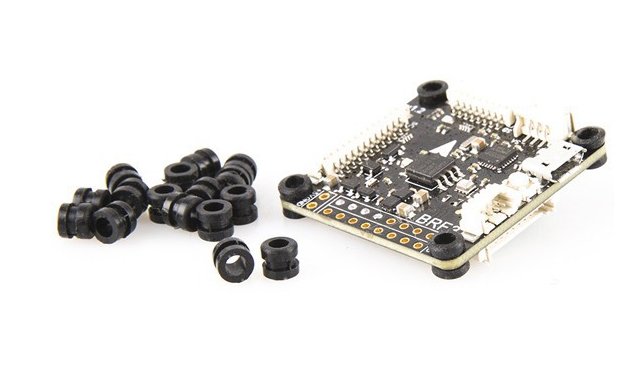

Im using the DYS rubber grummits that comes with the dys FC but you can also find them at

USA https://www.readymaderc.com/products/details/RMRC-M3-Flight-Controller-Bobbins-12PCS

England https://www.unmannedtechshop.co.uk/m3-vibration-dampener-for-f4-f7-32k-flight-controllers-pack-of-4/

Sweden http://www.carbix.se/product.html/flight-controller-anti-vibration-rubber-damping?category_id=51

Aliexpress https://www.aliexpress.com/item/10pcs-M3-Rubber-Damper-for-F4-F7-32K-Flight-Controller-Effectively-Anti-vibration-Protect-Flight-Control/32827170497.html

Peace v2 is a updated  version   frome the past

With new think! and updated lines on the whole frame
made to be used with 4in1 system but can also take 4 individiull escs on the arms

New think in frame design

the topplate have now been designed with holes for the battery straps,  it is made to use batterys in size of 38mm w and 70-85mm L   normal  4s 1300-1550mah and 6s 1050-1250mah

The bottom plate is a 2 stage type ,So if you smash the front you will not have to swap out the hole plate.

the front carbonplate is made with 2.5mm thick   and the bak plate is made with 2mm carbon   with it just for to shave of some wight and the cost is shave to

och the bakplate yuo have 3 different mounting options  for the vtx     you can ziptie it down like a TBS unify!   our you can use other brands the have mounting options like 20x20 and 30x30

look at the following photo

Camera System

I fixed the frame size so you can mount a HD split camera likte the Runcam split,  foxeer  or even the caddax   for mounting the camera board a dedicated 20x20 is just behined the camera .
You can use normal fpv camera to ! takes mini or micro size  19mm up to 22mm  (spacers requerd for 19mm camera)    micro camra  like the runcam micro is 19mm , foxeer predetor is 22mm

246mm in lenght
and it takes  5-5.5 inch props size

This maskin is a 5inch  X8

to use this with the dji vista..  you will need the "extended"  cabel for the camera.

to mount the motor you will need a  moddified  hexkey  that is short at the end so you can get in between the  motor plats

the top and bottom parts  holes for the arms are tight  you might need to finetune  with some sanding  duo to the  arms aren´t exacly 6.0mm
