peace v2
Item List
-

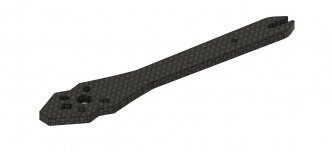

peace v2 arm 5mm
Quantity :4
-

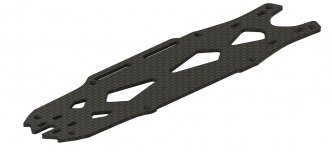

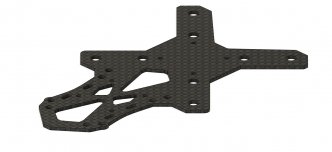

peace v2 bottomplate bak part 2mm
Quantity :1
-

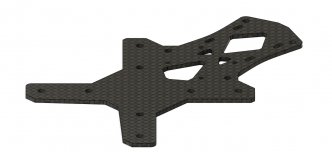

peace v2 bottomplate front part 2
Quantity :1
-

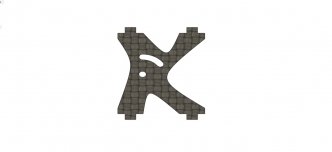

peace v2 camaremount 1
Quantity :2
-
peace v2 topplate 2mm
Quantity :1
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
28mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :16
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :10
Description
Peace v2 is a updated version frome the past
With new think! and updated lines on the whole frame
made to be used with 4in1 system but can also take 4 individiull escs on the arms
New think in frame design
the topplate have now been designed with holes for the battery straps, it is made to use batterys in size of 38mm w and 70-85mm L normal 4s 1300-1550mah and 6s 1050-1250mah
The bottom plate is a 2 stage type ,So if you smash the front you will not have to swap out the hole plate.
the front carbonplate is made with 2.5mm thick and the bak plate is made with 2mm carbon with it just for to shave of some wight and the cost is shave to

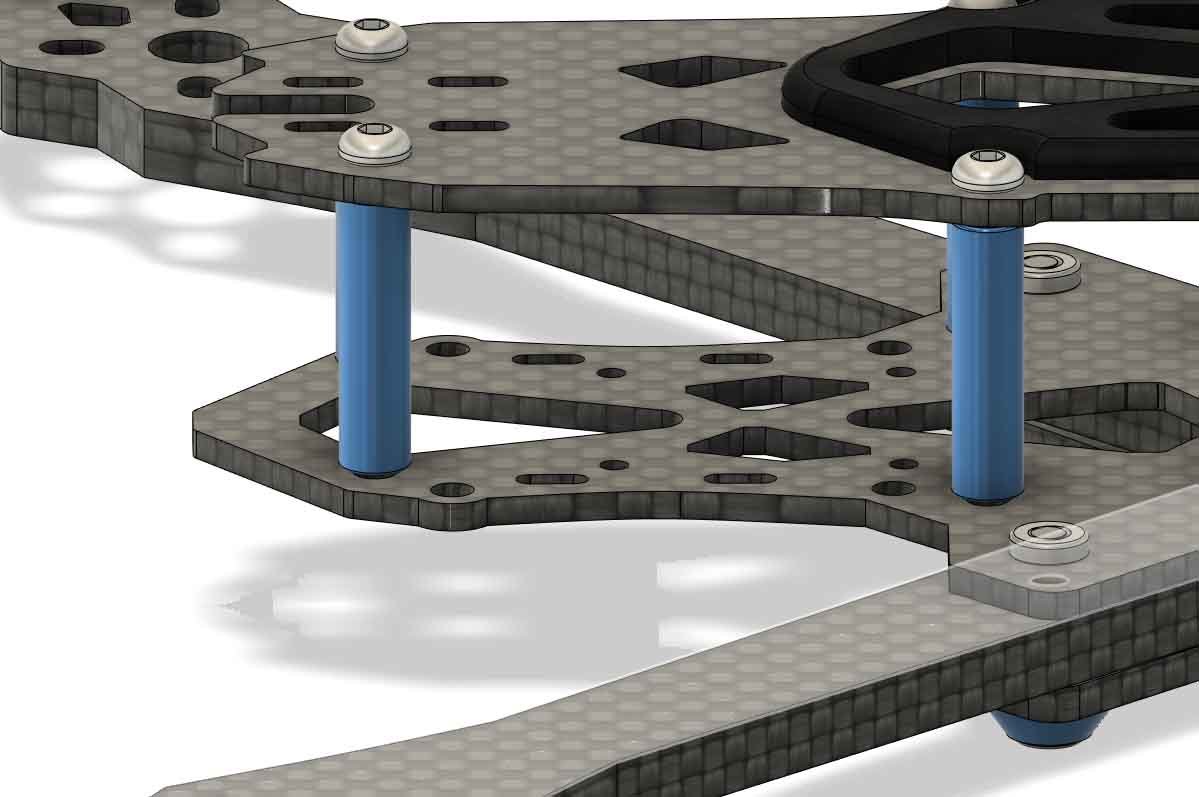

och the bakplate yuo have 3 different mounting options for the vtx you can ziptie it down like a TBS unify! our you can use other brands the have mounting options like 20x20 and 30x30
look at the following photo
Camera System

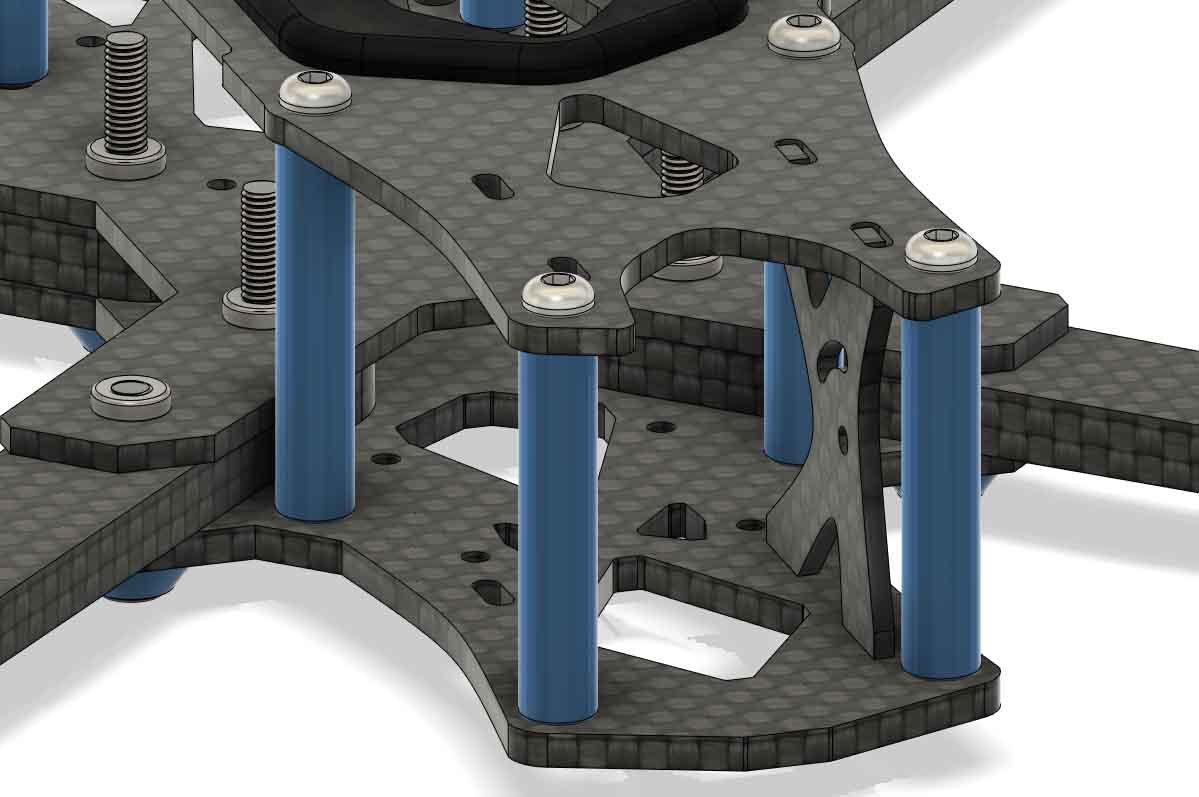

I fixed the frame size so you can mount a HD split camera likte the Runcam split, foxeer or even the caddax for mounting the camera board a dedicated 20x20 is just behined the camera .
You can use normal fpv camera to ! takes mini or micro size 19mm up to 22mm (spacers requerd for 19mm camera) micro camra like the runcam micro is 19mm , foxeer predetor is 22mm

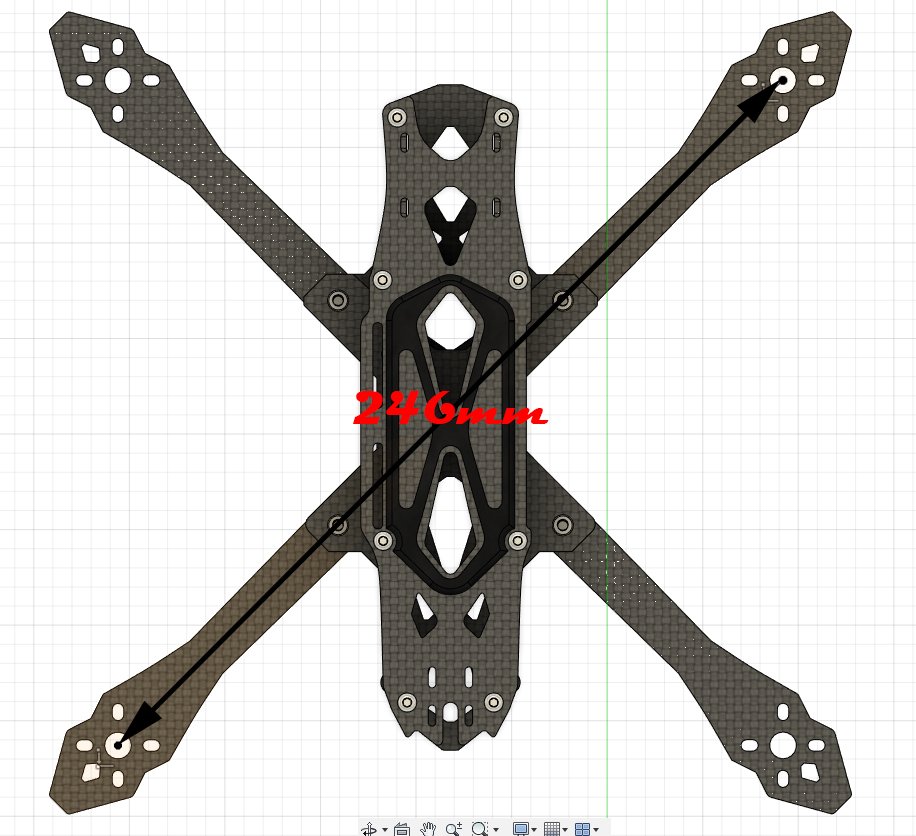

246mm in lenght
and it takes 5-5.5 inch props size
