Maximalist 129:

Specially designed LOS frame meant to be a cheap alternative to others!

• Will accept a wide range of components. 16x16, 20x20, 25x25 and 30.5x30.5
• Designed for 3" propellers
• Will accept 110X-180X motors
• Lightweight, yet strong, design
• Battery Lead strain relief. No more ripped power pads!
• 3mm Bottom Plate (13.77g), 1.5mm Top Plate

Get yours today!!

Maximalist 129:

Specially designed LOS frame meant to be a cheap alternative to others!

• Will accept a wide range of components. 16x16, 20x20, 25x25 and 30.5x30.5
• Designed for 3" propellers
• Will accept 110X-180X motors
• Lightweight, yet strong, design
• Battery Lead strain relief. No more ripped power pads!
• 3mm Bottom Plate (13.77g), 1.5mm Top Plate

Get yours today!!

Maximalist 129:

Specially designed LOS frame meant to be a cheap alternative to others!


• Will accept a wide range of components. 16x16, 20x20, 25x25 and 30.5x30.5
• Designed for 3" propellers
• Will accept 110X-180X motors
• Lightweight, yet strong, design
• Battery Lead strain relief. No more ripped power pads!
• 3mm Bottom Plate (13.77g), 1.5mm Top Plate (1.92g)

Get yours today!!

I present, the Nifty 50. This may just be the smallest betaflight running fpv quadcopter out there. It measures just 50mm motor to motor diagonally! This frame was designed to clip together, eliminating the need for hardware, and keeps the weight to an absolute minimum. The frame weighs in under 2g. It was designed with a specific Flight Controller in mind (linked below) but will accept a variety of receivers, fpv systems, and motors. Camera mount angle is 30 degrees.

Note: This is an advance build, not recommended for beginners.

Components:

• Eachine Tiny F3 Flight Controller- https://www.banggood.com/Eachine-Tiny-32bits-F3-Brushed-Flight-Control-Board-Based-On-SP-RACING-F3-EVO-For-Micro-FPV-Frame-p-1087648.html
• EF-02 AIO 25mw Camera, Split. (Will accept other AIO cams such as the TX01-04, CM275T, and many others. Some may fit without being separated but it is recommended)- https://www.banggood.com/Eachine-E010C-E010S-Spare-Part-p-1119217.html?rmmds=search
• Micro DSM2/DSMX Receiver- https://www.banggood.com/DasMikro-DSM2-5CH-2_4Ghz-RC-Micro-Receiver-For-JR-Spektrum-transmitter-With-6-CH-PPM-Output-p-1084913.html?rmmds=search
• Kados Novelty Insane Motors 19600Kv- https://www.kadosmicromotors.com/products/chaoli-kados-novilty-insane-72500rpm-6x15mm-inductrix-nano-qx-style-micro-jst-plugs?variant=33453321795?

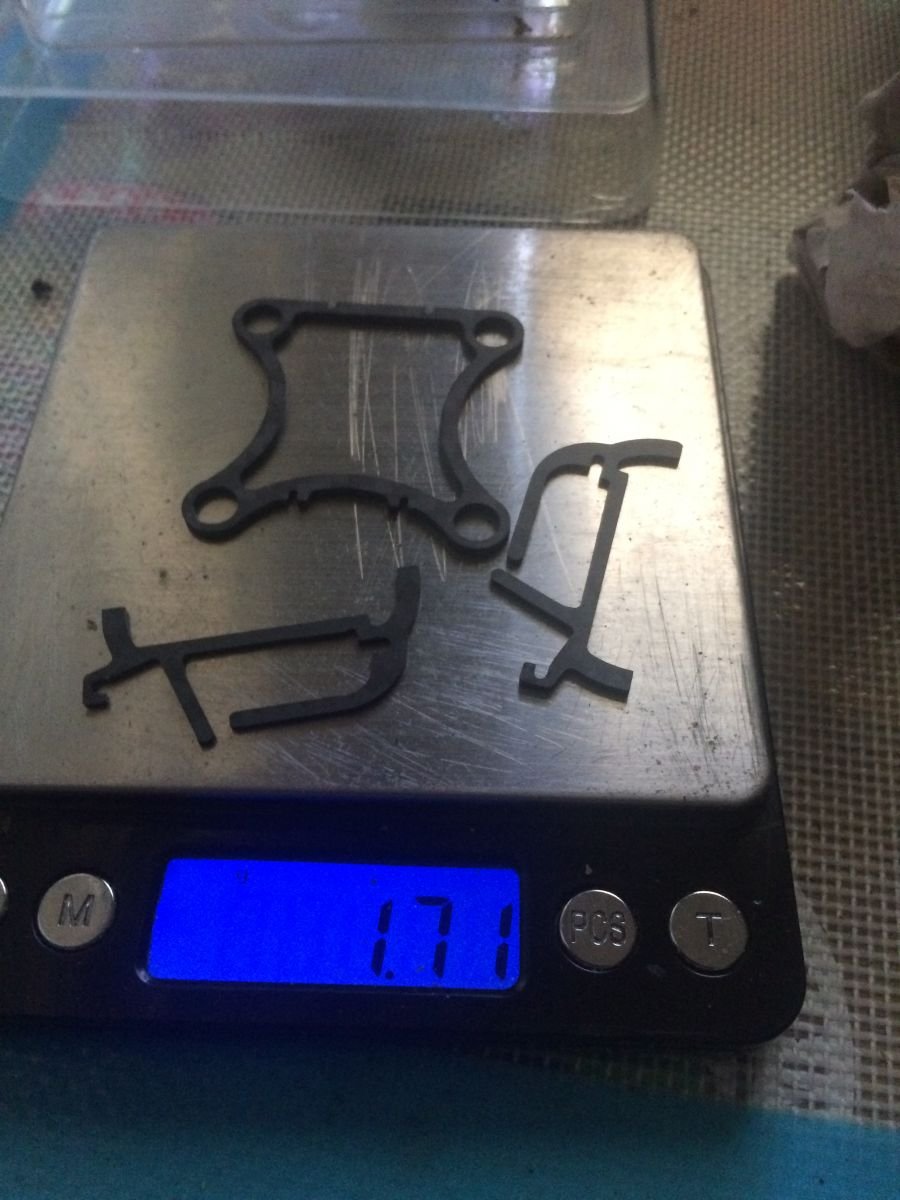

Note: Pictures are from the first version of the frame and was mocked up with multiple components. Overall not much was changed. The front clips were beefed up to be stronger and the height of the top arms was increased a bit. Projected weight of the frame is 1.9g.

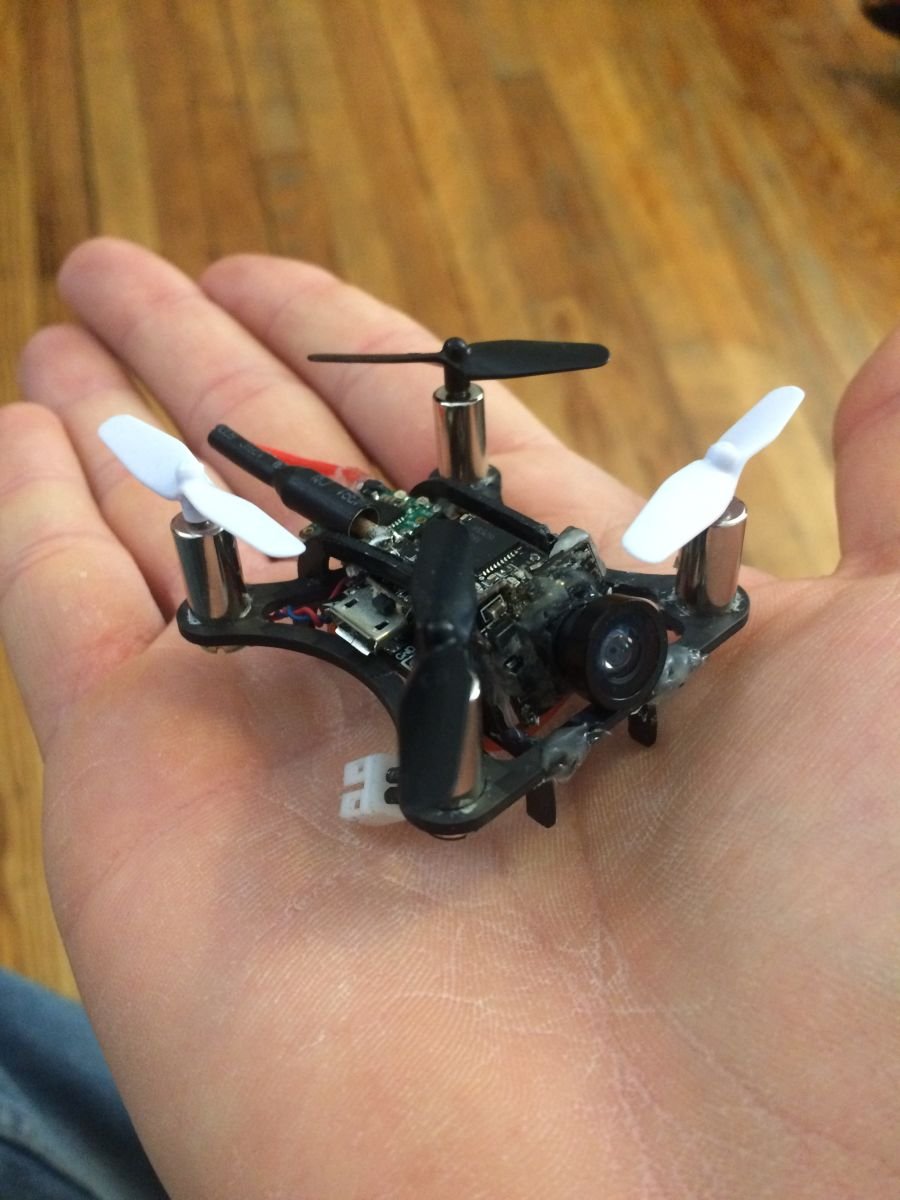

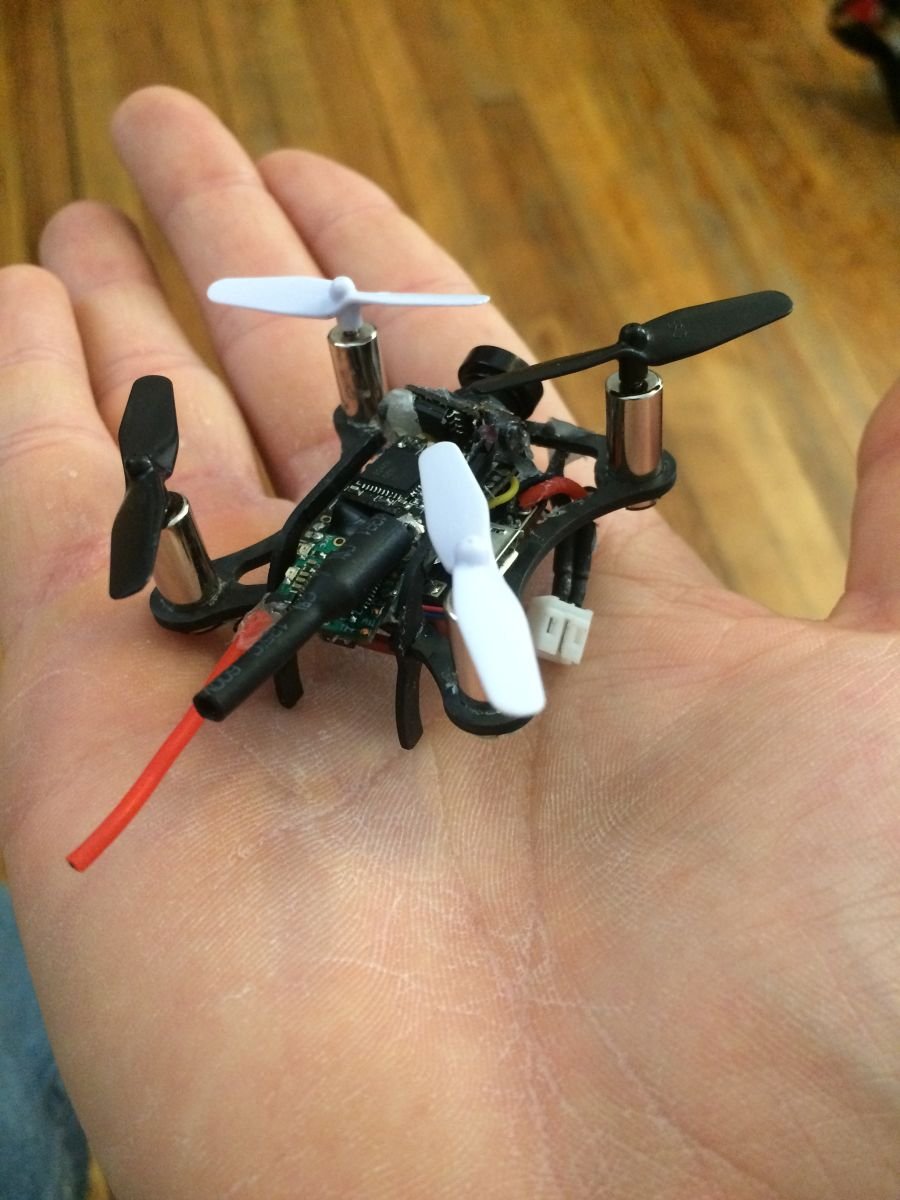

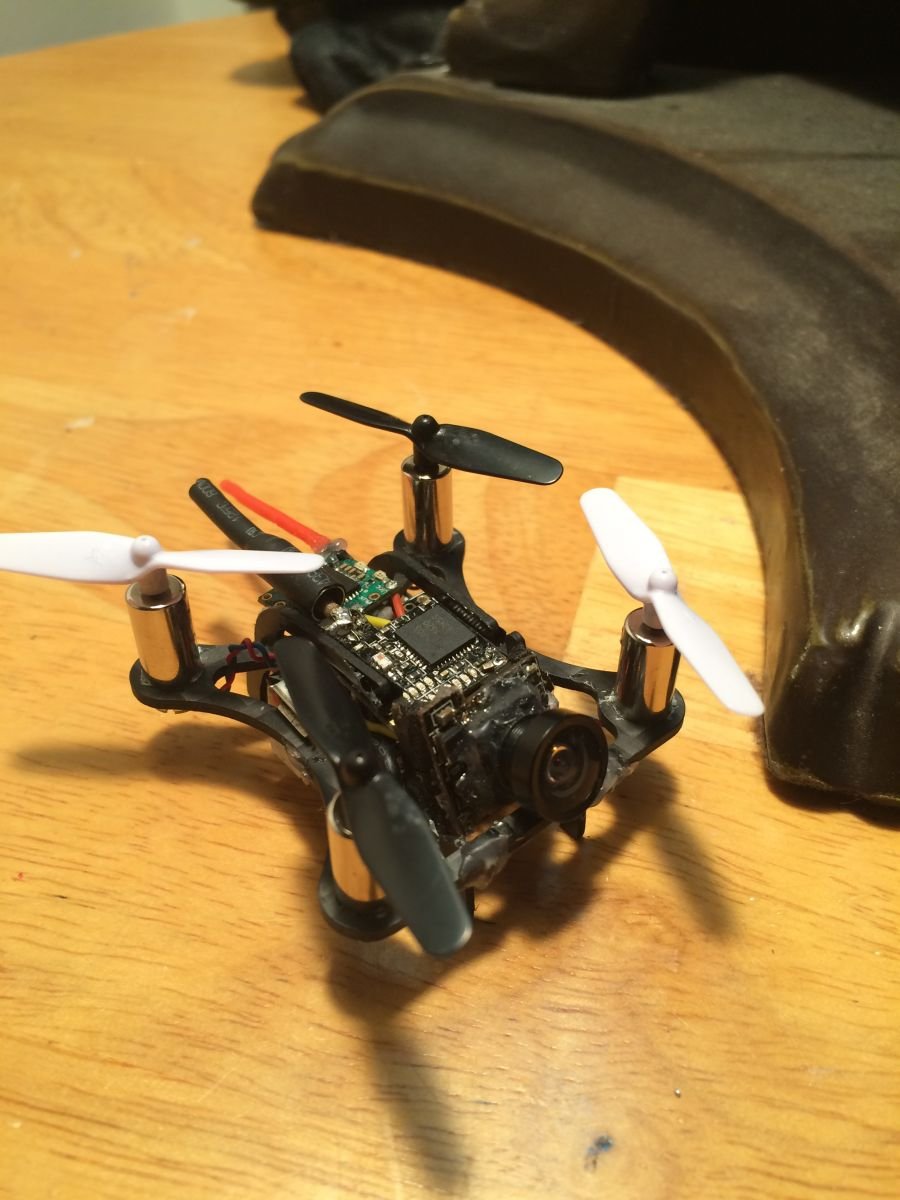

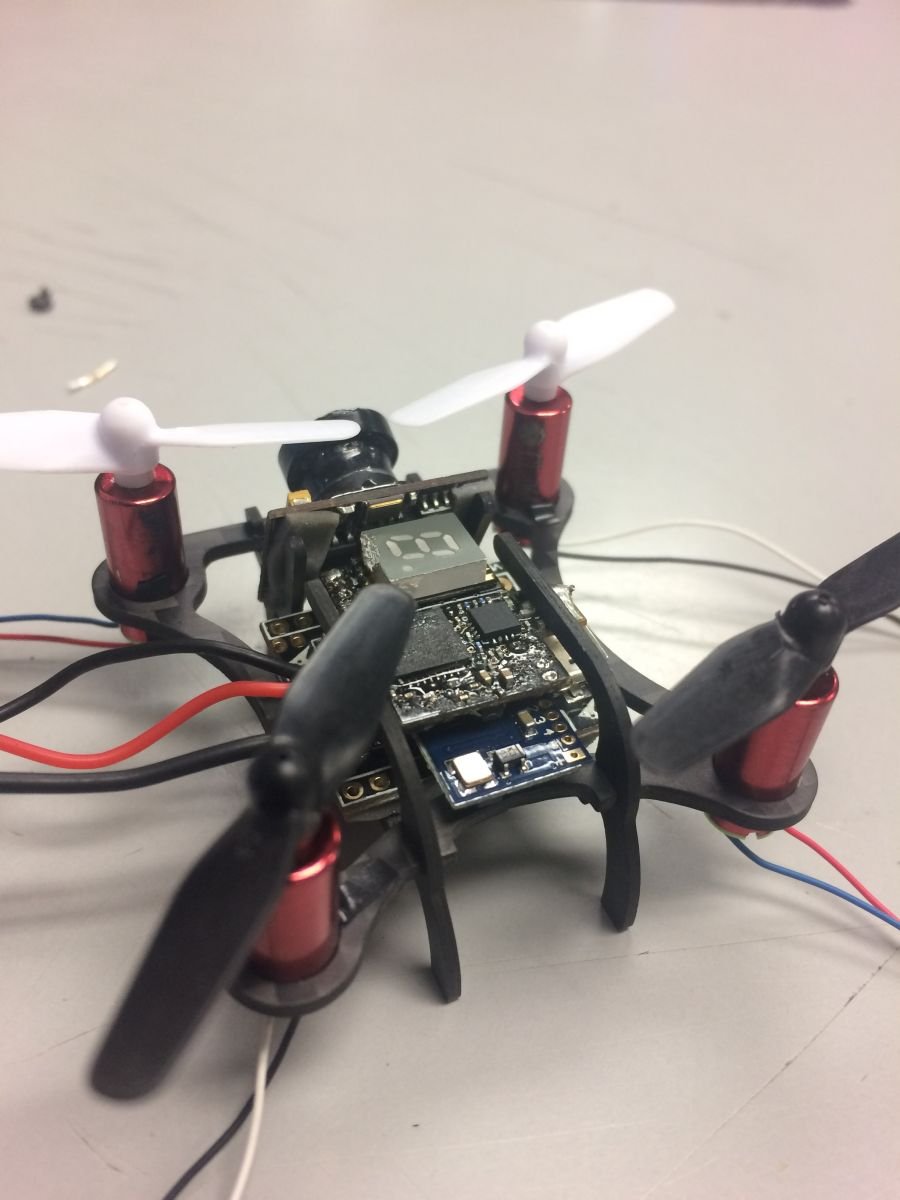

Mockup with a split TX02 and MMW 6mm 17000Kv Red Editions:

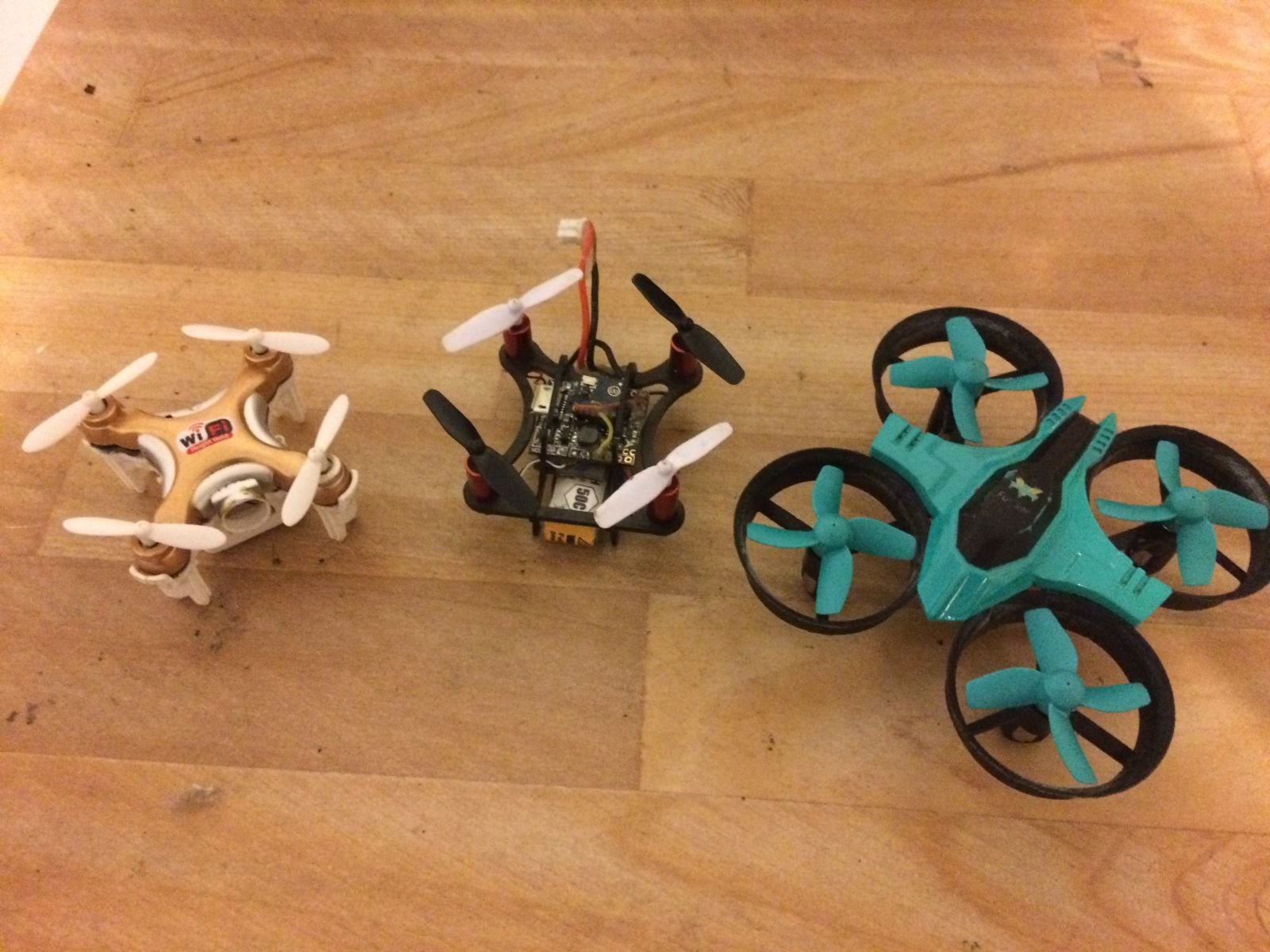

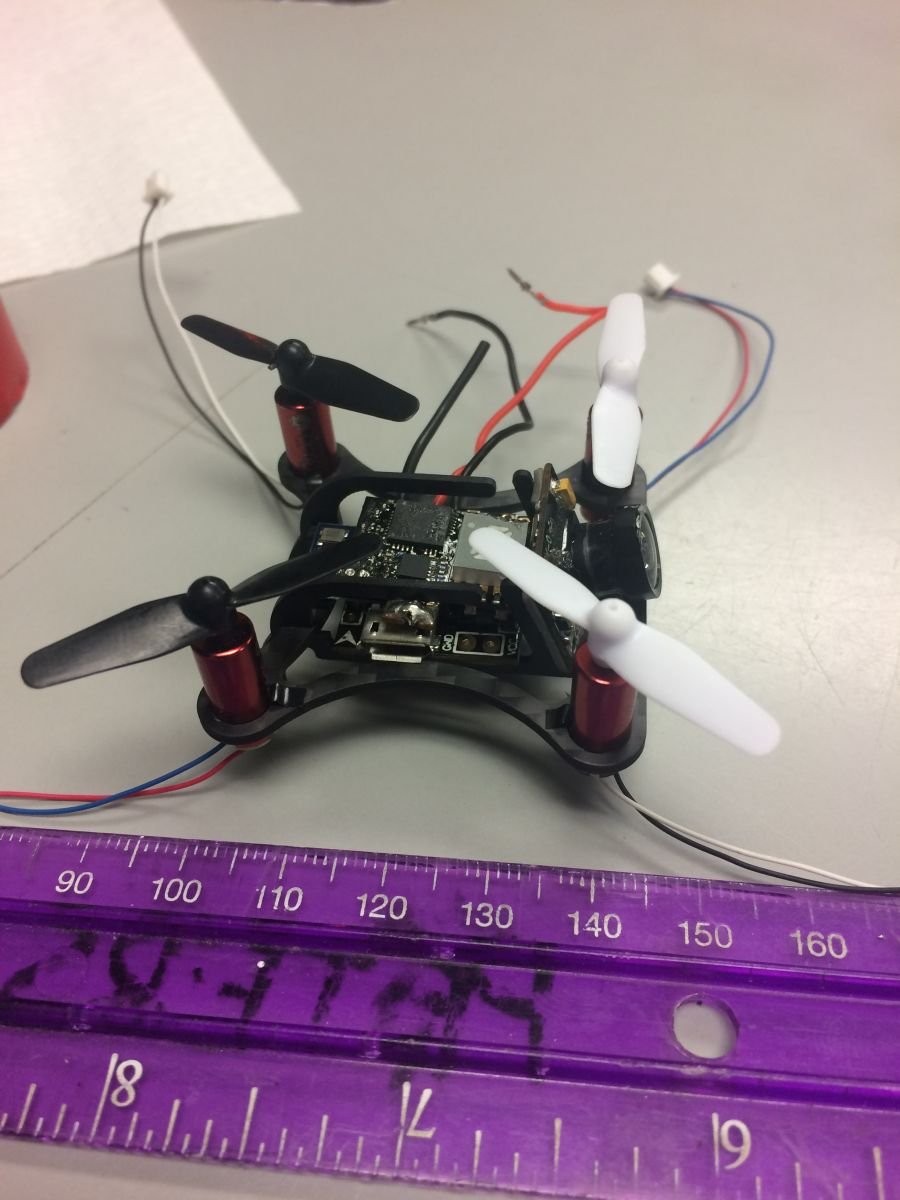

Size Comparison (Cheerson CX10-WD and a Furibee F36):

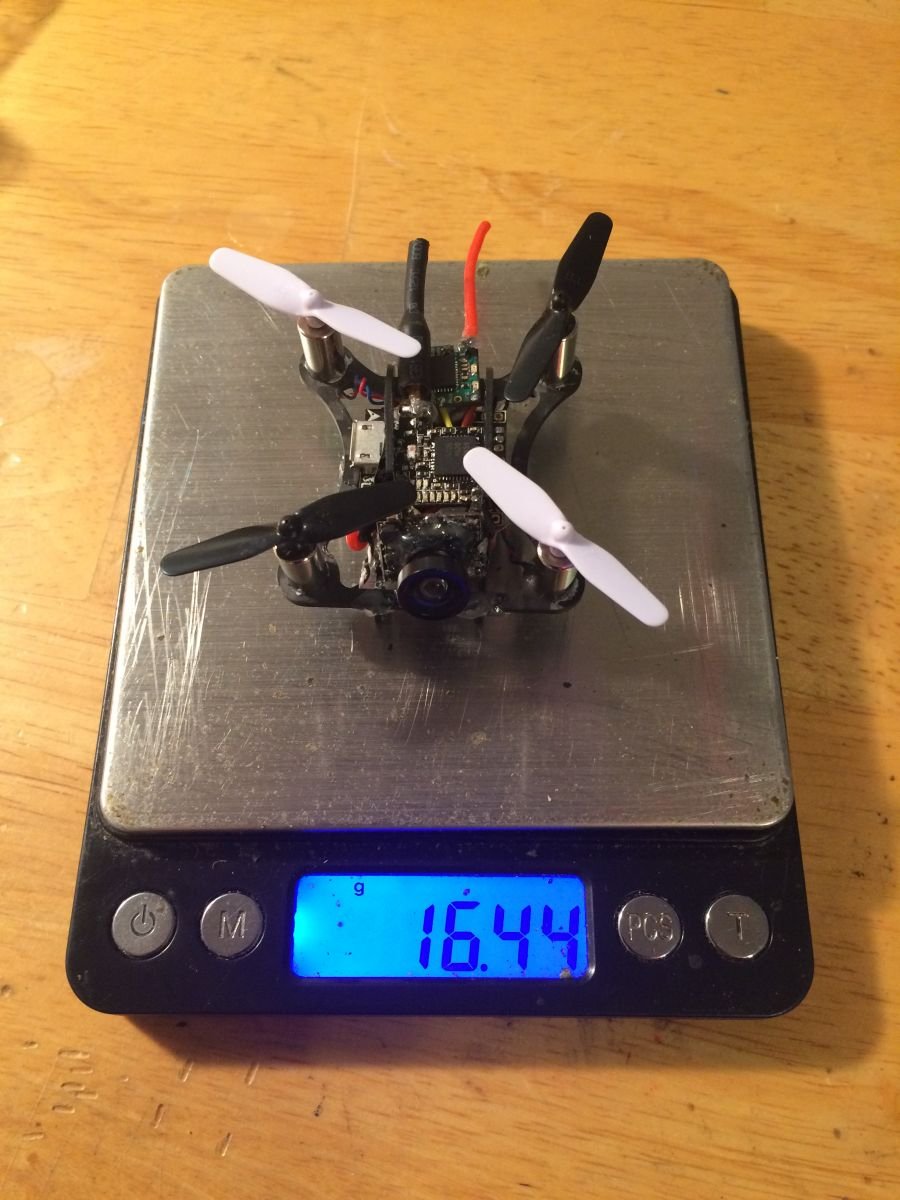

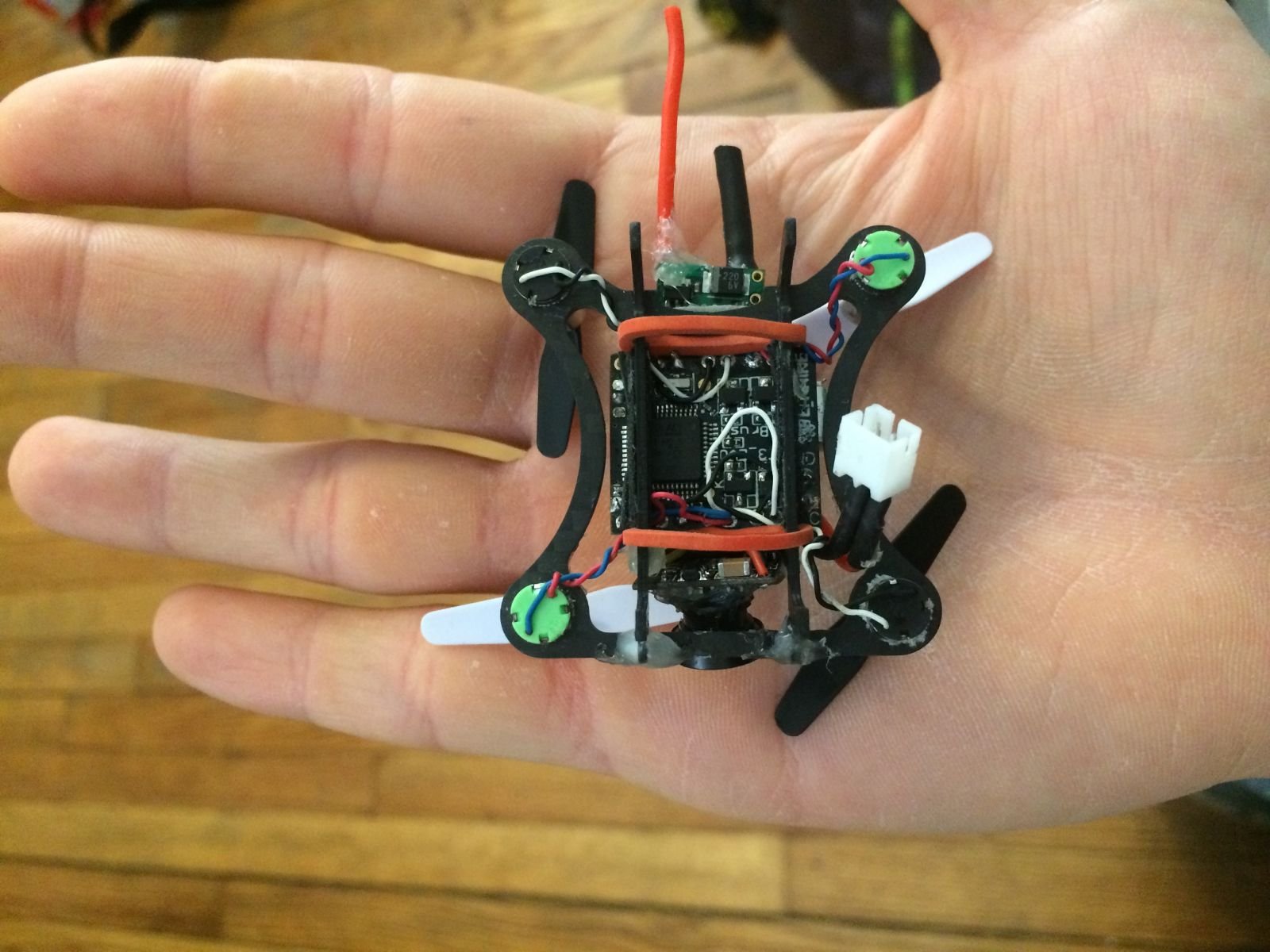

Weight of full build using a split EF-02 and an OrangeRx R614XN Receiver. Has some hot glue adding weight because I broke the clips:

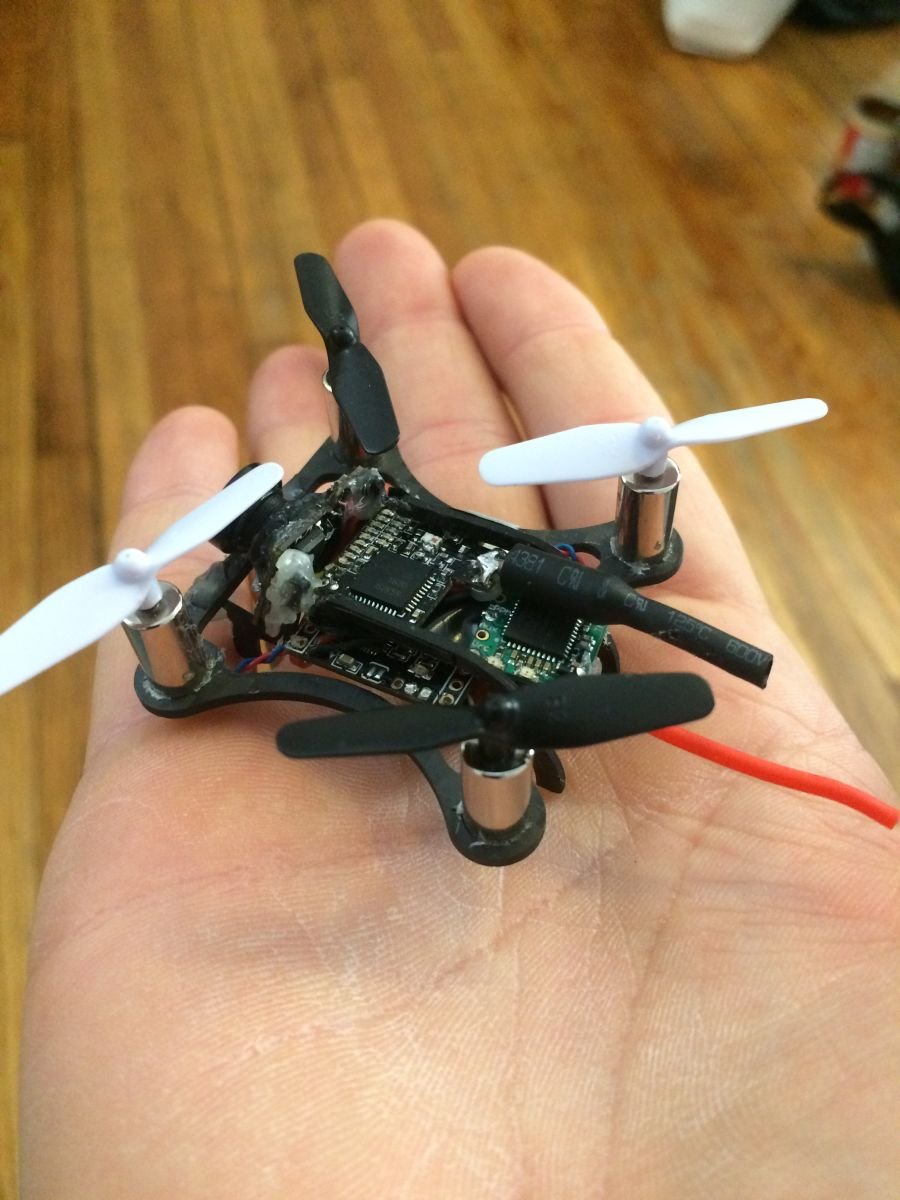

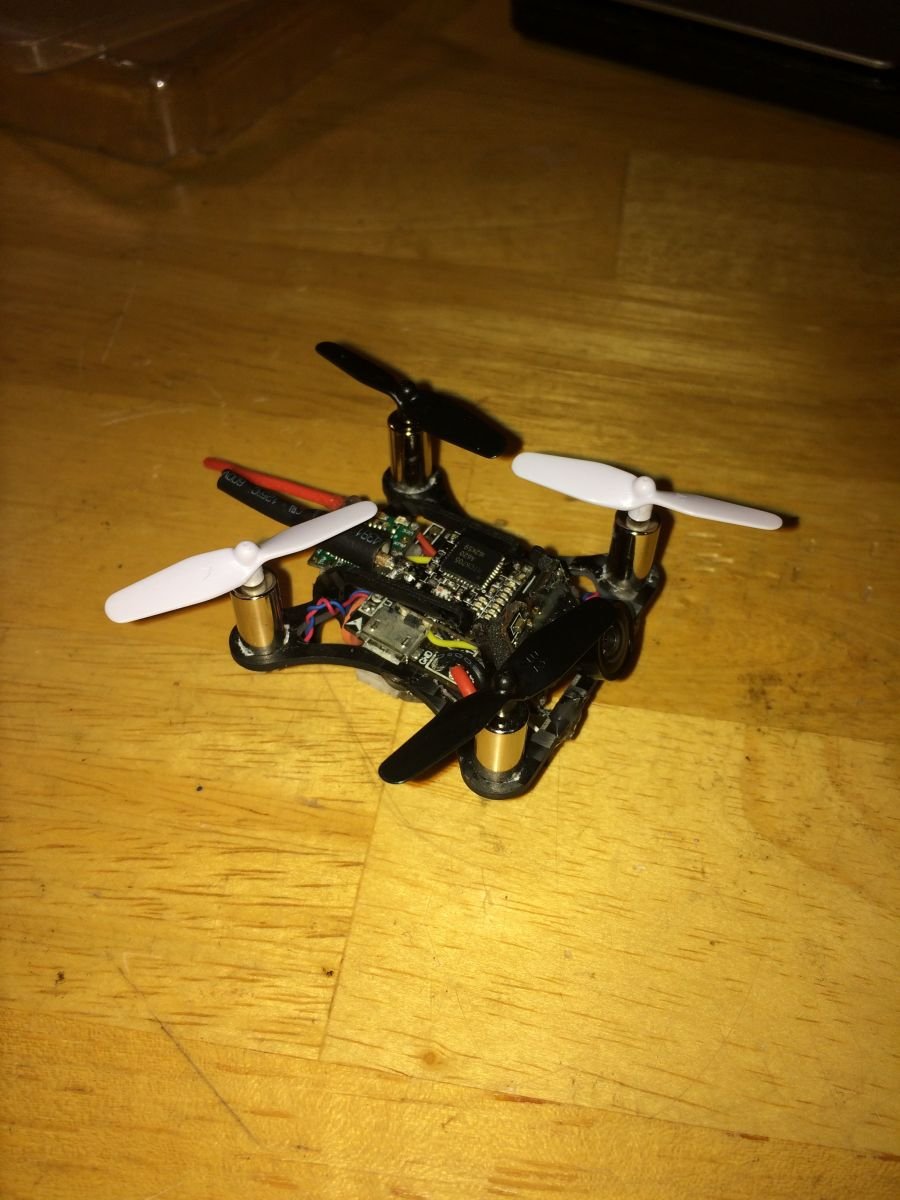

Additional Pictures:

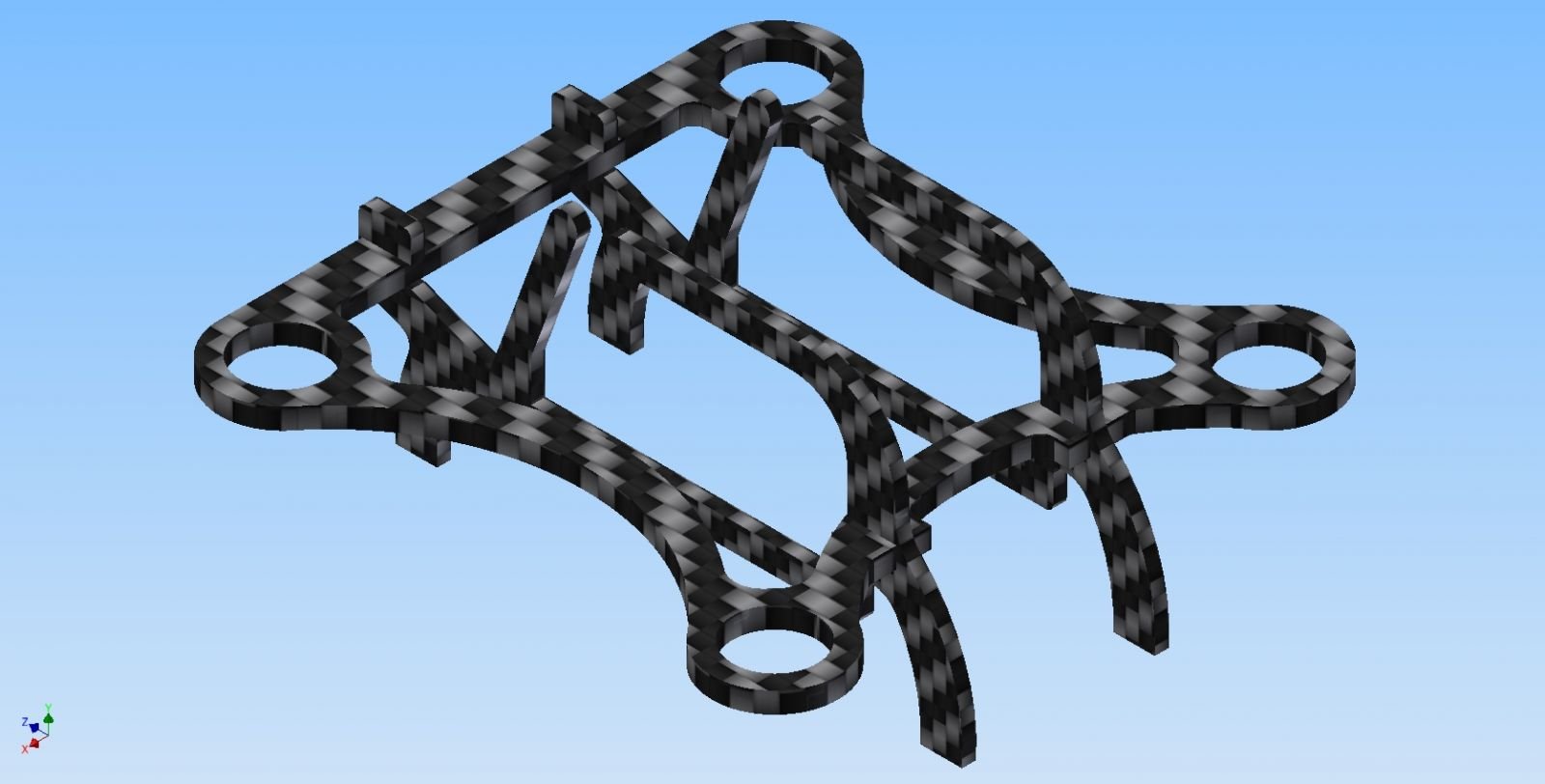

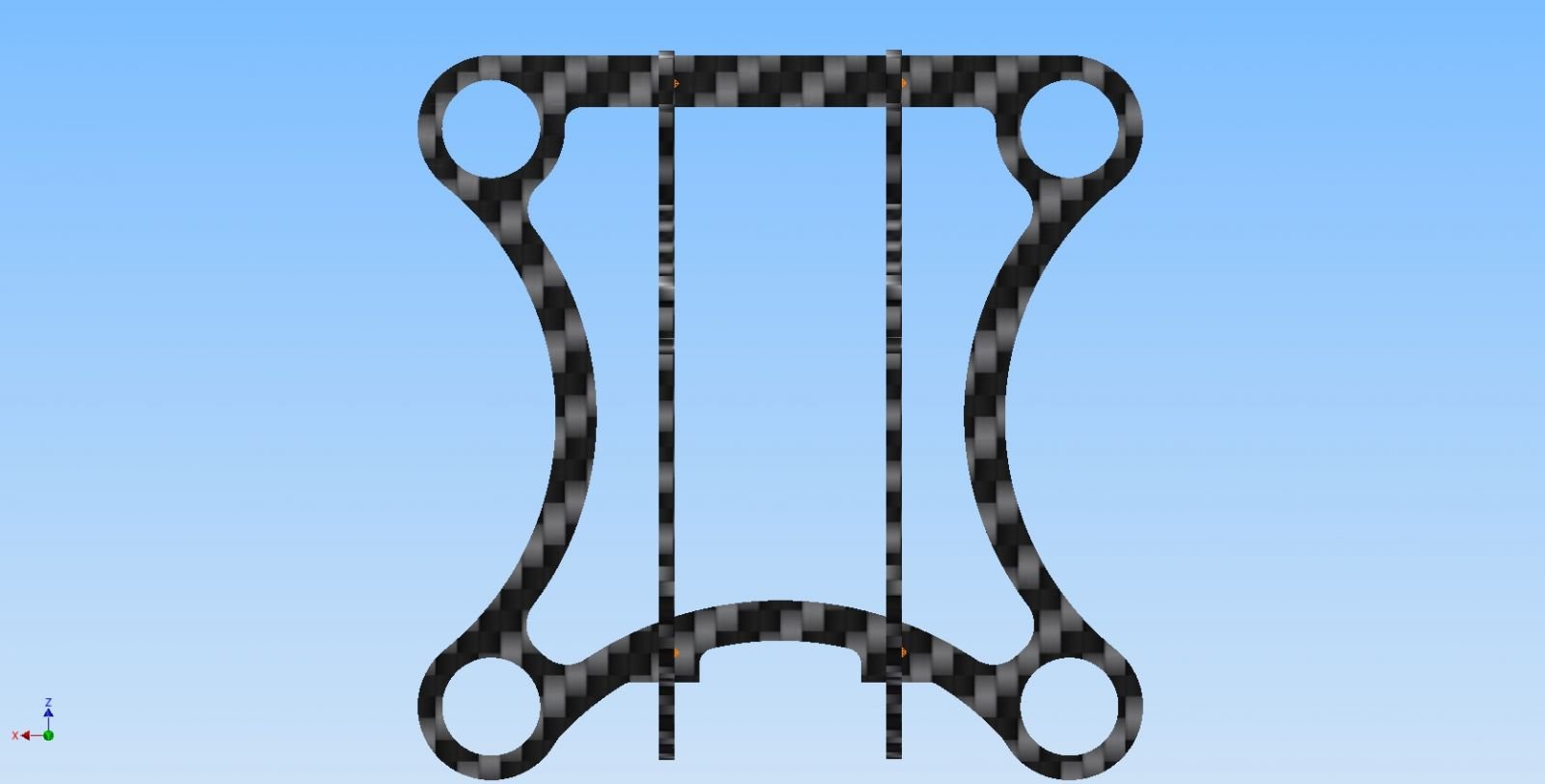

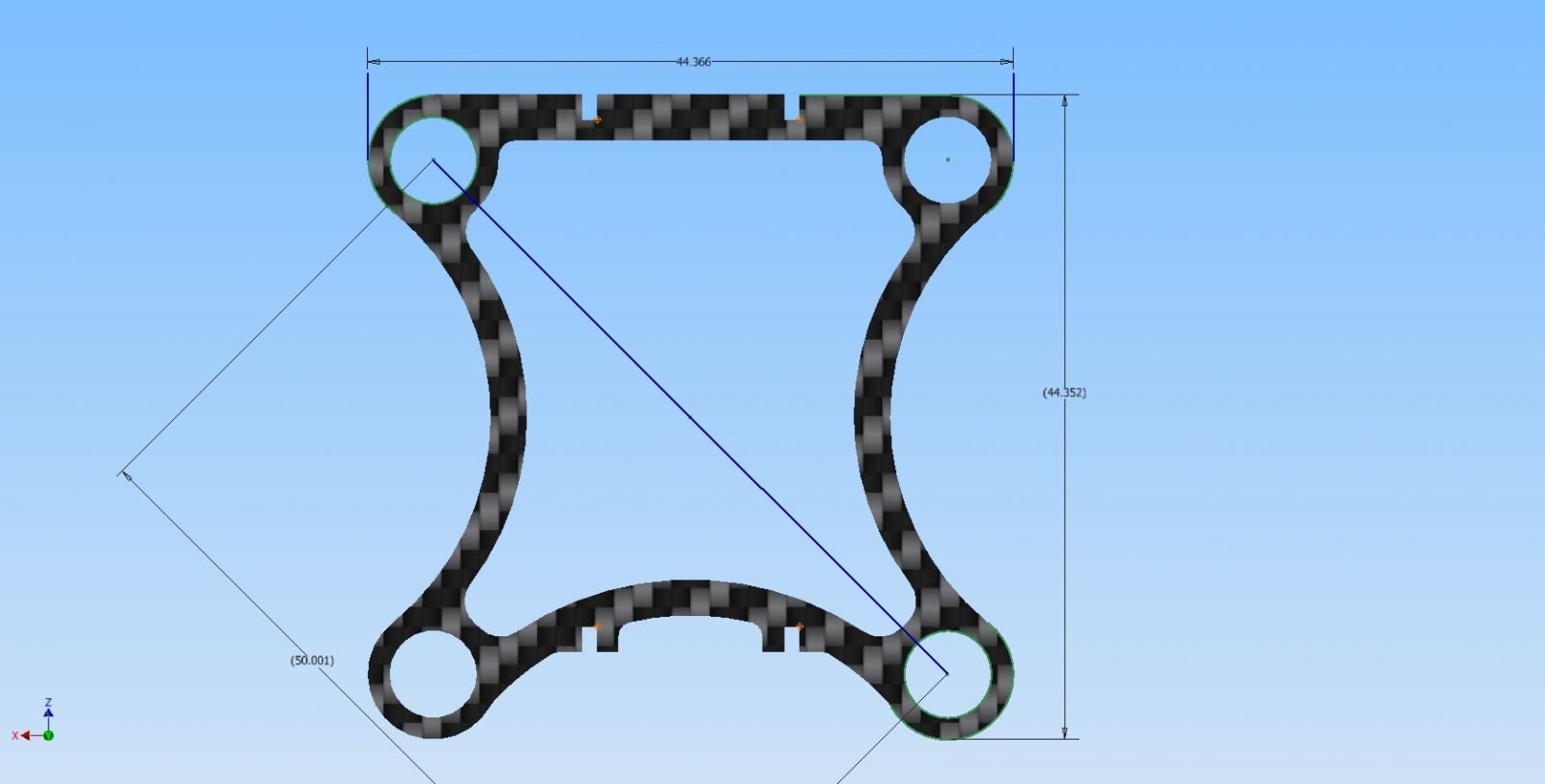

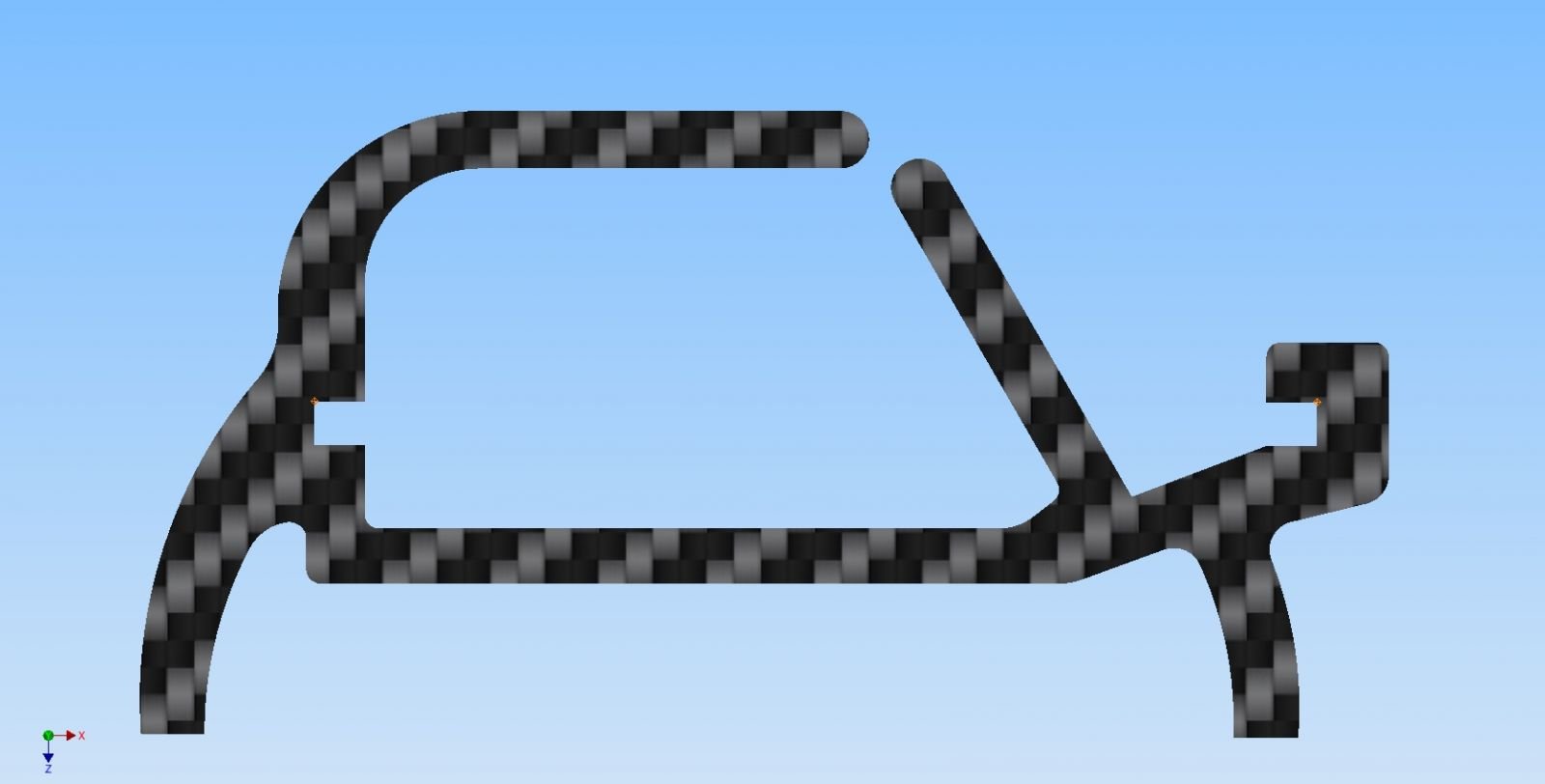

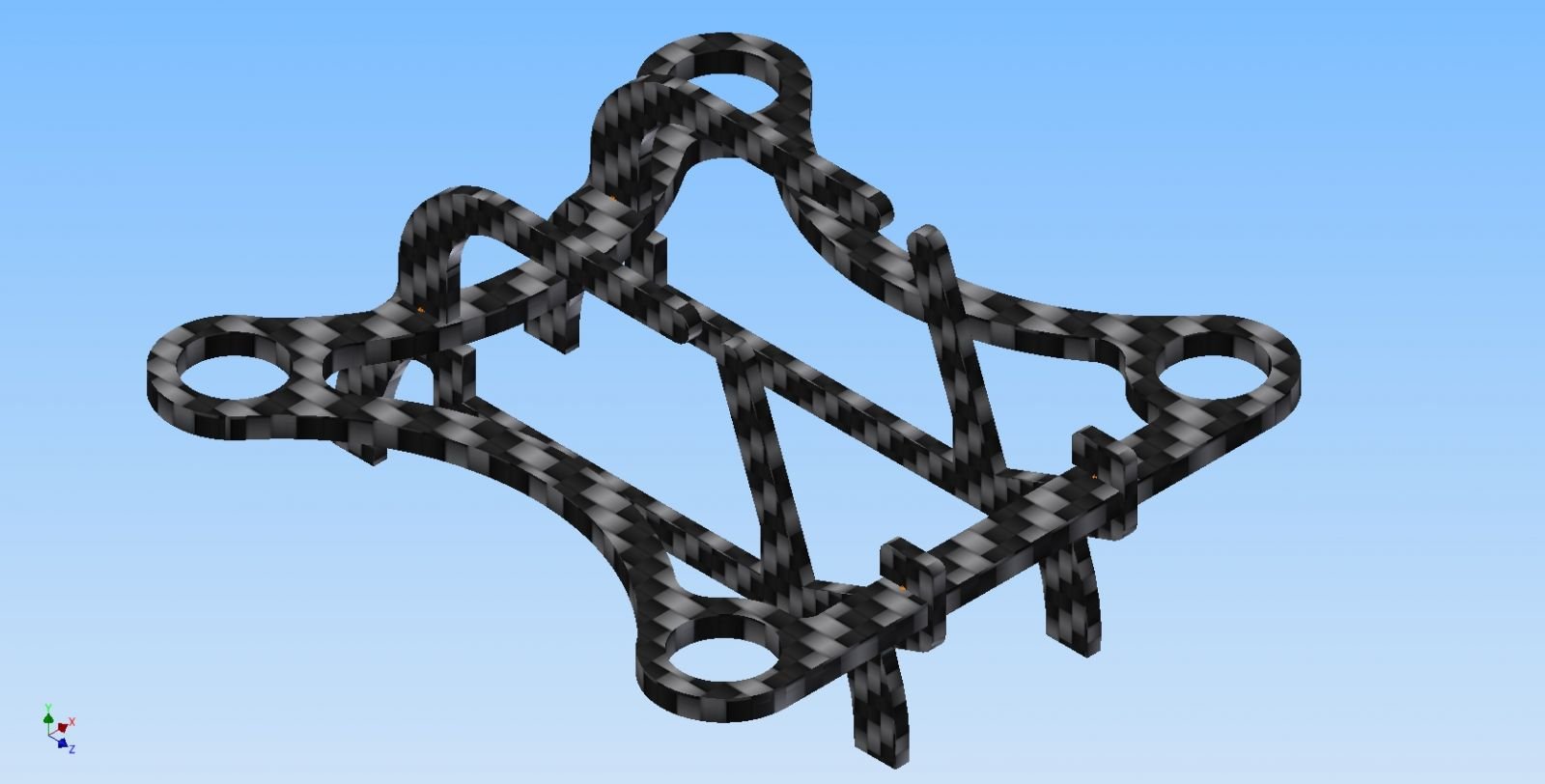

Design Pictures and Measurements:

Thanks for looking!

The Micro Motor Community Build Frame is Here!!!

I'm proud to present to you the 120mm Bubble X LOS Community Build, the champagne of frames! Designed with uncompromising performance in mind this frame can fit 110X up to 130X motors and the 20x20mm mount spacing will allow you to run popular flight controllers such as the Piko BLX. This kit comes without hardware for those of you who would perfer to use their own. Get yours today!

Specifications:

• 120mm diagonally betwen motors
• Will fit motors with a mounting pattern of 8.5mm up to 12mm
• 3mm thick single piece main plate for the most durability
• 2mm thick top plate keeps your electronics protected from crashes
• 20x20mm mount spacing allows for poplular flight controllers and 4 in 1 esc's
• Fits up to 70mm propellers
• Side posts allow for easy mounting of batteries

I'd like to give a huge thank you to everybody in the community. If it wasn't for you help and support I couldn't have made this happen. I'd also like to give a special thank you to Benedikt for his support of this project. You guys are awesome!!

The Micro Motor Community Build Frame is Here!!!

I'm proud to present to you the 120mm Bubble X LOS Community Build, the champagne of frames! Designed with uncompromising performance in mind this frame can fit 110X up to 130X motors and the 20x20mm mount spacing will allow you to run popular flight controllers such as the Piko BLX. With 16mm standoffs you will also have enough clearance to run most popular 4 in 1 esc's, or regular esc's can be used. Get yours today!

Specifications:

• 120mm diagonally betwen motors
• Will fit motors with a mounting pattern of 8.5mm up to 12mm
• 3mm thick single piece main plate for the most durability
• 2mm thick top plate keeps your electronics protected from crashes
• 20x20mm mount spacing allows for poplular flight controllers and 4 in 1 esc's
• Fits up to 70mm propellers
• Side posts allow for easy mounting of batteries

I'd like to give a huge thank you to everybody in the community. If it wasn't for you help and support I couldn't have made this happen. I'd also like to give a special thank you to Benedikt for his support of this project. You guys are awesome!!

93mm X Frame designed for 8.5mm brushed motors. The main frame is 1.5mm thick, all mounts are 1mm thick. The rear mount was designed to work with the FX758-2 VTX, and the front mount was designed to work with the banggood 700 TVL camera, micro minimOSD and will fit the S7V7F5 regulator. Camera is set to 30 degrees. Other components may fit, check images for mesurements. If you would like me to design a mount for your hardware just shoot me a message. Thanks for looking.
