Stefan Hoffmeyer

Kits

  • Kit
    More Details

    Alligator5 mk2 Frame carbon parts only

    $ 66.50

    Alligatot 5 mk2 carbon fiber parts only. Buy this kit if you want to buy all the hardware yourself.

    See complete kit for full description: https://armattanproductions.com/pages/kit_detail/3229

  • Kit
    More Details

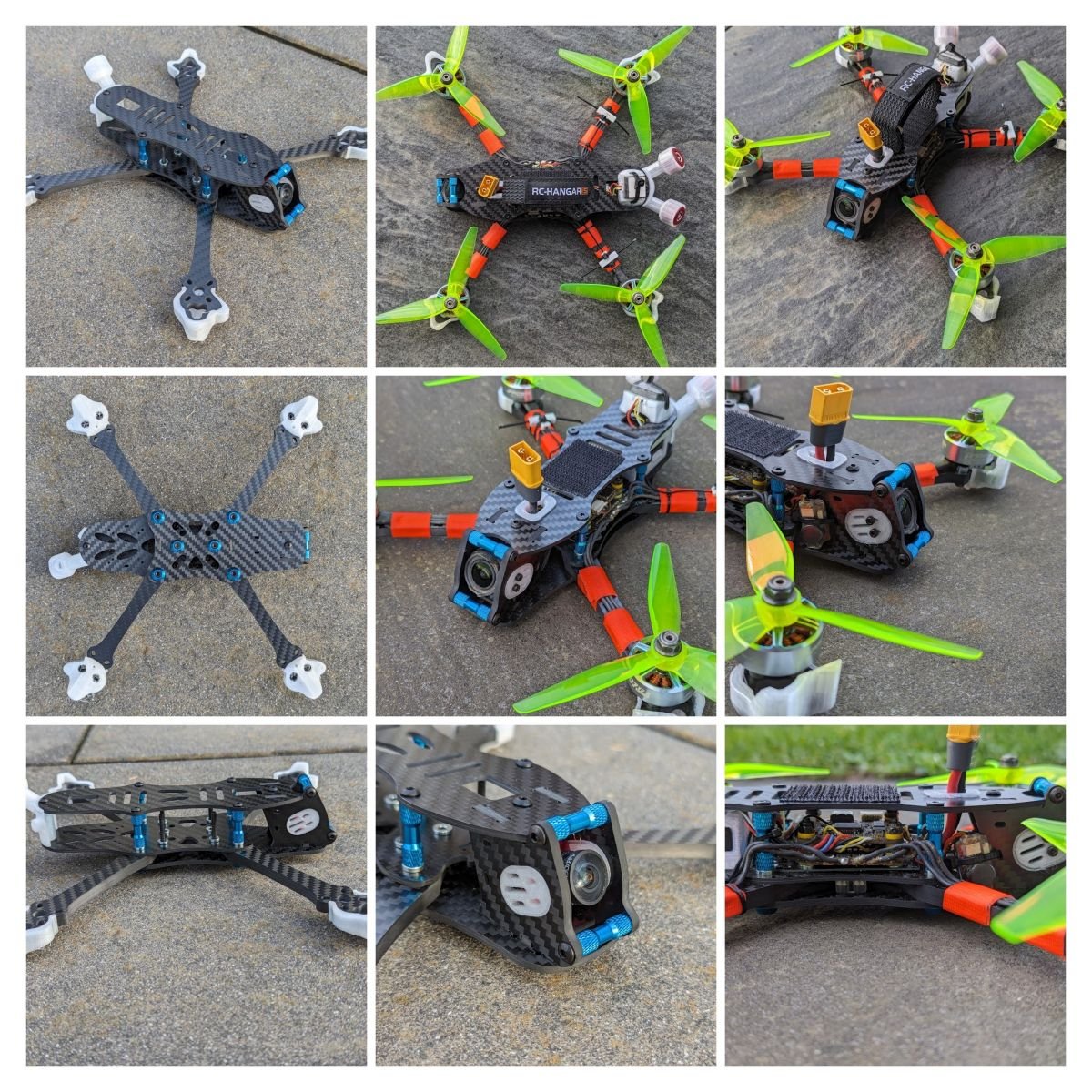

    Alligator5 Mk2 Frame Kit

    $ 78.00

    Main design elements:

    Sandwich bottom plate design

    2,5mm lower Bottom Plate,  2mm opper Bottomplate, 6mm Arms, 2mm topplate for robustness

    21.5mm stack space length gives you a slamdeck design with centralised center of gavity, but still enough space to mount your electronics.

    148g weight

    conventional or toilet tank battery mounting

    optimised for low vibration resonance

    Rounded corners to reduce notch effect

    Easy maintenance: Only 6 scews to remove topplate, motor bells can be replaced without dissassemly of motor or arm protectors, 2-screw arm change

    Stack mounting: 30,5mm M3 and and 20mm M3 with Pressnuts fits various Flight Stacks

    VTX mounting: 20mm M2 and 25,5mm M2 in the back, fits Vista, DJI Airunit, DJI O3, Walksnail, HDzero or various analog VTX.

    Universal Camera sideplate using pritable inserts to fit 19mm or 20mm wide cameras and different length and provides vibration isolation when printed in TPU. Strong camera cage und vertical front braces provide good camera protection in case of frontal crash.

    Openings for XT60 connectors in top plate so that power cable can not get damaged by propellers

    Mounts for cable ties to mount capacitors, beepers, receivers or GPS and strain relief for power cable.

    Keystone arm mount to provide stiffnes and vibration damping.

  • Kit
    More Details

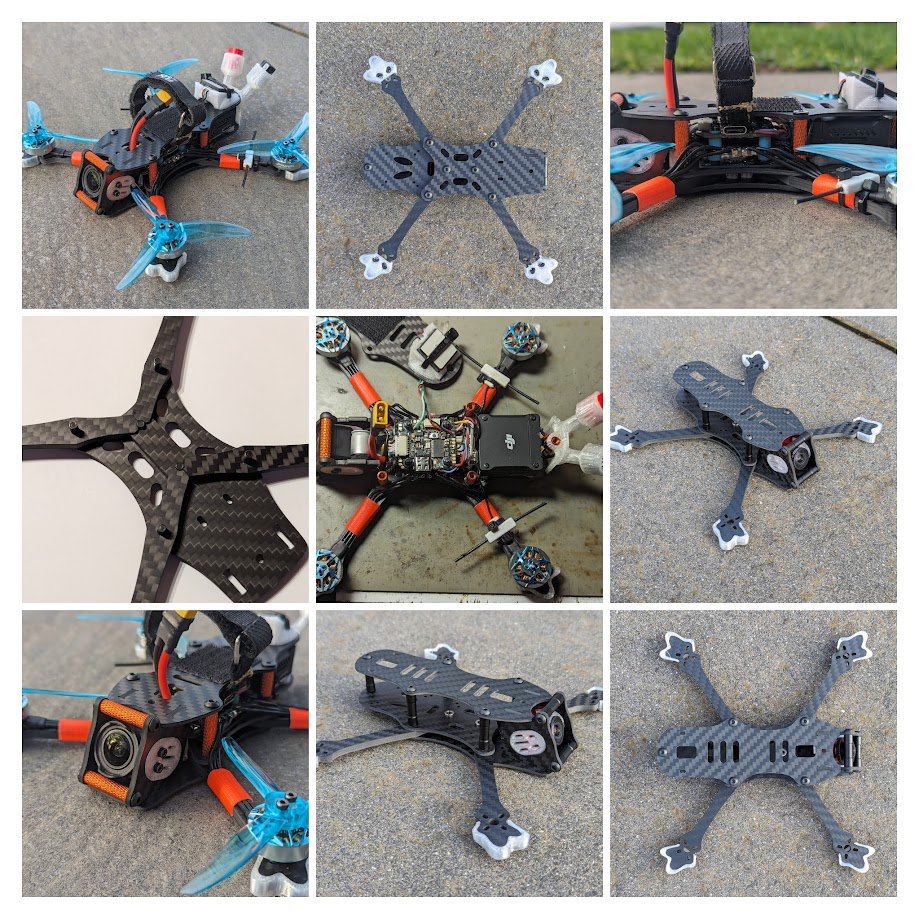

    Alligator3.5 mk2 Frame Kit

    $ 39.00

    Main design elements:

    Sandwich bottom plate design

    2mm lower Bottom Plate,  2mm upper Bottomplate, 4mm Arms, 1.5mm topplate for robustness

    20mm stack space length gives you a slamdeck design with centralised center of gavity, but still enough space to mount your electronics.

    62g weight

    conventional or toilet tank battery mounting

    optimised for low vibration resonance

    Rounded corners to reduce notch effect

    Easy maintenance: Only 5 scews to remove topplate, 2-screw arm change

    Stack mounting: 25,5mm M2 and and 20mm M2 fits various flight stacks and AIO flight controllers

    VTX mounting: 25,5mm M2 and and 20mm in the back, fits Vista, DJI O3, Walksnail, HDzero or various analog VTX.

    Universal Camera sideplate using pritable inserts to fit 19mm or 20mm wide cameras and different length and provides vibration isolation when printed in TPU. Strong camera cage und vertical front braces provide good camera protection in case of frontal crash.

    Openings for XT30 connectors in top plate so that power cable can not get damaged by propellers

    Mounts for cable ties to mount capacitors, beepers, receivers or GPS and strain relief for power cable.

    Keystone arm mount to provide stiffnes and vibration damping.

  • Kit
    More Details

    AlligatorSix Hexacopter high Version

    $ 98.30



    When you look for 5-inch FPV hexacopter frames there is nothing on the market. Only a few retailers have some rests of old, very outdated designs in stock. So I decided to make this modern reincarnation of the Hexacopter and give you the opportunity to build and fly this little beast.

    Main design elements:

    - sandwich bottom plate design like most modern quadcopters have

    - thick 6mm arms for robustnes, all the same length and therefore interchangable

    - rounded corners to reduce notch effect

    - lot of space for mounting electronics: 3x 30.5mm and 20mm stack holes, in the front, in the middle and in the back

    - rectangular holes in the topplate to fit XT60 connector trough. So power cables can't get into the props.

    - holes for cable ties as strain relief for power cables in front and behind the center stack

    - cavity for capacitor under center stack to save space and get it out of the way for wiring

    - all action camera mounts for TBS source one will fit because of same mounting hole pattern

    - higher version with 38mm spacers in the front, 30mm in the back. Gives you lots of space for your electronics. Also a low profile slamdeck version is avaliable: https://armattanproductions.com/pages/kit_detail/2897

    - camera side plates to mount 19mm micro-size cameras

    - frame wheight: 240g including hardware.

    Photos:



    Suggested components and electronics

    Check out my complete build: https://rotorbuilds.com/build/26780

    How does it fly?

    Yes, you can freestyle it. That's what it's made for. It's pretty agile because it has even a slightly better thrust/weight ratio than most Freestyle Quadcopters.

    Check out my flight video:



    Armattan Productions does not offer 3D printed elements. But you can print them yourself:

    Skids: https://www.thingiverse.com/thing:4811324

    GPS mount: https://www.thingiverse.com/thing:4811321

    VTX antenna mount: https://www.thingiverse.com/thing:4811357

    VTX and CRSF antenna mount: https://www.thingiverse.com/thing:4811345

    VTX and GHST antenna mount: https://www.thingiverse.com/thing:4811352

    Why is it called "Alligator"?

    This came up during the construction. When I looked onto the bottom plate in the CAD system it lookes like the mouth and body of an alligator. When you fly it together with other people this flying predator might eat some little tiny whoops ;-).

  • Kit
    More Details

    AlligatorSix Hexacopter Slamdeck Version

    $ 99.46

    When you look for 5-inch FPV hexacopter frames there is nothing on the market. Only a few retailers have some rests of old, very outdated designs in stock. So I decided to make this modern reincarnation of the Hexacopter and give you the opportunity to build and fly this little beast.

    Main design elements:

    - sandwich bottom plate design like most modern quadcopters have

    - thick 6mm arms for robustnes, all the same length and therefore interchangable

    - rounded corners to reduce notch effect

    - lot of space for mounting electronics: 3x 30.5mm and 20mm stack holes, in the front, in the middle and in the back

    - rectangular holes in the topplate to fit XT60 connector trough. So power cables can't get into the props.

    - holes for cable ties as strain relief for power cables in front and behind the center stack

    - cavity for capacitor under center stack to save space and get it out of the way for wiring

    - all action camera mounts for TBS source one will fit because of same mounting hole pattern

    - low profile slamdeck design: 28mm spacers in the front, 20mm in the back. Higher version available that gives you 10mm more headroom for your electronics: https://armattanproductions.com/pages/kit_detail/2899

    - camera side plates to mount 19mm micro-size cameras

    - frame wheight: 240g including hardware.

    Photos:



    Suggested components and electronics

    Check out my complete build: https://rotorbuilds.com/build/26780

    How does it fly?

    Yes, you can freestyle it. That's what it's made for. It's pretty agile because it has even a slightly better thrust/weight ratio than most Freestyle Quadcopters.

    Check out my flight video:



    Armattan Productions does not offer 3D printed elements. But you can print them yourself:

    Skids: https://www.thingiverse.com/thing:4811324

    GPS mount: https://www.thingiverse.com/thing:4811321

    VTX antenna mount: https://www.thingiverse.com/thing:4811357

    VTX and CRSF antenna mount: https://www.thingiverse.com/thing:4811345

    VTX and GHST antenna mount: https://www.thingiverse.com/thing:4811352

    Why is it called "Alligator"?

    This came up during the construction. When I looked onto the bottom plate in the CAD system it lookes like the mouth and body of an alligator. When you fly it together with other people this flying predator might eat some little tiny whoops ;-).
