Alligator3.5 mk2 Frame Kit
Item List
-
Alligator35_Keystone_v1_3mm
Quantity :1
-
Alligator35_Arm_v1_4mm_cut_along_wave
Quantity :4
-
Alligator35_MidPlate_v2A_2mm_cut_along_wave
Quantity :1
-

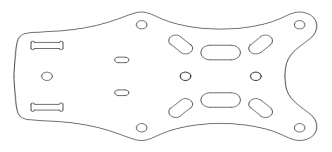

Alligator35_BottomPlate_v2_2mm_cut_along_wave
Quantity :1
-
Alligator35_TopPlate_v3A_1
Quantity :1
-
Alligator35_CamPlate_v3_2mm
Quantity :2
-
4mm M3 Steel Button Head Bolt Black Anodized
Quantity :10
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
12mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :4
-
18mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :4
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :3
-
M2 Nylon Insert Nut Black Anodized (Nylock)
Quantity :8
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :7
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
Description
Main design elements:
Sandwich bottom plate design
2mm lower Bottom Plate, 2mm upper Bottomplate, 4mm Arms, 1.5mm topplate for robustness
20mm stack space length gives you a slamdeck design with centralised center of gavity, but still enough space to mount your electronics.
62g weight
conventional or toilet tank battery mounting
optimised for low vibration resonance
Rounded corners to reduce notch effect
Easy maintenance: Only 5 scews to remove topplate, 2-screw arm change
Stack mounting: 25,5mm M2 and and 20mm M2 fits various flight stacks and AIO flight controllers
VTX mounting: 25,5mm M2 and and 20mm in the back, fits Vista, DJI O3, Walksnail, HDzero or various analog VTX.
Universal Camera sideplate using pritable inserts to fit 19mm or 20mm wide cameras and different length and provides vibration isolation when printed in TPU. Strong camera cage und vertical front braces provide good camera protection in case of frontal crash.
Openings for XT30 connectors in top plate so that power cable can not get damaged by propellers
Mounts for cable ties to mount capacitors, beepers, receivers or GPS and strain relief for power cable.
Keystone arm mount to provide stiffnes and vibration damping.
Additional Information
LED wiring board: https://dirtypcbs.com/store/designer/details/12033/6640/led-wiring-board-for-alligator-3-5mk2-frame
3D printed parts: https://www.thingiverse.com/thing:6450377
