Christian Auth

Druckbaer Racing Frames by Christian Auth is an authentic fpv frame manufacturer / design forge located in Brunswick, Germany. We try to define a unique way of creating custom quads with outstanding functionality to move the border of practically.


Druckbaer Racing Frames

Visit Store

Kits

  • Kit
    More Details

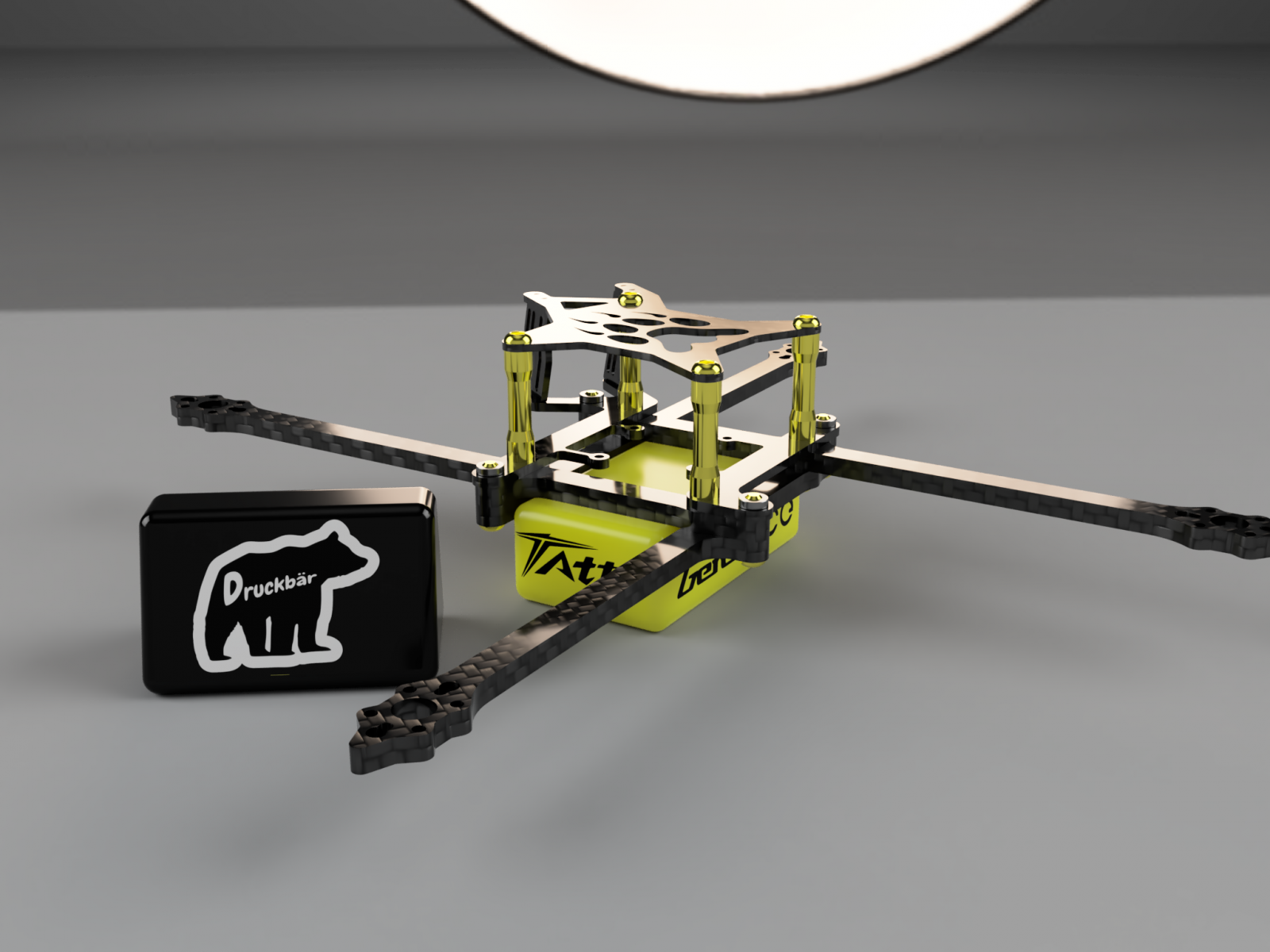

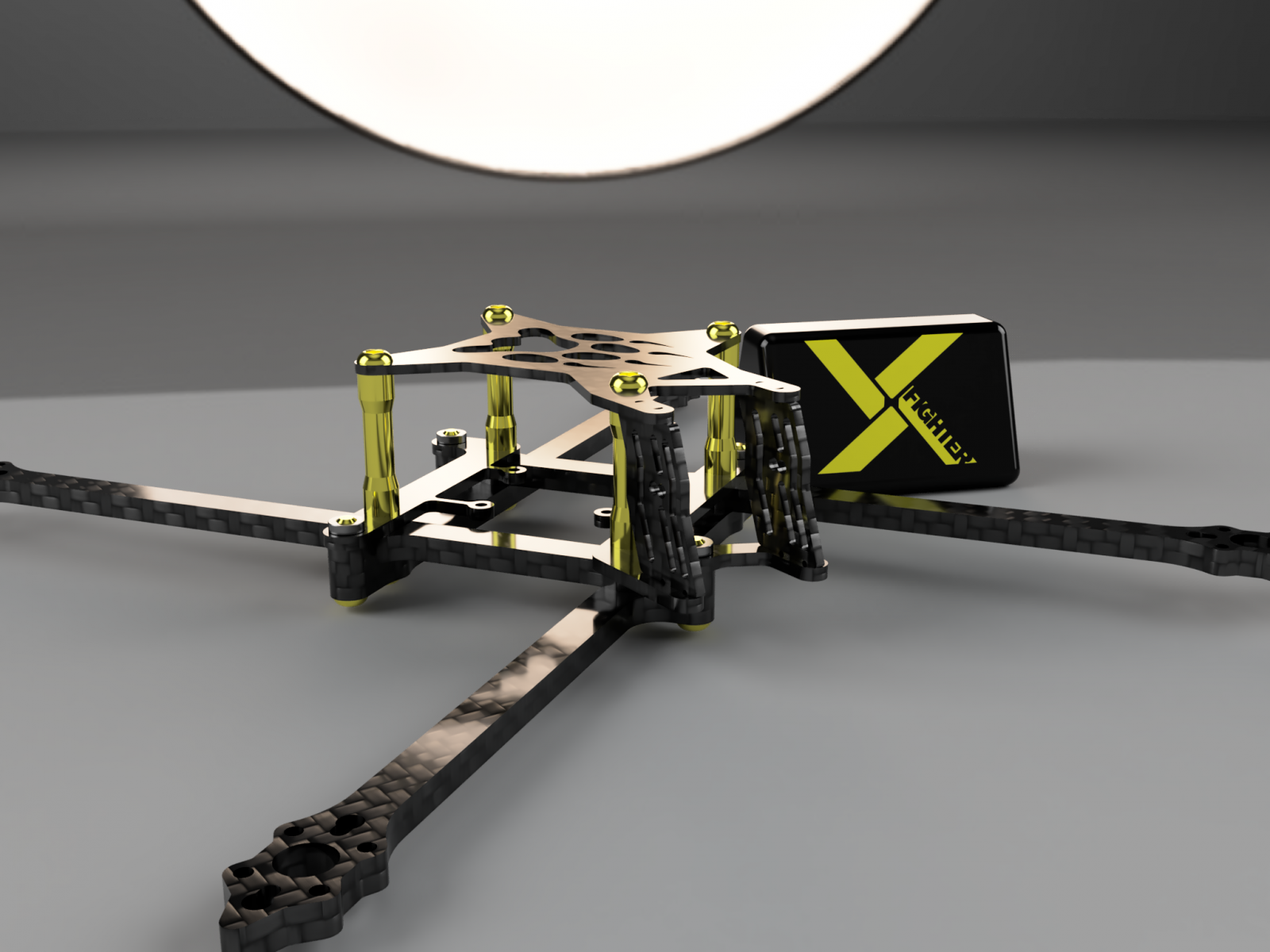

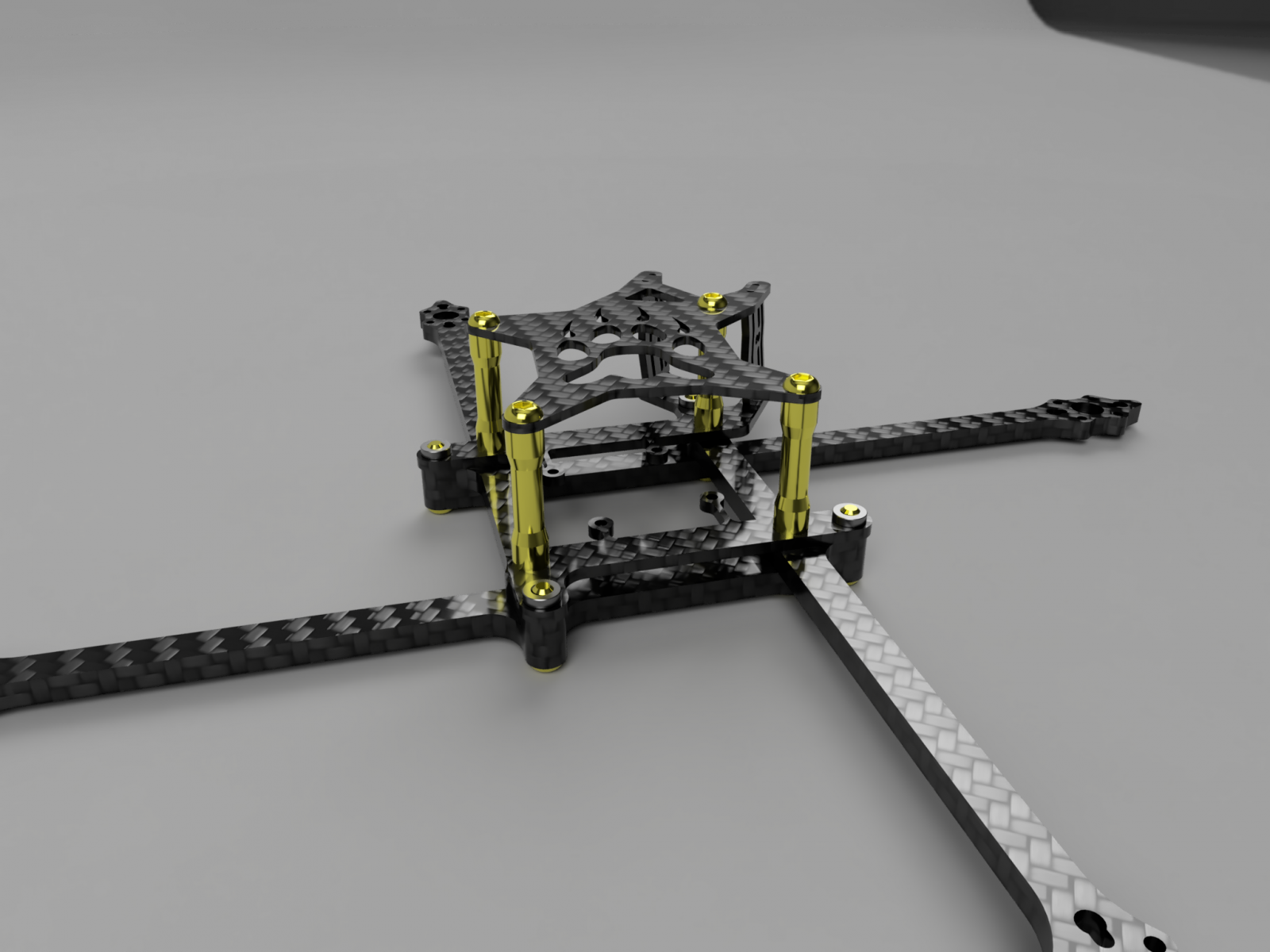

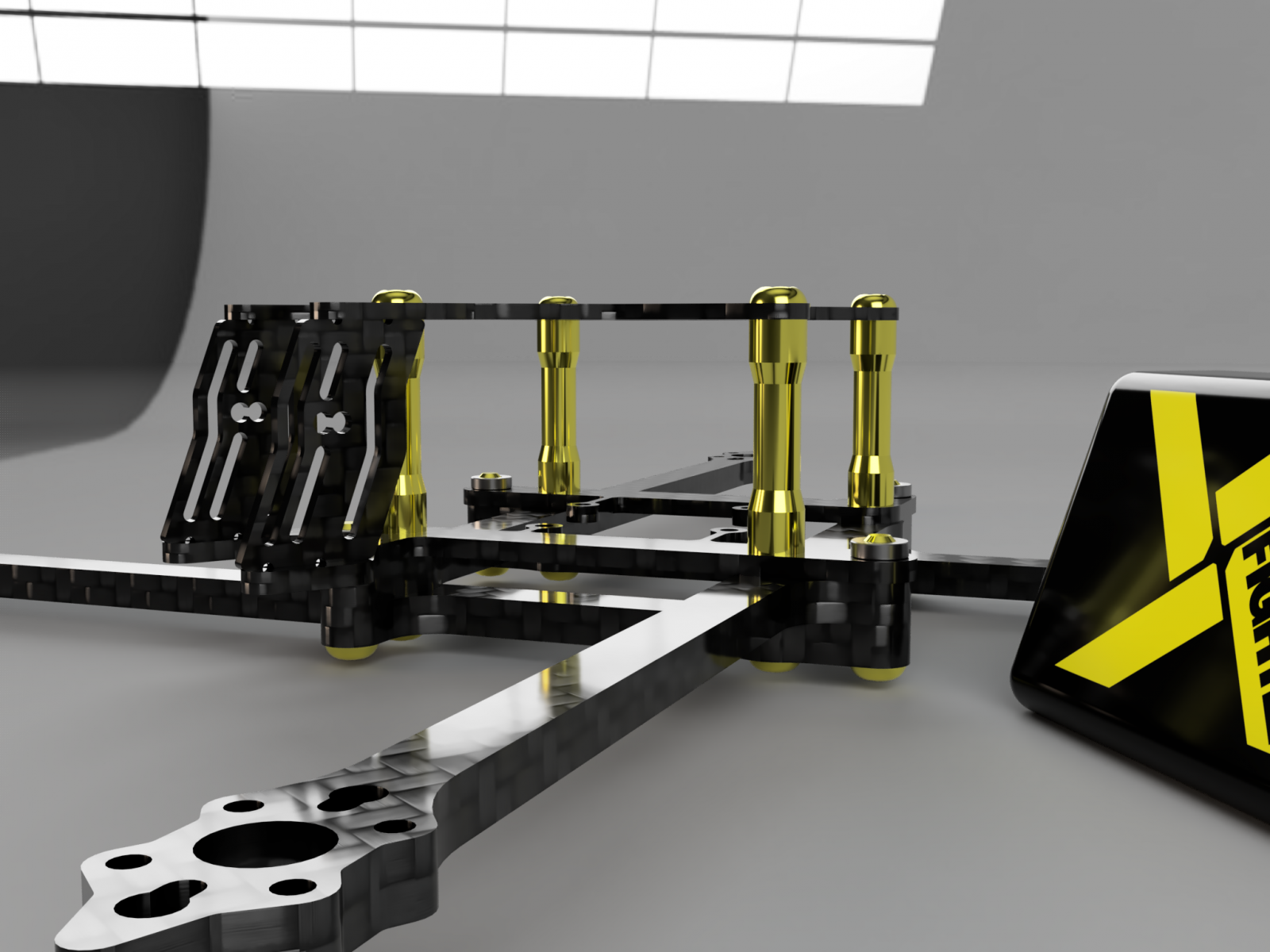

    X-Fighter

    $ 65.62

    True-X? Wide-X? Stretched-X? .... Forget about it!

    Welcome Wild-X!

    Experience the Druckbär X-Fighter ... an asymmetrical lightweight, which combines abstract and interlocking construction technology with pure flight pleasure.

    The extraordinary frame is designed for up to 5.1 inch propellers and 20x20mm hardware.

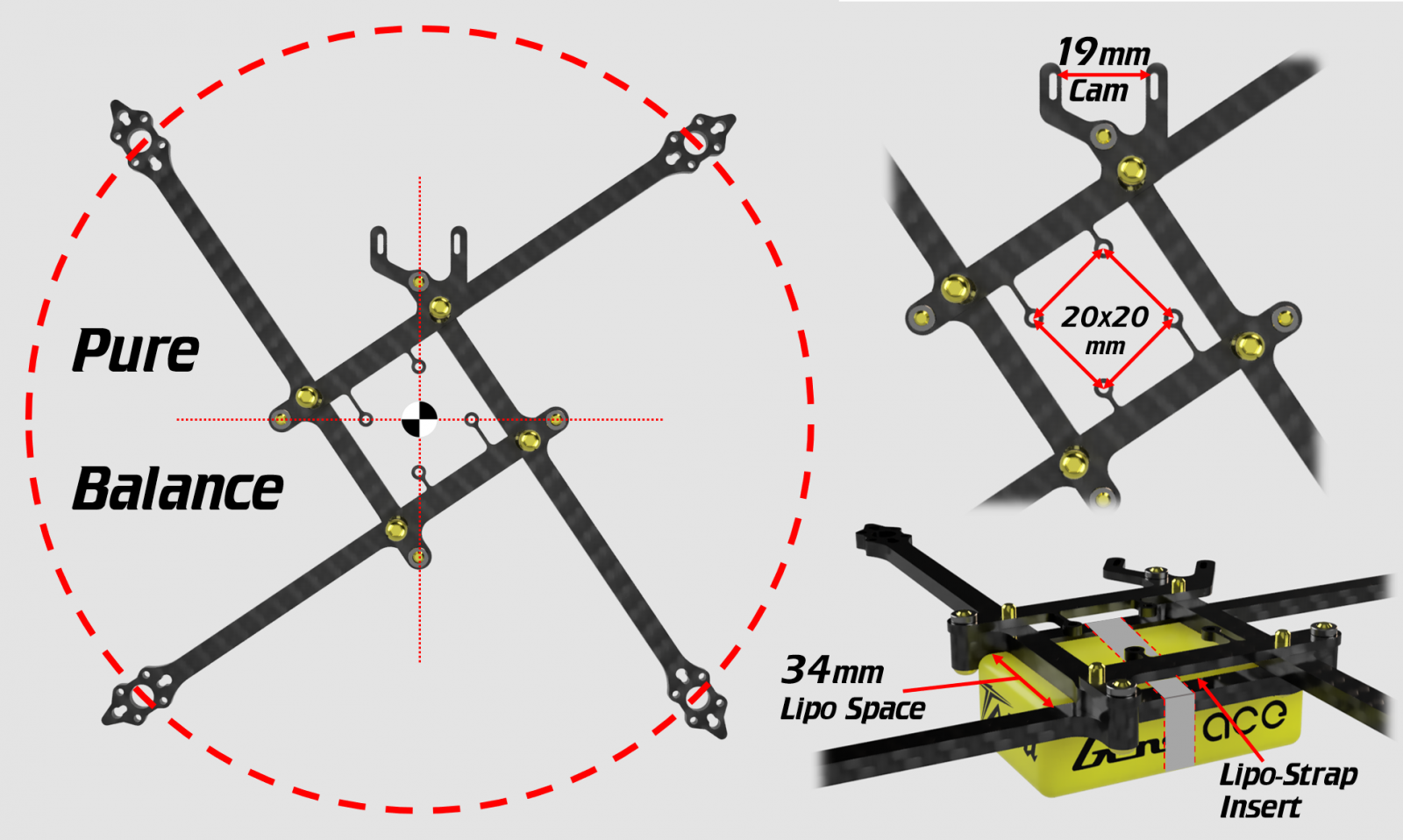

    You install your FC-ESC-Kombi at a 45 ° angle at the screw points provided in the center of gravity of the X-Fighter.

    The cam plates with 19mm spacing offer space for a variety of common FPV cams (e.g. Caddx Turbo Micro, Runcam Micro Swift ...)

    weight: 55g

    scope of delivery:
    4x 5 Inch Arm (4mm)
    1x Bridgeplate front (2mm)
    1x Bridgeplate rear (2mm)
    2x camplate (1,5mm)
    1x topplate (1,5mm)
    4x Aluminium Spacer M3x22mm
     (unspecified color)
    4x M3x6mm12.9 Grade Steel Button Head Screw
    8x M3x12mm12.9 Grade Steel Button Head Screw
    4x Stainless Steel Press Nut

    Do you have improvement ideas?
    Wanna give us a feedback? Your welcome!



  • Kit
    More Details

    The Vasp

    $ 72.38

    Cruising quietly at dusk? Do not even think about it !

    The Vasp is a sporty, agile True-X frame at the sight of which a wasp loses its sting out of respect.

    The central command unit is accompanied by 4 interlocking Double-V arms.

    The lateral supports of the arms mean that your motors sit rigidly in place and are protected against the motors being torn off in the event of an impact. This construction promises direct response behavior in all axes with simultaneous weight reduction.
    This results in a fighting weight of just 50g.

    Like the rockets of a fighter jet, the camera plates are held on the side of the unibody and offer space for all common 19mm FPV cams.

    FC/ESC Mount: 16x16mm or 20x20mm

    scope of delivery:
    4x 5 Inch Arm (4mm)
    1x Bottomplate (2,5mm)
    2x Camplate (1,5mm)
    1x Topplate (1,5mm)
    4x Aluminium Spacer M3x22mm (unspecified color)
    4x M3x6mm12.9 Grade Steel Button Head Screw
    4x M3x12mm12.9 Grade Steel Button Head Screw
    4x M3x12mm12.9 Grade Steel Button Head Screw
    4x Stainless Steel Press Nut

    Do you have improvement ideas?
    Wanna give us a feedback? Your welcome!



  • Kit
    More Details

    High Striker

    $ 59.83

    Smash your Sticks and Ring the Bell !

    Symbol1

    With the High Striker Druckbär spends an extra portion of punch to entertain the FPV fair.

    HighStriker_2021-Apr-10_07-18-52PM-000_CustomizedView5302918405 HighStriker_2021-Apr-10_07-00-46PM-000_CustomizedView21227213321

    Komplette Hardware Kompatibilität:
    All good things come in threes: In the High Striker you can use common hardware in the formats 30.5x30.5mm, 20x20mm or 16x16mm.

    Mounting MotorMount

    Weight: 75g

    scope of delivery:
    1x lower Bottomplate (2mm)
    1x upper Bodenplate (2mm)
    2x Camplate (1,5mm)
    1x Topplate (1,5mm)
    6x Arm 5 inch (3mm)
    4x Aluminium Spacer M3x20 (unspecified color)
    4x Steel12.9 Button Head Screw M3x6mm
    2x Steel12.9 Button Head Screw M3x7mm
    10x Steel12.9 Button Head Screw M3x10mm

    Do you have improvement ideas?
    Wanna give us a feedback? Your welcome!



  • Kit
    More Details

    Angled Arm - 5inch

    $ 49.90

    Wide-X, Stretched-X or maybe something without a propeller in the picture? No more compromises!

    With the new Druckbär AngledArm you get everything in one and that under 65g

    Due to the variable hole pattern you are able to adjust the front arms in 3 and the rear arms in 2 steps. This allows you to have the following configurations:

    • Wide X
    • Stretched X
    • Deadcat
    • Cinema Mode (Camera mode without propellers in the picture)
    Modi

    Compatible with 30.5x30.5mm and 20x20mm hardware!

    You always wanted to know how these configurations behave in flight without building countless copters with different setups?
    Try it !

    The expansive structure of the upper sandwich plate protects your hardware against impacts from the side.

    Schutz Kameraweiten

    The camplates can be adjusted in two widths without endangering the rigidity.

    SO you can easily mount a Runcam Split but also a Runcam Swift Micro.


    scope of delivery:
    3mm Arms (4x)
    2mm Bottomplate(1x)
    2mm Bridgeplate (1x)
    1,5mm Topplate (1x)
    1,5mm Camplate (2x)
    6mm M3 12.9 Grade Steel Button Head Screw (10x)
    10mm M3 12.9 Grade Steel Button Head Screw (8x)
    M3x25 Aluminium Spacer (3x)
    M3x20 Aluminium Spacer (4x)
    M3 Lock Nut (4x)

    Do you have improvement ideas?
    Wanna give us a feedback? Your welcome!



  • Kit
    More Details

    Ultralight 4 Race - 7inch

    $ 69.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 Race - 6inch

    $ 66.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 Race - 5inch

    $ 63.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 Race - 4inch

    $ 60.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 - 7inch

    $ 58.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 - 6inch

    $ 56.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 - 5inch

    $ 54.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 - 4inch

    $ 52.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Ultralight 4 - 3inch

    $ 50.00

    LIGHT --- STABLE --- RADICAL

    Druckbär Racing Frames is proud to present you the Generation 4 of the legendary Ultralight series. This frame is the lightest modular freestyle and racing frame in the world of FPV.

    With the Druckbär Ultralight 4 you can fly without any concerns because you will fly responsible within international drone laws.

    In the 5 inch version the dry weight of this frame is 25,4g. With a regular 5 inch setup you are able to stay under 200g AUW with an astonishing flight time of at least 7 to 10 min. (650mAh 4S)



    You will also need the following to complete the assembly.

    Nuts, Bolts, Standoffs.

    Part Source Quantity
    M2x5 or M2x6 countersunk screw (depends on availability) https://de.banggood.com/custlink/GK3KUvdGQ0 4
    M2x12 countersunk screw https://de.banggood.com/custlink/GK3KUvdGQ0 8
    M2 aluminium lock nut https://de.banggood.com/custlink/3Gv3zDEvNT 4
    M2 aluminium spacer https://de.banggood.com/custlink/Gmm3z3hmMV 4













    If you want to buy the original Ultralight 4 set you can also buy directly over our webshop: Click here

  • Kit
    More Details

    Druckbaer Anti Gravity - under 50g AUW (2S)

    $ 11.98

    Druckbär Anti Gravity



    The Druckbär Anti Gravity is an attempt to escape Earth's gravity. With its minimalist and at the same time functional design the Anti Gravity allows you agile handling, long flight times and a performance that you only know from bigger copters.

    Key features:

    - 20x20 hardware AND Whoop Hardware (24,5 x 24,5 mm) can be attached in every orientation
    - individual stack height (no limitations)
    - universal motor mounting layout for 4-hole and 3-hole motors (diameter: 9mm)
    - cleat for quick attachement of lipo at the bottom

    Components:

    Motors:
    Gemfan 1105 7500kv

    HGLRC Flame 1105 6000kv

    MP03X 1103 8500kv 9500kv

    AMAXinno 1103 7500kv

    Racerstar Racing Edition 1103 8000kv

    VTX:
    Eachine Trashcan 5.8GHz VTX (3g)

    Cam:
    BetaFPV Z02 Cam with VTX
    Kingkong Micro Cam

    Props (65mm):
    Kingkong 65mm Prop

    FC/ESC/Receiver Combo:
    Eachine Crazybee F4 Pro

    Spacer:
    M2 Nylon Hex Spacer

    3D-printed parts:
    BetaFPV Z02:

    Thingiverse: https://www.thingiverse.com/thing:3473541
