True-X? Wide-X? Stretched-X? .... Forget about it!
Experience the Druckbär X-Fighter ... an asymmetrical lightweight, which combines abstract and interlocking construction technology with pure flight pleasure.
The extraordinary frame is designed for up to 5.1 inch propellers and 20x20mm hardware.
You install your FC-ESC-Kombi at a 45 ° angle at the screw points provided in the center of gravity of the X-Fighter.
The cam plates with 19mm spacing offer space for a variety of common FPV cams (e.g. Caddx Turbo Micro, Runcam Micro Swift ...)
scope of delivery:

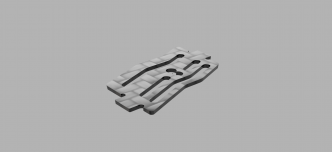

4x 5 Inch Arm (4mm)

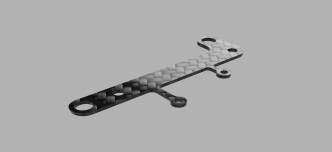

1x Bridgeplate front (2mm)
1x Bridgeplate rear (2mm)
2x camplate (1,5mm)

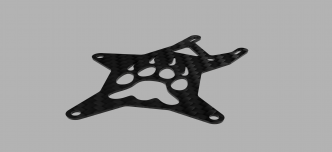

1x topplate (1,5mm)
4x Aluminium Spacer M3x22mm (unspecified color)
4x M3x6mm12.9 Grade Steel Button Head Screw
8x M3x12mm12.9 Grade Steel Button Head Screw
4x Stainless Steel Press Nut
