TAT-RC 215 One

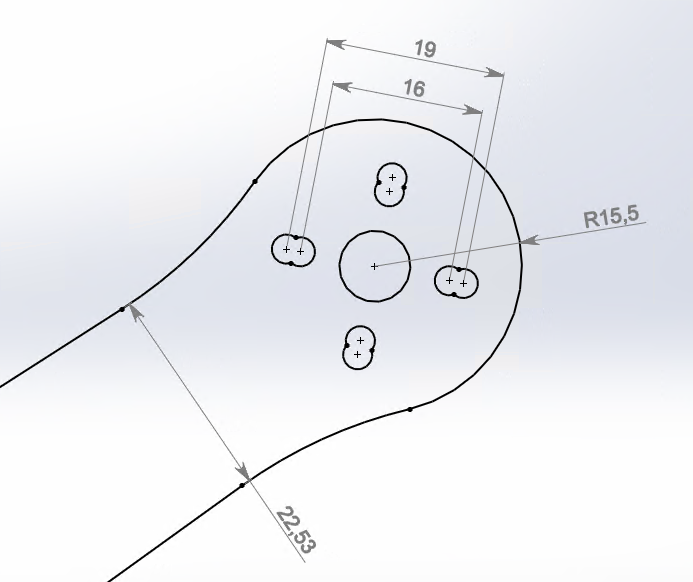

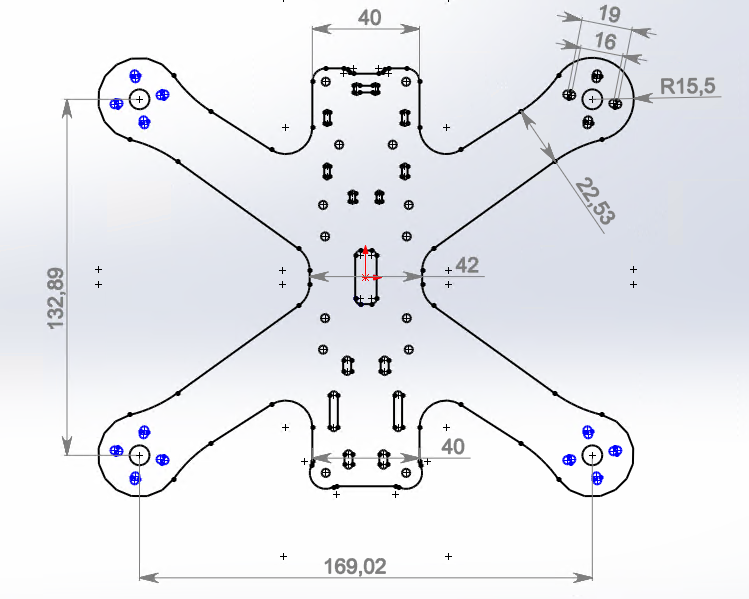

This frame is designed specifically for racing and freestyle. The main emphasis is on strength. The bottom plate is made of 4mm carbon fiber with a minimum number of slots. Top plate - 2mm carbon fiber. The size of the propellers - 5'.The distance between the motors diagonally 215 mm. Other sizes can be seen in the screenshot. If you want to adjust mmix, in the CLI on Cleanflight Configurator enter the following commands:

mixer custom
mmix reset
mmix 0 1 -1 0.787 -1
mmix 1 1 -1 -0.787 1
mmix 2 1 1 0.787 1
mmix 3 1 1 -0.787 -1

If you have any comments, you can send them to me by email - cvk98@ya.ru

rev. 1.02 - Fixed minor issues identified in the test instance.

rev. 1.03 - Minor changes at the bottom plate

For more information please visiv http://www.rcgroups.com/forums/showthread.php?t=2686467
