DQ190F Kit - "Furious Dragon"

This is a simple, strong and streamlined frame.

https://youtu.be/skffwYMrQCY

Key features:

Single piece base plate

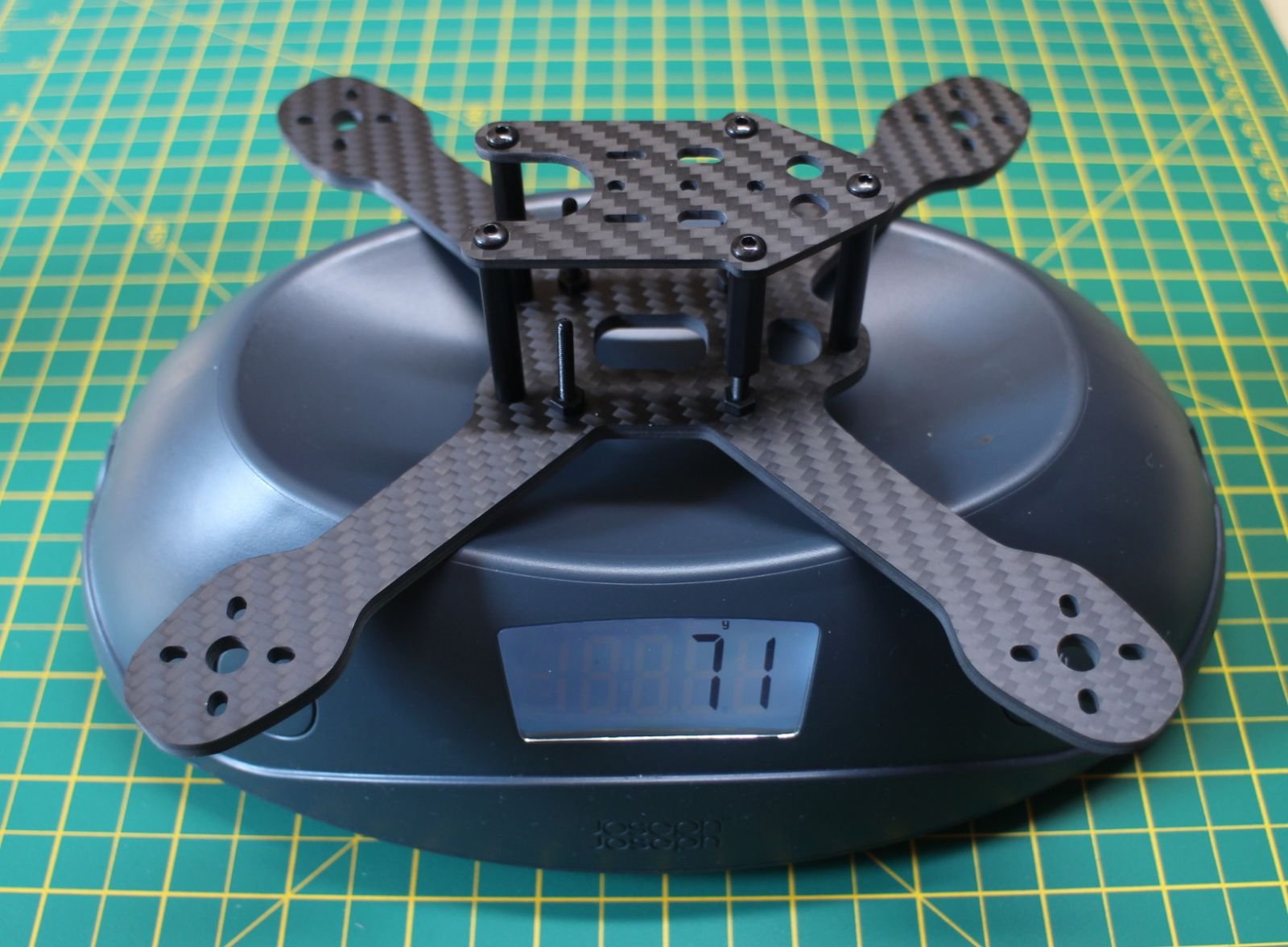

The frame is only 71g

The battery strap goes around the whole model this protects the electronics, allows for a very streamline body and keeps the top plate in compression which helps with strength.

Soft mounting can be used on the flight controller.

190mm diagonal for 5" props

What else will I need?

Camera mount .stl available on Thingiverse. http://www.thingiverse.com/thing:1772950

Long nylon bolts 2 x 25mm 2 x 15mm (or just cut down 2 more 25mm)

Long (30cm) battery strap I recommend the sky hero straps.

I would also recommend adding a few spare nuts and bolts etc to the kit.

Designed to use the following electronics:

Furious FPV Kombini

RunCam Swift (compatible with the 2.1mm lens)

FX668T VTX

For ESC and motor selection check out the amazing http://www.miniquadtestbench.com/

Pictures

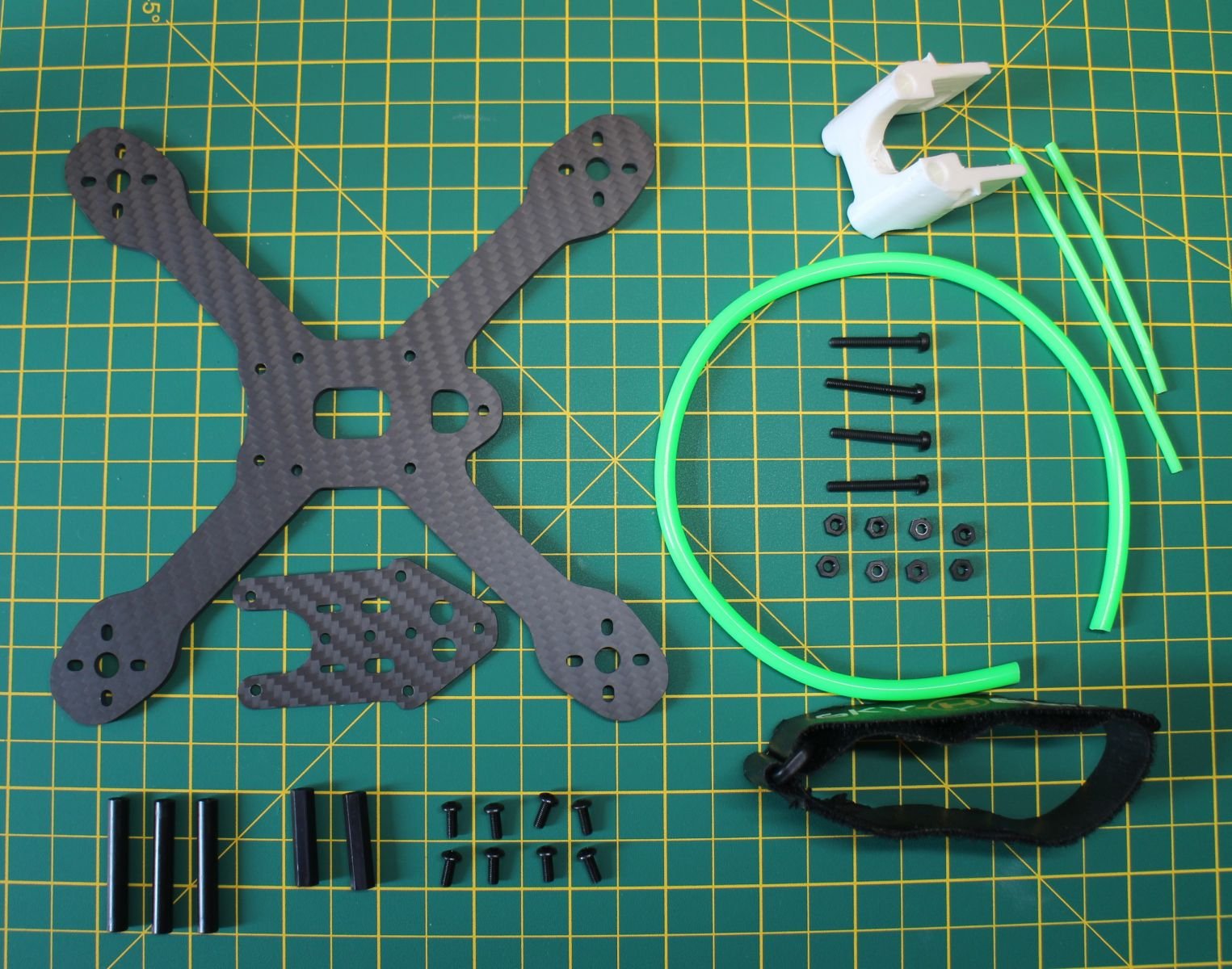

1. On the left are the parts in the kit, on the right are the bits you may want to add.

Coming Soon
