SuperX 169 - Cut along weave


Price : $ 54.98












Description

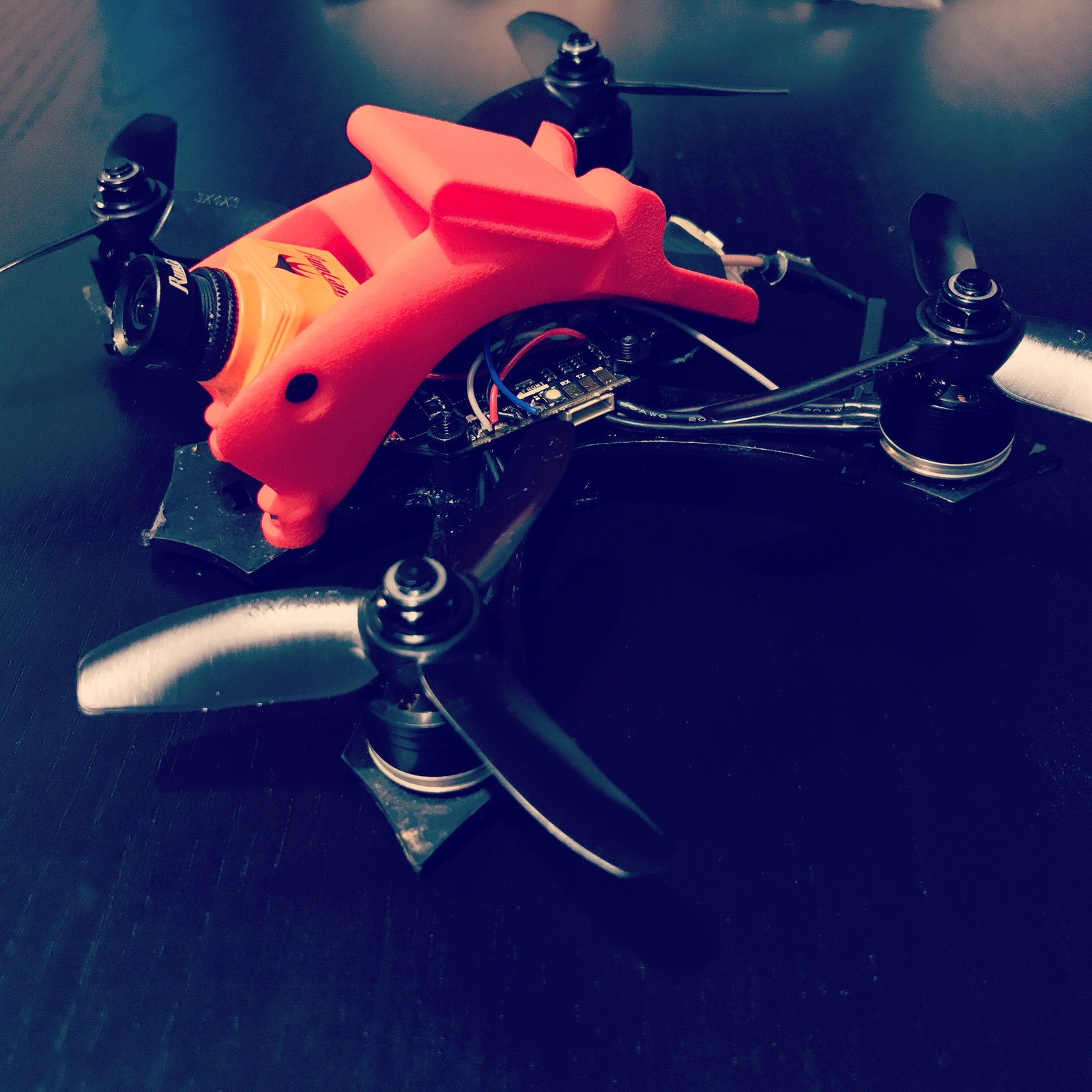

Lightweight 4" quad unibody, will fit Shrieker Top Plate & Standoffs, or ikuraFPV's Micro Pod (contact for details & availability: http://facebook.com/ikuraFPV)



Carbon is high quality, 3mm thickness with the weave aligned with the arms for rigidity and strength.  Twill top & bottom layers complete the layup for a refined finish and good strength characteristics.

Motor mounting holes are 12mm for 1407 class motors - we highly recommend Cobra CP1407/3700 and HQ4x4.3x1-v1s props.

Ideal build list:

  • ikuraFPV micro Pod
  • TBS UnifyPro HV / Race
  • TBS Linear 5G8 u.fl Antenna
  • Runcam Swift Mini / Runcam Split
  • KissCC
  • CP1407/3700
  • HQ4x4.3x3-v1s

Dry weight in this config is ~165g, and will carry a GoPro Session securely at 28° tilt.  4 minute flight times with a light 1500mAh 4S pack!  Ideal for Long Range with a TBS Crossfire Micro!
