Space Cowboy Quad Racers
Lightweight racing focused quad copters designed by Space Cowboy Drone Design. Our goal is to create designs with the best mix of strength and well thought out component placement rolled into a competitive light weight package.
ATTENTION: SCX-200 V2.1 kits and parts now available.
SCX-200 V2.1 available now! SCX-175 and SCX-230 V2.1 (4" and 6" configurations) are coming very soon too!
ATTENTION: All kits purchased through this store are made to order.
Kits listed here are custom made and are not kept in stock. Expect 7-14 business days for production prior to shipment. Any questions regarding your order should be directed to support@armattanproductions.com, technical or design questions can be directed to me via the e-mail link in the upper right. If you are looking to get your hands on a SCX-200 quickly please check out Armattan Lite SCX-200 at http://www.armattanquads.com/scx-200/, this version of the frame comes in two brilliant color combos and is stocked directly by Armattan and it's distributors.
Comet 210
Item List
-

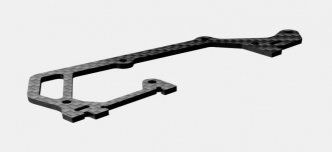

COMET VTX SIDE PLATE FINAL
Quantity :2
-

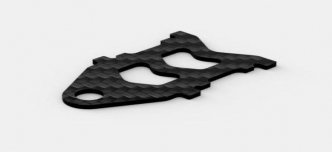

COMET VTX PLATE FINAL
Quantity :1
-

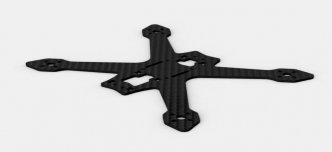

COMET 210 BASE PLATE FINAL
Quantity :1
-

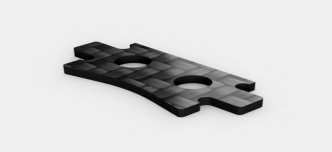

COMET NUT PLATE
Quantity :2
-

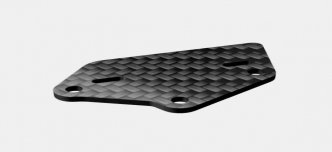

COMET 170 ROLL BAR
Quantity :2
-

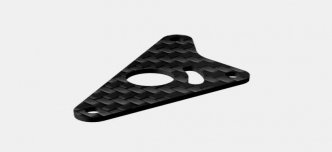

COMET 170 CAM MOUNT
Quantity :2
-
20mm ORION ORANGE ALUMINUM STANDOFF
Quantity :6
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :12
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :6
-
5mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :2
-
Quantity :2
-
M2 Nylon Washer (per piece)
Quantity :2
-
M3 Nylon Nuts (per piece)
Quantity :8
-
6mm M3 M/F Nylon Standoff (per piece)
Quantity :4
-
-
11mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
Description
Space Cowboy Comet 210
The Comet 210 is a 5" multirotor frame inspired by my original Comet 150 3D printed quad design. Check out the video below for an introduction to the Comet!
Specs:
-Unibody lower plate is 4mm carbon
-Roll bar construction with 4mm carbon
-All remaining carbon is 2mm
-Includes Space Cowboy "Orion Orange" anodized standoffs
-Sized for 220x motors and 5" props
-124g frame weight.
Required Electronic Components:
Flight Controller: standard 30.5 x 30.5mm mounting, up to 38x38mm outer dimensions.
PDB: Matek, PowerOSD, RROSD, or similar.
FPV Cam: HS1177 or equivalent
VTX: Hawkeye/UBAD/FX79x with SMA pigtail or similar
Motors: 220x sized motors
Props: up to 5"
ESC's: 20A or 30A Little Bees or similar, BLHeli or BLHeli-S
Basic Assembly Overview:
Additional Information
Like Us on Facebook: Space Cowboy Drone Design
Facebook Group for SCX Quad Discussions: https://www.facebook.com/groups/250844028598173/
