    HSNBRG Frame
    $ 64.00

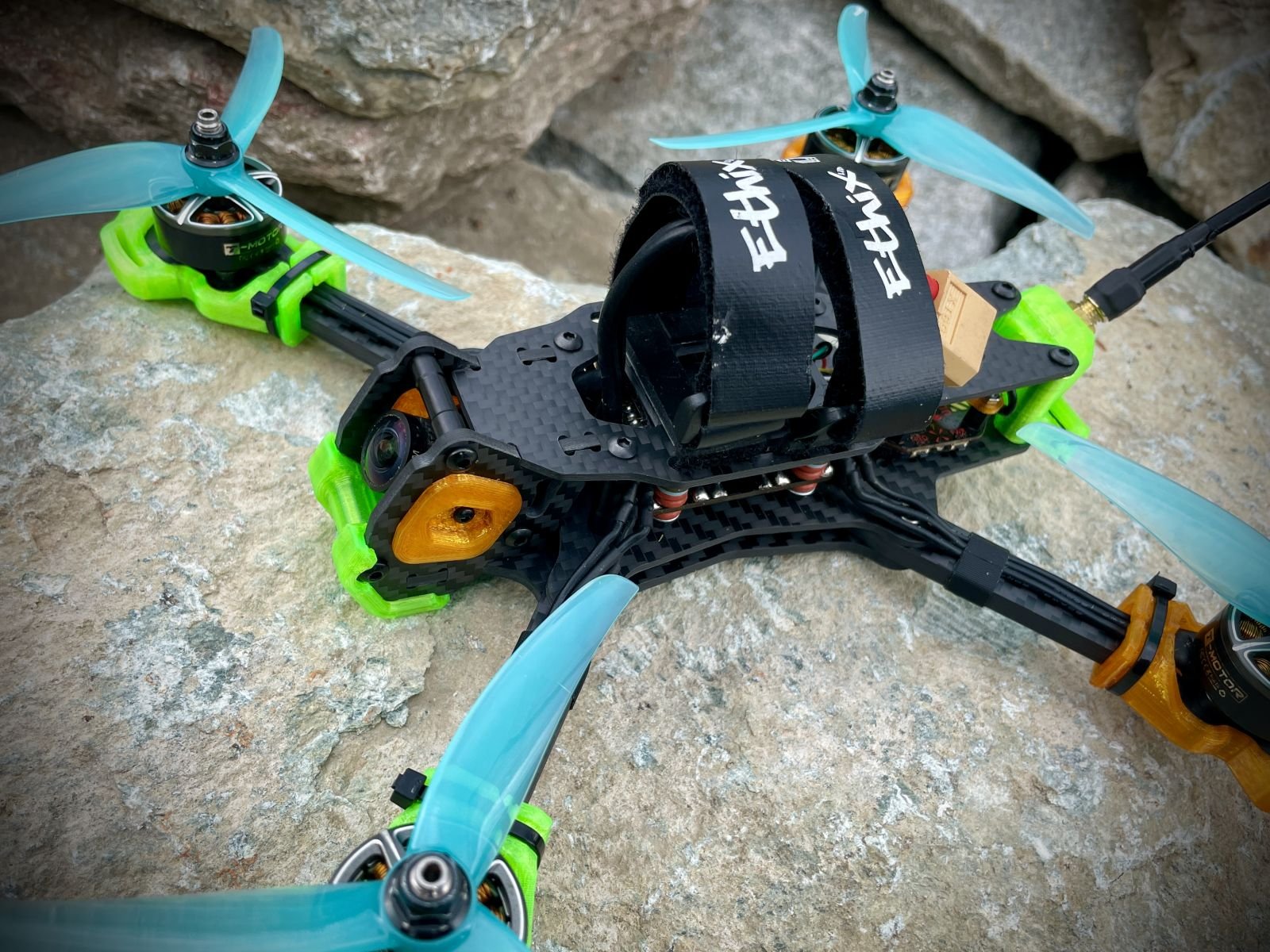

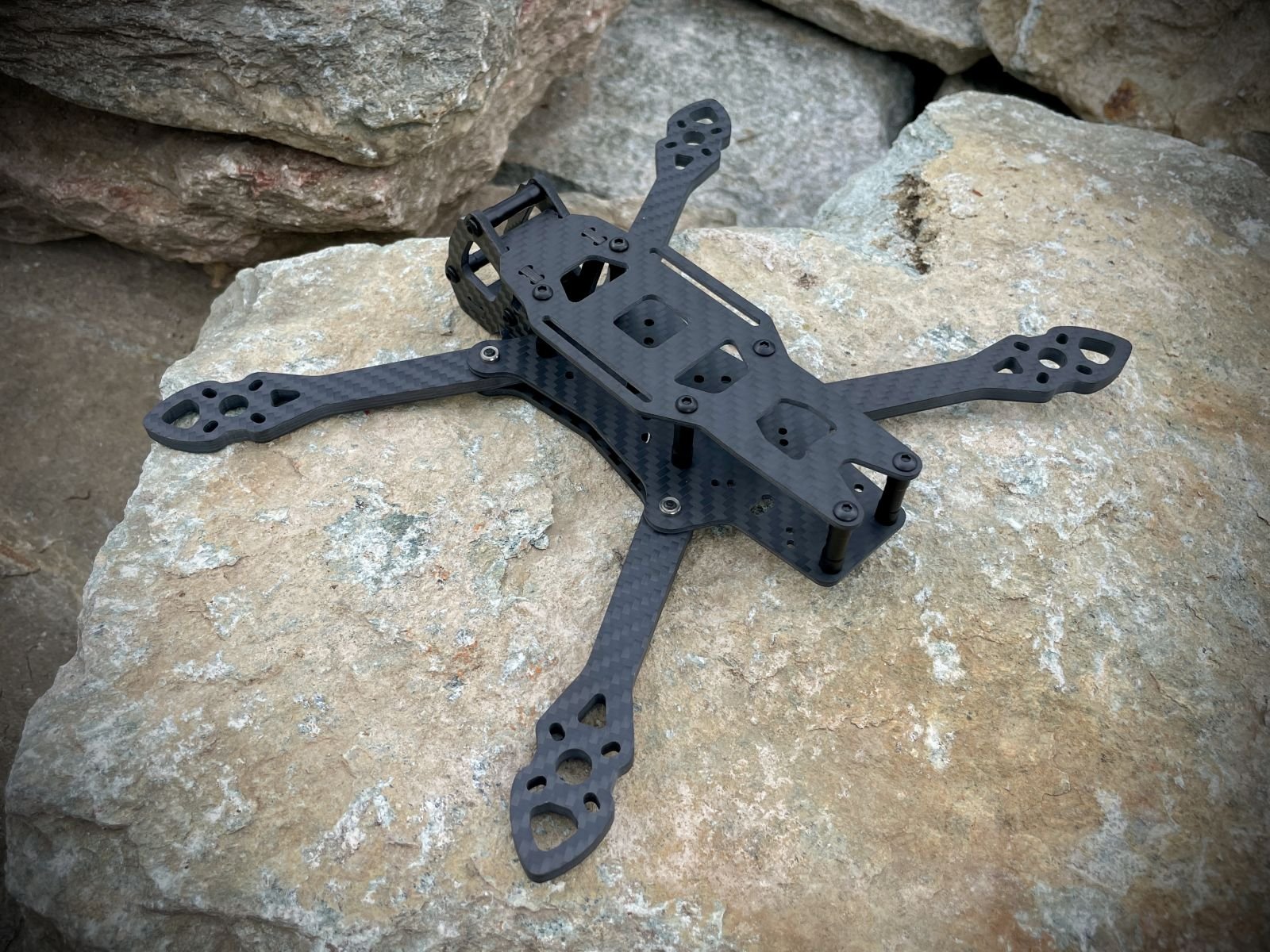

    HSNBRG is a freestyle 5" frame designed to be durable, lightweight and versatile.


    Main features:

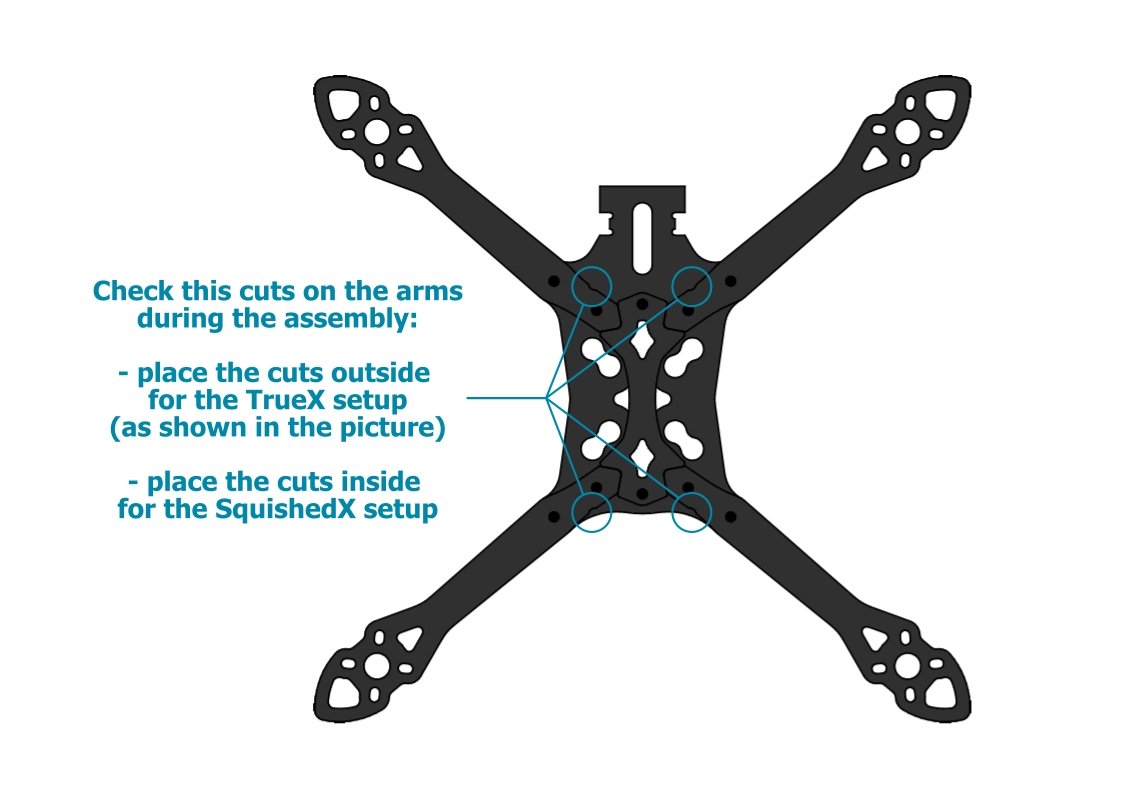

    - double configuration: TrueX and SquishedX
    - up to 5" props with TrueX and up to 5.2" props with SquishedX

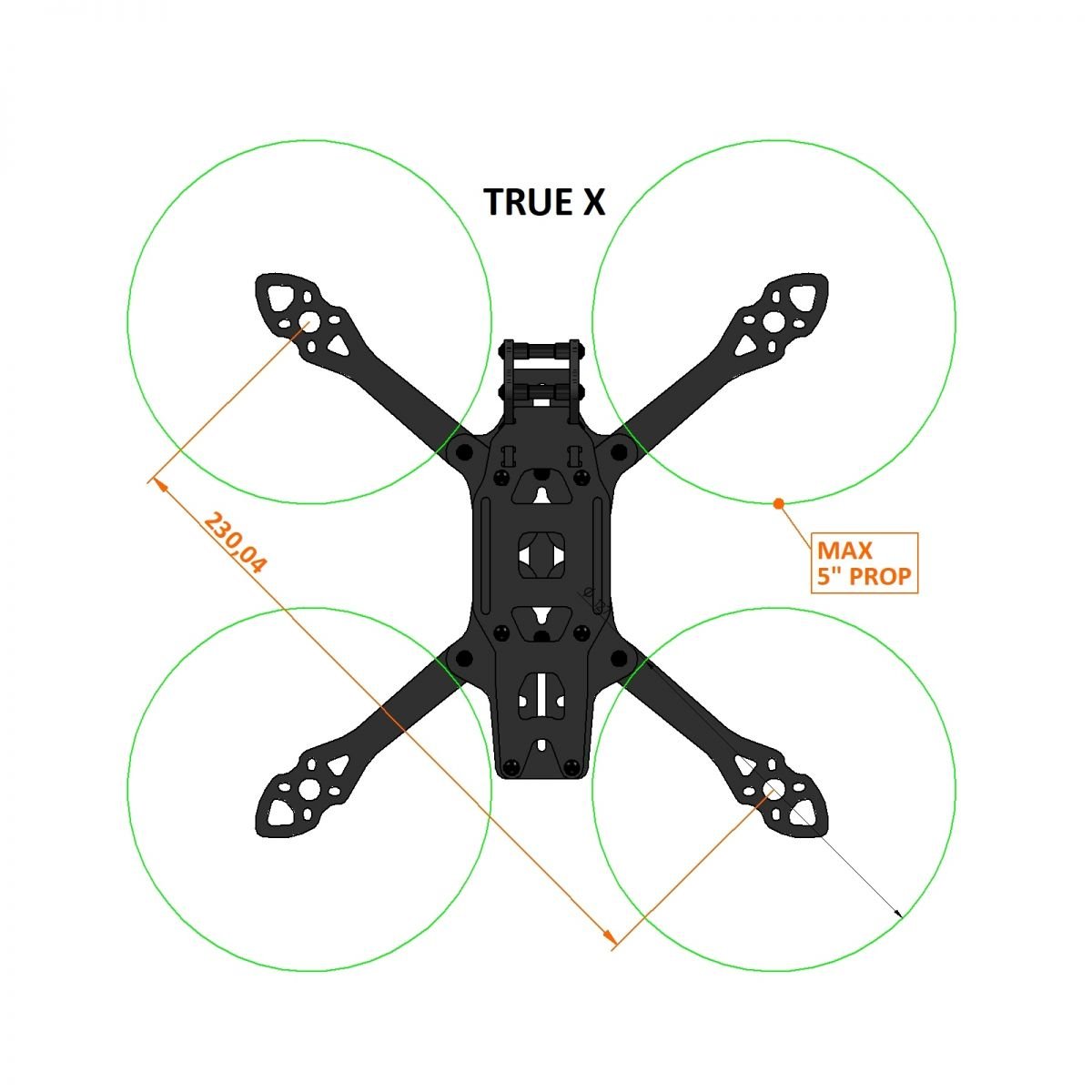

    - 230 mm wheelbase with TrueX

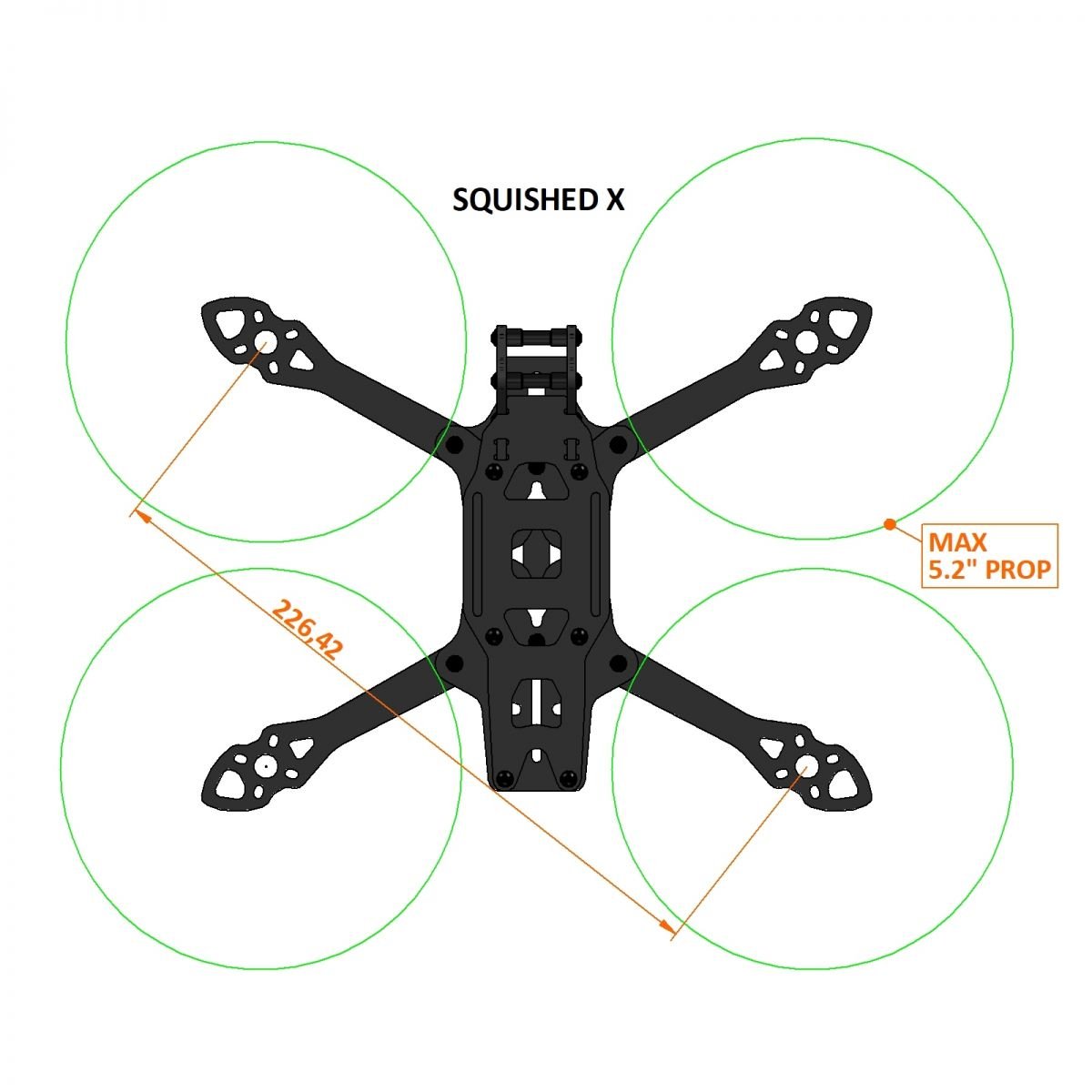

    - 226.4 mm wheelbase with SquishedX
    - 120 grams with all the metal hardwares
    - 3 mm thick cam sides to face front crashes
    - 20x20 and 30.5x30.5 stack compatibility
    - large space on the back for a wide choose of video systems
    - 20x20 and 26x26 VTX holes
    - inner 5 mm thick key to keep the arms in place precisely
    - Arm replacement by removing just 2 screws, no need to remove electronics

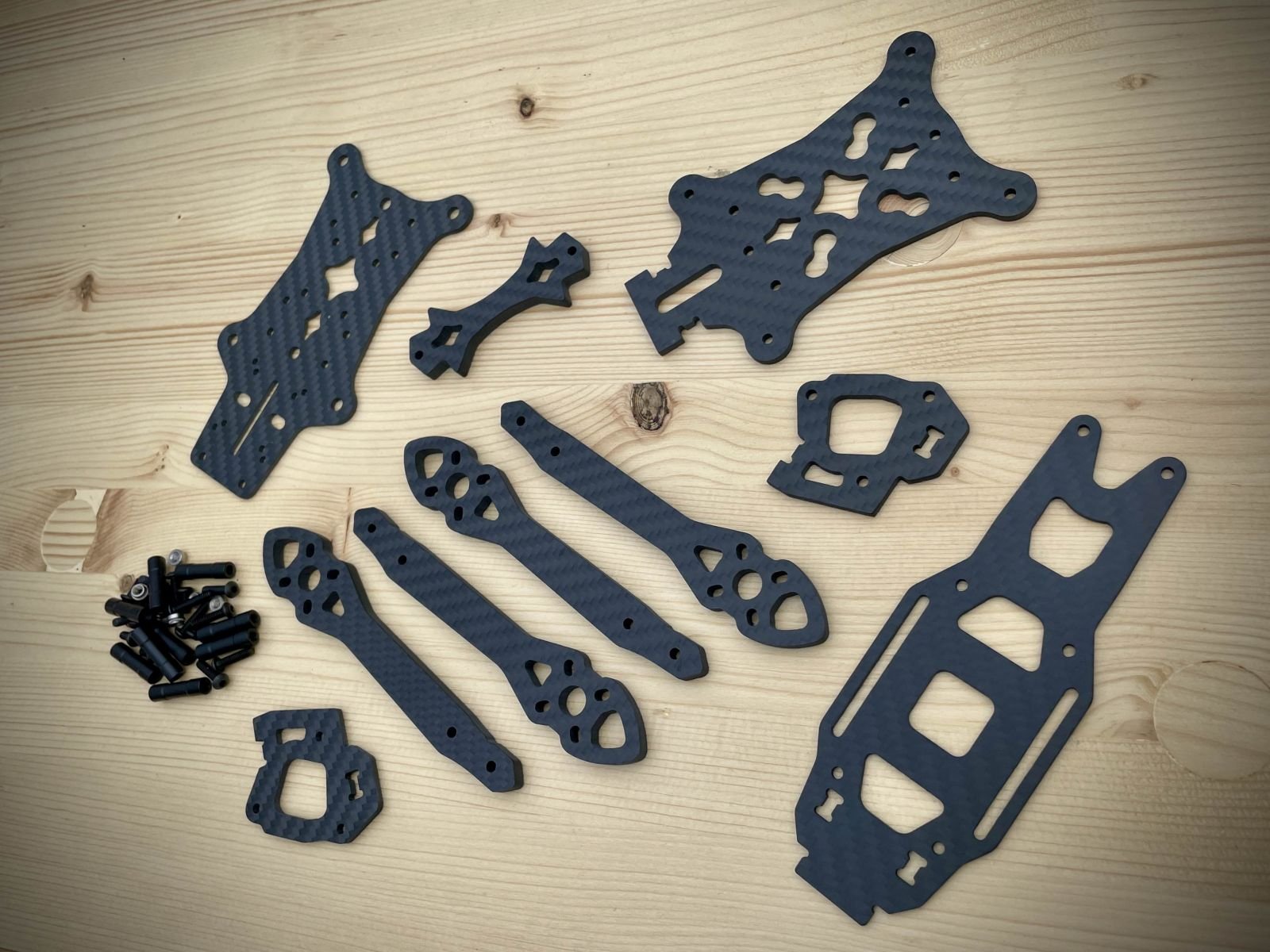

    Kit parts list:
    - cam side 3mm - 2x
    - bottom plate 3mm - 1x
    - arm 5mm - 4x
    - arm key 5mm - 1x
    - mid plate 2mm - 1x
    - top plate 2mm - 1x
    - 20mm aluminum standoff - 9x (8 needed - 1 for spare)
    - M3 press nut - 8x (6 needed - 2 for spare)

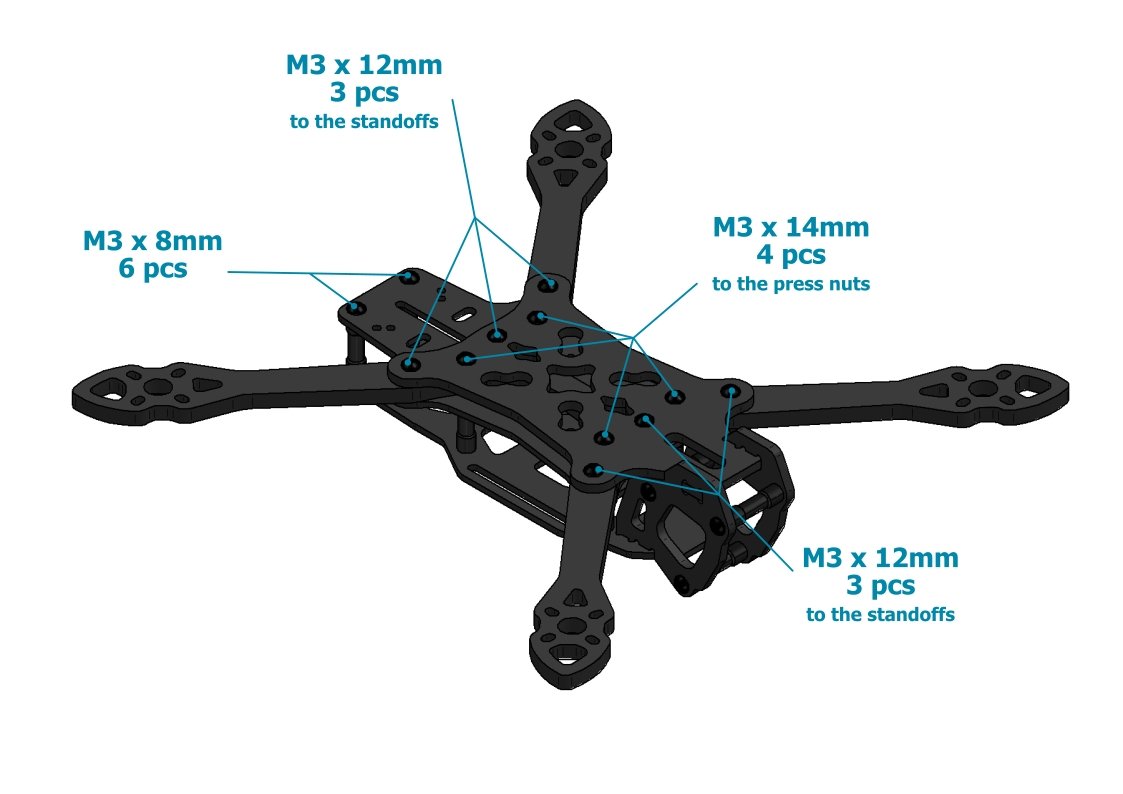

    - M3x7 screw - 8x (6 needed - 2 for spare)
    - M3x8 screw - 10x (8 needed - 2 for spare)
    - M3x12     screw - 8x (6 needed - 2 for spare)
    - M3x14     screw - 6x (4 needed - 2 for spare)

    TPU parts:
    STL and STEP files can be found here:
    https://www.thingiverse.com/thing:6725850
