kingkong 65mm prop frame 102mm
$ 13.88Work in progress, didn't try it.
Idea came from https://kababfpv.com Toothpick frame.
A lot of information here: KababFPV FB groupM2M 102mm
Motor mount: 3-hole 9mm diameter
FC mount: 25,4mm x 25,4mm (Whoop FC)
Designed for 2mm CFfor Kingkong 65mm props
Planned Setup
- Motors
Amax 1103 7500kv
Amax 1103 7500kv EU
Amax 1103 7500kv Banggood
Amax 1103 7500kv KababFPV - Props
Kingkong 65mm - FC
CrazyBee F4 Pro - Battery
Gaoneng GNB 7.4V 2S 450MAH 80C Lipo Battery XT30 Plug - Camera VTX
LST S2 AIO 25mW (it's usually on sale for 10.99USD)
- Motors
-

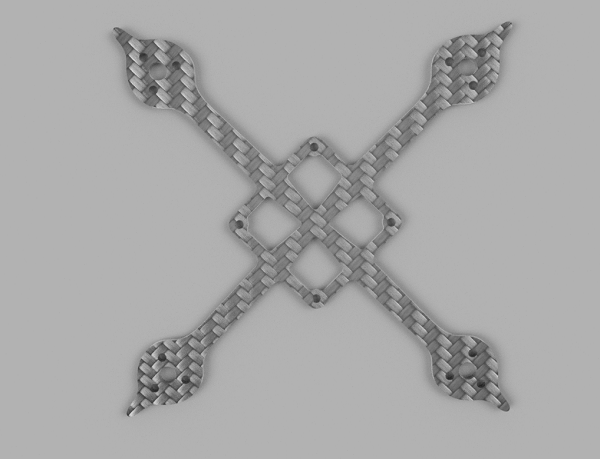

Kingkong 65mm prop frame 102mm 3-4 hole mount

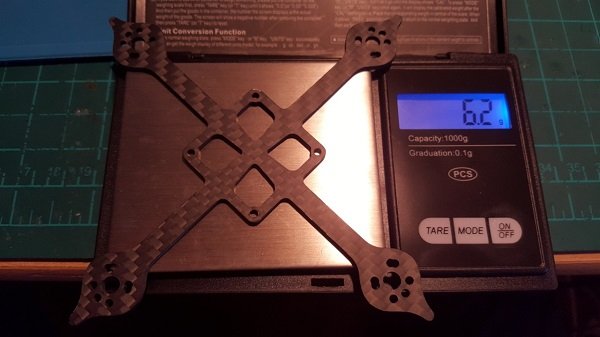

$ 13.886.2gr!
Cut along weave version, probably that's why it's a little expensive :(
The design principle was simple: keep everything "along the weave" where possible, and as light as possible.
In the end, I think it'll come out a little heavier than the Toothpick frame. The arms are a little wider, the motor mounts are a little beefier, the motor protector part is a bit longer (probably will snap in a harder crash, but at least it's there)
Idea came from https://kababfpv.com Toothpick frame.
A lot of information here: KababFPV FB groupM2M 102mm
Motor mount: 3-hole 9mm diameter., 4-hole 9mm diameter
FC mount:- 25,4mm x 25,4mm (Whoop FC)
- 16mm x 16mm
Designed for 2mm CF for Kingkong 65mm props
Planned Setup
- Motors
Amax 1103 7500kv
Amax 1103 7500kv EU
Amax 1103 7500kv Banggood
Amax 1103 7500kv KababFPV - Props
Kingkong 65mm - FC
CrazyBee F4 Pro - Battery
Gaoneng GNB 7.4V 2S 450MAH 80C Lipo Battery XT30 Plug - Camera VTX
LST S2 AIO 25mW (it's usually on sale for 10.99USD)
-
3inch 115mm M2M BabyTooth inspired (by Kabab)
$ 14.00Cut along weave version.
Idea came from https://fpvcycle.com/collections/frames/products/fpvcycle-babytooth-frame-choose-your-thickness BabyTooth frame, great guy, support him!
The design principle was simple: keep everything "along the weave" where possible, and as light as possible.This design should be under 5gr with 2mm CF.
M2M 115mm
Motor mount: 4-hole 9mm diameter (M2)
FC mount:- 25,4mm x 25,4mm (Whoop FC)
Designed for 2mm CF for 3" props.
Suggested parts:
https://fpvcycle.com/collections/motors/products/fpvcycle-1202-5-11-500kv-motor-2mm-prop-shaft
https://fpvcycle.com/collections/flight-controllers-aios/products/betafpv-1s-brushless-all-in-one-flight-controller-v2-1
https://fpvcycle.com/collections/props/products/gemfan-tri-blade-3018-props-4cw-4ccw-2mm
https://fpvcycle.com/collections/video-transmitters-vtx/products/namelessrc-nano400-vtx-25mw-400mw-5v
https://fpvcycle.com/collections/fpv-cameras/products/runcam-nano-3-fpv-camera
https://fpvcycle.com/collections/batteries/products/gnb-1s-520mah-xt30-lipo-batteries-3-pack
