MFS - Martin Frame Studio
Design to fly like a bird.
This frame is designed for a toothpick style hexacopter.
If you want to mount additional ESCs under the frame, the Minimal Bottom Plate 1.5mm is reccomended for protecting them.
- FC and ESC mounting holes: 25.5x25.5mm, 20x20mm, 16x16mm, M2
- Motor mounting holes: 9x9mm -12x12mm, M2
- Weight: About 9.5g
- Betaflight Motors Mixer: HEX X

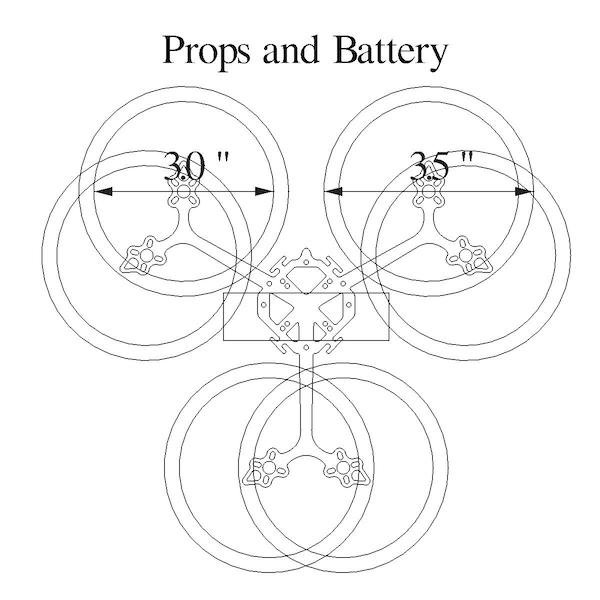

The recommended prop size is 3". As for 3.5", it is possible but a little bit tight for mounting a battery.

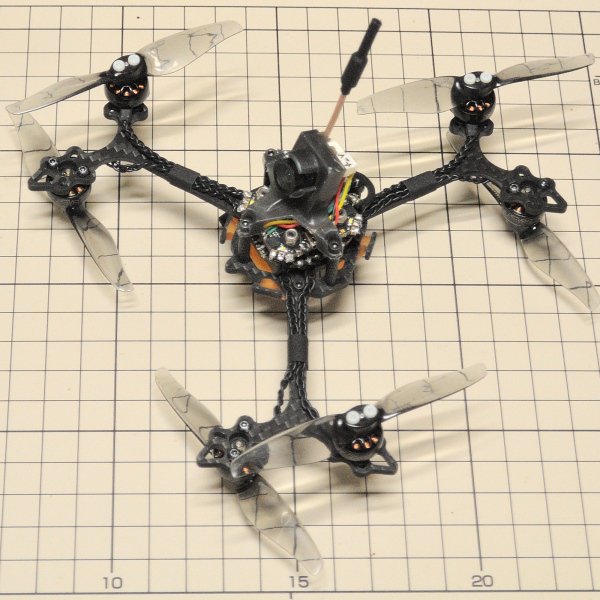

Using a not-too-simplified AIO flight controller which has enough soldering pads such as two sets of UARTs and a LED strip, it is not difficult to build a hexacopter by adding a 4-in-1 ESC or two individual ESCs. The following picture shows an example of a 3" build using a JHEMCU GHF13AIO FC F411 2-4S 13A with a 16x16mm 4-in-1 ESC by Flywoo.
GHF13AIO has soldering pads for LED_STRIP and I2C, I used the LED_STRIP (A08) pad for Motor 5 and the SCL (B08) pad for Motor 6. The corresponding CLI diff are as follows:
resource MOTOR 5 A08
resource MOTOR 6 B08
resource LED_STRIP 1 NONE
resource I2C_SCL 1 NONE
timer B08 AF2
dma pin B08 0
# pin B08: DMA1 Stream 7 Channel 2
