GASB Phantom 3 inch

Hi guys,

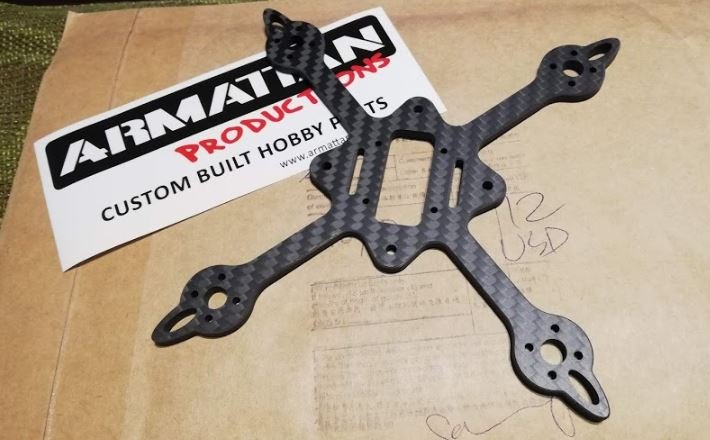

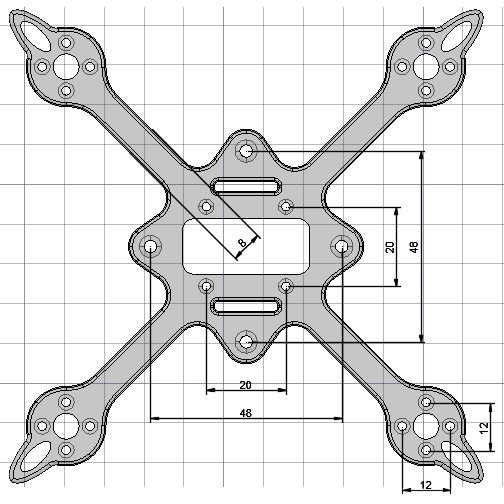

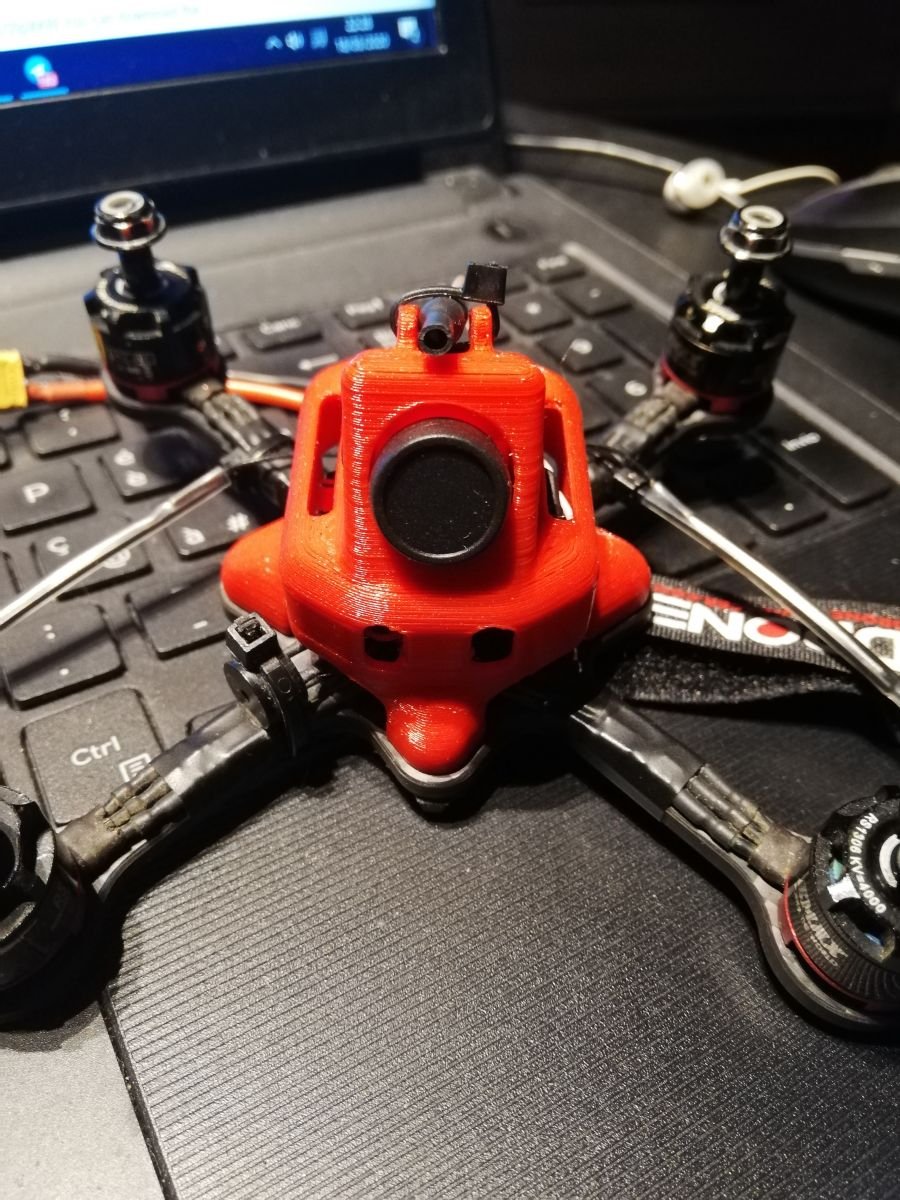

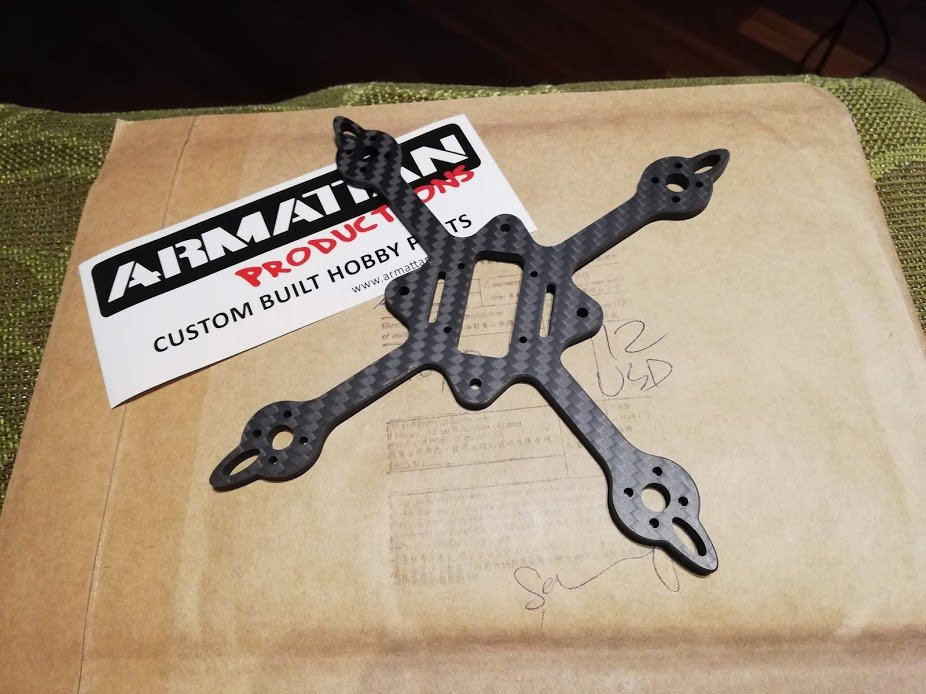

this is the GASB Phantom 3 inch, a real "X frame" for the category 3 inch XL. This frame is made to use a 20x20 tower (like a Mamba 405 stack mini MK2) and a FPV CAM 19x19 mm. The design is very accurate and mant "special work" are made like rounding and chamfered edges. Robustness is guaranteed by a 4 mm thickness of excellent quality carbon. For the canopy is available on thingiverse the model to print or you can use a Mutant 4 tpu canopy available in some web market.

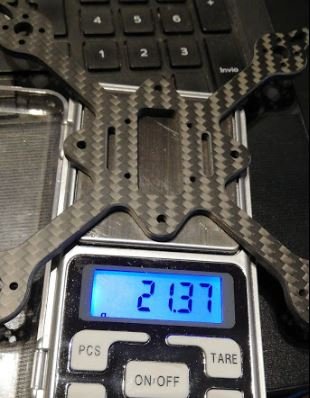

The weight of the carbon frame is just 21g.

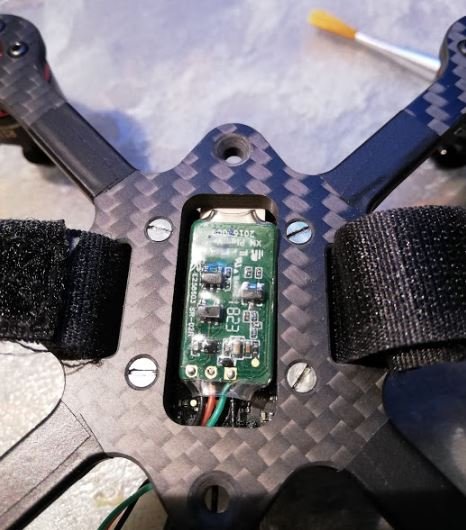

The big hole under the stack is made to accomodate the receiver (like FrSky R-XSR)

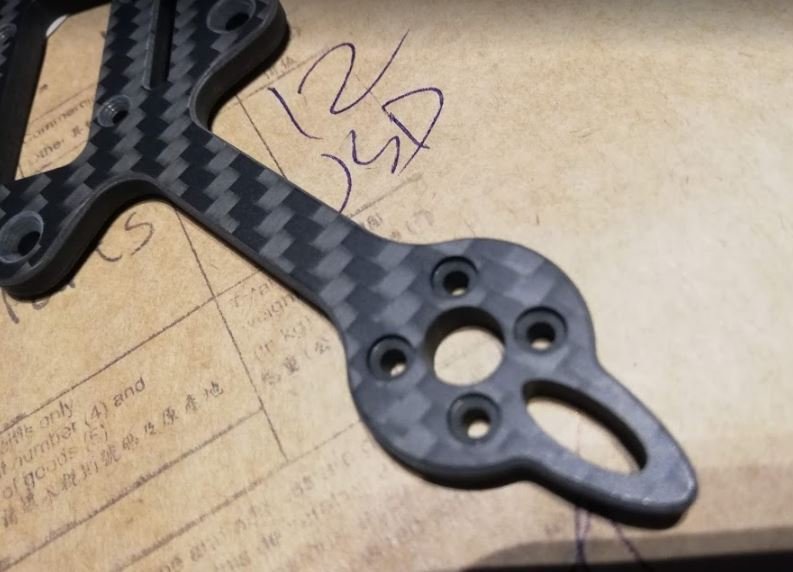

The motor screws are 12x12mm (ok for EMAX 1306 or many other motors). Even if the fram is 4 mm thickness the screws are into the frame for one millimeter. This allow a protection of the screws and to use stardard screws.

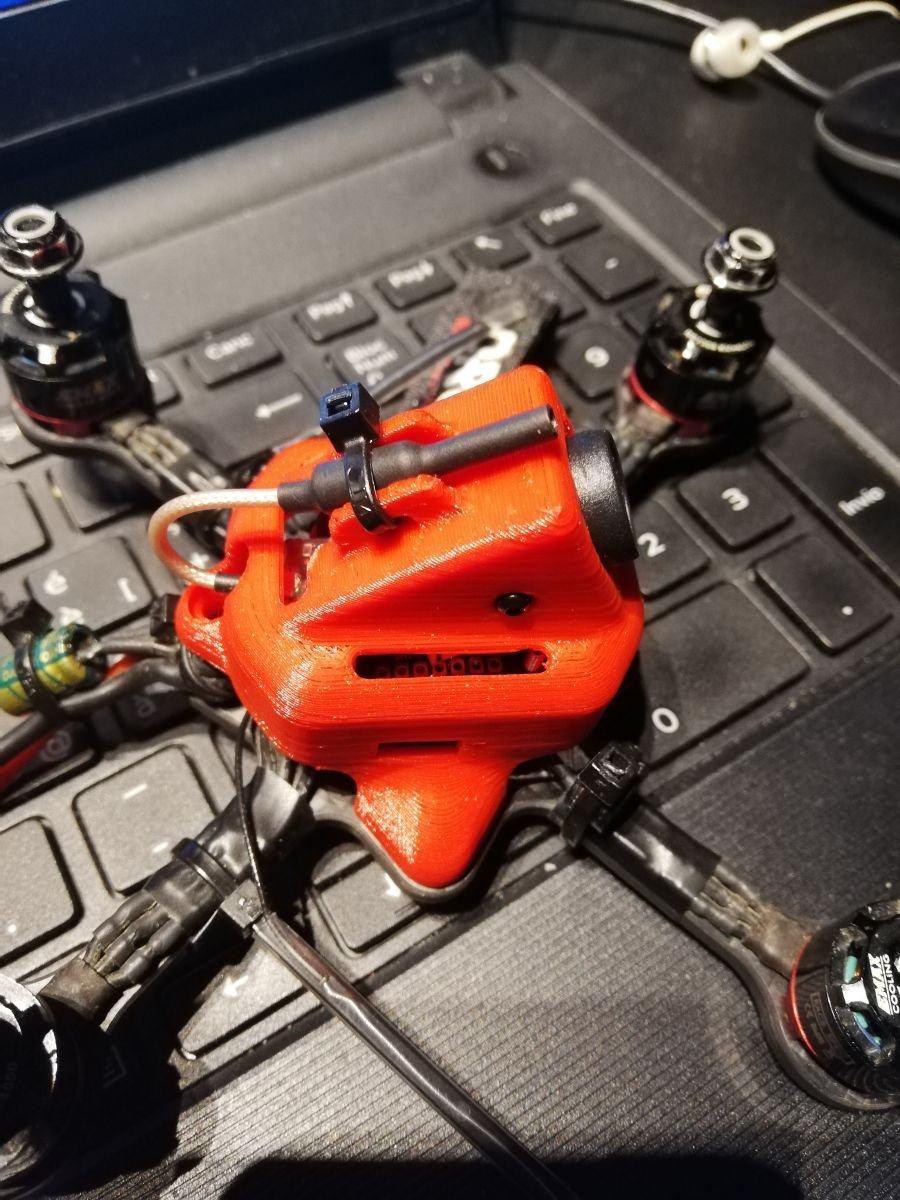

3D Model of the canopy is available on Thingiverse
