Q-frames
Q-frames designs frames and 3D models that can be found on Thingiverse or for people that want there own custom designs for them self.
The frames are designed to different standards because every body has his own preferences. Some want a light weight were others want a stronger frame. That is why Q-frames offer different types of frames in different sizes.
Q-frames will also over 3D models for the frames like cam mounts, arm protectors and more that can be downloaded for free from Thingiverse.
Ad this moment Q-frames is working to bring for all versions mounts for hd cam’s and arm and lipo protectors.
When ready, they can be found here. http://www.thingiverse.com/emiel1976/about
Ad this moment there are 2 different frames, the Q-SX218 and the Q-SX225 Extreme.
The Q-SX218 is a single bottom plate frame with an ultra low top plate. The wheelbase is 218mm.
The Q-SX225 Extreme comes in different options. The 5 inch has a wheelbase of 225mm. That is also the base for the other sizes.
Where the Q-SX218 is only available, the Q-SX225 is available in different styles like lightweight, single plate and from 4 to 6 inch.
Attention.
The frames made by Armattanproductions are made by the highest quality 3k carbon fiber.
All designs on Armattan Productions are manufactured-on-demand. It takes 7-14 business days to manufacture your order.
Any questions regarding your order should be directed to support@armattanproductions.com, other questions regarding the product can be send to Q-frames.
You can find the mail address in the top right.
?If you want to now what is comming next, follow me on instagram. https://www.instagram.com/emiel1976/
Raceslayer plus parts for the version with pod.
Item List
-

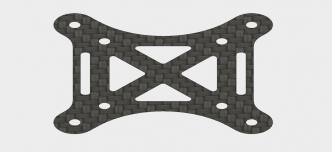

top dek rf
Quantity :1
-

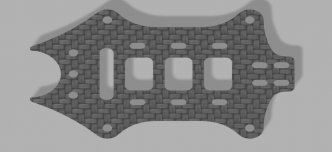

bottom rf1
Quantity :1
-

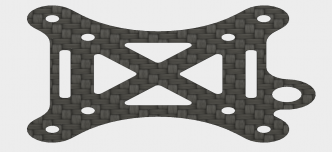

bottom rf
Quantity :1
-

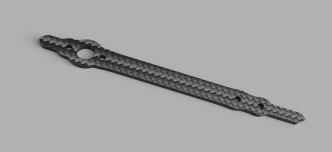

rechte_arm_210
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :4
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
11mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
Quantity :4
Description
The rf is a real race quad.
?It is designed to have a high topspeed and fast cornering whjat makes it an alround quadcopter.
?Thanks to the narrow arms and small mid partr it has a low drag what will result in high top speeds and the low weight will make that you can turn and accelerate and change from direction a lot faster. This combination makes the quad will be the great on all tracks.
Ad the moment you get 1 set of extra standoffs off 15mm. This is for the pod where i am working on. The pod lowers a bit more drag of the mid section and gives better protection to your fpv cam.
?It can not hold a HD cam ad the momen but for the pod and the carbon version, there will be a HD cam mount.
There will also be arm protectors.
?If you are intertested in the extra options like the cam mount, pod and other features, contact my in Instagram or send me a mail.
The frame now comes with 2 extra arms for free.
?For more info about the pod and other parts, follow me on Instagram
Additional Information
Specs:
Weight: 58G carbon version, 65g pod version. Weight can be a bit different from the pod version because i am still working on it to improve it.
?Size: 210 size
Arms: 10mm width and 4mm thick. There will come a 5mm version arm.
?Standoffs: 25mm 5.5 diameter.
?Bottom and top plates are all 1,5mm thick.
