Space Cowboy Quad Racers
Lightweight racing focused quad copters designed by Space Cowboy Drone Design. Our goal is to create designs with the best mix of strength and well thought out component placement rolled into a competitive light weight package.
ATTENTION: SCX-200 V2.1 kits and parts now available.
SCX-200 V2.1 available now! SCX-175 and SCX-230 V2.1 (4" and 6" configurations) are coming very soon too!
ATTENTION: All kits purchased through this store are made to order.
Kits listed here are custom made and are not kept in stock. Expect 7-14 business days for production prior to shipment. Any questions regarding your order should be directed to support@armattanproductions.com, technical or design questions can be directed to me via the e-mail link in the upper right. If you are looking to get your hands on a SCX-200 quickly please check out Armattan Lite SCX-200 at http://www.armattanquads.com/scx-200/, this version of the frame comes in two brilliant color combos and is stocked directly by Armattan and it's distributors.
XLR-2 EMAX POWER PACK EDITION
Item List
-

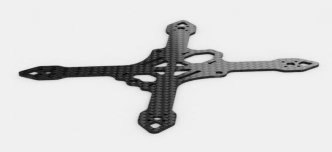

XLR-2 TOP PLATE
Quantity :1
-

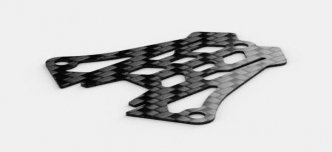

XLR-2 FC PLATE
Quantity :1
-
XLR-2 BASE PLATE
Quantity :1
-

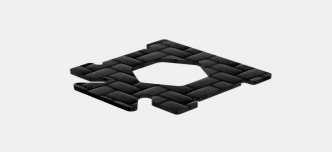

XLR-2 CAM PLATE
Quantity :1
-

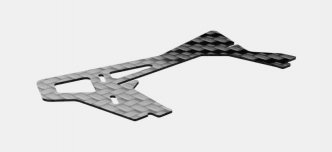

XLR-2 SIDE PLATE EMAX POWER PACK VERSION
Quantity :2
-
M3 Nylon Nuts (per piece)
Quantity :3
-
Quantity :3
-
-
Description
XLR-2 EMAX Power Pack Edition BETA Kit!
XLR-2 is a scaled down version of the tried and true XLR-3 Stretch X design. This little frame is super light and designed specifically for the EMAX Micro Power Pack. The best part about the EMAX Micro Power Pack is that it takes out all the guess work of choosing components and includes most of what you need including flight controller, ESCs, motors and props. All you need to supply is a 2S battery, FPV system, and your favorite micro RX.
EMAX Power Pack can be purchased from EMAX directly or their vendors: http://emax-usa.com/emax-micro-brushless-power-system-combo-1/
And the best part is you can fly this little quad in small spaces yet it packs all the fun and acrobatic capabilities of it's bigger brothers!
XLR-2 Overview and BETA Build TIps Videos:
Specs:
Frame Size: ~110mm motor to motor
Layout: Stretch X
Lower Plate: 2mm Carbon
All Other Plates: 1mm Carbon
Max Prop size: 2.3"
Motor Mounting: EMAX RS1104 Specific mounting
Weight: Under 16g
Additional Information
Suggested Components:
FPV Camera: 16x16mm size CMOS Micro Cam
FPV VTX: FX806tc, VM275t, CM275t, etc
Flight Controller: EMAX Femto F3
Motors: EMAX RS1104
ESCs: EMAX Bullet 6A
Props: EMAX T2345BN (2.3")
Battery: 300-500mAh 2S battery
