Warhead FPV frames
SCX 200 Combined Camera Kit
Item List
-

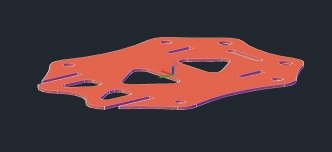

SCX INTEGRATED TOP PLATE 1
Quantity :1
-

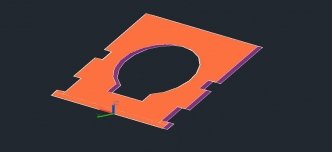

SCX INTEGRATED GOPRO BACK PLATE 1
Quantity :1
-

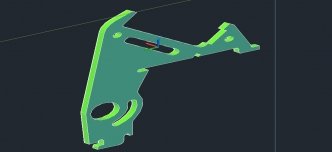

SCX INTEGRATED CAMERA PLATE 2mm
Quantity :2
-
Quantity :2
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
-
M2 Nylon Washer (per piece)
Quantity :2
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :2
-
5mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :2
Description
After puchasing the amazing SCX frame from Space Cowboy - Maurice i wanted to mount the GoPro to it.
For that reason i invested in the Session mount that Maurice released here.
Unfortunatelly after few crashes that mount made its toll on the camera and its back aluminium plate got so bent out of shape, that the little button on the bottom of it fell out never to be seen again.
That made me think.
I have spoken to Maurice about it and made a decision to make my own design that would be a bit kinder to the Session.
So here it is.
It incorporates mounts for both the cameras and stiffens up the whole frame even more.
It also protects the fron lense glass as well as the back of the camera from damage from the mount itself.
I hope you'll like it as much as i do :)
Additional Information
Please be aware that like all the other orders from Armattan Productions - this kit is made to order and it will take a little while for it to get to you.
Also please note that the current design is made to fit the SCX fame made by Space Cowboy - Maurice.
The Session uptilt is 40 degrees.
Please be aware that there is a bit of filing required to fit the back plate to the rest of the pieces.
If you want to use it on the SCX sold by Armattan Quads you might have ti file 0.5mm ffrom the bottom of the camera plates - this is due to a different thickness of midplate used on both of the kits.
