Adams 2017 Racer
Item List
-
2017 Racer - Middle Plate
Quantity :1
-
2017 Racer - Bottom Plate
Quantity :1
-
2017 Racer - Arm
Quantity :4
-
2017 racer top plate with holes
Quantity :1
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
-
Quantity :4
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
8mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
Hey All,
EDIT: This kit has been updated with some holes in the top plate which allow the XT60 to be cable tied down.
This is my racing quad design that I plan to use for 2017. It's main features are it's low air resistance which is aided by it's 8mm wide, 5mm thick arms. It has a small main section (no room for HD camera) which is designed to hold the battery on the top of the quad. Many new race frames use a bottom mount battery, but my preference is top mounting. It has 30mm standoffs so it's not too high. There is a hole at the front of the middle plate to mount a standard HS1177 bracket. The frame weight is about 75g, but yours might be slightly different as Armattan's hardware will be a little different to what I'm using.

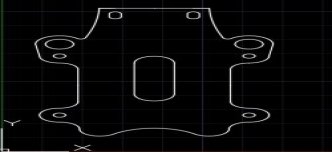

The top plate has been designed so a 1500mAh 4S battery will be well supported. There are 2 holes on the back of the top plate which can house an SMA connector for your VTX.
One way that weight has been saved on this frame is by using less metal hardware. The arms have 2 bolts holding them on, both of which go into stand offs. I highly reccomend using loctite on these bolts to ensure they don't come loose!
Thanks for looking at my quadcopter design, and I hope you like it :)
