ACHILLES 210 FRAME KIT


Price : $ 54.77

Propeller size : None



Description

Description

The Achilles frame is 210mm motor to motor and fits 5" props for 22xx motors. This frame is in an X configuration, but not quite a true X. This frame is a serious race frame and with the combination of the X style and extremely lightweight frame, it is incredibly agile and flies like it's on rails. I designed this frame to house all of your gear with multiple points for straps and zip ties. Every piece of equipment has a place to be housed (no more guessing where to put your gear)! This frame is extremely light but strong in all the right places.



  • 3K Matte Carbon Fiber frame featuring a 3mm thick "Unibody" bottom plate ( 1.5mm top plate ).
  • M3 motor mounting patterns.
  • Carbon Fiber extends past motors to help protect in crash.
  • Supports 26mm cams in cases ( Should support 31mm cams such as the RunCam 31mm x 31mm, will update as soon as I receive the frame)
  • Supports HD camera (GoPro, Xiaomi Yi)
  • Supports Naze32 Flight controllers and others alike ( Tornado F3, DoDo, SP Racing F3, Ect )

Recommended Setup

  • 2204-2208 size motors with M3 16x19mm mounting pattern
  • 12-18A ESCs
  • 5” props
  • 3-4S power, 1300-1800mAh capacity batteries
  • Mini CCD camera with tilt bracket



 Includes
  • 3mm 3k Matte Carbon Fiber bottom plate
  • 1.5mm 3k Matte Carbon Fiber top plate
  • 8 - 35mm black anodized aluminum standoffs
  • 18 - 8mm  black anodized bolts



 Specifications
  • Frame Weight: 75g (without standoffs)
  • Frame Size: 210mm (diagonal motor to motor)

Additional Information

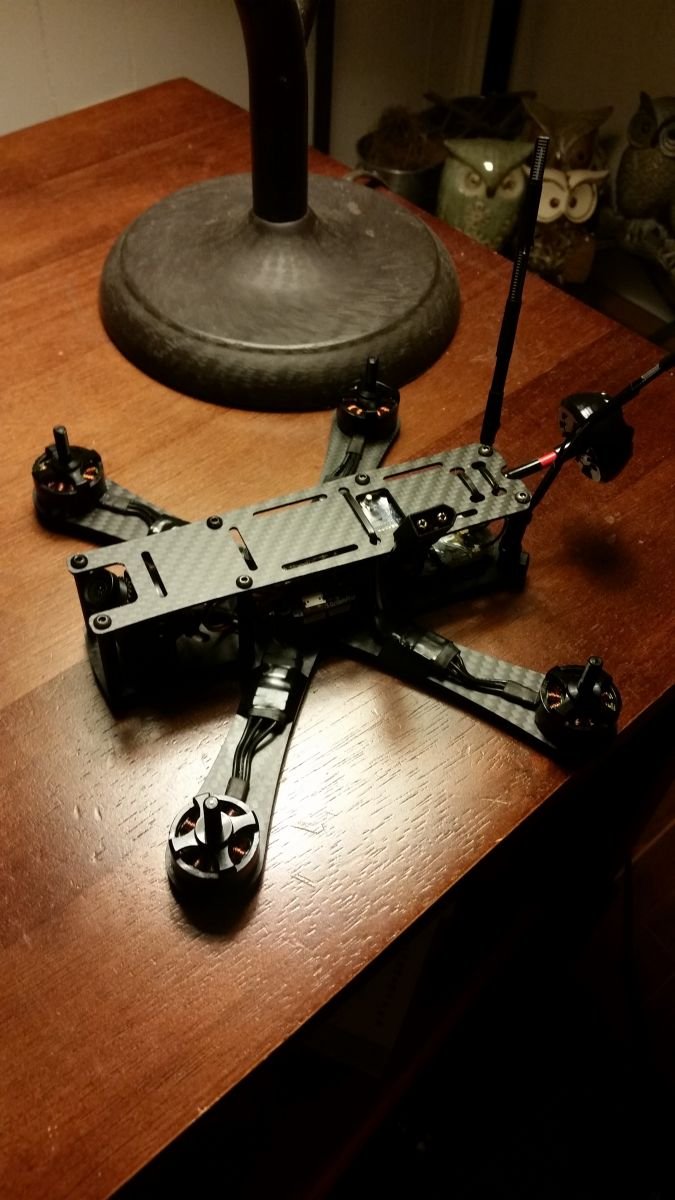

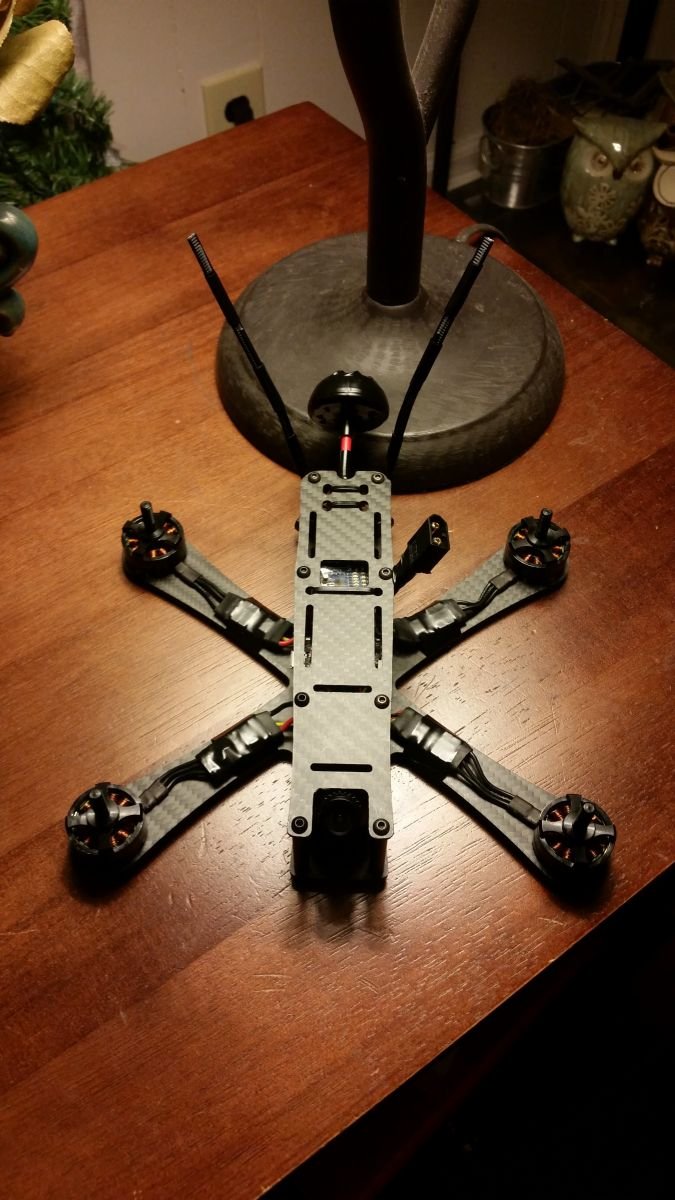

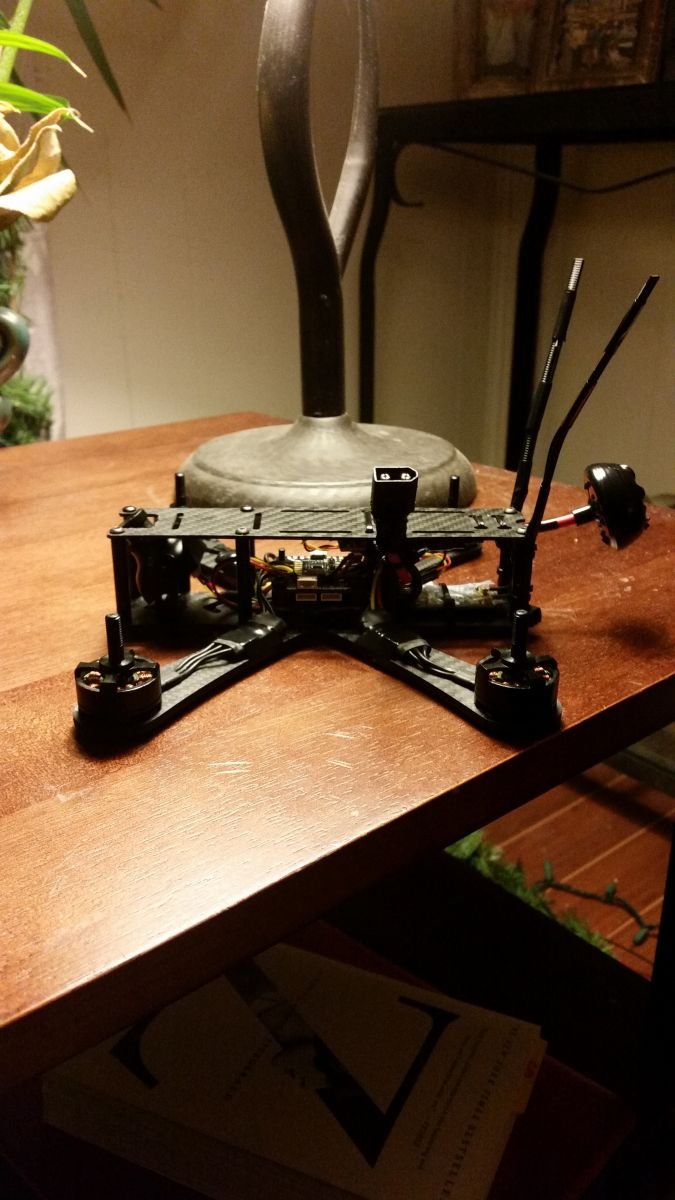

ACHILLES 210 FRAME

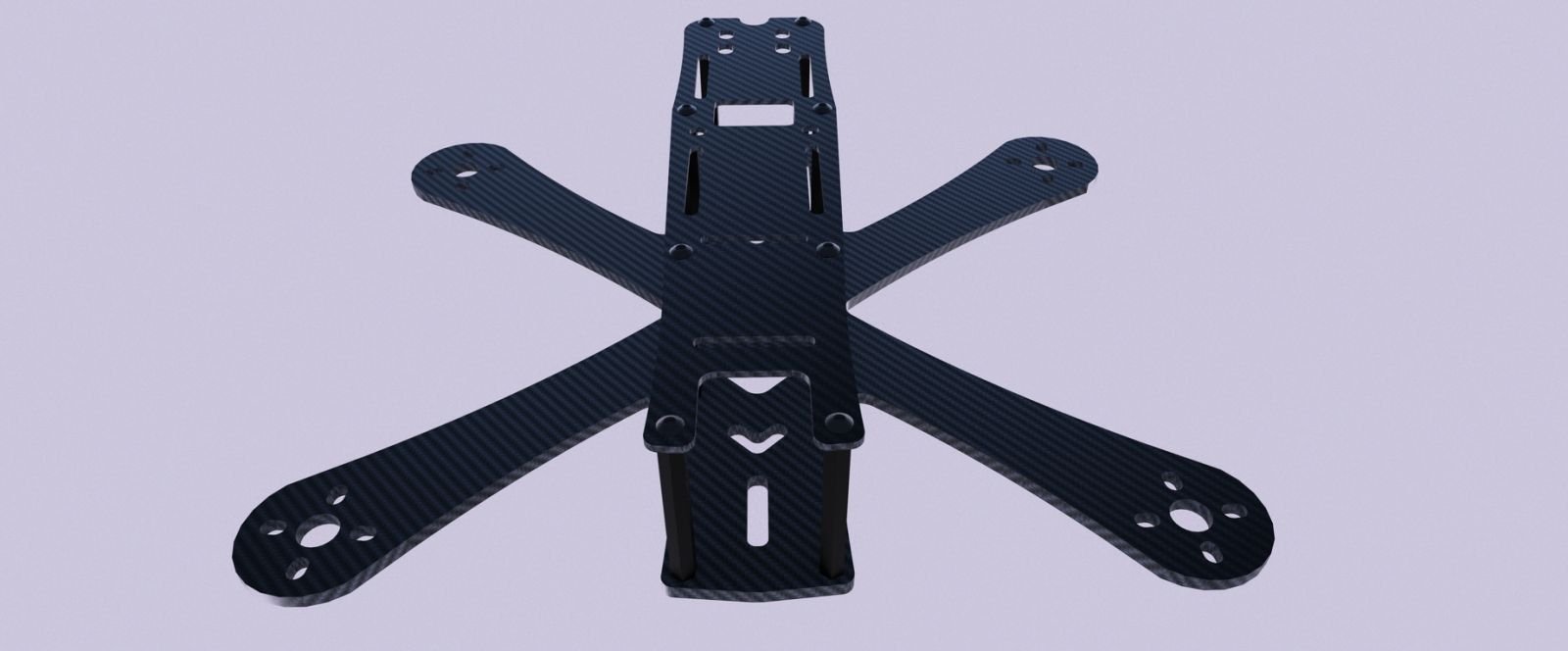

ACHILLES 210 FRAME FRONT VIEW RENDERING

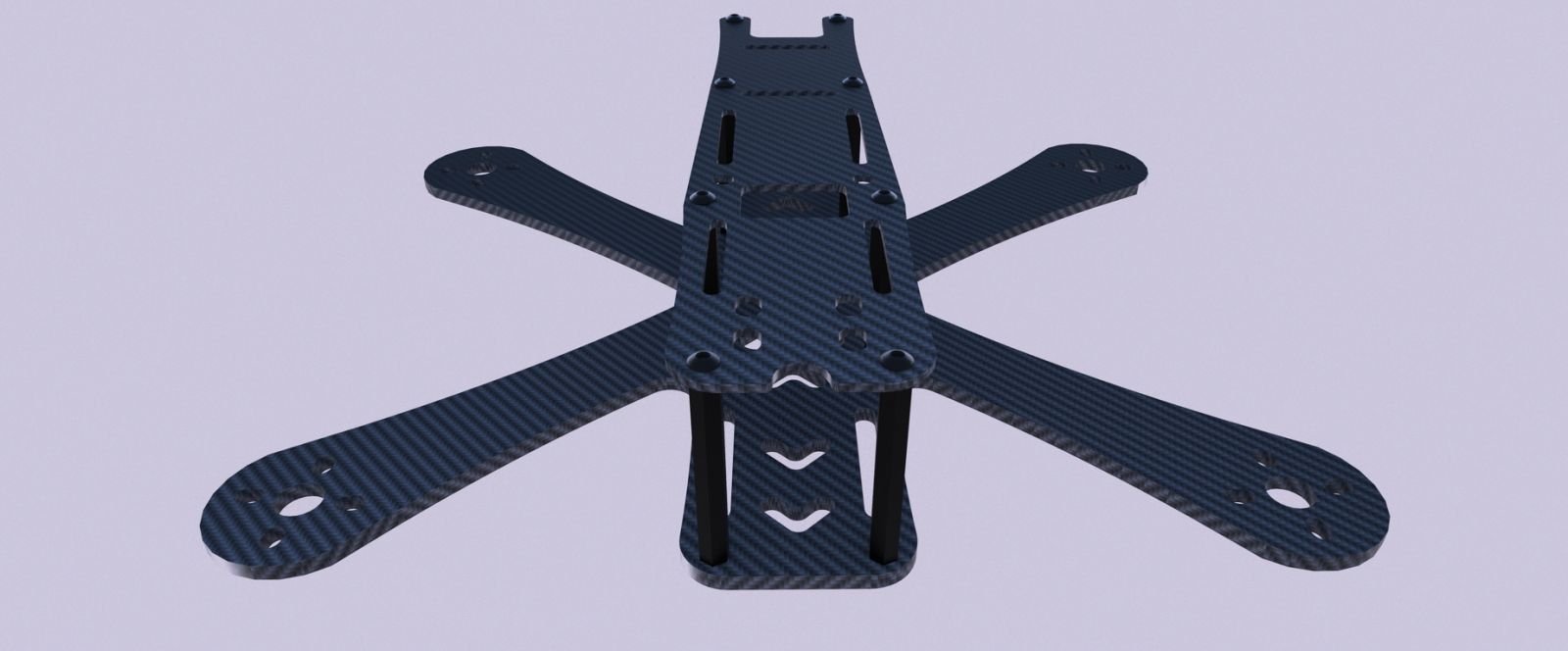

ACHILLES 210 FRAME REAR VIEW RENDERING

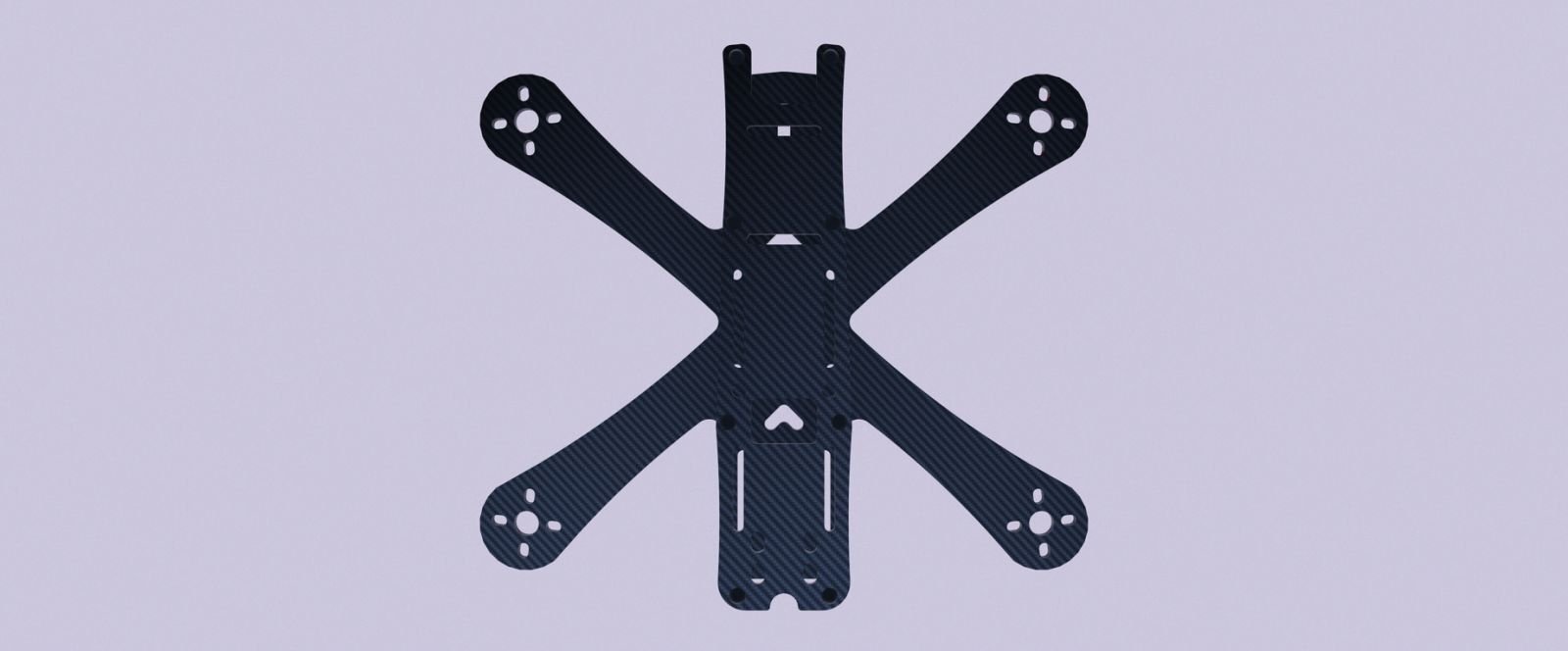

ACHILLES 210 FRAME TOP VIEW RENDERING
