RotoRex Frames
Having fun creating new and exciting frames to fly. Here I offer some of my creations for everyone to enjoy. Detail oriented designs made to be strong, light, fast and fun.
ATTENTION: All kits purchased through this store are made to order.
Kits listed here are custom made and are not kept in stock. Expect 7-14 business days for production prior to shipment. Any questions regarding your order should be directed to support@armattanproductions.com, technical or design questions can be directed to me via the e-mail link in the upper right.
Yellow Jacket 130
Item List
-

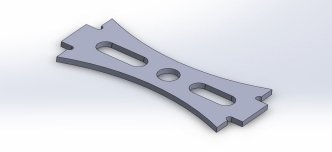

Yellow Jacket 130 Top Plate 2mm
Quantity :1
-

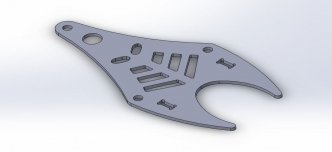

Yellow Jacket 130 HS1177 FPV Cam Mount 2mm
Quantity :2
-

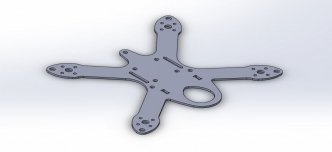

Yellow Jacket 130 Main Frame 3mm
Quantity :1
-
11mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :4
-
Quantity :4
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :3
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
OVERVIEW
The Yellow Jacket 130 is a uncompromising 3" quad. Unlike other 3" quads, the Yellow Jacket does not compromised on video quality letting you run a full size fpv vtx and a full HS1177 sized fpv camera. The frame utilizes the small 20mm mounting pattern of the Piko BLX flight controller. Couple that with the ESC and FPV stack from Furious FPV and you will have one clean and compact build. Alternatively use the FPV vtx of your choice and ESCs mounted on the arms for ultimate customization running the parts you want without problem. Join the discussion and find out more about the frame on the RCgroups thread for the Yellow Jacket (https://www.rcgroups.com/forums/showthread.php?2845358-Yellow-Jacket-130-HS1177-Compatible-3-Drone#post37015818)
FEATURES
- Uncompromising 3" mini quad
- Can run any 13xx or 14xx size motors with standard M2 12mm mounting pattern.
- Wide camera angle options from 0-45 degrees.
- Fits HS1177 style FPV cameras with lens size up to 2.1mm!
- Super strong one piece main body.
- 20mm Flight controller mounting pattern
INSPIRATION FOR THE DESIGN
The Yellow Jacket 130 evolved out of a desire to have a 3" 130 sized copter that didn't compromise on the fpv camera. Many of the smaller fpv cameras do not have as good dynamic range or low light performance as a standard HS1177 camera. Thus the Yellow Jacket 130 was birthed taking design inspirations from is bigger brother (the Hornet 220 http://armattanproductions.com/pages/kit_detail/433?). After trying many ideas through 3D modeling software I settled on a design that was well proportioned and accommodated the full sized fpv equipment that I desired.
RECOMMENDED PARTS
- 4000kv 1306 or 1406 motors
- 3x4.5x3 propellers
- 20a esc (Aikon SEFM) or 20mm mounting pattern 2 in 1 ESCs such as the Furious FPV Silky
- Lumenier fpv transmitter (25/200/600 mw) or Furious FPV Innova
- HS1177 fpv camera
- Flight controller with 20mm mounting pattern (such as Piko BLX)
- 800mah 4S Lipo
- Battery strap (15mm wide, ~200mm long)
MEDIA
DSC09592%20-%20Copy.JPG)
DSC09596%20-%20Copy.JPG)
DSC09601%20-%20Copy.JPG)
DSC09609%20-%20Copy.JPG)
DSC09611%20-%20Copy.JPG)
DSC09612%20-%20Copy.JPG)
