TyFromMD
TF-135m2 Brushless for 1104 1105b motors PikoBLX Fc NO HARDWARE
Price :
$
17.30
Propeller size :
3"
Item List
Description

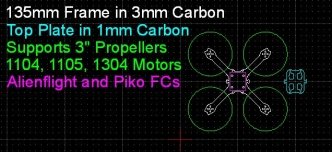

This kit includes the main plate of frame and top plate.
IMPORTANT: You will need to source M2 screws and standoffs to complete this kit to support top plate. I recommend 12mm M2 standsoffs. If you don't want to source your own M2 screws and standoffs, check out the M3 version here.
http://armattanproductions.com/pages/kit_detail/559
Screw holes for motors will support 1304s but motors will overhang the mounts on the outside by approxiately 1.5mm on sides.
The quad pictured is my build with the TF-135M2 Frame with:
Customer Alienflight F3 flight controller
Littlebee 20a BLHELI_S 20A Escs
RotorX1105B 6500KV motors
HQProp 3x3
Eachine MC01 AIO Camera/VTX
