JaxxGTA Kustom Kwads
Welcome to my store. Here you will find a selection of mini quadcopters designed to be light, functional and stylish.
I specialise in Design, 3D Modelling and Photo Realistic Rendering. Contact me via email at dwgserv@gmail.com for any queries.
BarraCuda 210 V2.2
Price :
$
58.42
Propeller size :
5"
Item List
-
Barracuda 210 v2 Spine Plate
Quantity :1
-
Barracuda 210 v2 Camera Plate
Quantity :2
-
Barracuda 210 v2 Bracing Plate
Quantity :1
-
Barracuda 210 v2 Top Plate
Quantity :1
-
Barracuda 210 v2 Bottom Plate
Quantity :1
-
Barracuda 210 v2 ARM
Quantity :4
-
Barracuda_210_v2.1 Bottom Plate 2mm
Quantity :1
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :12
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :12
-
M3 Nylon Nuts (per piece)
Quantity :4
-
Quantity :4
-
6mm M3 M/F Nylon Standoff (per piece)
Quantity :4
Description

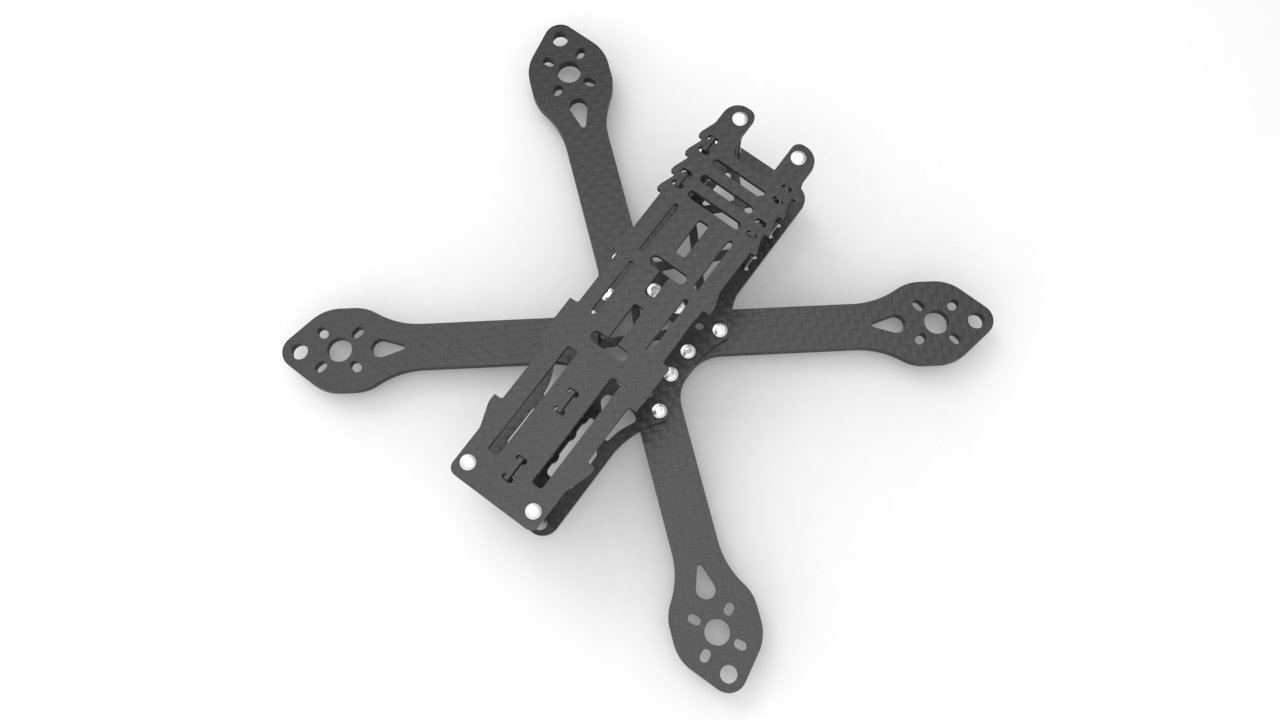

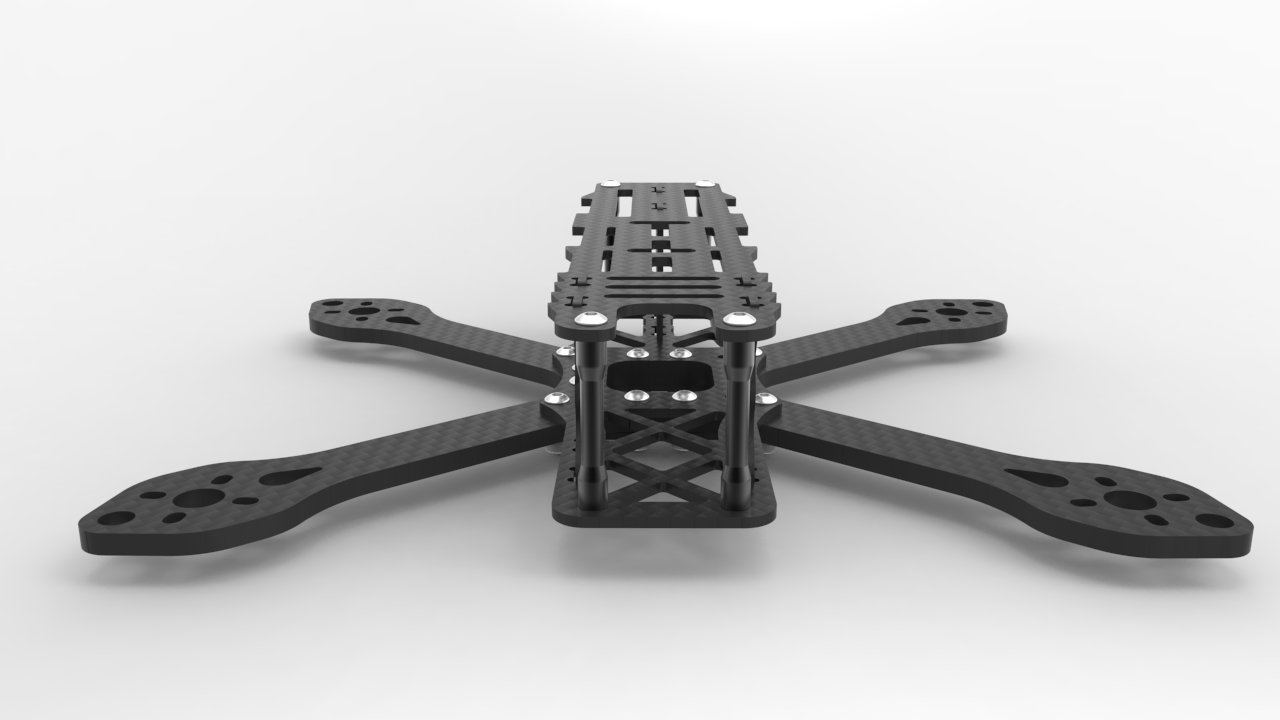

Introducing the BarraCuda 210 v2.2
Version 2.0 has the following improvements:
- Design of the top and bottom plates have been optimized to reduce weight & cost slightly while retaining structural strength and stiffness
- Top and Bottom plates have been extended by 10mm to allow use of the popular 1800mah batteries for longer flight times
- All tolerances have been reduced to ensure a very tight fit between parts. However due to slight variences in production runs occasionally some lite sanding of tabs may be required
The rest of the specs are as per V1.1
- An X frame design with 210mm motor to motor
- A unique Spine plate for better mounting options and a cleaner build
- Cutout & holes for mounting an XT60 using this holder
- Support for 5 inch props
- Camera side plates to support HS1177 style camera
- Super rigid & strong yet light weight construction
- 2mm thick Top & Bottom Plates
- 4mm thick Arms
- Includes optional bracing plate for those who push the envelope and need extra crash protection
- Weight is 100g incl. standard steel hardware (excl. optional bracing plate @ 3.6g)
- Motor mount hole support the popular 18xx & 22xx size motors
- 30.5mm spacing for PDB and Flight controller mounting.
(Please note the purple anodized hardware shown is not currently available directly from Armattan Productions but is available from various other online stores. Standard steel hardware and black aluminum standoffs are supplied in this kit.)
Spare parts can be purchased separately in my store
