movr frames
hexamovr 4-2 mm
Item List
-

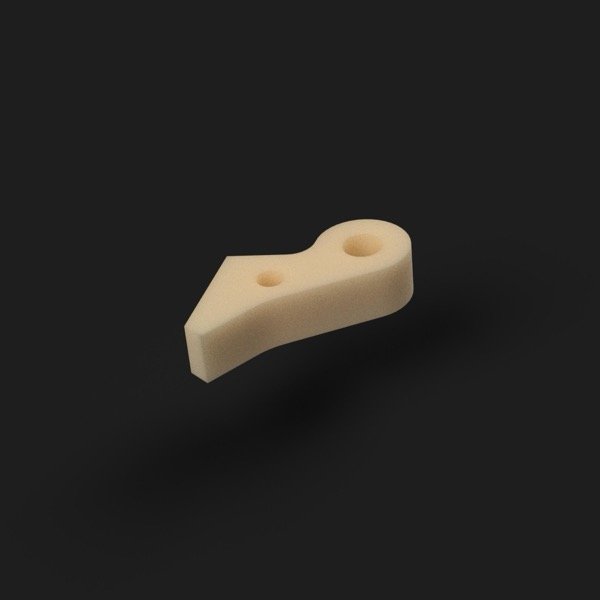

hexamovr fc filler 4mm
Quantity :2
-

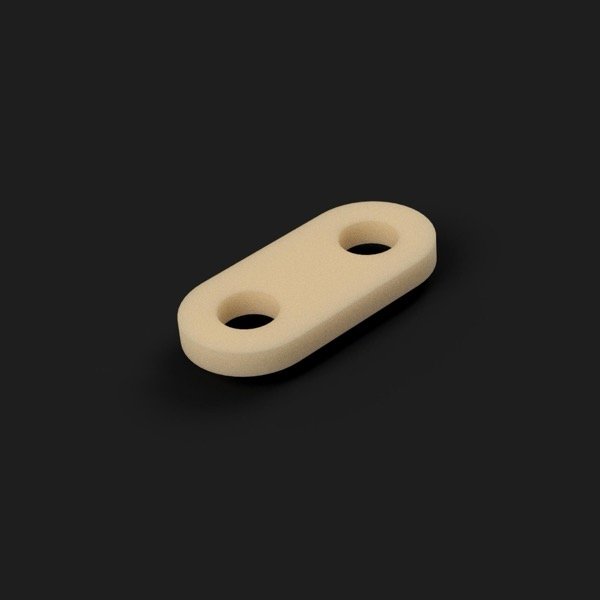

hexamovr washer 2mm / armattan sunk nuts to be used
Quantity :3
-
hexamovr marm 4mm
Quantity :3
-
hexamovr arm 4mm
Quantity :3
-
hexamovr cp bottom 2mm
Quantity :1
-
hexamovr cp top 2mm / armattan sunk nuts to be used
Quantity :1
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :3
-
11mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :9
Description
Arm thickness: 4 mm
Arm width: 12 / 10 mm
Centerplate thickness: 2 mm
FC mounting: 20x20 mm m2 / 30x30 mm m3
Motor mounting: 12 mm m2 / 16mm m3
Motor to motor diagonal distance: 270 mm
It is recommended to use a light motor setup (eg. 1804, 2004, 2104 motors). Strong motor setups (eg. 2306) lead to more torsion of the arms in flight which requires more pid tuning. This is due to the unique arm design and can not be prevented.
The basic kit contains the parts which are needed to build the frame.
Add additional screws / spacers / standoffs according to your needs for mounting FC and ESC. The Frame thickness is 8mm at the FC mounting.
You also have to add the screws for mounting the motors according to your needs. Pay attention to the arm thickness.
Click on an item in the items list for more details of an item in this kit.
