MFS - Martin Frame Studio
Solomons K3B Type2 Kit
Price :
$
18.82
Propeller size :
3"
Item List
-
Solomons K3 Type2 Arm 2.5mm
Quantity :6
-
Solomons K3 Type2 Arm-B 2.5mm
Quantity :2
Description

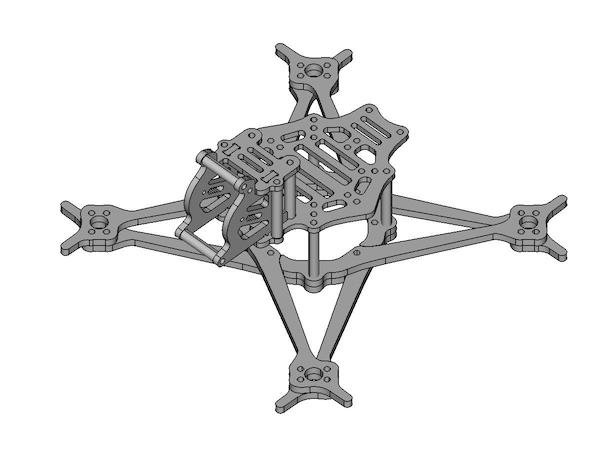

This is a variation of "SOLOMONS K3B TYPE1 KIT". The built-in hook for rubber band has been eliminated, and mounting holes (30.5x30.5mm, M2) have been added for convenient use with "FPV CAGE V2 FOR 14MM CAM".
- Wheelbase : 127.3mm
- Total thickness : 5mm (2.5mm each)
- Motor mount : φ9mm, M2 (2pcs. each)
- FC mount : 25.5x25.5mm, M2
- Compatible with whoop style USB connector
- Buit-in battery strap holder (can use up to 15mm width strap)
- Weight : Approx. 16.5g (Carbon only)
Note : This frame kit has very tight dimensions for the use of large camera mounts; when using the "FPV CAGE V2 FOR 14MM CAM", you must use standoffs of the proper length to prevent propellers interference.

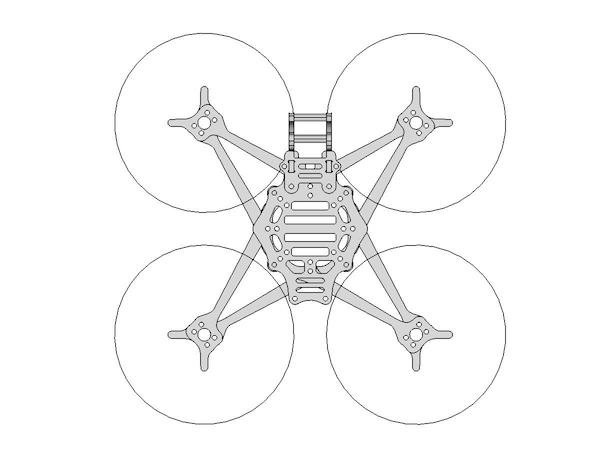

Dimensions :
Lower Layer :
Upper Layer :
Additional Information
Using the "FPV CAGE V2 FOR 14MM CAM" :
